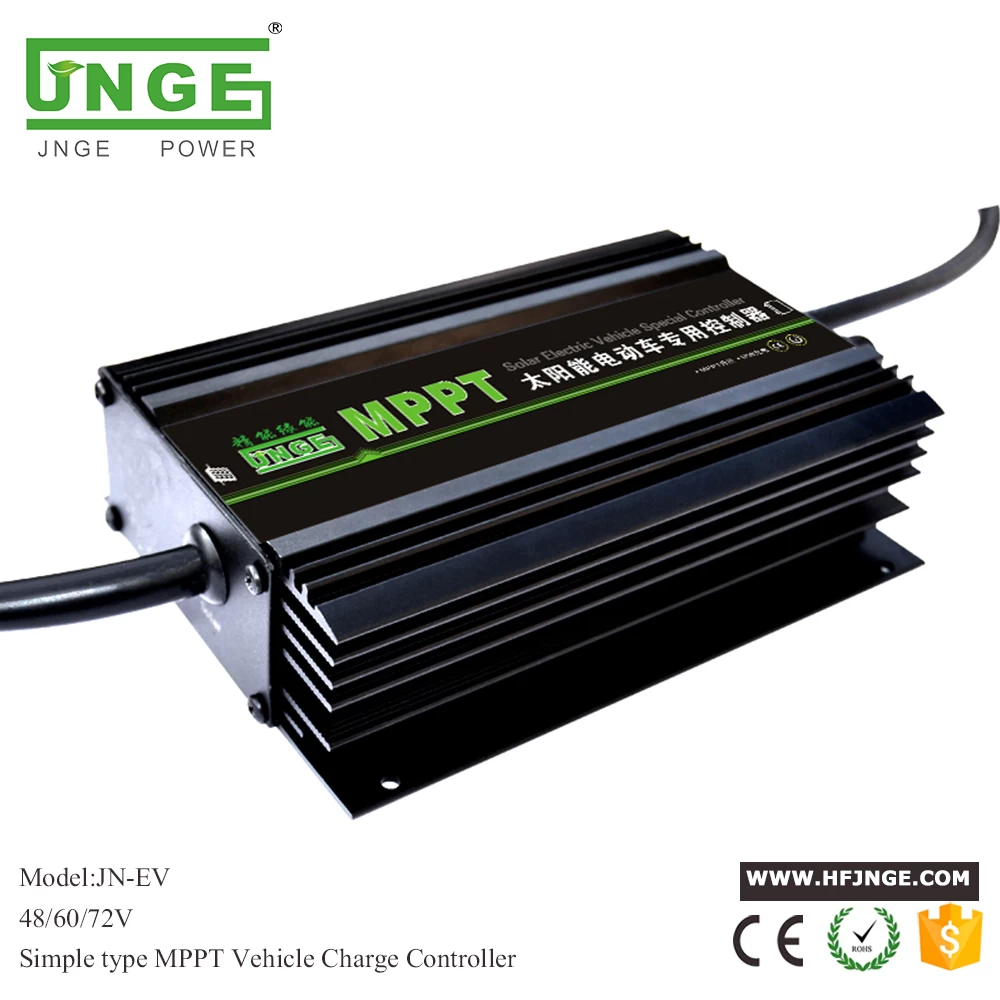

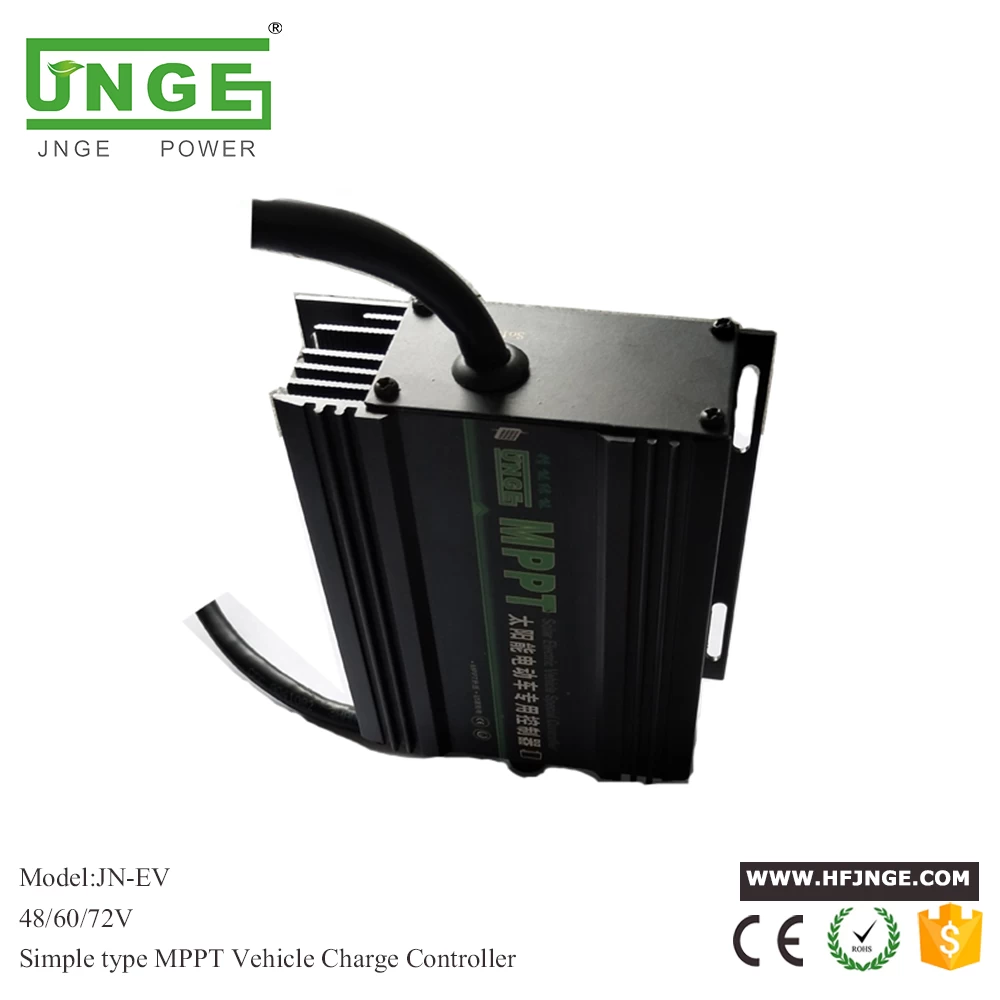

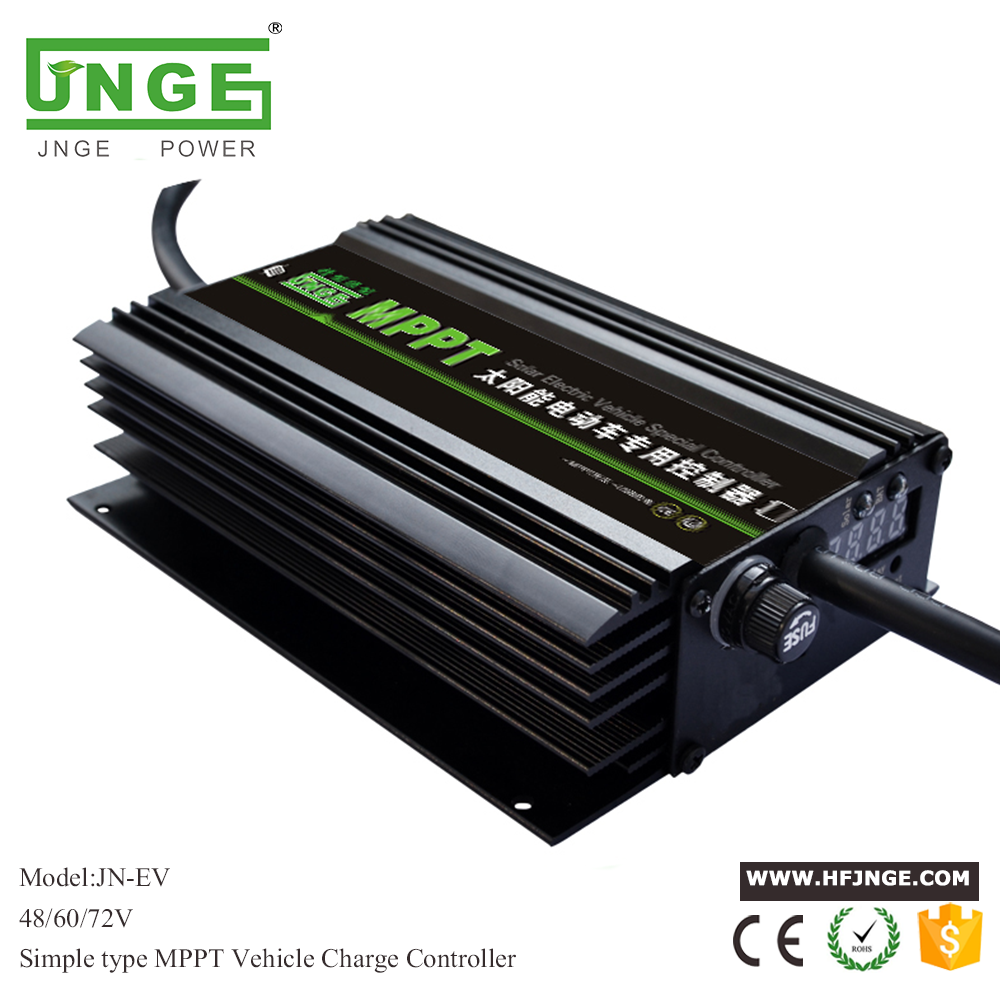

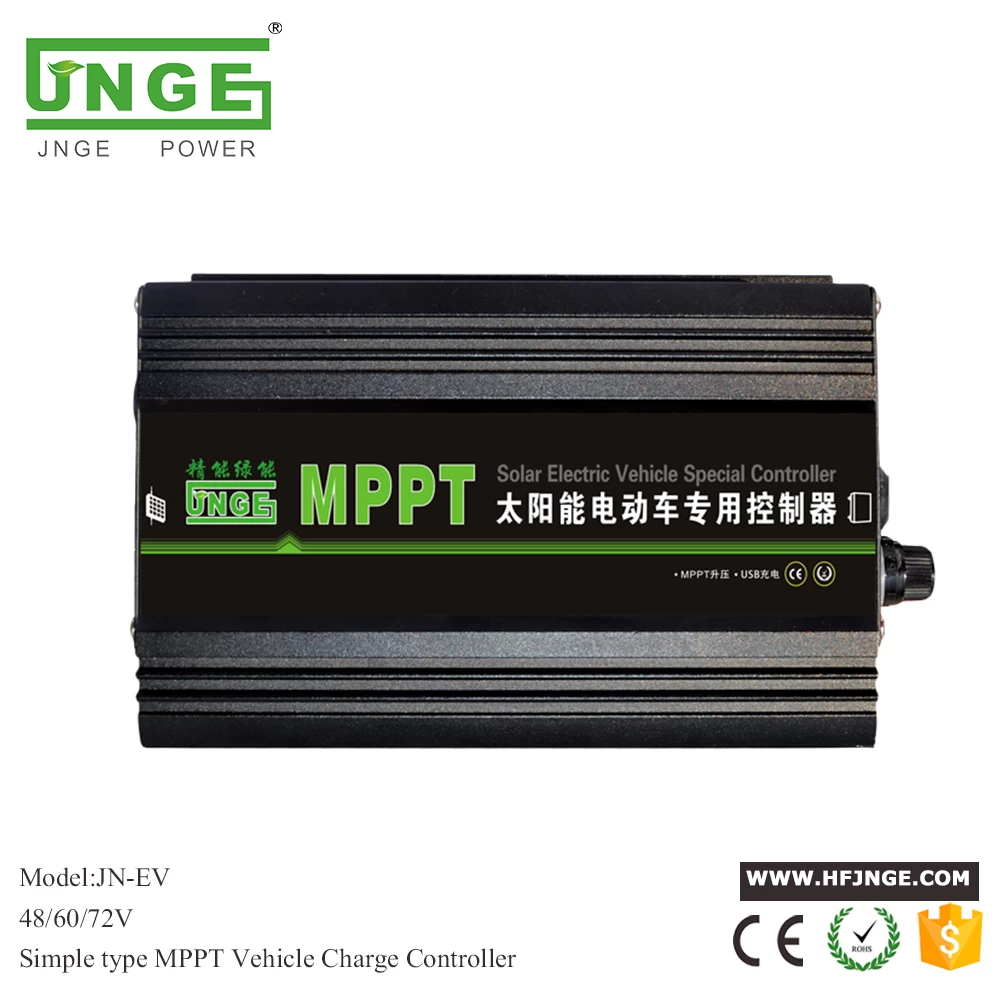

Simple type booster MPPT Solar Electric vehicle special controller 48v 60v 72v

Simple type booster MPPT Solar Electric vehicle special controller is a sophisticated  solar charge controller family  for low cost appl ications.The electronic circui t is equipped with a microcontrol ler that provides high-efficiency charging  technology together with a number of outstanding status display, warning and safety functions.



Economical Type MPPT Solar Electric Vehicle Special Controller


Product Advantages:

1.High performance booster MPPT charging ways.

2. The system uses solar panel power supply, reduce the power consumption of the battery.

3. The LED status indicator.

4. Digital tube current-time display charging current, battery voltage, and solar energy input voltage, running status be clear at a glance.

5.Complete over-charge, anti-recoil, anti-reverse, and short circuit protection.

6. One-click set battery voltage grade (48V, 60V, 72V three battery voltage grade easy one-click settings).

7. System USES a fool type design, easy to use, safe and reliable.


Technical parameters

PV open circuit voltage

16V50V

MPPT Voltage range

16V45V

MPPT efficiency

≥99%

Efficiency

≥95%

 No-load loss

< 5mA

Solar input power

18V200W36V400W

Communication distance

≥5m

Battery

48Vor 60Vor 72V(One-click set)

Over-voltage protection

48V-58V60V-72V,72V-87V

12VDC power

6W

USB charge power

5W

system reset

One-click reset

Anti-reverse protection

When the battery positive and negative reverse connection, the fuse will fuse, the user to replace 10A, φ5×20 glass tube fuse.

Working temperature

-25℃ - +65℃

Weight

0.5Kg

Size

115×111×43(mm)
