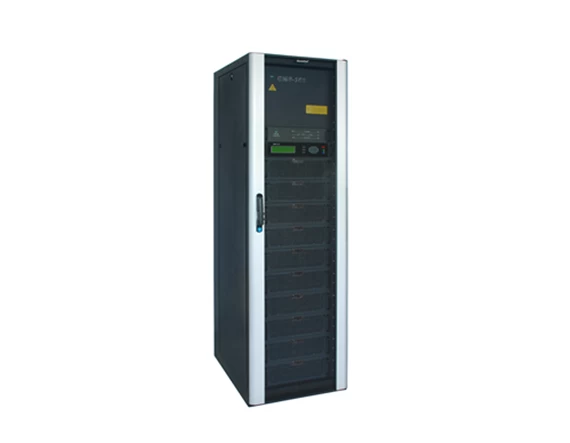

Sine Wave Modular Online UPS CMS-200/20

Power range: 20 to 200 kVA
Spec: 220/380VAC, 50/60Hz, 3-phase
Tech: high frequency modular UPS, rational redundancy.
Modular, hot-swappable, field-replaceable STS, monitor, UPS module.
Scalable from 20KVA to 200KVA. Parallel-capable up to 800KVA.

Facebook Twitter Pinterest LinkedIn 分享
Overview
CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. CMS Modular architecture can scale power as demand grows or as higher levels of availability are required. CMS UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.
Feature
    1.Rational redundant structure
    2.UPS module: 20 kVA System: 200kVA
    3.Great performance index
    overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99
    4.N+X module-level redundancy UPS System
    5.Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
    6.Each module automatically even shares the input and output current, all UPS modules share batteries
    7.Battery management:
    Battery discharge management, auto-transfer between floating and even charging, temperature compensation
    8.Space-saving high density design, Rack-based for agility and aesthetics
    9.Monitor Function C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;
    B/S-Oriented Architecture which is available to check via IE
    10.Standard configuration
    Manual maintenance bypass, SPD(Class C), RS232, RS485/RS422 Communication ports, Remote monitor software, day contacts
    11.Optional configuration
    EPO, Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
    IDC date center, government,telecom,bank,security,transportation,broadcast&TV network, HealthCare, Communication, E-business,Finance etc.
