Description:

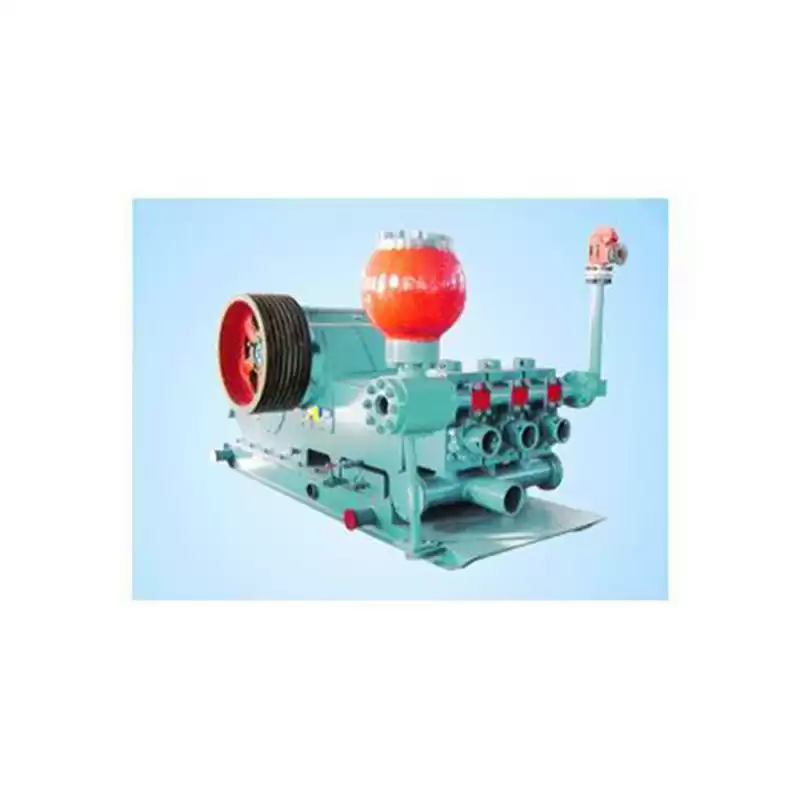

Reciprocating pumps include piston pumps, metering pumps and diaphragm pumps, commonly known as reciprocating pumps. It is a kind of positive displacement pump and is widely used. The reciprocating pump is a conveying machine that directly supplies energy to the liquid in the form of pressure energy through the reciprocating movement of the piston. According to the driving mode, reciprocating pumps are divided into two categories: motorized pumps (motor driven) and direct-acting pumps (steam, gas or liquid driven)
Features:
1. Strong self-priming ability;
2. The theoretical flow has nothing to do with the working pressure, only depends on the speed, the size of the pump cylinder and the number of actions;
3. The rated discharge pressure has nothing to do with the size and speed of the pump;
4. Uneven flow;
5. The speed should not be too fast;
6. Not very sensitive to liquid pollution;
7. The structure is more complicated, and there are many wearing parts.
Technical parameters
|
Stroke
|
Liner size (mm) and Pressure Rating(Mpa)
|
|
per
|
φ90
|
φ100
|
φ110
|
φ120
|
φ130
|
φ140
|
φ150
|
φ160
|
|
minute
|
31
|
25
|
20.8
|
17.5
|
14.9
|
12.8
|
11.2
|
9.8
|
|
|
Displacement (L/S)
|
|
130
|
7.44
|
9.18
|
11.11
|
13.23
|
15.52
|
18
|
20.67
|
23.51
|
|
120
|
6.87
|
8.48
|
10.26
|
12.21
|
14.33
|
16.62
|
19.08
|
21.7
|
|
110
|
6.29
|
7.77
|
9.4
|
11.19
|
13.13
|
15.23
|
17.49
|
19.9
|
|
100
|
5.72
|
7.07
|
8.55
|
10.17
|
11.94
|
13.85
|
15.9
|
18.09
|
Applications:
1. Discharge of wastewater from enterprises.
2. Discharge system of urban sewage treatment plant.
3. Subway, basement, civil air defense system sewage pump system drainage station.
4. Sewage discharge from hospitals, hotels, and high-rise buildings.
5. The sewage pump is engraved for sewage drainage stations in residential areas.
6. Discharge of thin mud in municipal engineering and construction sites.
7. Water supply device of waterworks.
8. Sewage discharge from farms and irrigation of rural farmland.
9. Exploring mines and supporting water treatment equipment.
10. The sewage pump can replace the shoulders to suck and transport river mud.
