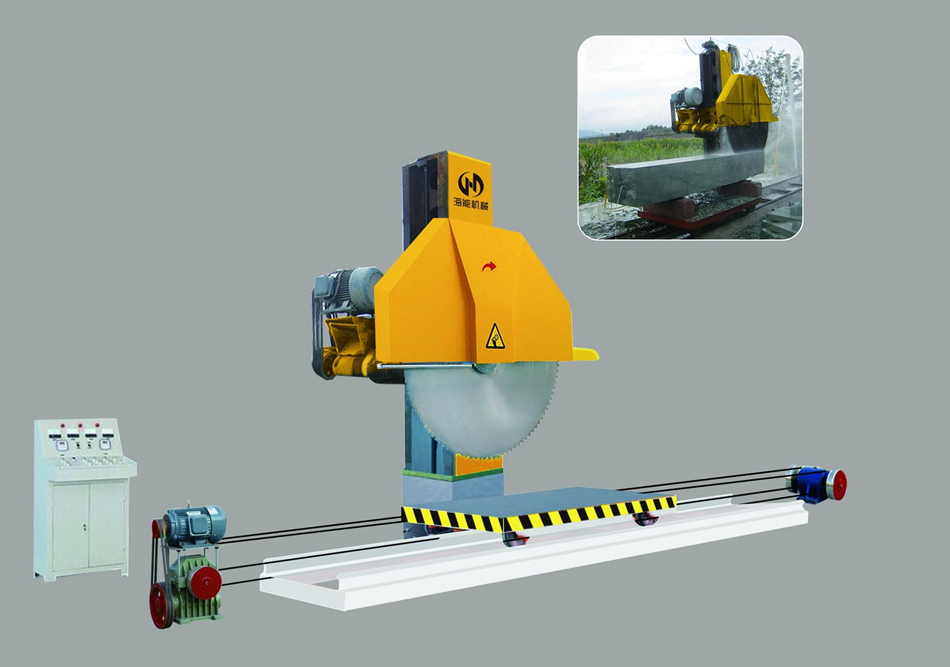

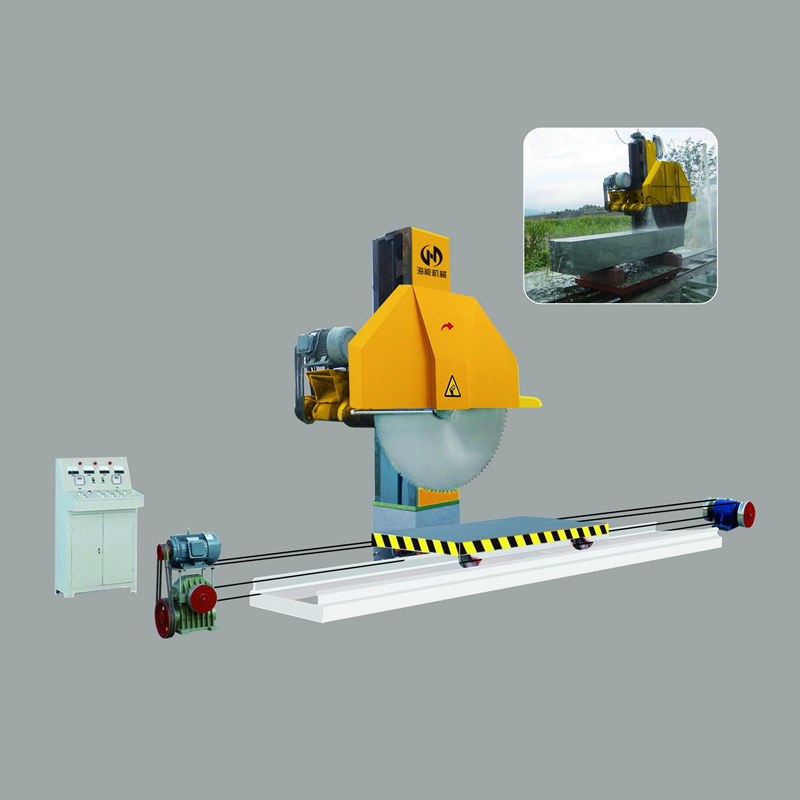

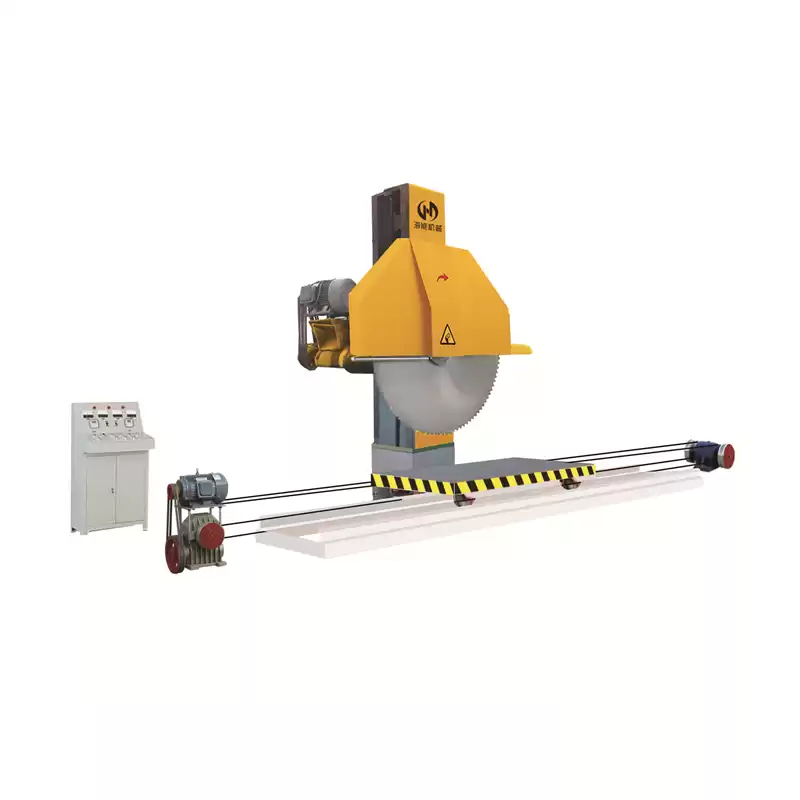

Product Introduction
Single Arm Middle Cutting Machine is mainly used for cutting slabs and dimension stone. It has the advantages of small floor space and simple operation.
The cutting length of the machine can be customized according to the needs of the user, which makes up for the limitation of the length of the portal stone cutting machine.
The saw blade moves in and out, and the table feeds through the inverter.The stone is automatically cut horizontally, occupying a small space and high work efficiency.
Technical Parameters
|
Single Arm Middle Cutting Machine
|
|
Type
|
unit
|
DZQ1800
|
|
Blade diameter
|
mm
|
Φ1800
|
|
Max. cutting length
|
mm
|
According to customer’s requirement
|
|
Max. cutting width
|
mm
|
1000
|
|
Power of main motor
|
kw
|
22
|
|
Total power
|
kw
|
25.75
|
|
Water consumption
|
m³/h
|
6
|
|
Dimension (L×W×H)
|
mm
|
8000×2100×2500
|
|
Total weight
|
kg
|
4000
|
Processing
Loading photos
