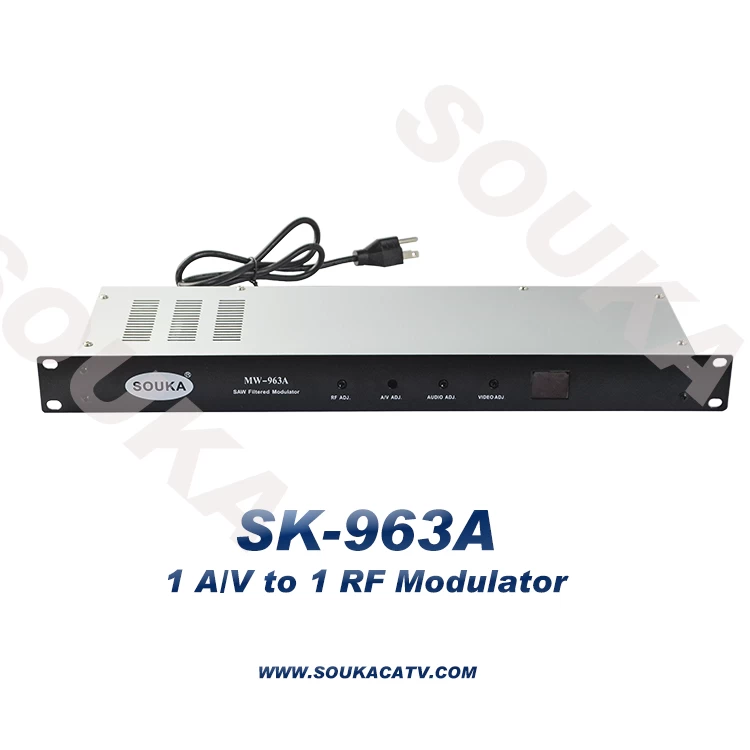

SK-963A
The SK-963A Single Adjacent Channel Audio Video RF Modulator for Cable System is a cost-saving RF modulator. It's fixed channel and adjacent one with professional performance. It's with SAW flitering and available for any cable channel from 45-230MHz. This unit offers high performance, EXTREMELY LOW COST and compact design.
Features:
1. HF process with excllent performance
2. SAW filtering for maintenance free adjacent channel configuration
3. Phase lock loop frequency control prevents frequency drift
4. LED Display. Front panel control for easy installment
5. Excellent video and audio linearity for superior picture quality
6. Standard 19” housing for standard rack
7. PAL, NTSC and SECAM optional
8. Excellent value for your investment dollar
|
RF
|
|
Output
Frequency :
|
45-230MHz
|
|
Output
Level :
|
113dBuV
|
|
Output
Impedance :
|
75 Ω
|
|
Frequency
Accuracy :
|
±5KHz
|
|
Sideband
Suppression :
|
≥ 60dB
|
|
A/V
Ratio :
|
-10dB
|
|
Video
|
|
Input
Level :
|
0.6-1.5Vp-p
|
|
K
Value :
|
4% MAX
(2T Pulse)
|
|
Differential
Gain :
|
±4%
|
|
SNR :
|
50dB (Non-Weight)
|
|
Flatness
:
|
±1dB
|
|
Differential
Phase :
|
±4°
|
|
Audio
|
|
Input
Level :
|
-10 to
10dBm
|
|
Flatness
:
|
±1dB
MAX
|
|
SNR :
|
-60dB
|
|
Harmonic
Distortion :
|
＜0.5
|
