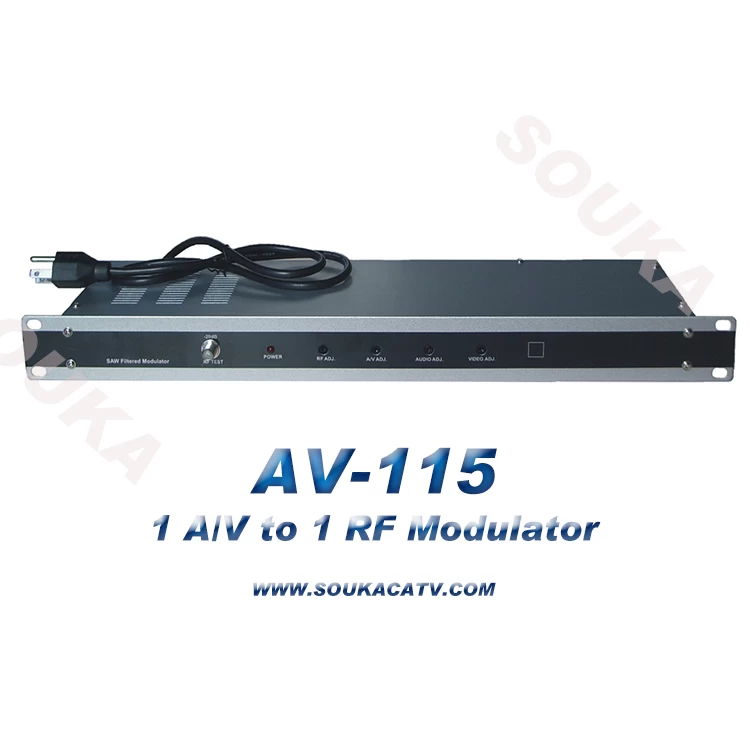

AV-115
The AV-115 is a upgrade version of SK-963B. With upgraded design of PCB, it's capcable to hold up many more channles than SK-963B. It's with SAW flitering and available for any cable channel from 45-860MHz.
Features:
1. IF process with excllent performance
2. SAW filtering for maintenance free adjacent channel configuration
3. Phase lock loop frequency control prevents frequency drift
4. LED Display. Front panel control for easy installment
5. Excellent video and audio linearity for superior picture quality
6. Standard 19” housing for standard rack
7. PAL, NTSC and SECAM optional
8. Excellent value for your investment dollar
|
RF
|
|
Output
Frequency:
|
45-860MHz
|
|
Output
Level :
|
113dBuV
|
|
Output
Impedance:
|
75
Ω
|
|
Frequency
Accuracy:
|
±5KHz
|
|
Sideband
Suppression:
|
≥
60dB
|
|
A/V
Ratio :
|
-10dB
|
|
Video
|
|
Input
Level:
|
0.6-1.5Vp-p
|
|
K
Value:
|
4%
MAX( 2T Pulse )
|
|
Differential
Gain:
|
±4%
|
|
SNR:
|
50dB
( Non-Weight)
|
|
Flatness:
|
±1dB
|
|
Differential
Phase:
|
±4°
|
|
Audio
|
|
Input Level:
|
-10 to 10dBm
|
|
Flatness:
|
±1dB MAX
|
|
SNR:
|
-60dB
|
|
Harmonic Distortion:
|
＜0.
|
