Features
This machine can print tubes in single color(can be overprinting according to customer requirement), equipped auto loading, treatment before printing, printing and UV curing systems.
Adopt main components from Rexroth, Schneider, SMC, Mitsubishi etc. mechanical parts made by CNC directly from CAD design.
Adopted PLC control system, touch screen interface. Quick setup&quick toolings change over.
Adopted with no-object no printing system, auto counter, safety guard, out of working alarm device.
Mechanical feeder for loading&unloading units, servo registration for X-axis, and steps registration for Y-axis
Technical data
Product size:φ（25-60）x（25-70）mm
Max. speed: 60pcs/min
Air pressure:5-7bar
Power supply: AC380V 50/60Hz 5Kw
Dimensions:2340x1850x1800mm
Machine details

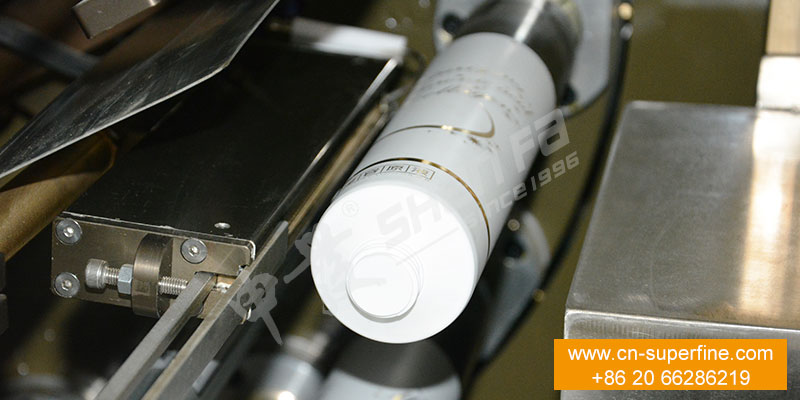

1.Automatic loading to fixture

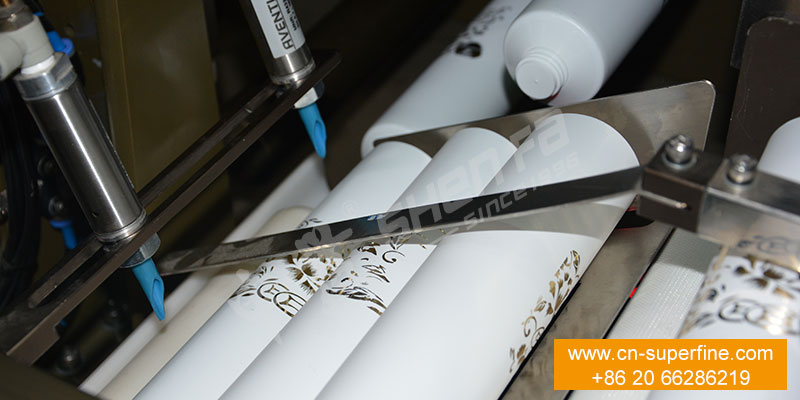

Anti-static for dust remove device

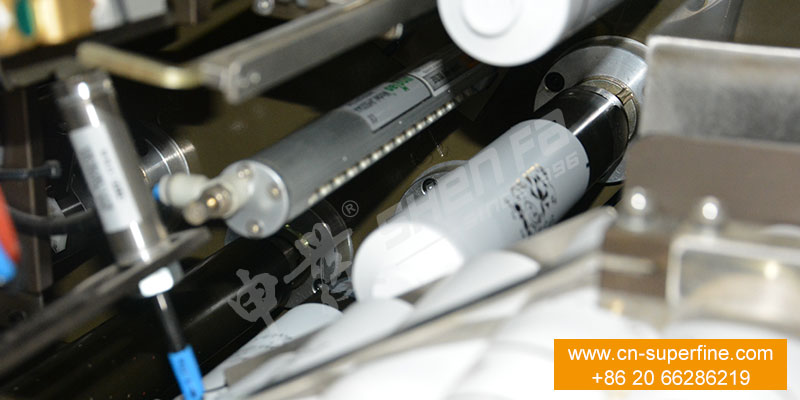

Flaming treatment device

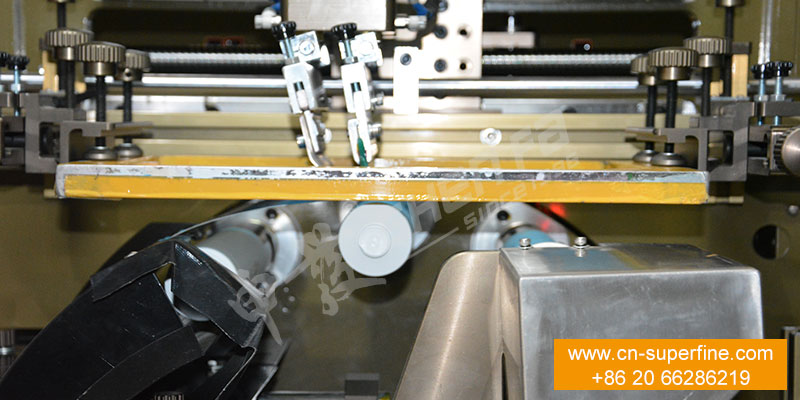

Screen Printing unit

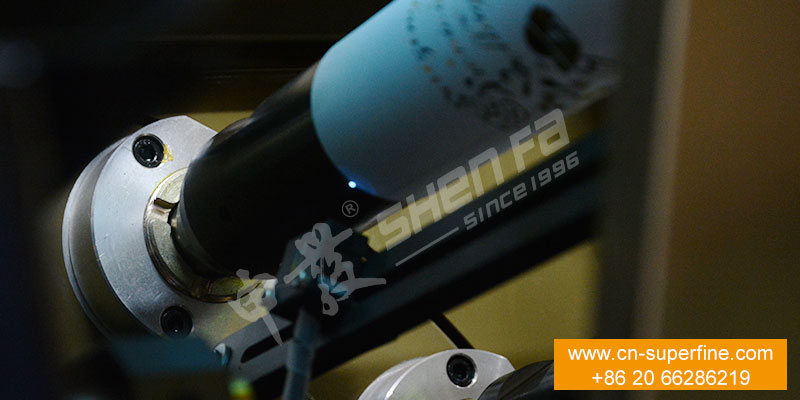

UV drying

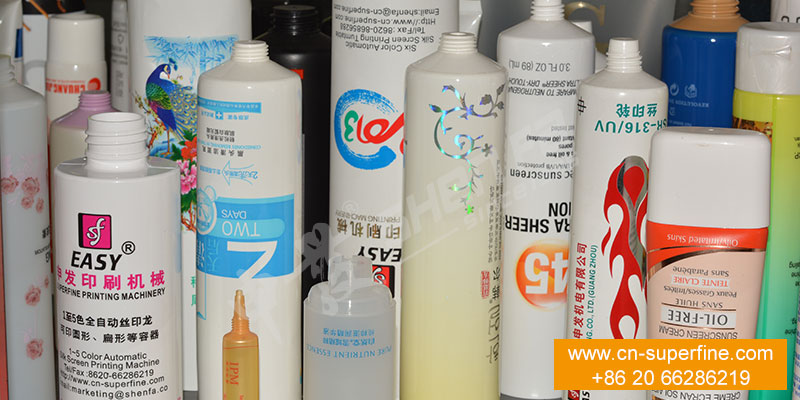

Printing sample
Machine running video
