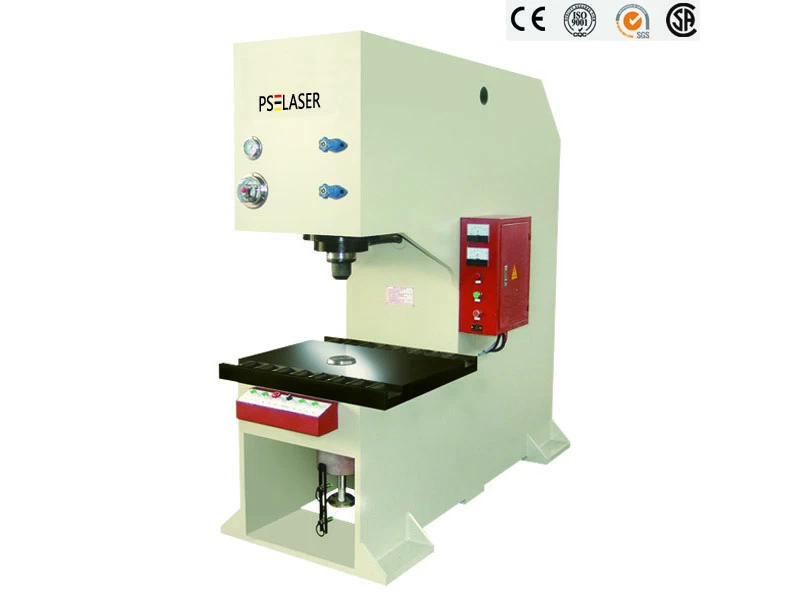

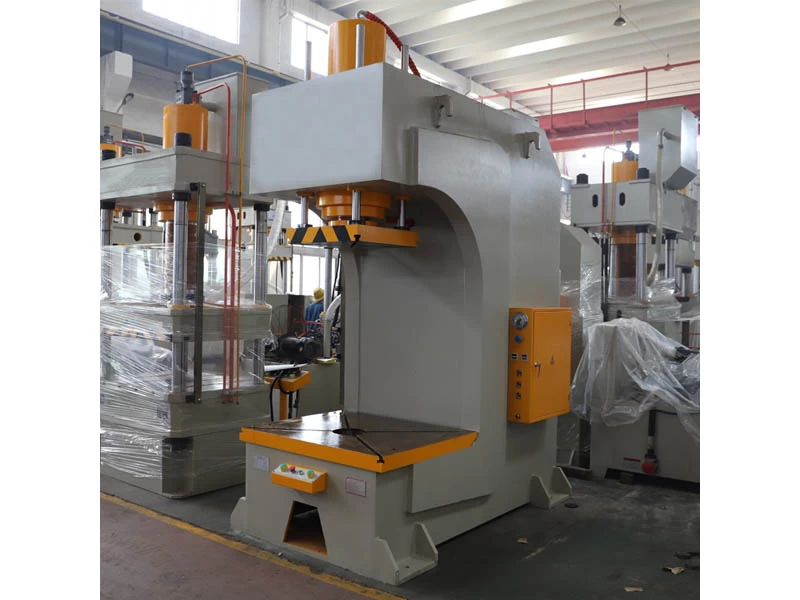

Product Item:Single Column Hydraulic Press Machine
Single Column Press Machine Main Features:
1. Computer optimized structure design: single-arm C-frame, high rigidity, simple structure, easy use.
2. Integrated welding, the structure and all welding parts are treated by tempering to eliminate internal stress.
3. Two-way cartridge valve integrated system: long service life, reliable, low hydraulic impact, and reduce the pipeline leaking points.
4. The hydraulic system is equipped with pressure pre-relief device to minimize hydraulic shock power.

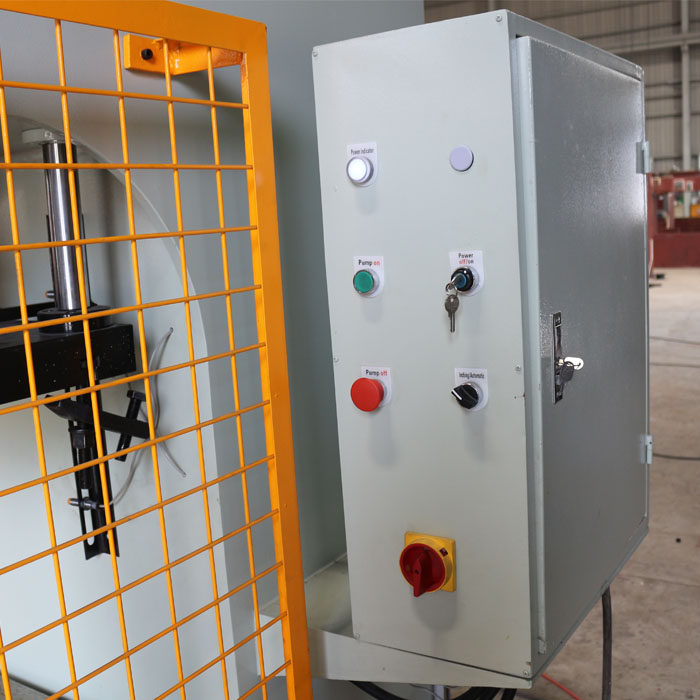

5. Independent electric control system: reliable, intuitive and convenient maintenance.

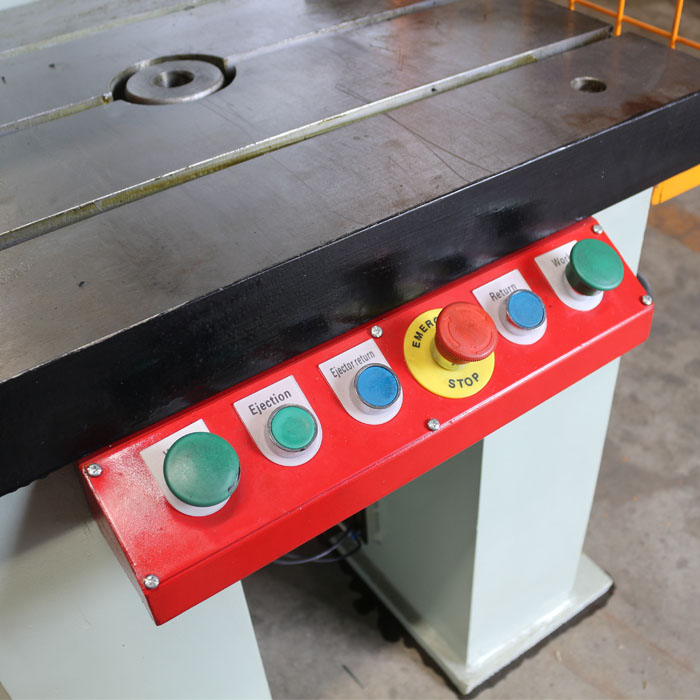

6. Button centralized control: manual or semi-auto adjustment.
7. Slider working pressure, no-loading fast down speed and slow pressing travel range are adjustable according to technology requirements.
8.Small Hydraulic Press Machine With hands-on control and programmable logic control, upper slider equipped with lubrication-free sliding device.
Standard Accessories:
●Photoelectric protection device
●TPC touch screen industrial display
●PLC programming control
●With travel and speed control system
●Cooling device, displacement sensor
●With constant travel and pressure function
●Germany Siemens main motor
●France Schneider electrics
●Hydraulic & electric overload protection.
Safety Standards:
●Hydraulic Press Machine have Safety Standard（2006／42／EC）
●Open door cuts off power
●Metal safety guard, CE standard
●Safety relay monitor pedal switch, safety protection.
4. Technical Parameters:
|
No
|
Description
|
Unit
|
Y41-25T
|
|
1
|
Nominal Pressure
|
KN
|
250
|
|
2
|
Max. Hydraulic Pressure
|
Mpa
|
20.3
|
|
3
|
Max. Opening Height
|
mm
|
600
|
|
4
|
Max. Slider Travel
|
mm
|
350
|
|
5
|
Slider Speed
|
Down Speed
|
mm/s
|
120
|
Working Speed
|
mm/s
|
Adjustable range:7-15
|
Return Speed
|
mm/s
|
120
|
|
6
|
Throat Depth
|
mm
|
250
|
|
7
|
Hydro-pad Nominal Pressure
|
KN
|
100
|
|
8
|
Hydro-pad Travel
|
mm
|
150
|
|
9
|
Hydro-pad Size
|
mm
|
φ250
|
|
10
|
Upper Worktable Size
|
F.B
|
mm
|
400
|
L.R
|
mm
|
500
|
|
11
|
Lower Worktable Size
|
F.B
|
mm
|
480
|
L.R
|
mm
|
550
|
|
12
|
Worktable Height
|
mm
|
900
|
|
13
|
Motor Power
|
KW
|
4
|
|
14
|
Outline Dimension
|
L
|
mm
|
1100
|
|
W
|
mm
|
960
|
|
H
|
mm
|
2600
|
|
15
|
Weight
|
Kg
|
3800
|
|
Please contact us for other parameters
|
5. Standard/Optional Accessory List:
|
No
|
Accessory Name
|
Brand
|
Configuration
|
|
1
|
Electrics
|
Schneider - France
|
Standard
|
|
2
|

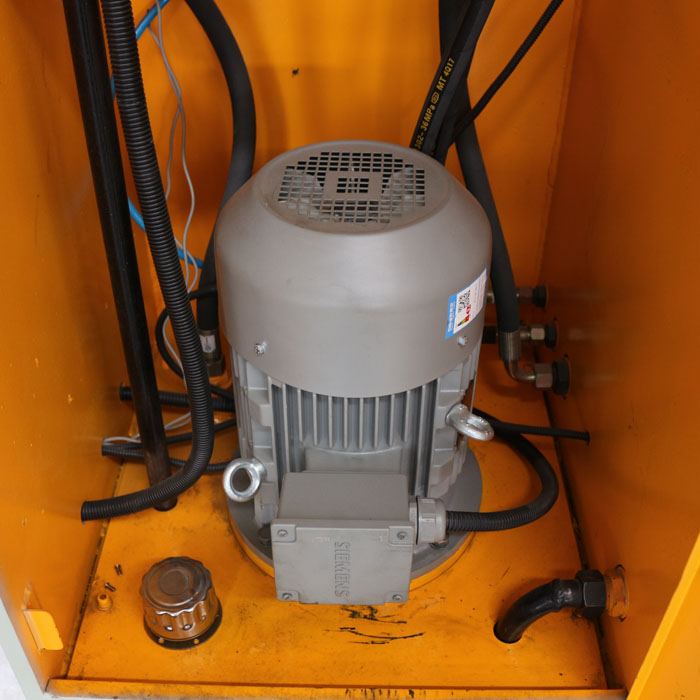

Main Motor
|
Siemens - Germany
|
|
3
|
Oil Pump
|
SUNNY - USA
|
|
4
|

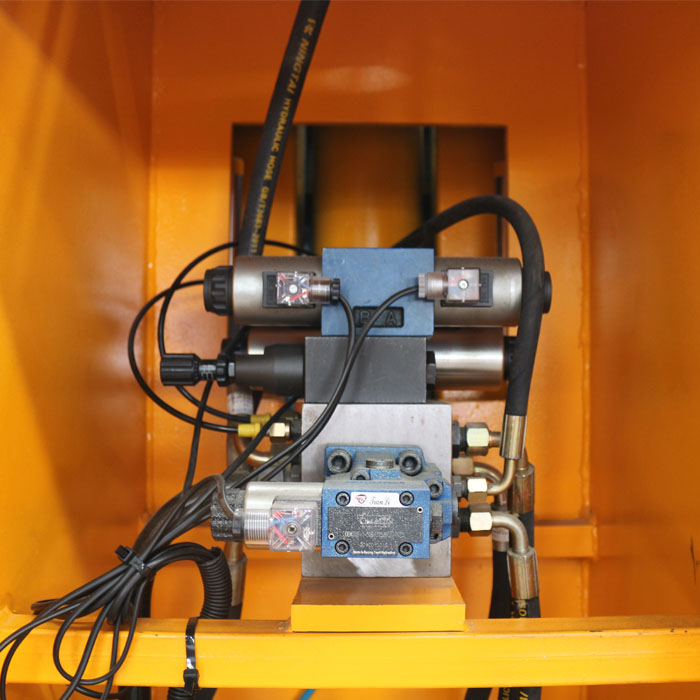

Valve Block
|
Rexroth – Germany
|
|
5
|
Sealing Ring
|
NOK - Japan
|
|
6
|
Oil Pipeline
|
High-pressure Hose
|
|
7
|
Safety Standard
|
CE ISO SGS
|
