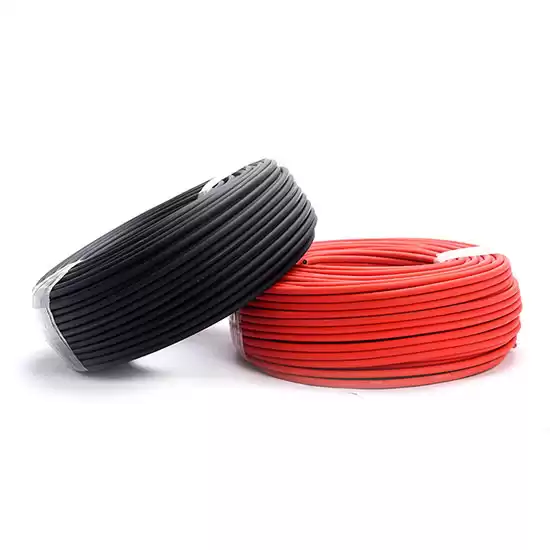

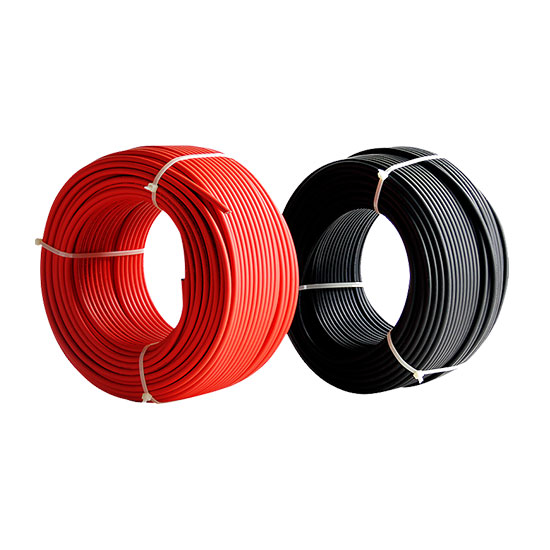

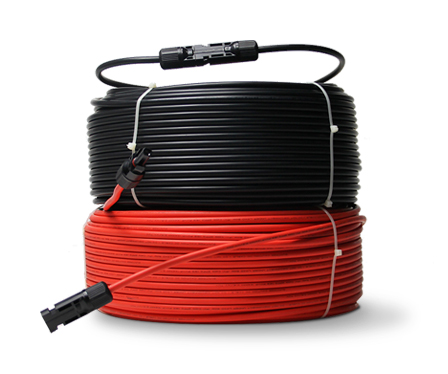

Single Core 4mm 6mm DC Solar PV Cable

Double insulation, electron-beam cross-linked cables for photovoltaic power station.


  • FlammabilityAccord with EN 60332-1-2
  • UV-resistanceAccord wiht HD 605/A1
  • Ozone ResistanceAccord wit EN50396
  • Max.Short Circuit TemperatureThe permitted short-circuit-temperature refer to a period of 5s is 200°C
  • Max. temperature at+120°C
  • Ambient temperature-40 - +90°C
  • Test voltageAC - 6.5kV | DC - 15kV
  • Rated voltageAC - U0/U 0.6/1kV | DC - 1.8kV





Manin Features

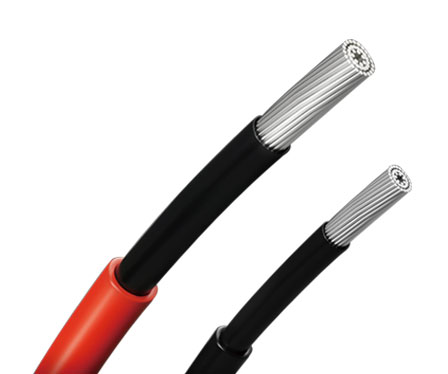

--Dual wall insulation, electron beam cross-linked.
--Excellent resistance to UV, water, ozone, fluids, salt,
--General weathering.
--Excellent resistance to abrasion.
--Halogen free, flame retardant, low toxicity.
--Excellent flexibility and stripping performance.
--High current carrying capacity.









Conductor:

Tinned copper strands,in line with IEC60228+EN60228,VDE0295,5classes

Within Insulation: UL4703 XLPE

Quter sheath: UL4703 XLPE

Color code/Jacket color:

Black/Black Black/Blue Red/Red Blue/Black

Black/Red Red/Black Blue/Blue

(the other can be customized)

Section(mm2):1.50~150.00








DC PV Cable Meet Certifications And Application standard

TUV 2PfG 1169/08.2007 PV1-F. UNE 211 23:UNE 20.460-5-52 UTE C 32-502
