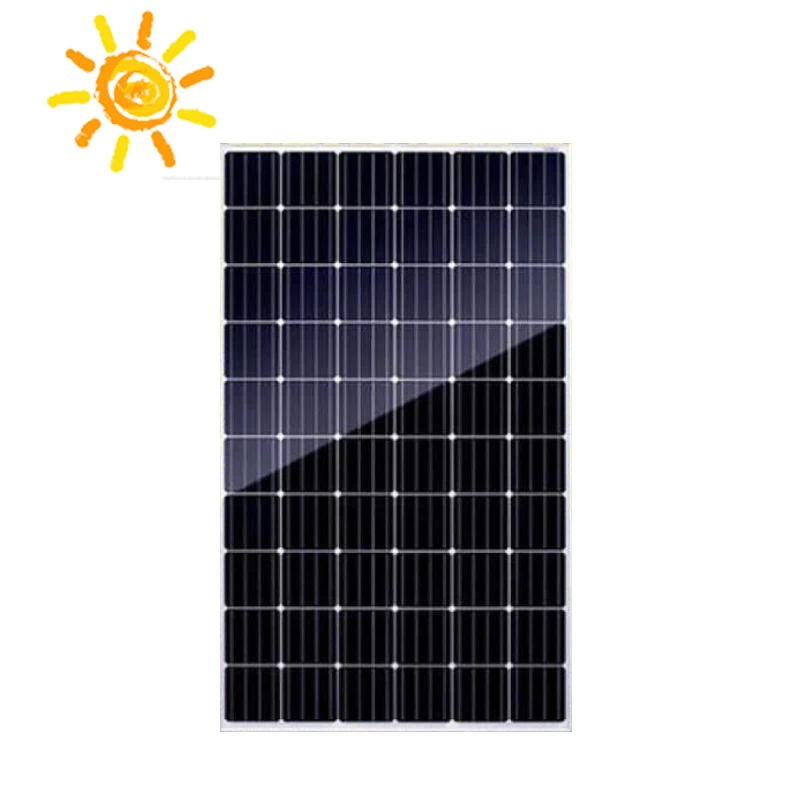

Single crystal solar panels 150W 24V solar panels For solar system

Solar Panel for solar pump application



Single crystal solar panels 150W 24V solar panels For solar system

Technical data

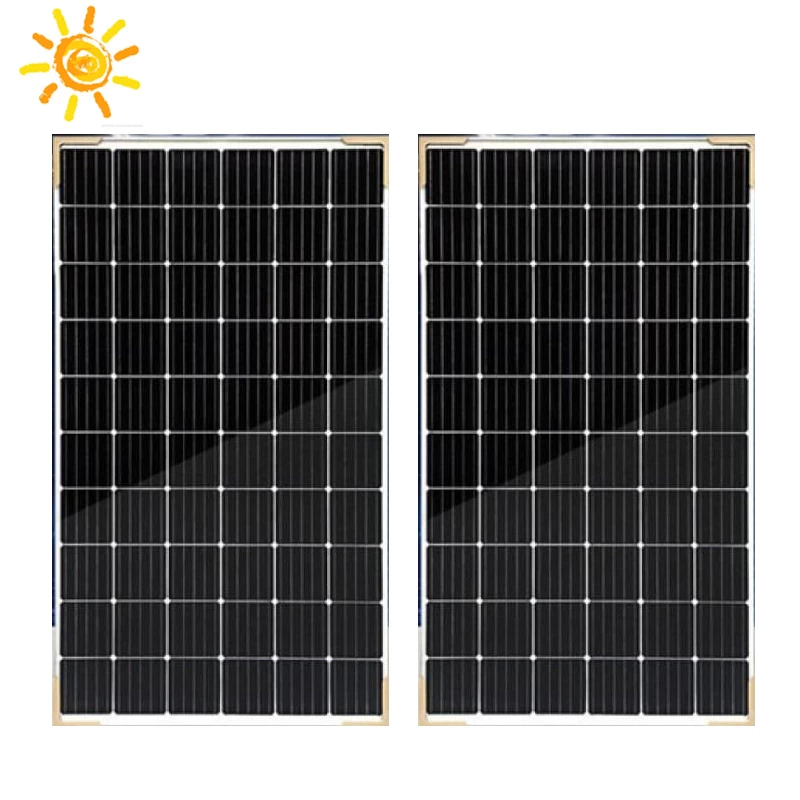

2pcs into 1 set   Operating Temperature(°C):   -40°C ~  +   85°C

Max power: 75W

Open voltage: 21.6V

Short circuit current: 4.42A

Max  power voltage: 18V

Dimensions:   765x680x35mm

Working temp: -45C to +85C

N.W..: 5.8KG/PCS

G.W.:depend on different shipping( need packge with woonden case, case:13KG. 820*730*120MM)

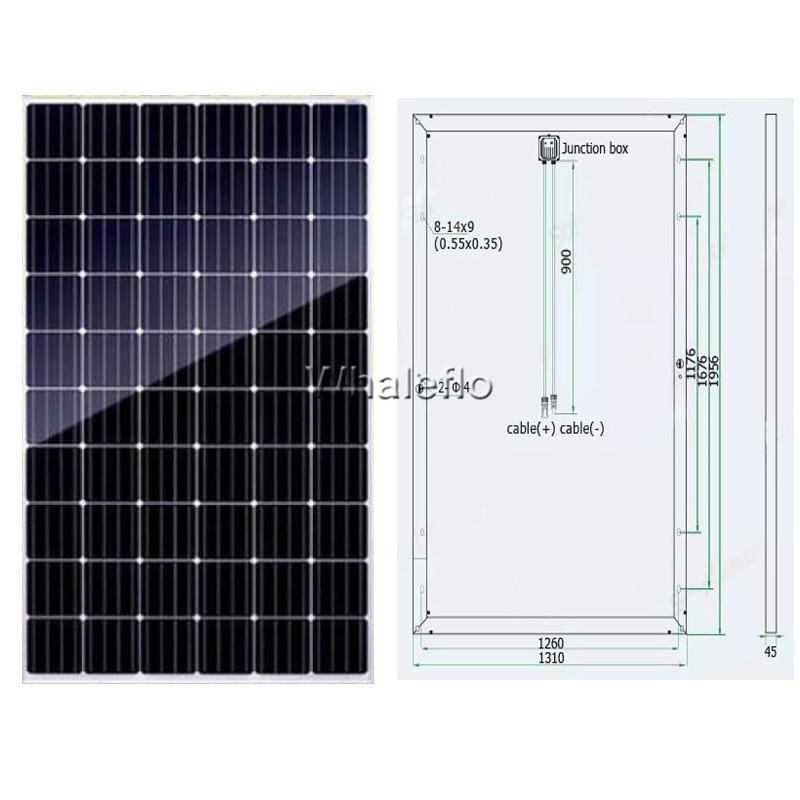

Technical drawing


Whaleflo solar panel drawing

Products details

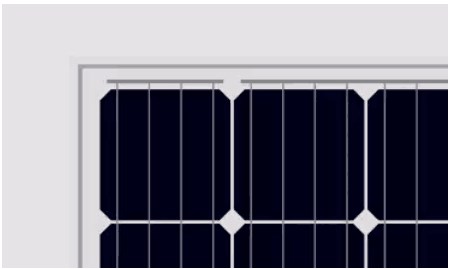

Glass

> Antireflective glass

> Translucency of normal luminance is increased by 2%

> Module efficiency is increased by 2%

> Self-cleaning function

> Service life is as long as 25 years (30 years optional)

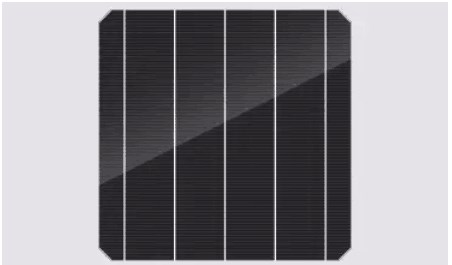

Solar Cell

> High Efficiency PV Cells

> Appearance Consistency

> Color sorting ensure consistent appearance on each module

> Anti-PID

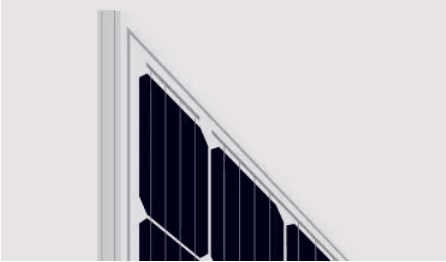

Frame

> Conventional frame

> Silver or black frames are optional

> Boost bearing capability and prolong service life


> Serrated-clip design tensile strength


> Seal-lip designglue injection

Product Working

12V DC Submersible Pump with panel working drawing
