Single Head li ion battery Electrolyte Filling Machine
Product Specification
TOB-JLB - 15 Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system.
|
Model
|
Single Head Electric Injection Pump TOB-JLB-15
|
|
Warranty
|
One year limited and lifetime support
|
|
Type
|
Rotating reciprocating positive displacement special ceramic injection pump
|
|
Speed
|
1-800 rpm, According to system configuration and fluid characteristics
For battery industry, 60-200rpm is best
|
|
Stroke number
|
1-9999times, According to system configuration and fluid characteristics
|
|
Filling range
|
0-15ml adjustable
|
|
Filling accuracy
|
Within 3‰
|
|
Source voltage
|
AC110V/220V, 50/60HZ Single phase
|
|
Power
|
300W
|
|
Dimension (L*W*H)
|

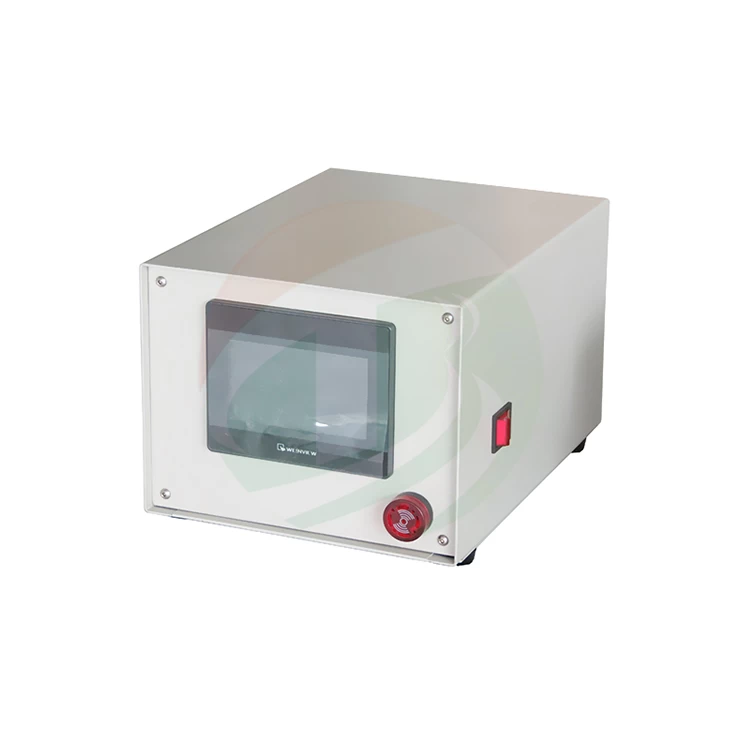

Controller box : 340*300*145mm

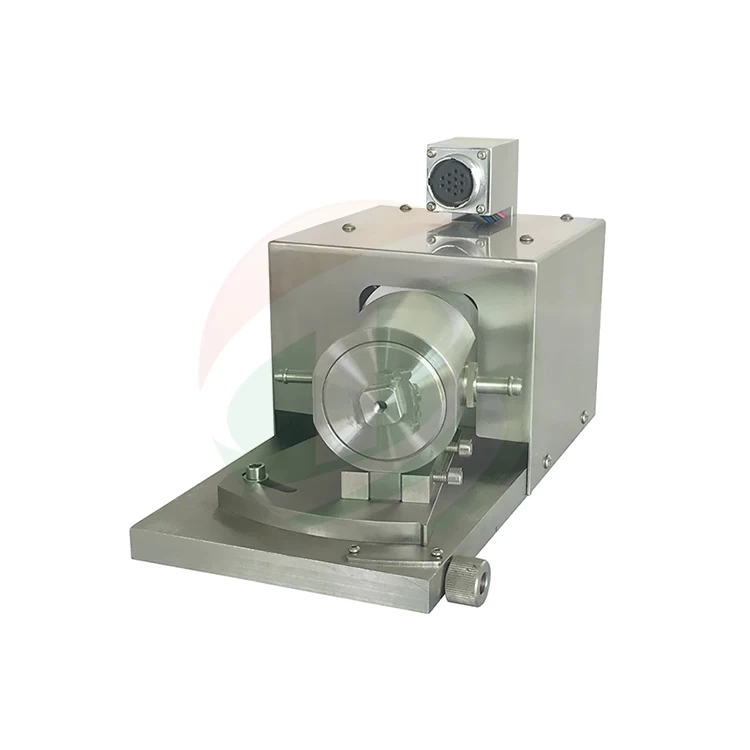

Filling device : 230*160*155mm
|

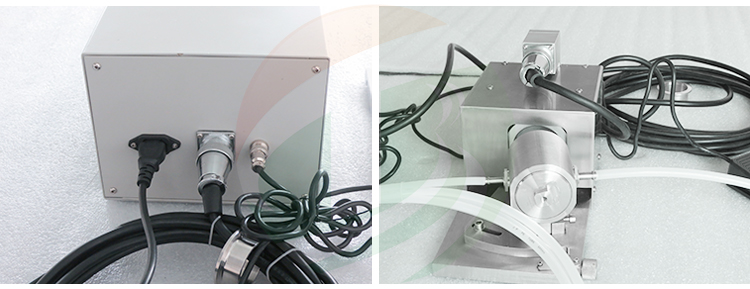

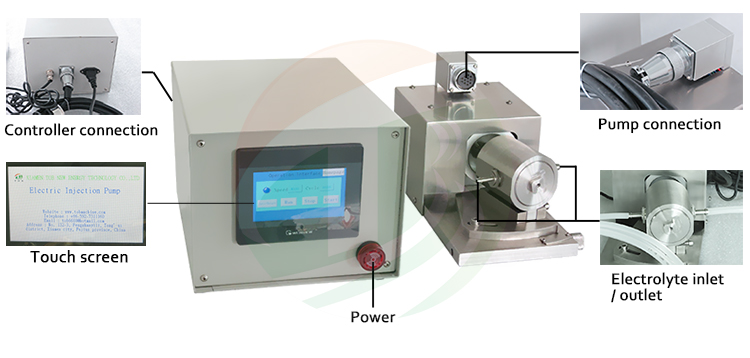

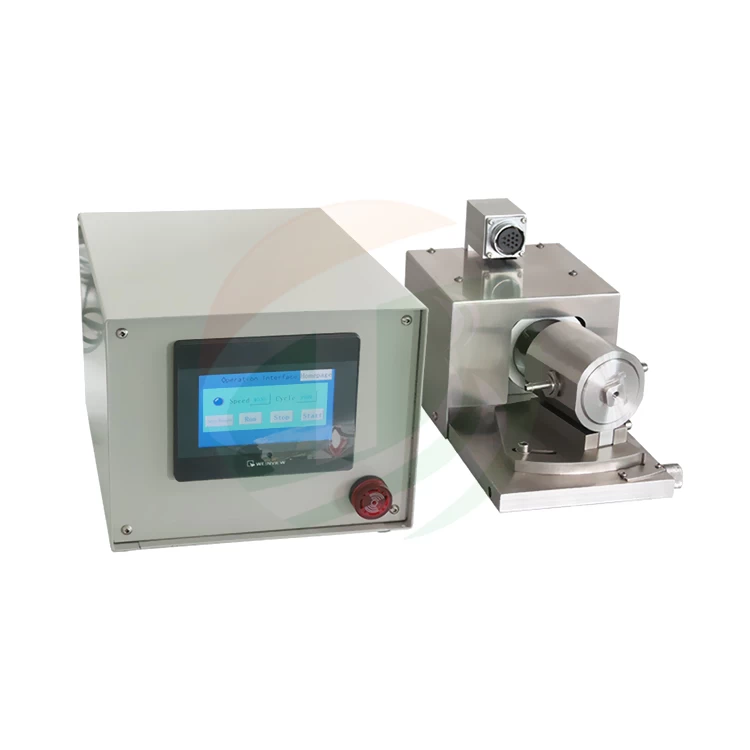

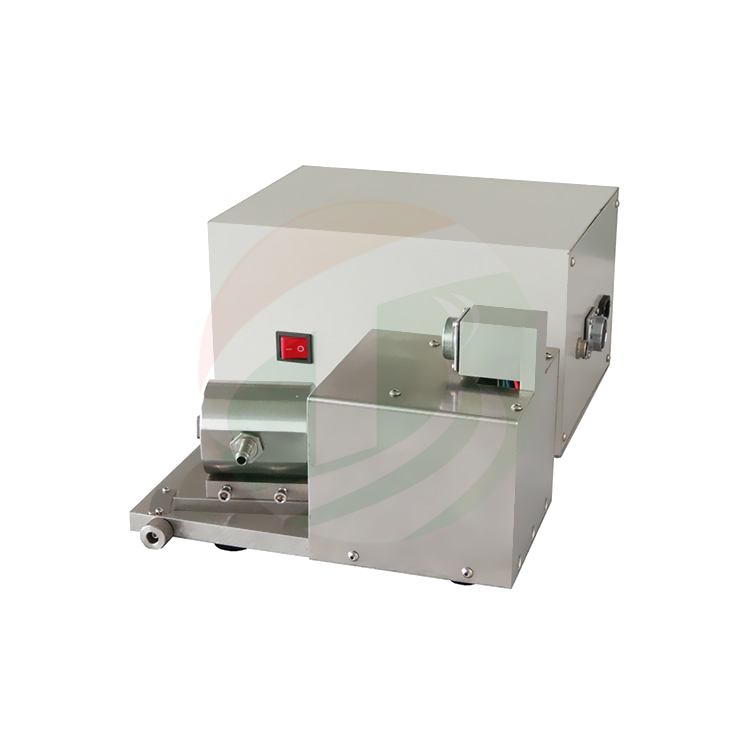

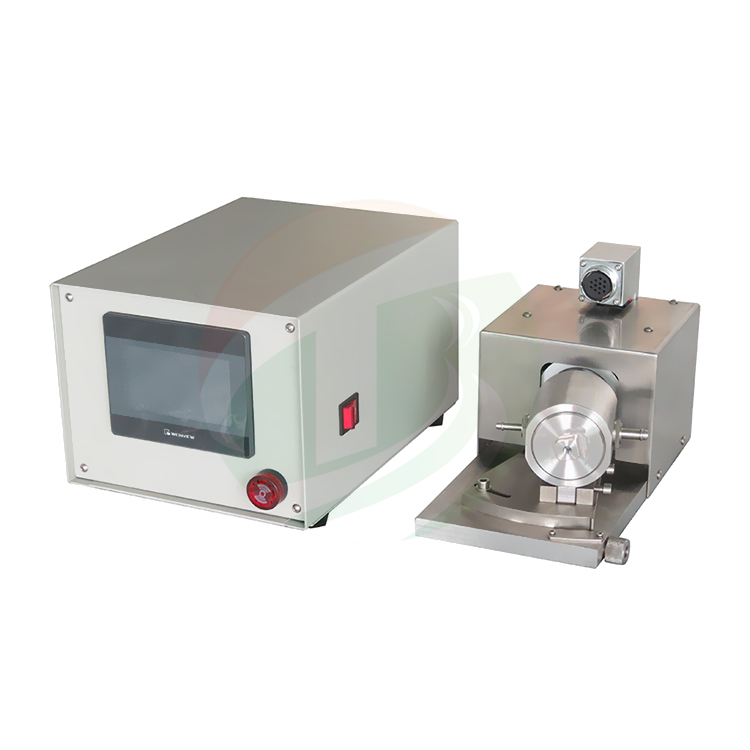

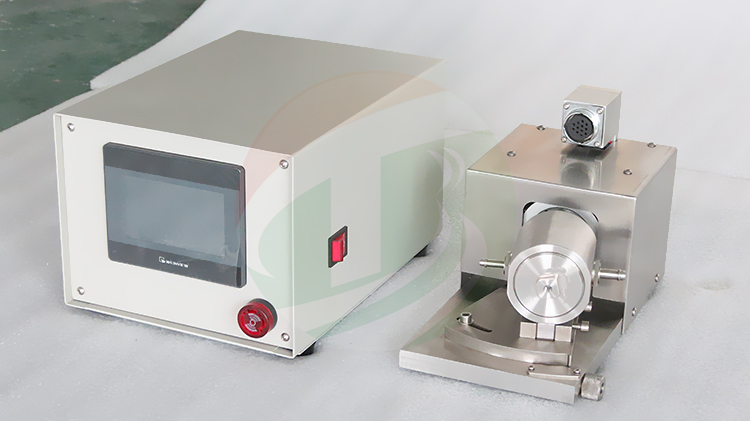

Product Image
Product Packing
