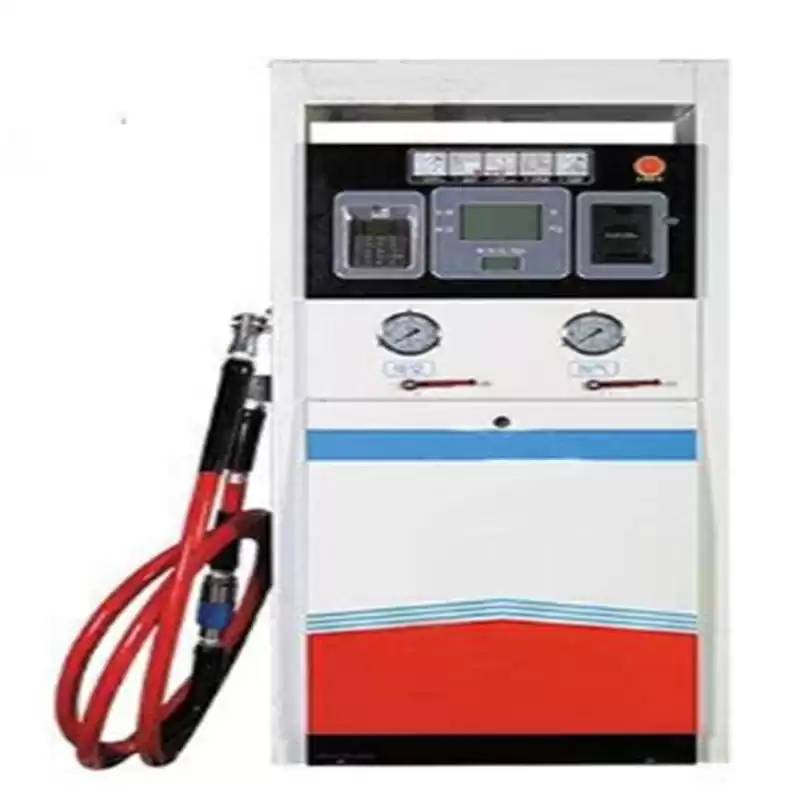

Gas Dispenser
CNG dispensers provide you with one pump that‘s capable of dispensing a fast or standard flow.
Features :
It is mainly consist of
intake valve, pipeline filter, break valve, dispensing hose, pressure
indicator, etc. The pipe fittings and valves are the products of German
STAUFF and American Parker.
Technical parameters:
|
No.
|
Name
|
Dispenser
|
|
1
|
Rated Flow rate
|
1～30kg/min
|
|
2
|
Rated working pressure
|
20MPa
|
|
3
|
Maximum working pressure
|
25MPa
|
|
4
|
Ambient temperature
|
-40℃～50℃
|
|
5
|
Relative humidity
|
30％～90％
|
|
6
|
Accuracy of measuring
|
No less than
1.0 grade
|
|
7
|
Type of Nozzle
|
NGV 1
|
|
8
|
Flow meter
|
CNG050
|
Applications:
CNG Station
