Properties

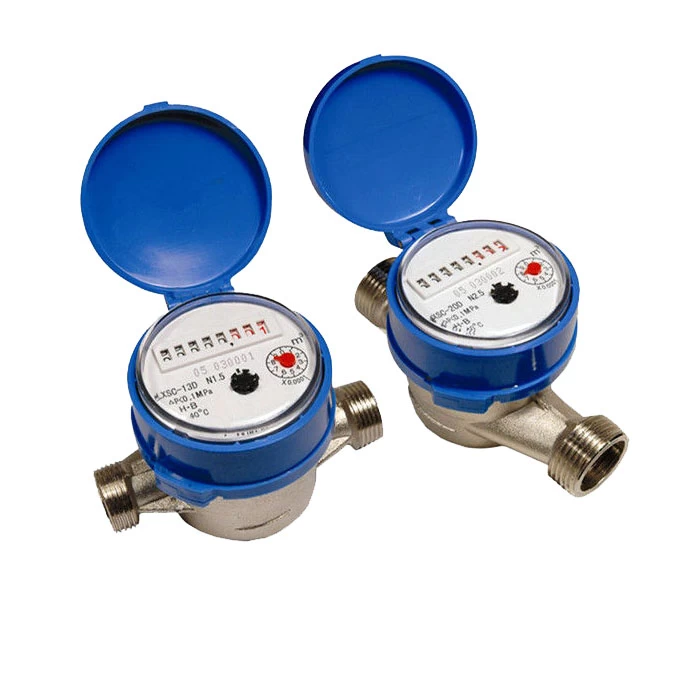

single-jet dry-dial water meter
norminal flow rate Q3 1.6-4.0 m ³ / h cold water T30
coldwater T30 / any mounting position
(H / V) Counter display range: 99,999 m³
minimum value: 0.05 dm³
accuracy class: R80H / R40V – standard
8-digit dry-running rotary hermetically sealed counter
Brass body
anti-magnetic protection against water meter use
sapphire water meter bearing
self-cleaning system
internal control system
smooth bottom of the measuring chamber
prevent dirt deposits
possibility of retrofitting with radio module
Application
The main application area is in centralized buildings where water is supplied individually to multiple users, such as apartment buildings and commercial buildings.
Advantages
The meters are magnetically shielded, which makes it impossible to influence the measurement of the consumption by the magnetic field.
