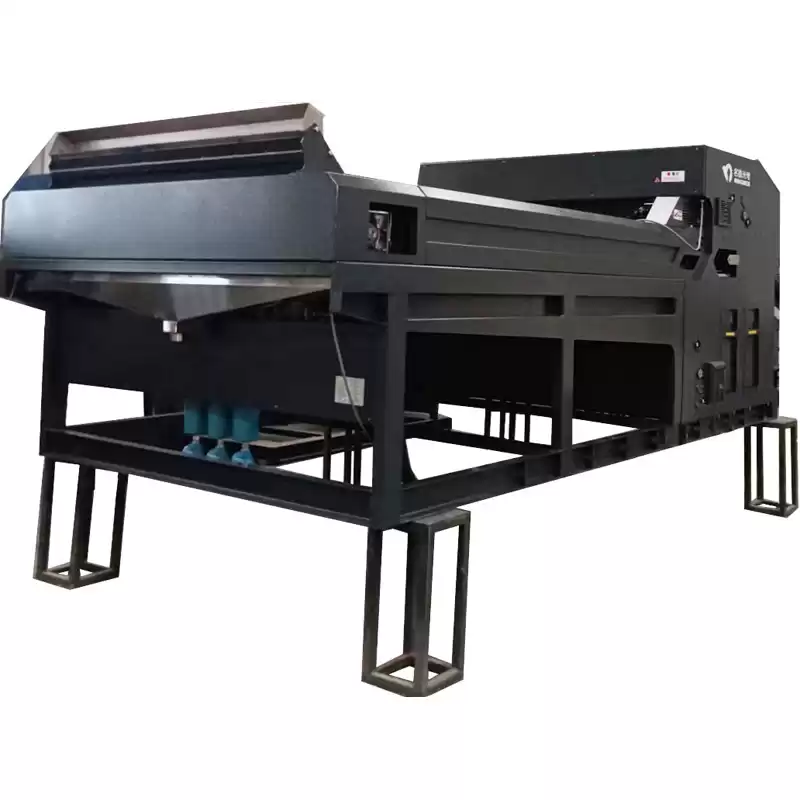

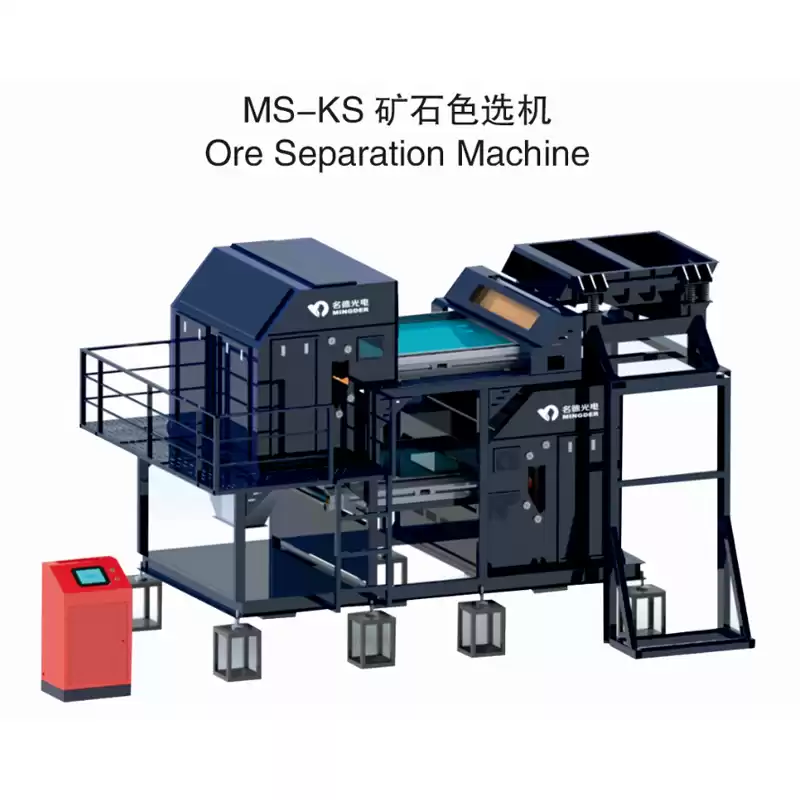

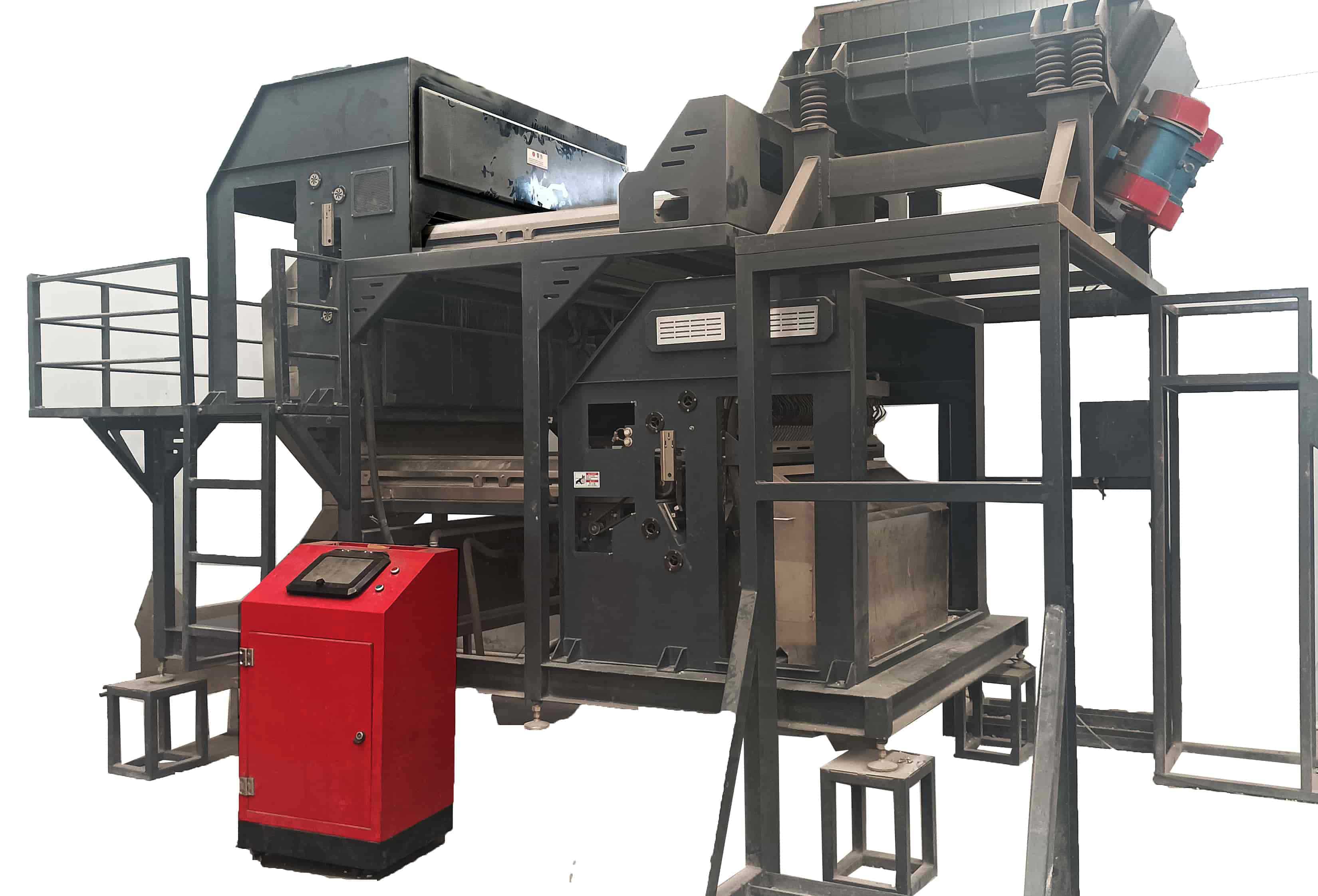

Single Layer 4 channels CCD sensor Mineral Color Separator ore sorting machine medical Herbs Grain sore sorting machine
Products Advantage:
1, Self-developed software system and Industrial-grade closed machine structure with imported main accessories,can adapt to the industrial-ore environment with high dust,high pollution,high corrosion,so that application is wider with longer life.
2,Adopt 32bit true color image processing method,and applied the mathematical morphology based on HIS color space,so as to achieve better separation effect,to improve the ability to color machine flexibility and sorting operation.
3,High precision full-color plane array CCD sensor technology,can detect the subtle color difference in 0.02mmsq according to the different characteristics of the ore,by using the unique image processing method ,to ensure the accuracy of the sorting materials such as ore identification.
4,Wider range of optional materials ,sorting materials from 40 mesh size to 10cm,to avoid limited available sorting colors with repeatedly broken,reduced the breakage,reduce resource waste.
5,the Output of the type is large, some models has exceeded 40 tons/hour,4~5 times than similar domestic manufacturers.
6, Vibration feeding part and equipment main body part adopt the split type structure to protect the machine body from the feeding vibration,to ensure the equipment to operate more stably.
7,The world’s first develped COLOR SORTING manufacturer ,can sort the materials with much difference on one color sorter machine at the same time.
8、Unique modular design of automatic dust removal combined with automatic spray from the maintenance function,ensure the equipment continuous working condition for a long time.
Technical parameters
|
Model
|
MS-KD-4
|
Power (kW)
|
4.5
|
|
Capacity（T/H）
|
45（6cM≤d≤10cM）
|
Air Pressure (Mpa)
|
0.6（6cM≤d≤10cM）
|
|
25（3cM≤d≤6cM）
|
0.5（3cM≤d≤6cM）
|
|
15（1cM≤d≤3cM）
|
0.4（1cM≤d≤3cM）
|
|
10（d≤1cM）
|
0.3（d≤1cM）
|
|
Sorting accuracy （%）
|
≥99
|
Consumption(L/min)
|
≤2500
|
|
Optimized carryover
|
≥30:1
|
Weight(Kg)
|
2100
|
|
Power Supply
|
AC220V 50HZ
|
Dimension (L×W×H:mm)
|
4000×1647×1760
|
| |
|
|
|
|
Note：1、d means the dimension(mm) of the sorting machine
2,the above data is worked out base on Potashi feldspar with 5% impurity,it may vary according to different materials and different impurities percentage ,etc.
Sorting Cases
Cobblestone calcite wollastonite Orthocise Quartz
Barite Limestone riverstones Talcum Vermiulite
