single output 170W 5V 34A switching power supply open frame with ETL certification
Description:
K26-UP200S series 170W 5Vdc switching power supply has built-in active PFC function,PF＞0.95,100-240V AC input voltage and output voltage adjustable with 2 years warranty,it can used in industrial automation products.
Features:
1, 170W 5V 34A power supply with wide range of AC input voltage ;
2, 5V 24A power supply have short circuit, overload, overvoltage and over temperature protection;
3, 170W 5V power supply with built-in active PFC function;
4,This smps has high efficiency and used in stange lighting and CCTV system etc.
Parameter
|
|
Item NO
|
K26-UP200S5
|
|
Output
|
Output Voltage
|
+5VDC
|
|
Rated Current
|
34A
|
|
Current Range
|
0-34A
|
|
Rated Power
|
170W
|
|
Ripple & Noise
|
100mVp-p
|
|
Adjustable Output Range
|
4.75~5.5V
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
90-264V AC
|
|
Input Current
|
1.2A@220V AC
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
>85%
|
|
Power Factor
|
0.99@110V,0.95@220V AC
|
|
Inrush Current
|
Cool start 20A/115V,40A/230V
|
|
Leakage Current
|
<0.75mA@240V
|
|
Protection
|
Over Load Protection
|
110~200%,Hiccup protection,automatic recovery
|
|
Short Circuit Protection
|
---
|
|
Output over-voltage protection
|
5.5~6.5V
|
|
Over-temperature protection
|
105 ℃ protection type：shut down O/P voltage ,recovers automatically after temperature goes dowm
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943 EN60950-1
|
|
Withstand Voltage
|
I/P-O/P:3KV;I/P-FG:1.5KV;O/P-FG:0.5KV AC
|
|
Insulation Resistance
|
I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
MEET EN55022 CLASS A EN61000-3-2
|
|
Others
|
Dimension
|
193*59*35mm(L*W*H)
|
|
Weight
|
0.5kg
|
|
MTBF
|
---
|
|
Fan Supply
|
---
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

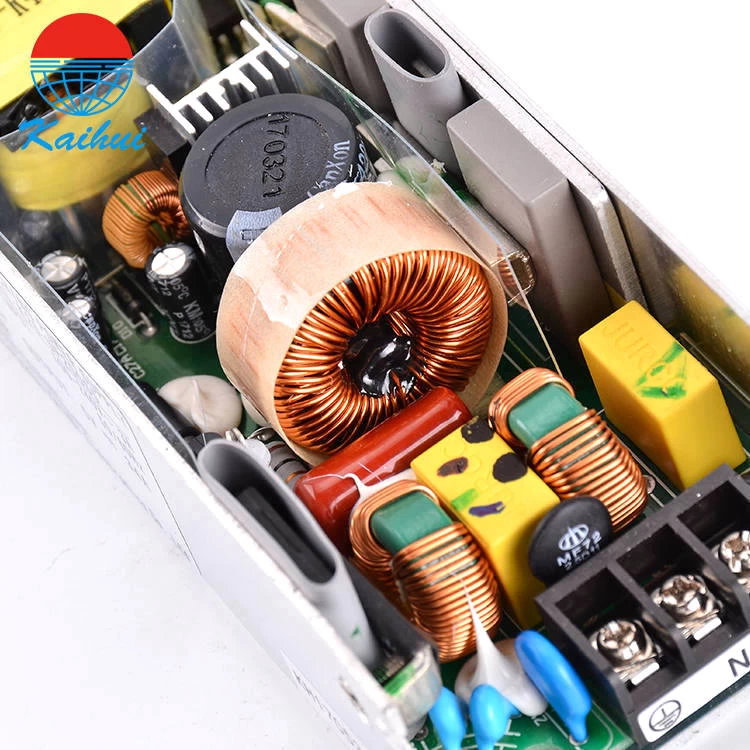

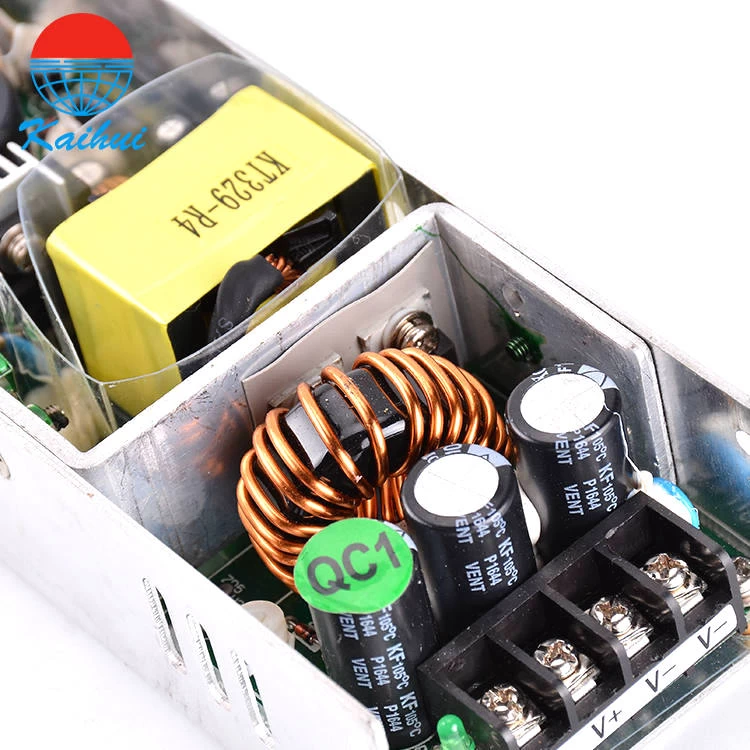

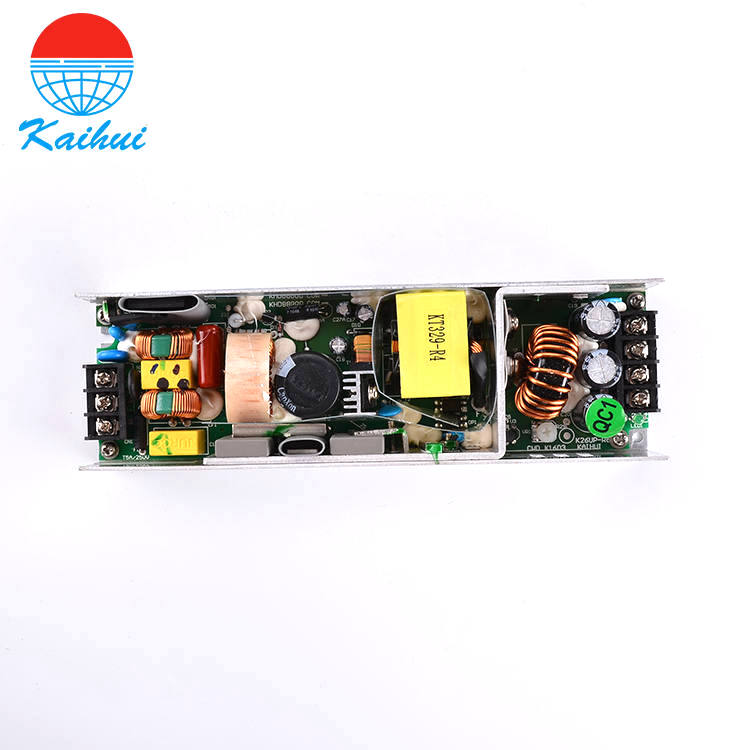

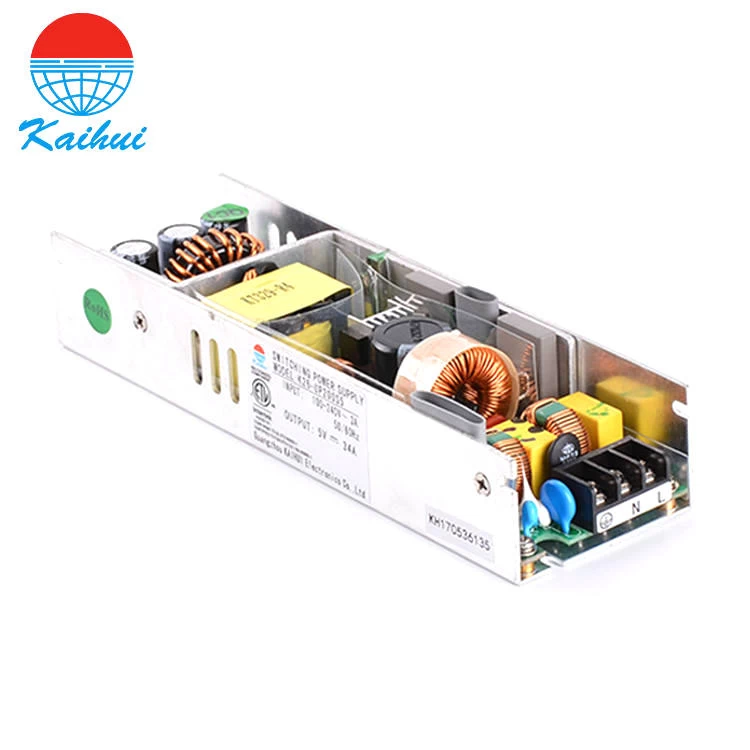

Product picture:
