Single output 28V 120W AC DC switching power supply open frame SMPS
Description:
K18-U120S28 120W 28Vdc 4.3A open frame single output switching power supply source has built-in active filter,wide range of AC input voltage, it has 2 years warranty, be widely used in CCTV Led driver and electronic system.
Features:
1, High efficiency 120W 28V switching power supply,low temperature rise;
2, Built-in active filter, low output niose 120W 28VDC output 4.3A power supply;
3, 28V 4.3A power supply with wide range of AC input voltage ;
4, Overload,short circuit and overvoltage protection;
5, Single output samll size LED stage lighting power supply.
|
Item NO.
|
K18-U120S28
|
|
Output
|
Output Voltage
|
+28V
|
|
Rated Current
|
4.3A
|
|
Current Range
|
0-4.3A
|
|
Rated power
|
120.4W
|
|
Ripple
|
280mVp-p
|
|
Adjustable output range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms /230V
|
|
Input
|
Input Voltage range
|
90~264V AC;110~360V DC
|
|
Input current
|
2A/115V;1A/230V
|
|
Input frequency
|
47~63Hz
|
|
Efficiency
|
85%
|
|
Inrush current
|
30A@230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over load protection
|
105~150%,Hiccup protection, automatic recovery
|
|
Short circuit protection
|
Hiccup protection, automatic recovery
|
|
Output overvoltage
|
15~18V
|
|
Over Temp.protection
|
------
|
|
Environment
|
Working Temp.,Humidity
|
-10~60℃，10~90% RH,No condensation,Referring to the Load curve
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943,EN60950
|
|
Withstand voltage
|
I/P-O/P，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
GB9254,EN55022 CLASSA
|
|
Others
|
Dimension
|
127*82*38mm CASE：K818
|
|
Weight
|
0.5Kg
|
|
Note
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connected to the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line Regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

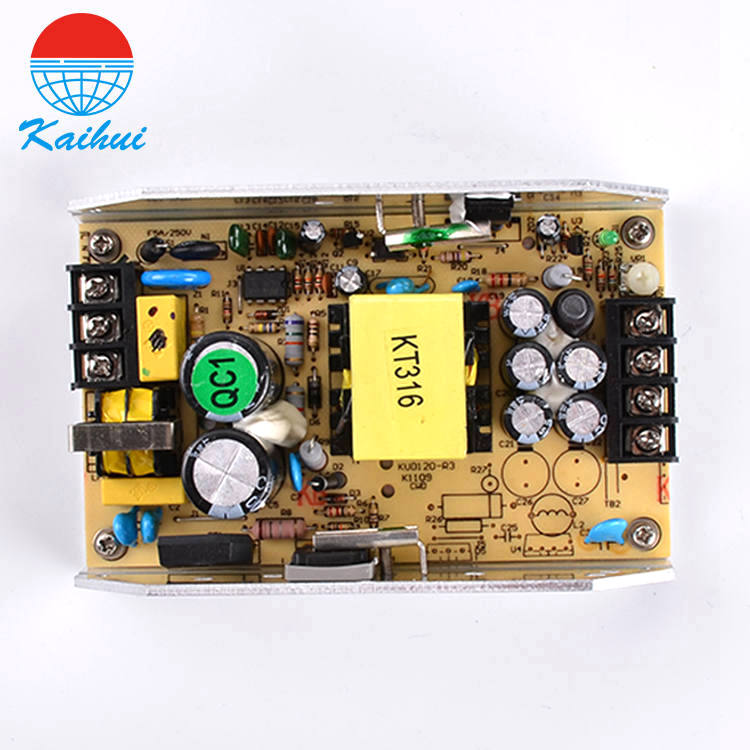

Product picture:
