single output 600W 12V 50A switching power supply with fan and cover
Description:
K18C-UP600S12F is 100-240Vac input voltage,600W 12Vdc switching power supply has built-in active PFC function,PF＞0.95,high efficiency up to 91.5%.A built-in cooling fan enables the switching power supply to reach full power,it has 2 years warranty.
Features:
1, High efficiency 600W switching power supply, low temperature rise;
2, Built-in filters, low output noise 600W 12VDC output power supply;
3, 12V 50A power supply wide range of AC input voltage ;
4, Short circuit, overload, overvoltage protection;
5, Single output with cover type.
Parameter
|
|
Item NO
|
K18C-UP600S12F
|
|
Output
|
Output Voltage
|
+12VDC
|
|
Rated Current
|
50A
|
|
Current Range
|
------
|
|
Rated Power
|
600W
|
|
Ripple & Noise
|
150mVp-p
|
|
Adjustable Output Range
|
11.4~12.6V
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Set up,Rise,Keep up time
|
300ms, 20ms, 12ms
|
|
Input
|
Input Voltage Range
|
100~240V AC
|
|
Input Current
|
7.6A/115V,3.8A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
91.5%
|
|
Power Factor
|
PF＞0.98/115V PF＞0.95/230V
|
|
Inrush Current
|
Cool start 60A@230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
105~150%,Hiccup protection,automatic recovery
|
|
Short Circuit Protection
|
Locked protection,return to normal after restart
|
|
Output over-voltage protection
|
＞120% Shut down,Locked protection,return to normal after restart
|
|
Over-temperature protection
|
TS1 position＞105℃ it will be protection,then automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-20~70℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P:3KV;I/P-FG:1.8KV;O/P-FG:0.6KV AC 1min
|
|
Insulation Resistance
|
I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN55015
|
|
Others
|
Dimension
|
168*82*60mm(L*W*H)
|
|
Weight
|
1kg
|
|
MTBF
|
＞50K hrs
|
|
Fan Supply
|
12V@0.3A for driving a fan,tolerance±15%
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

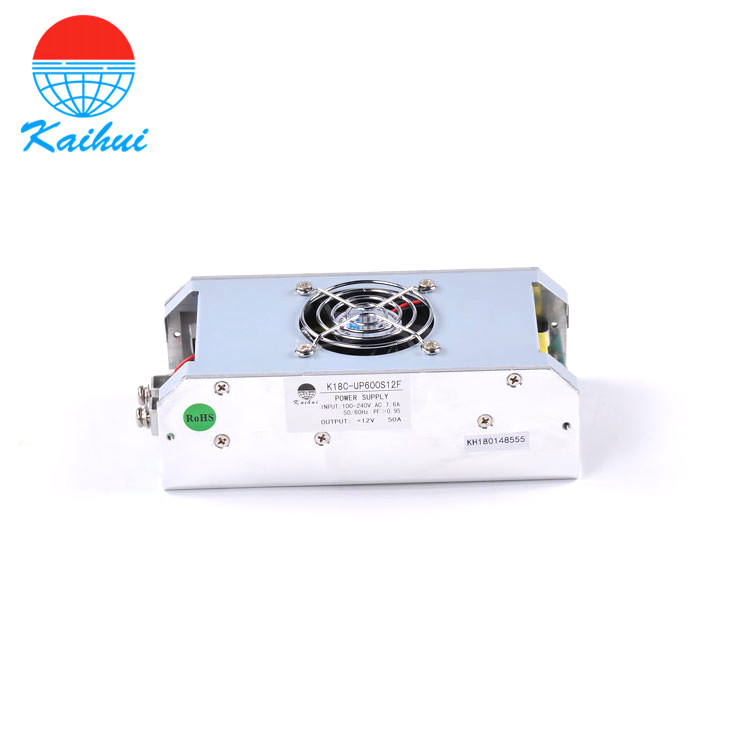

Product picture:
