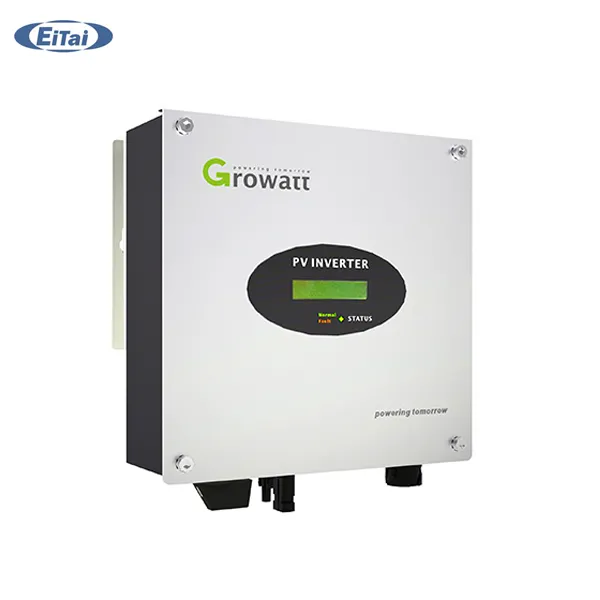

Single Phase Growatt 3KW Solar Inverter
Europe Version Single Phase Growatt 3kw Inverters Pure Sine Wave On Grid 3000-S Solar Inverter

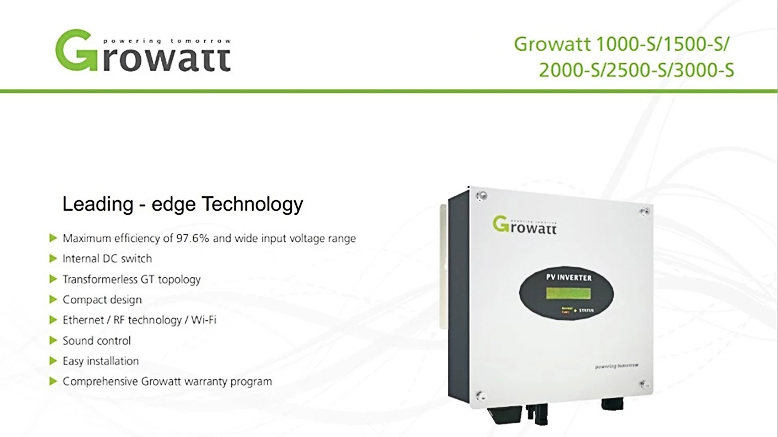

Leading - edge Technology
-
Maximum efficiency of 97.6% and wide input voltage range
-
Intemal DC switch
-
Transformerless GT topology
-
Compact design
-
Ethernet/RF technology/Wi-Fi
-
Sound control
-
Easy installation
-
Comprehensive Growatt warranty program
Product Detail :
|
Datasheet
|
Growatt 1000-S
|
Growatt 1500-S
|
Growatt 2000-S
|
Growatt 2500-S
|
Growatt 3000-S
|
|
Input data (DC)
|
|
Max. recommended PV power (for module STC)
|
1300W
|
1950W
|
2600W
|
3250W
|
3900W
|
|
Max. DC voltage
|
450V
|
450V
|
450V
|
500V
|
550V
|
|
Start voltage
|
80V
|
80V
|
80V
|
80V
|
80V
|
|
PV voltage range
|
70V-450V
|
70V-450V
|
70V-450V
|
70V-500V
|
70V-550V
|
|
MPP work voltage range/ nominal voltage
|
70V-450V/180V
|
70V-450V/250V
|
70V-450V/360V
|
70V-500V/360V
|
70V-550V/360V
|
|
Full load dc voltage range
|
110V-400V
|
175V-400V
|
200V-400V
|
250V-450V
|
250V-500V
|
|
Max. input current
|
10A
|
10A
|
11A
|
12A
|
13A
|
|
Max. input current per string
|
10A
|
10A
|
11A
|
12A
|
13A
|
|
Number of independent MPP trackers /strings per MPP tracker
|
1/1
|
1/1
|
1/1
|
1/1
|
1/1
|
|
Output (AC)
|
|
Rated AC output power
|
1000W
|
1600W
|
2000W
|
2500W
|
3000W
|
|
Max. AC power
|
1000W
|
1650W
|
2000W
|
2500W
|
3000W
|
|
Max. output current
|
4.7A
|
7.8A
|
9.5A
|
11.9A
|
14.3A
|
|
AC nominal voltage
|
220V/230V/240V
|
220V/230V/240V
|
220V/230V/240V
|
220V/230V/240V
|
220V/230V/240V
|
|
AC grid frequency; range
|
50Hz/ 60Hz
|
50Hz/ 60Hz
|
50Hz/ 60Hz
|
50Hz/ 60Hz
|
50Hz/ 60Hz
|
|
Adjustable power factor
|
0.8leading...0.8lagging
|
0.8leading...0.8lagging
|
0.8leading...0.8lagging
|
0.8leading...0.8lagging
|
0.8leading...0.8lagging
|
|
THDI
|
<3%
|
<3%
|
<3%
|
<3%
|
<3%
|
|
AC connection
|
Single phase
|
Single phase
|
Single phase
|
Single phase
|
Single phase
|
|
Efficiency
|
|
|
|
|
|
|
Max. efficiency
|
97.40%
|
97.40%
|
97.40%
|
97.60%
|
97.60%
|
|
Euro weighted efficiency
|
96.50%
|
97.00%
|
97.00%
|
97.30%
|
97.30%
|
|
MPPT efficiency
|
99.50%
|
99.50%
|
99.50%
|
99.50%
|
99.50%
|
|
Protection Devices
|
|
DC reverse polarity protection
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
DC switch
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Output over current protection
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Output over voltage protection-varistor
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Ground fault monitoring
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Grid monitoring
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Integrated all - pole sensitive leakage current monitoring unit
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
General Data
|
|
Dimensions (W / H / D) in mm
|
271*299*141
|
271*299*141
|
271*299*141
|
271*359*141
|
271*359*141
|
|
Weight
|
6.4KG
|
6.4KG
|
6.4KG
|
9.1KG
|
9.1KG
|
|
Operating temperature range
|
–25°C ... +60°C
|
–25°C ... +60°C
|
–25°C ... +60°C
|
–25°C ... +60°C
|
–25°C ... +60°C
|
|
Noise emission (typical)
|
≤25 dB(A)
|
≤25 dB(A)
|
≤25 dB(A)
|
≤25 dB(A)
|
≤25 dB(A)
|
|
Self-Consumption night
|
<0.5 W
|
<0.5 W
|
<0.5 W
|
<0.5 W
|
<0.5 W
|
|
Topology
|
Transformerless
|
Transformerless
|
Transformerless
|
Transformerless
|
Transformerless
|
|
Cooling concept
|
Natural
|
Natural
|
Natural
|
Natural
|
Natural
|
|
Environmental Protection Rating
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
|
Altitude
|
2000m without derating
|
2000m without derating
|
2000m without derating
|
2000m without derating
|
2000m without derating
|
|
Relative humidity
|
100%
|
100%
|
100%
|
100%
|
100%
|
|
Features
|
|
DC connection
|
H4/MC4(opt)
|
H4/MC4(opt)
|
H4/MC4(opt)
|
H4/MC4(opt)
|
H4/MC4(opt)
|
|
AC connection
|
Connector
|
Connector
|
Connector
|
Connector
|
Connector
|
|
Display
|
LCD
|
LCD
|
LCD
|
LCD
|
LCD
|
|
Interfaces: RS232/RF/Wi-Fi/LAN/GPRS
|
yes/opt/opt/opt/opt
|
yes/opt/opt/opt/opt
|
yes/opt/opt/opt/opt
|
yes/opt/opt/opt/opt
|
yes/opt/opt/opt/opt
|
|
Warranty: 5 years / 10 years
|
yes/opt
|
yes/opt
|
yes/opt
|
yes/opt
|
yes/opt
|
|
Contact Person
|
Lewis Wong
|
Lewis Wong
|
Lewis Wong
|
Lewis Wong
|
Lewis Wong
|
|
Certificates and Approvals
|
|
CE, VDE 0126-1-1, IEC 62109, G83, AS4777, AS/NZS 3100, CEI0-21, VDE-AR-N4105, EN50438, CQC, UTE C 15-712, IEC 61683, IEC 60068,IEC 61727, IEC 62116, INMETRO
|
Product Application :
Category : Solar Inverter
Product Package :
Safety Carton Box packing with wooden pallet
54pcs per pallet as standard or as per order
Delivery by Express to door/ Air to airport/ Sea to port/ Railroad to door or railsation
