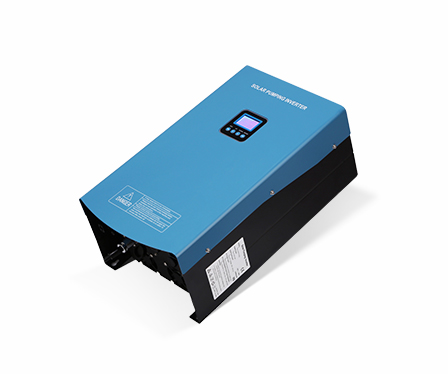

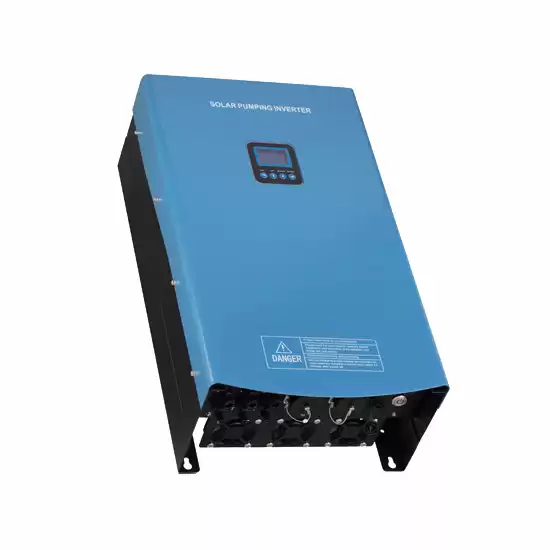

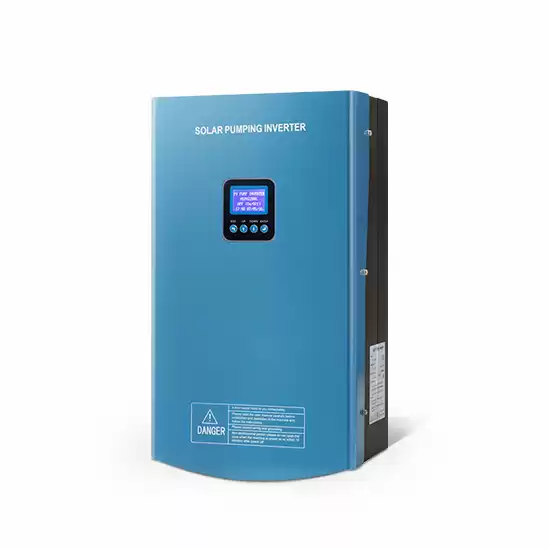

Single Phase Hybrid Solar Water Pump Inverter

Widely applied to solar submersible pump , Sunpal Hybrid Solar Pump Inverter With AC Input is more intelligent and mutifunctional than traditional variable frequency drive.


  • WEIGHT14KG
  • SIZE550*350*285mm
  • WATERPROOFIP65
  • MAX MPPT EFFICIENCY99%
  • MAX INPUT CURRENT6A
  • RECOMMEND VMP VOLTAGE>500V ( Only Solar )>560V ( Hybrid Power )
  • VOLTAGE3 Phase 380/400/440V
  • RATED POWER2200W
  • MODELHSPH2200H



Hybrid Solar Pump Inverter

Sunpal solar pumping inverter converts DC power from the solar array into AC power to drive the pump.With the function of MPPT(maximum power point tracking), it regulates the output frequency according to irradiation in real time to achieve the maximum power.









Dry-Run Protection

Pump Dry-Run (Well Water level) detected by software.

When the inverter run to 45Hz or over 45Hz, it detect the

pump current. Inverter Automatic Stop once the pump

current less than the LE Current, inverter will restart after 10

minutes.If connect well sensor and Enable Well sensor, the dry run function will disable a

utomatic.

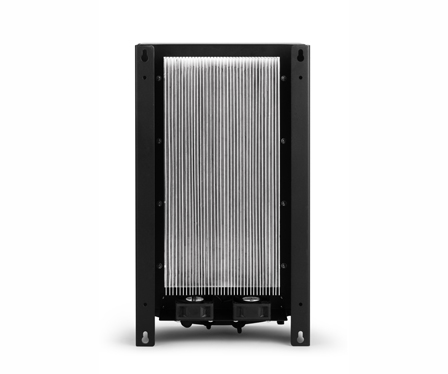

Thermal Design

The surface of the radiator is designed with multiple heat dissipation teeth and folds, so that the contact area between the radiator and the air is increased, which is conducive to rapid heat dissipation.The shell is made of aluminum alloy with good thermal conductivity. The integral shell structure is adopted. The radiator and the shell are directly connected through a large area. The heat of the components can be directly transferred to the aluminum alloy shell through the radiator, forming the heat dissipation path of the device → radiator → shell → air.







certifications of solar panel

Solar Pump Inverter Certifications:

SGS: IEC 62109 IEC 62019

ISO 9001:2015: ISO Quality Management System

CE: EN 61000,EN 62109





Hybrid Solar Pump Inverter Features:

  • Automatic hybrid power input (solar, AC/diesel/battery power)
  • Maximum power point tracking (MPPT) function
  • Solar input anti-reverse
  • IP65 waterproof
  • Over-load and dry-run protection
  • GPRS SMS control/monitoring
