Single Phase to Three Phase Inverter

GROWATT up-to-date smart grid-tied inverter for single phase residential application, innovative aerial material cover, elegant looking and 45% lighter. The OLED screen and touch button design brings more convenient operation. Leading high efficiency ensures high energy yields of a home system.

  • Warranty5years( 10years op)
  • CertificateALL
  • Size375/350/160mm
  • Output Type Single
Facebook Twitter Pinterest LinkedIn 分享

Single Phase to Three Phase Inverter

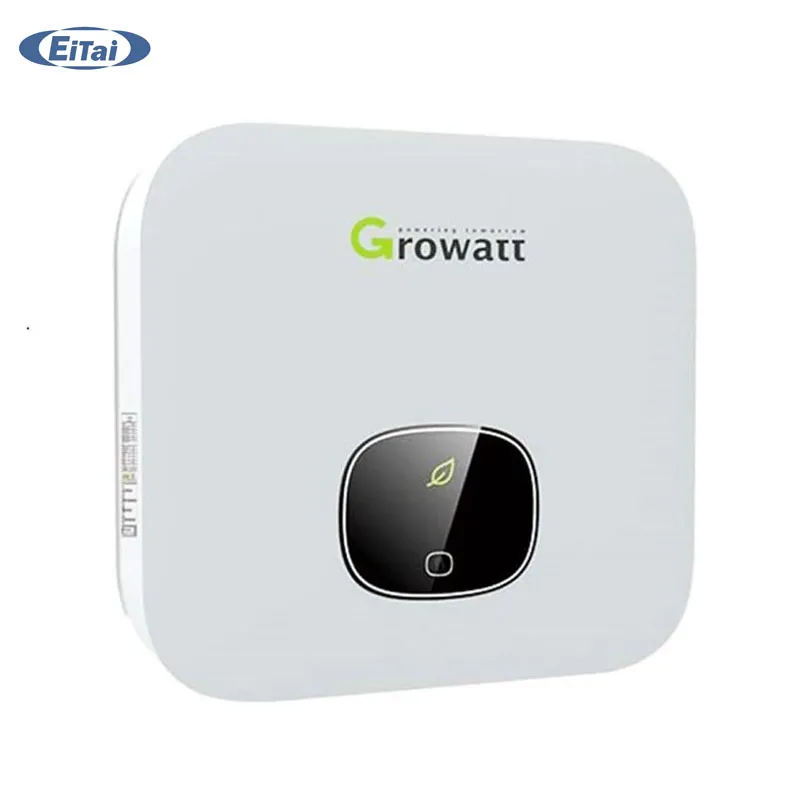

Growatt Solar Inverter 5kw 6KW 5000TL-X 6000TL-X PV Grid Tie Solar Single Phase On-grid Inverter


Grid-tie inverter



Related Parameters :


Datasheet

MIN 5000TL-X

MIN 6000TL-X
Input Data
Max. recommended PV power(for module STC)
7000W
8100W
Max. DC voltage
550V
550V
Start voltage
100V
100V
MPP work voltage range/ nominal voltage
80V-550V /360V
80V-550V /360V
Max. input current
12.5A/12.5A
12.5A/12.5A
Max. short-circuit current
16A/16A
16A/16A
Number of independent MPP trackers / strings per MPP tracker
2/1
2/1
Output (AC)
Rated AC output power
5000W
6000W
Max. AC apparent power
5000VA
6000VA
Max. output current
22.7A
27.2A
AC nominal voltage
230V(160V-300V)
230V(160V-300V)
AC grid frequency
50Hz/60Hz,±5Hz
50Hz/60Hz,±5Hz
Adjustable power factor
0.8leading...0.8lagging
0.8leading...0.8lagging
THDi
<3%
<3%
AC connection
Single phase
Single phase
Efficiency
Max.efficiency
98.40%
98.40%
Euro weighted efficiency
97.50%
97.50%
MPPT efficiency
99.90%
99.90%
Protection Devices
DC reverse polarity protection
yes
yes
DC switch
yes
yes
DC surge protection
Type II
Type II
Output over current protection
yes
yes
Output over voltage protection-varistor
yes
yes
Ground fault monitoring
yes
yes
Grid monitoring
yes
yes
Integrated all - pole sensitive leakage current monitoring unit
yes
yes
General Data
Dimensions (W / H / D) in mm
375/350/160
375/350/160
Weight
10.8KG
10.8KG
Operating temperature range
–2 5 ° C . . . + 6 0 ° C
–2 5 ° C . . . + 6 0 ° C
Noise emission (typical)
≤25 dB(A)
≤25 dB(A)
Altitude
4000m
4000m
Self-Consumption night
< 0.5W
< 0.5W
Topology
Transformerless
Transformerless
Cooling concept
Natural
Natural
Environmental Protection Rating
IP65
IP65
Relative humidity
100%
100%
Features
DC connection
H4/MC4(opt)
H4/MC4(opt)
AC connection
Connector
Connector
Display
OLED+LED
OLED+LED
Interfaces: RS485 / USB /Wi-Fi/ 4G / RF
yes / yes /opt / opt / opt
yes / yes /opt / opt / opt
Warranty: 5 years / 10 years
yes / opt
yes / opt

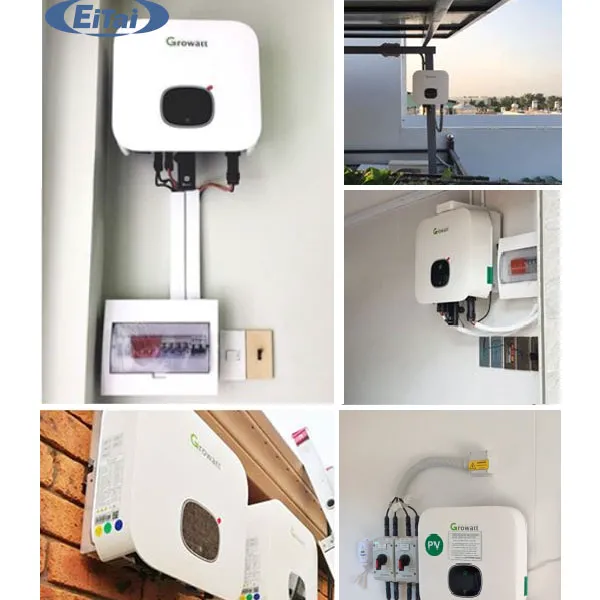

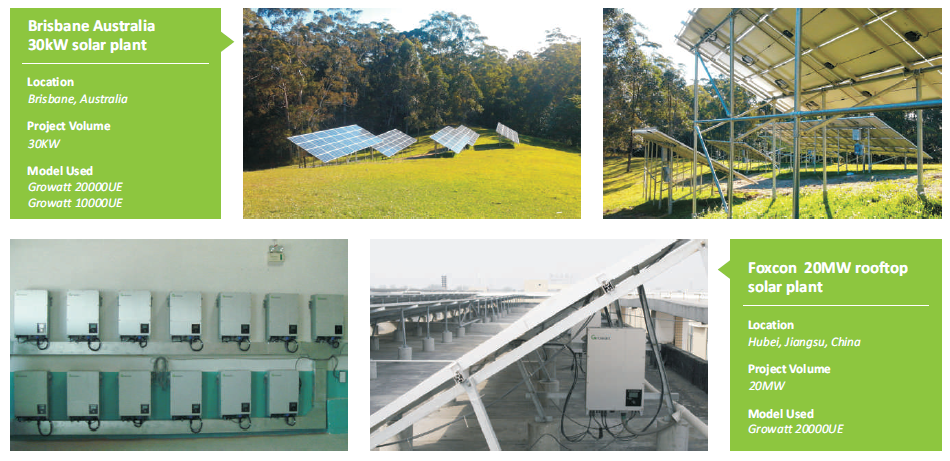

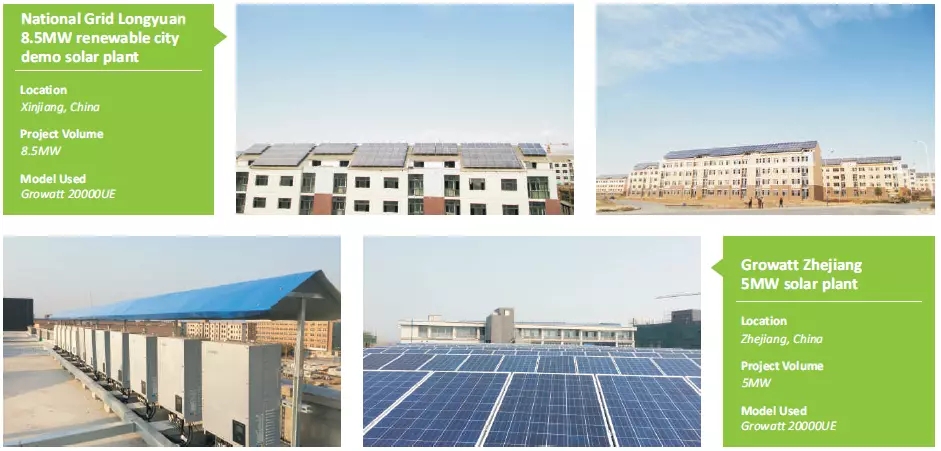

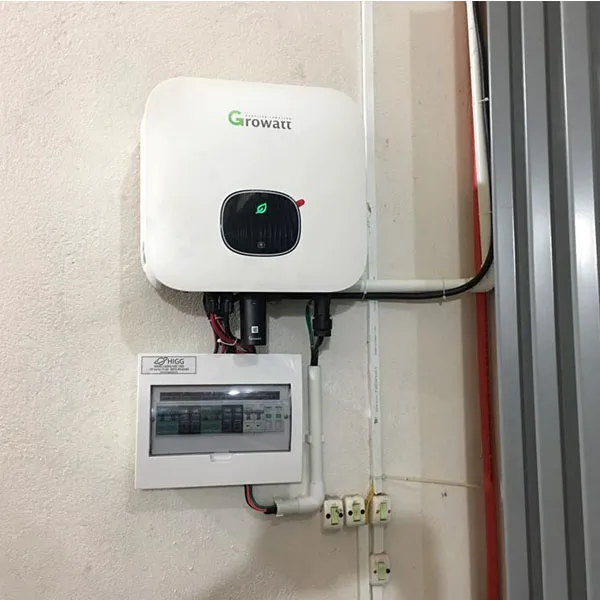

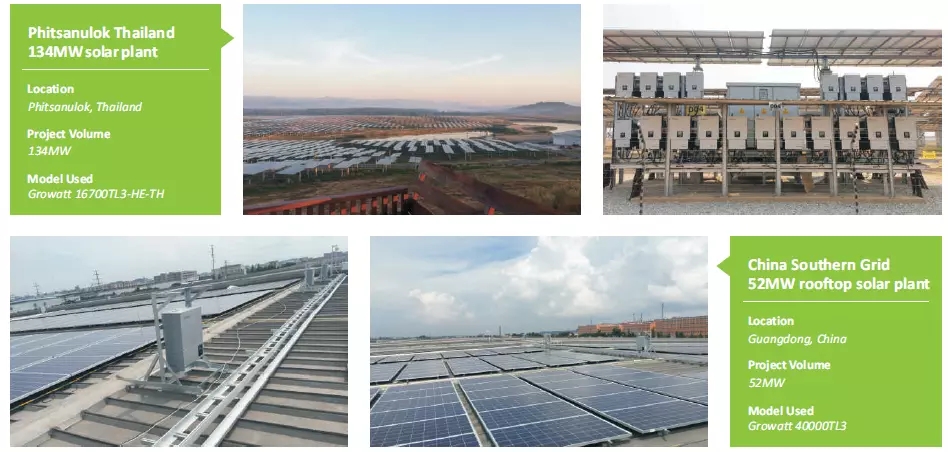

OUR CASE :


Growatt solar inverter

growatt 5kw solar inverter

Growatt inverter review



Packaging & Protection :


PV inverter

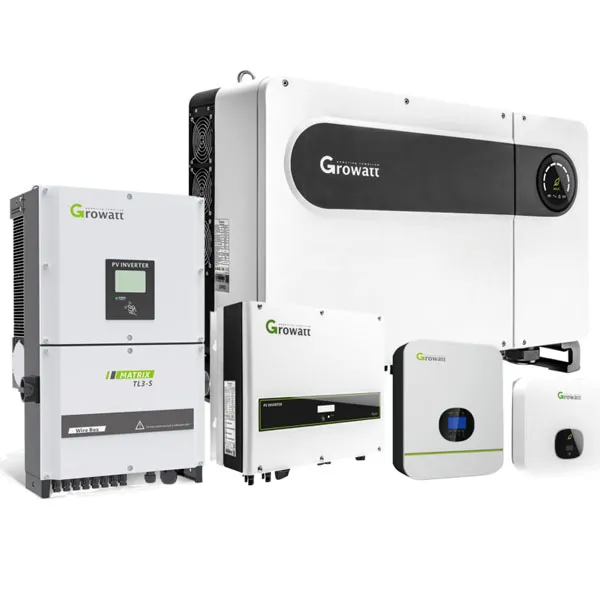

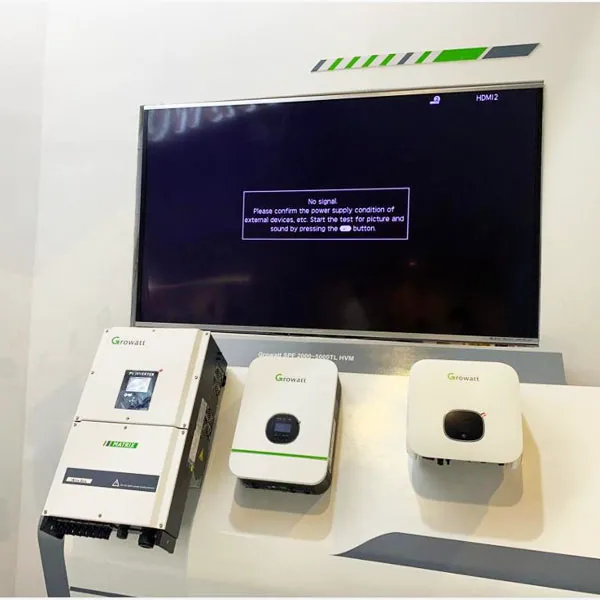

Product Display ：


Solar inverter

WIFI inverter
