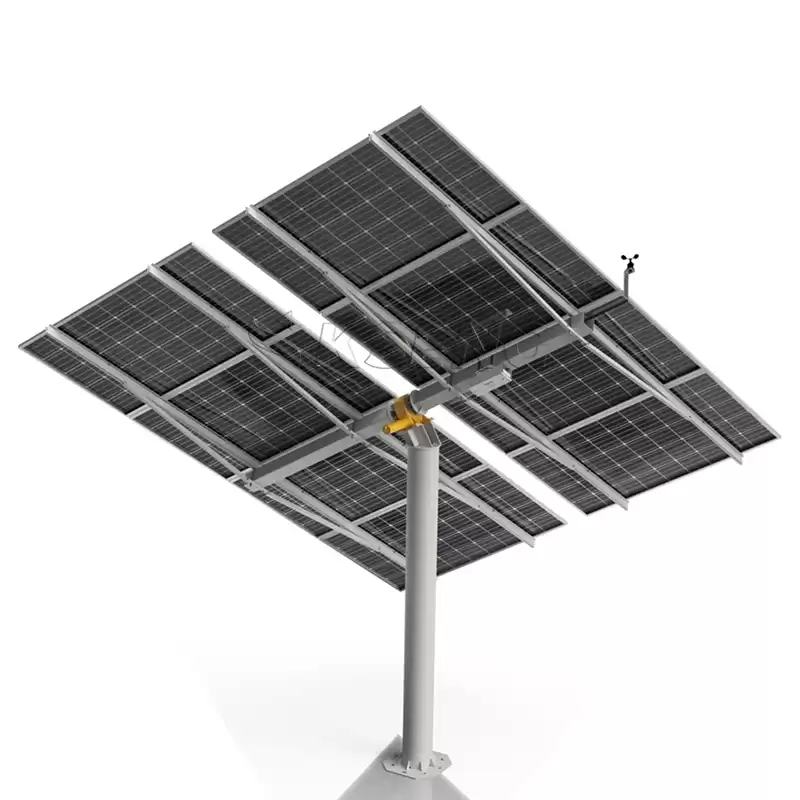

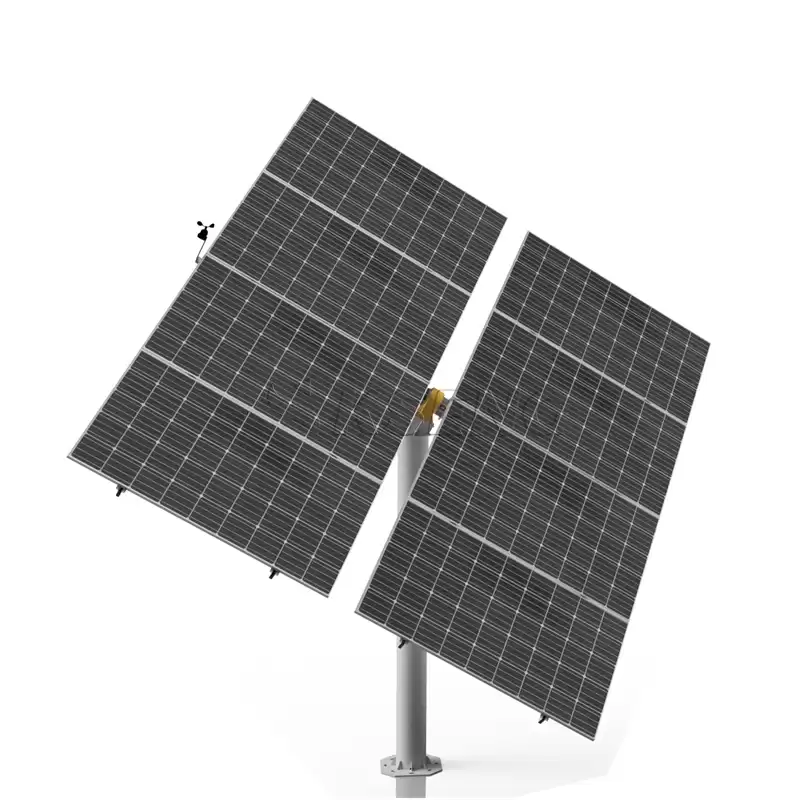

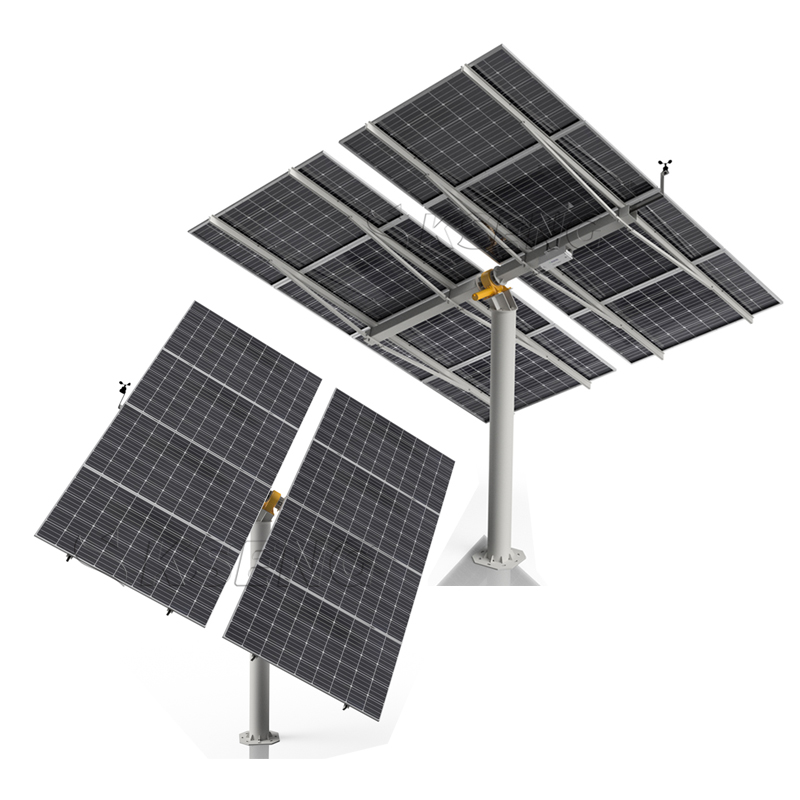

Single post axis tracker solar automatic solar tracking system

1.Built-in inclination sensor
2.Smart wind protection mode
3.Increase power generation by 15-35%
4.Optional AC power or self-power supply

  • CertificationTUV, CPP, IEC,etc
  • Service Life25 years
  • Warranty10 years
  • MaterialHDG steel, Al-Mg-Zn Coating Steel
  • Wind Load>=18m/s
Facebook Twitter Pinterest LinkedIn 分享


1.Built-in inclination sensor

2.Smart wind protection mode

3.Increase power generation by 15-35%

4.Optional AC power or self-power supply

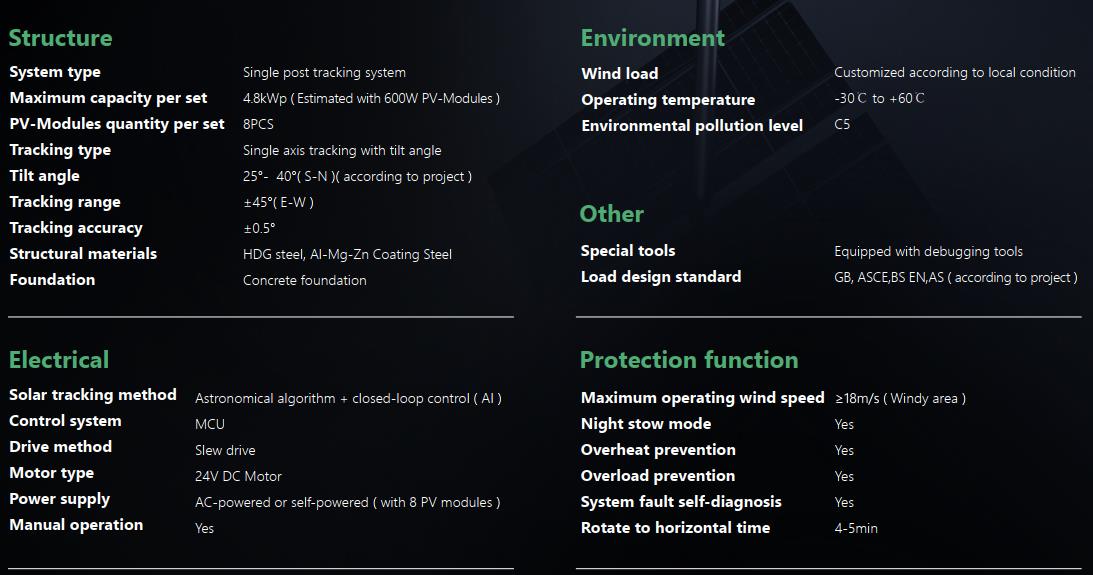

Tracking Structure Parameters
Tracking Technology
Single Post  Solar Tracking System
Maximum capacity per set
4.8kWp ( Estimated with 600W PV-Modules )
PV-Modules quantity per set
8PCS
Tracking range
±45°( E-W )
Tracking accuracy
±0.5°
Tilt angle
25°- 40°( S-N )( according to project )
Protection of wind speed
≥18m/s ( Windy area )
Foundation form
Concrete foundation
Tracking Controller Parameters
Control system
MCU
Load design standard
GB, ASCE,BS EN,AS
Overheat prevention
Have
Night stow mode
Have
System fault self-diagnosis
Have
Overload prevention
Have
Motor Type
24V DC Motor

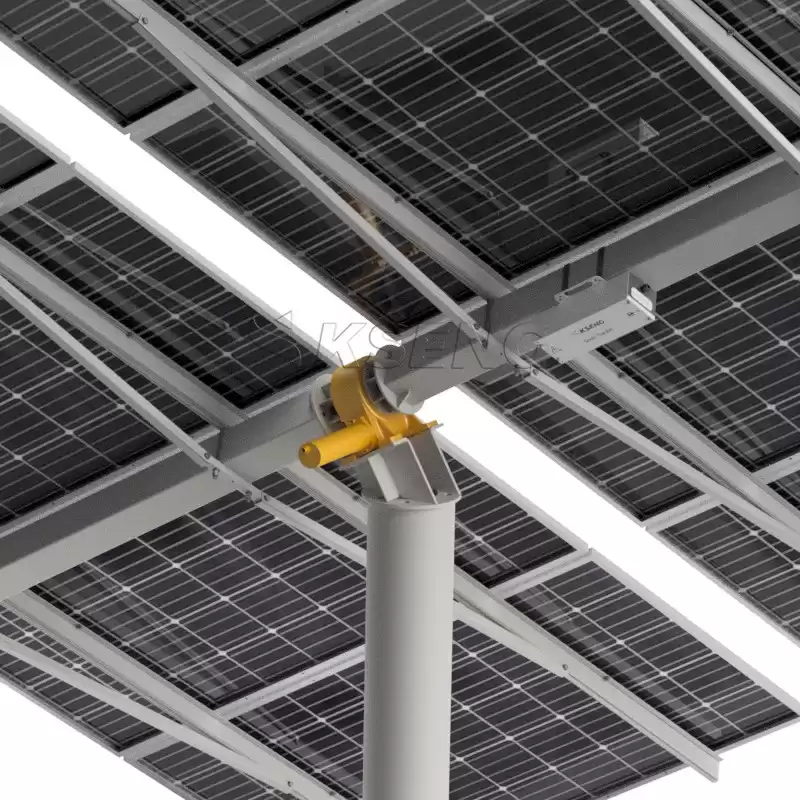

Drive System
Slew drive
Power Acquisition Mode
AC-powered or self-powered ( with 8 PV modules )
Solar tracking method
Astronomical algorithm + closed loop（AI Control）
