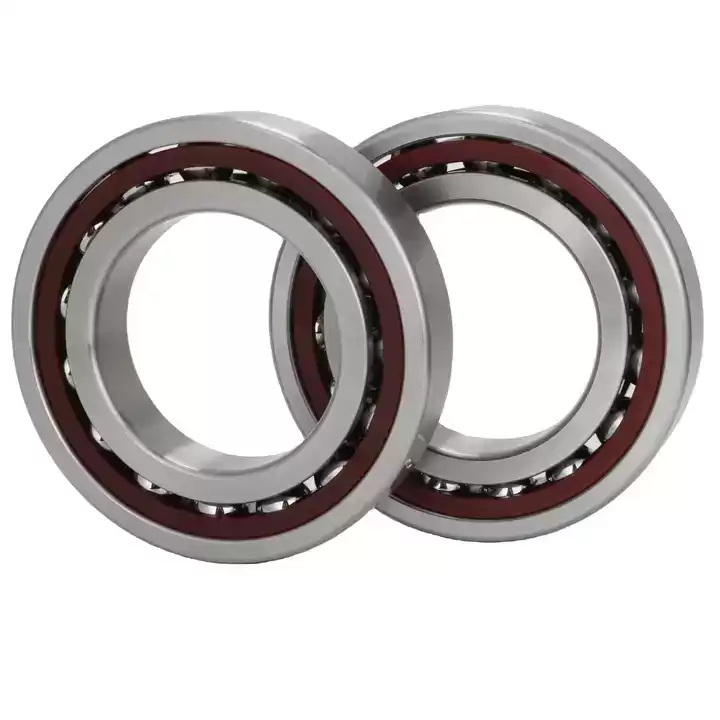

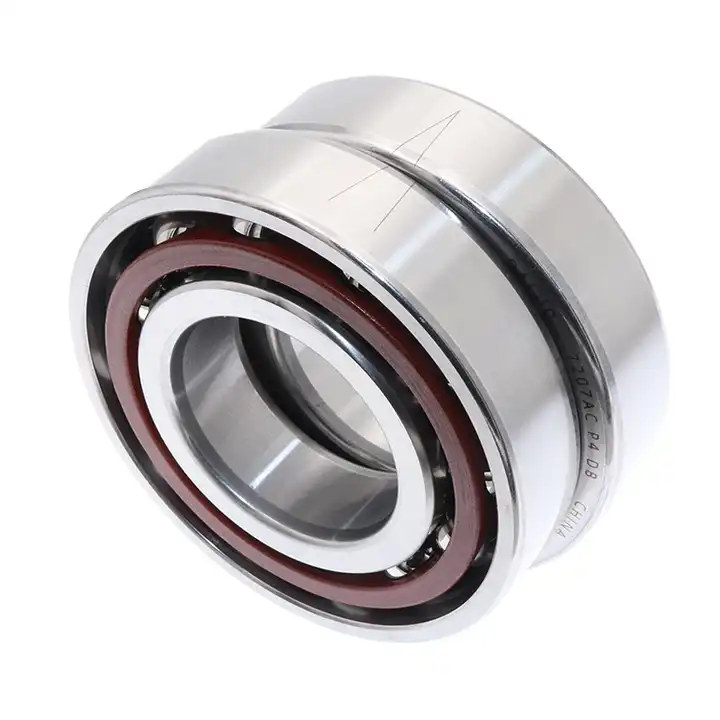

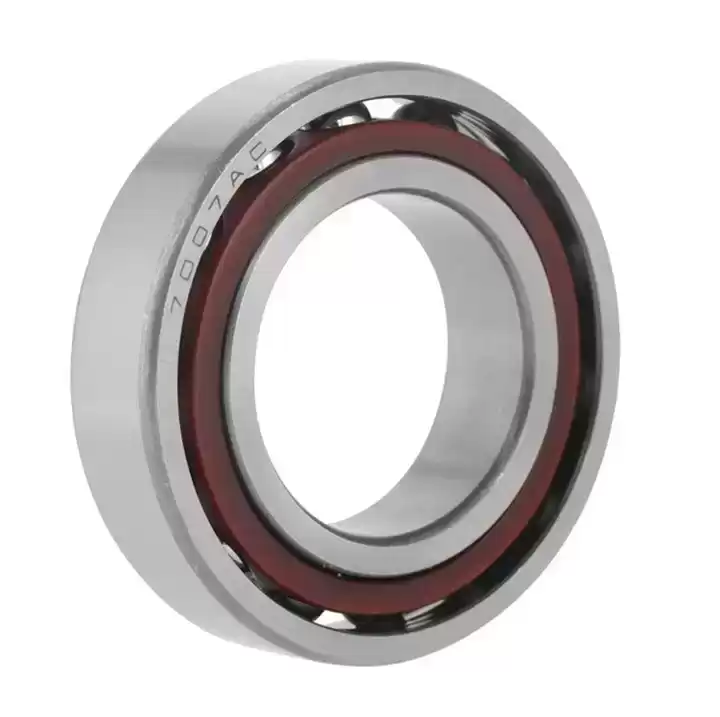

Single Row super precision Angular Contact Ball Bearings

Angular Contact Ball Bearings are designed to support bidirectional axial and radial loads on shafts. This is achieved through the contact angle of the ball with the inner and outer rings, usually 15 degrees, 25 degrees or 40 degrees. Smaller contact angles generally provide higher axial load carrying capacity, while larger contact angles provide higher rigidity and are suitable for high-speed applications.



Single Row Angular Contact Ball Bearings

One of the main advantages of Angular Contact Ball Bearings is their ability to provide good performance when rotating at high speeds. Due to the special nature of their design, they reduce rolling friction, resulting in less heat and energy loss when the bearings operate at high speeds. This makes them ideal for use in many industrial applications, including wind turbines, power tools, and automotive drivetrains.



Single Row Angular Contact Ball Bearings Size Chart:

Model Number

d/mm

D/mm

B/mm

7200AC

10

30

9

7201AC

12

32

10

7202AC

15

35

11

7203AC

17

40

12

7204AC

20

47

14

7205AC

25

52

15

7206AC

30

62

16

7207AC

35

72

17

7208AC

40

80

18

7209AC

45

85

19

7210AC

50

90

20

7211AC

55

100

21

7212AC

60

110

22

7213AC

65

120

23

7214AC

70

125

24

7215AC

75

130

25

7216AC

80

140

26

7217AC

85

150

28

7218AC

90

160

30

7219AC

95

170

32









Application :

  • Garment Shops
  • Building Material Shops
  • Manufacturing Plant
  • Machinery Repair Shops
  • Food & Beverage Factory
  • Farms
  • Retail
  • Construction works
  • Energy & Mining



Advantage of WIS Bearing:



  • Rich experience

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support

  • Competitive price and small MOQ

Direct manufacturer of bearings can offer you lowest price with small MOQ

  • Customized service

WIS bearings can provide OEM and ODM service as to your sample or drawings.

  • Strict quality control

We focus on quality during production and guarantee 100% quality inspection before delivery

  • Delivery strength

WIS bearings give you on time delivery

  • Free sample provided
