Compared with the conventional edge grinder, the processing size is obviously reduced. The minimum j machining size can reach 50mm. For more than 2mm glass can be processed. Exceeding the limit of the traditional edge grinding machine on the market can only process 3mm or more glass. At the same time, this machine can realize the accuracy of parallelism and diagonal accuracy of the processed products. It is the best choice for King Kong door panels, cabinet doors and windows, optics, electronics, glass crafts, glass and other processing industries.

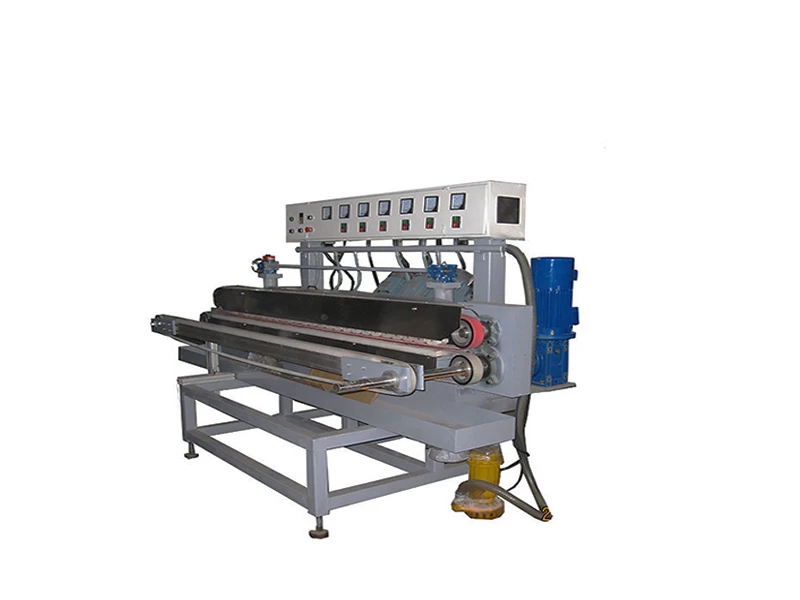

SY-1000-4 horizontal glass straight line edging machine in order to market needs, designed and manufactured in accordance with the principles of bilateral high precision milling machine glass straight line edging machine one of the products. Suitable for grinding the straight edges and corners of flat glass of different sizes and thicknesses, straight edge fine grinding, upper corner chamfering, fine grinding, polishing one time processing, grinding wheel number: total 4 grinding heads, single The sides are arranged in sequence as one resin wheel, one chamfer resin wheel, and two polishing wheels. The 45-degree-high bevel edge grinding on the upper chamfer can be realized, and the polishing is completed once; the bottom edge is ground. The use of mechanical stepless speed regulation, adjustable range, stable speed, can change the feed speed during the grinding process, synchronous belt clamping and transmission of glass thickness 2-12mm for grinding.
Technical Parameter
Glass size (Max: 1500 x 1000) (larger size can be customized)
Glass size (minimum: 50 x 50)
Glass thickness: 2-12
Feeding speed: 0.5m/min-8m/min
Weight: 1800kg
Dimension: 2200*1200*1650mm(L × W × H)
Power: 6KW
Table height: 750mm
Voltage: 380V / 50HZ
Maximum angular grinding quantity: 2 ~ 6mm
Straight edge maximum grinding quantity: 2
Angular angle: 45 degree
Machining accuracy: positive or negative 20s
