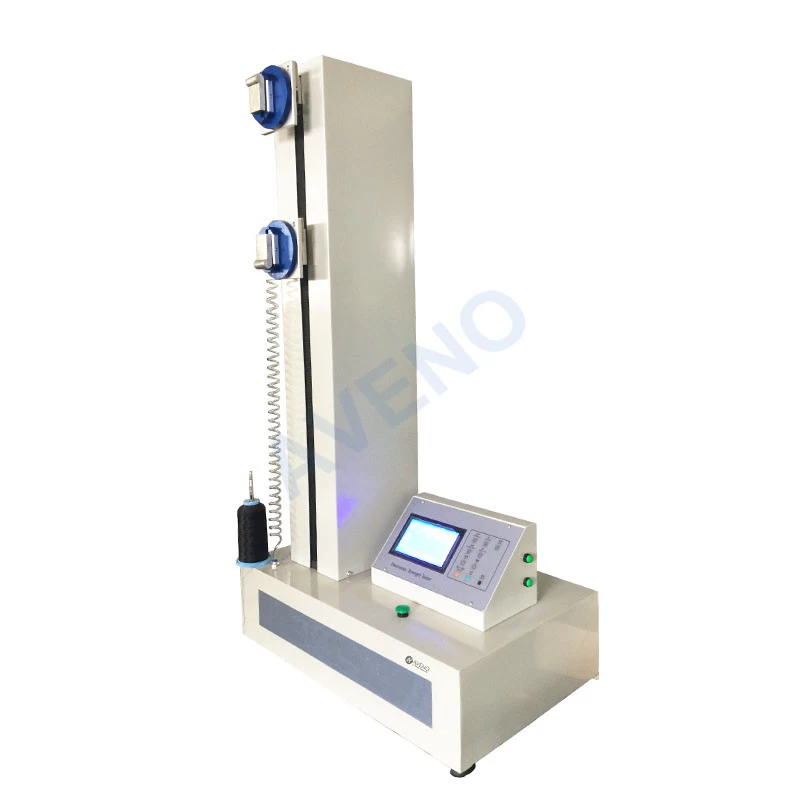

AY05-Single-Yarn Strength Tester
Application Of Single-Yarn Strength Tester
Single-Yarn Strength Tester is used to measure the breaking strength and breaking elongation of single yarns, synthetic filaments and textured yarns of cotton, wool, hemp and core yarns.
Features Of Single-Yarn Strength Tester
-
Using high-precision, high-rate force measurement system, the test data is accurate.
-
The use of precision ball screws and high performance stepper motors form a low noise, smooth drive system.
Test methods Of Single-Yarn Strength Tester
-
Constant speed stretching test
-
Constant elongation load test
-
Constant load elongation test
-
Stripping test
-
Tearing test
-
Other test can be customize
Standards Of Single-Yarn Strength Tester
ISO2062, ASTM D2256, GB/T14344, GB/T3916
Key Specification Of Single-Yarn Strength Tester
|
Model
|
AY05 Single-Yarn
Strength Tester
|
|
Display
mode
|
LCD display
|
|
Measurement
range, accuracy
|
5000cN±0.5%, 0.1cN ;
15000cN±0.5%, 0.1cN;
500N±0.5%, 0.1N.
|
|
Clamping
specimen length
|
50-500mm
(optional)
|
|
Max.
elongation
|
750mm
|
|
Strength
testing range
|
0~10000 cN ±1%
|
|
Stretching
speed
|
20~1200mm/min
|
|
Tensile
speed accuracy
|
±2%
|
|
Power
Supply
|
AC220V 180W
|
|
Dimensions
|
600×350×1100mm (L×W×H)
|
|
Weight
|
80KG
|
