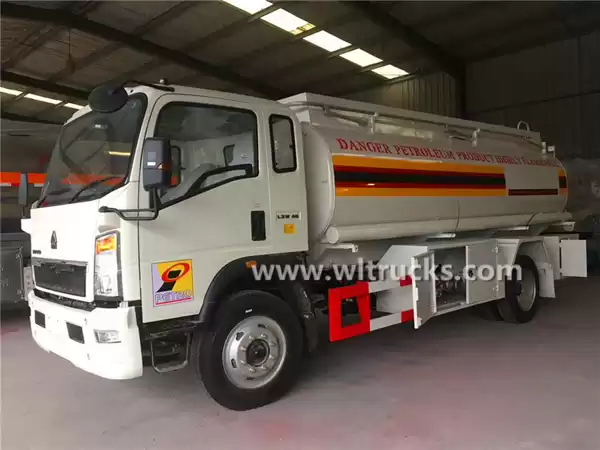

SINOTRUK HOWO 10000L Oil Tank Truck Fuel Dispenser Trucks for Sale
Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.
Optional tank capacity: 3,000 - 35,000 liters for oil tank truck; 30,000 - 60,000 liters for oil tank semi trailer
Optional truck brand: DFAC, JAC, JMC, HOWO, FAW, SHACMAN, YUEJIN, FOTON, North Benz, etc.
Optional wheel drive: 4x2, 4x4, 6x4, 6x4, 8x4, left hand drive or right hand drive.
- Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.
- Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.
3.Tank shape: Optional for round square, oval, and round;
- According to users‘ needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.
5.Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.
|
Main Specification
|
|
Product Name
|
HOWO fuel tank truck 10000liters
|
|
Truck model
|
CLW5110GJYZ3
|
|
Driving Type
|
4×2, Left/right hand drive
|
|
Weights
|
|
Max.Payload (kg)
|
10000
|
|
Curb weight(kg)
|
5500
|
|
Dimensions
|
|
Wheelbase (mm)
|
4500
|
|
Overall Dimension (mm)
|
Approx.7900×2500×2650
|
|
Box dimension
|
10000liters
|
|
Engine
|
|
Engine Model
|
YC4E160 -33(160HP)
|
|
Engine type
|
4 stroke water-cooled, Inter-cooling,Turbocharged
|
|
Displacement (L)
|
4.257L
|
|
Rated power Rev ((Kw/rpm)
|
118kw/2600rpm
|
|
Max Torque (N*m)/Rev (rpm)
|
600N.m/1200-1600rpm
|
|
Emission standard
|
EURO 2
|
|
Drive Line
|
|
Transmission
|
DC6J65TC ,6 forwards, 1 reverse gear, manual operation
|
|
Steering
|
With power steering
|
|
Brake system
|
Air brake
|
|
Cab
|
|
Cab
|
one and half row, Howo cabin, A/C optional
|
|
Axles
|
|
|
Front axle
|
3.2 tons
|
|
Rear axle
|
8 tons
|
|
Tire specification
|
|
Tire specification
|
8.25R20 standard tire,6 tires+1 spare tire
|
|
Specification of Fuel truck
|
|
Tank capacity
|
10000liters,one compartment
|
|
Tanker material
|
Q235, carbon steel
|
|
Manhole
|
1 pcs manhole fixed on top of tank
|
|
Outlet and inlet
|
1 pcs outlet and 1 pcs inlet
|
|
Oil rope
|
2 pcs oil rope
|
|
Fire extinguisher
|
2 pcs 4kg fire extinguisher
|
|
Anti-static devices
|
Including ground towing, static line plate
|
|
Pump
|
Equipped Oil pump (driven from gearbox by PTO)
|
|
Model:80YHCB-60
|
|
Flow:60m3/h
|
|
Pressure :0.6Mpa
|
|
Rotate Speed:970r/min
|
