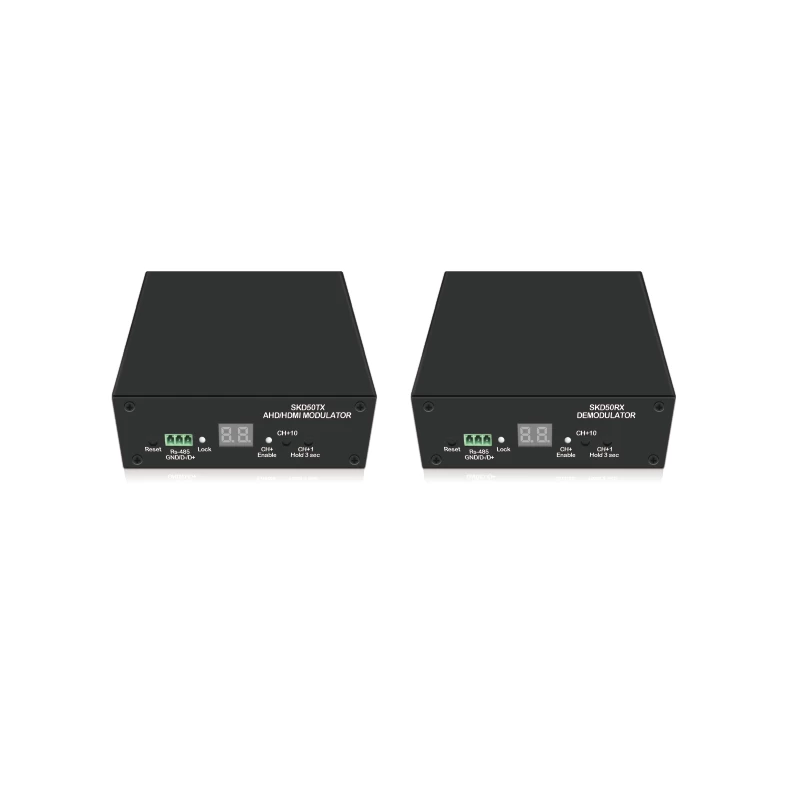

The SKD50 Series AHD Signal Extender is a
high-definition image transmission device designed by SOUKA for
monitoring. It mainly provides long-distance transmission for AHD
high-definition video signals. This product can support 2 megapixel
high-definition video and analog signals, which can be suitable for all kinds of monitoring
fields.
Features:
Includes an AHD variable channel modulation module and an AHD variable channel demodulation
module
2 megapixel high-quality image analog signals
Long transmission
distance and the adjustable channel can mix 99 different channels without interfering
with each other
Technical Parameters:
|
HD input
|
Port
|
HD 1.4a
|
|
Resolution
|
1920*1080_60P,1920*1080_50P;1920*1080_60i,
1920*1080_50i;1280*720_60p, 1280*720_50P
|
|
AHD video input
|
Port
|
BNC TYPE 75Ω
|
|
Resolution
|
FORMAT
|
HZ
|
H*V
|
FSC(MHz)
|
|
NTSC-M,J
NTSC-4.43
|
59.94
|
720*240,960*240
|
3.579545
|
|
59.94
|
720*240,960*240
|
4.4331875
|
|
PAL-B,D,G,H,I
PAL-M
|
50
|
720*288,960*288
|
4.4331875
|
|
59.94
|
720*240,960*240
|
3.57561149
|
|
PAL-NC
|
50
|
720*288,960*288
|
3.58205625
|
|
PAL-60
|
60
|
720*240,960*240
|
4.433619
|
|
Resolution
|
AHD_1080_30P
|
30
|
1920*1080
|
Flexible
|
|
AHD_1080_25P
|
25
|
1920*1080
|
Flexible
|
|
AHD_720_60P
|
60
|
1280*720
|
Flexible
|
|
AHD_720_50P
|
50
|
1280*720
|
Flexible
|
|
AHD_720_30P
|
30
|
1280*720
|
Flexible
|
|
AHD_720_25P
|
25
|
1280*720
|
Flexible
|
|
Power supply
|
DC12V/1A
|
|
RF output port
|
BNC TYPE 75Ω
|
|
RF output test point
|
-20dB
|
|
Output Power
|
100dBuV
|
|
Output channel range
|
Variable channel, select one
from 1-99 channel
|
|
Output channel display
|
2-digit LED
|
|
Audio input port
|
RCA
|
|
Audio maximum input
electrical level
|
1.5Vp-p
|
|
485 communication port
|
SC3.81-21R-3P
|
AHD RX / TX
|
RF input port
|
BNC TYPE 75Ω
|
|
RF input power requirements
|
36-105dBuV
|
|
Input channel range
|
Variable channel, select one
from 1-99 channel
|
|
Input channel display
|
2-digit LED
|
|
Power supply
|
DC12V/1A
|
|
AHD output port
|
BNC TYPE 75Ω
|
|
Audio output port
|
RCA
|
|
485 communication port
|
SC3.81-21R-3P
|
Physical parameters
|
Operating temperature,
humidity
|
-10℃-45℃、40%-70%
|
