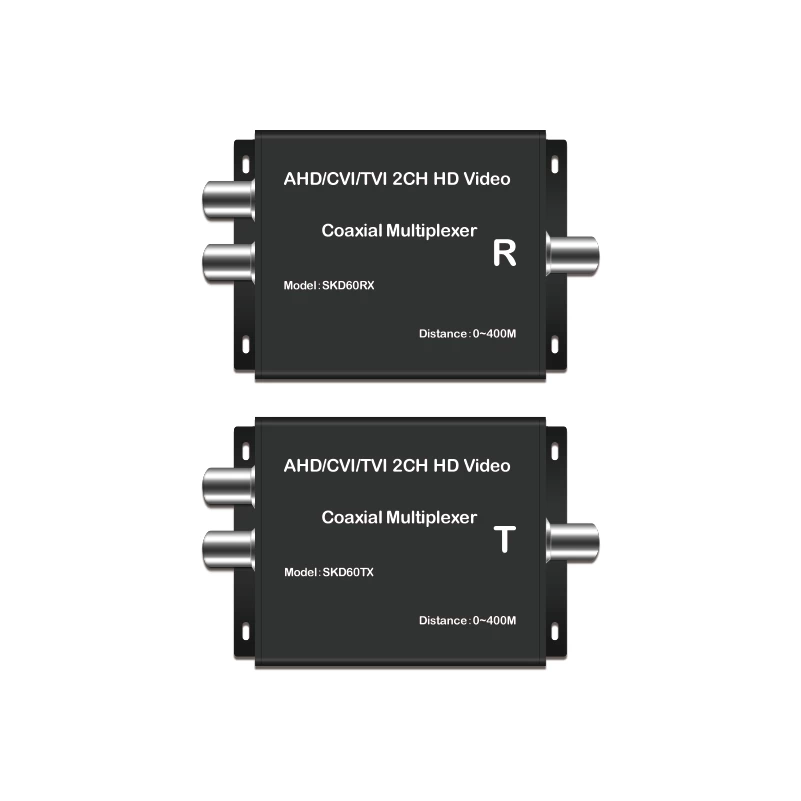

This SKD60 Series Dual Channel AHD Signal Extender can
multiplex two AHD camera signals into one RF signal, and transmit it over long
distance through coaxial cable, which can save the network
resources and increase the transmission distance. And it is totally suitable for monitoring
network.
Features:
Multiplex dual AHD signals
into one single transmission signal
More than 300 meters' transmission distance
Technical Parameters:
AHD dual channel
multiplexer
|
Video input
|
Port
|
BNC TYPE 75Ω
|
|
Resolution
|
FORMAT
|
HZ
|
H*V
|
FSC(MHz)
|
|
NTSC-M,J
|
59.94
|
720*240,960*240
|
3.579545
|
|
NTSC-4.43
|
59.94
|
720*240,960*240
|
4.4331875
|
|
PAL-B,D,G,H,I
|
50
|
720*288,960*288
|
4.4331875
|
|
PAL-M
|
59.94
|
720*240,960*240
|
3.57561149
|
|
PAL-NC
|
50
|
720*288,960*288
|
3.58205625
|
|
PAL-60
|
60
|
720*240,960*240
|
4.433619
|
|
Resolution
|
AHD_1080_30P
|
30
|
1920*1080
|
Flexible
|
|
AHD_1080_25P
|
25
|
1920*1080
|
Flexible
|
|
AHD_720_60P
|
60
|
1280*720
|
Flexible
|
|
AHD_720_50P
|
50
|
1280*720
|
Flexible
|
|
AHD_720_30P
|
30
|
1280*720
|
Flexible
|
|
AHD_720_25P
|
25
|
1280*720
|
Flexible
|
|
RF output
|
BNC TYPE 75Ω
|
AHD RX / TX
|
Input
|
AHD dual channel multiplexer
output signal
|
|
Input port
|
BNC TYPE 75Ω
|
|
Output
|
Restore the input signal of
the AHD dual channel multiplexer
|
|
Output port
|
BNC TYPE 75Ω
|
|
Power supply
|
DC12V/1A
|
Physical parameters
|
Dimension
|
103*110*40.05
|
|
Operating temperature,
humidity
|
-10℃-45℃, 40%-70%
|
|
Storage temperature,
humidity
|
-40℃-70℃, 40%-95%
|
