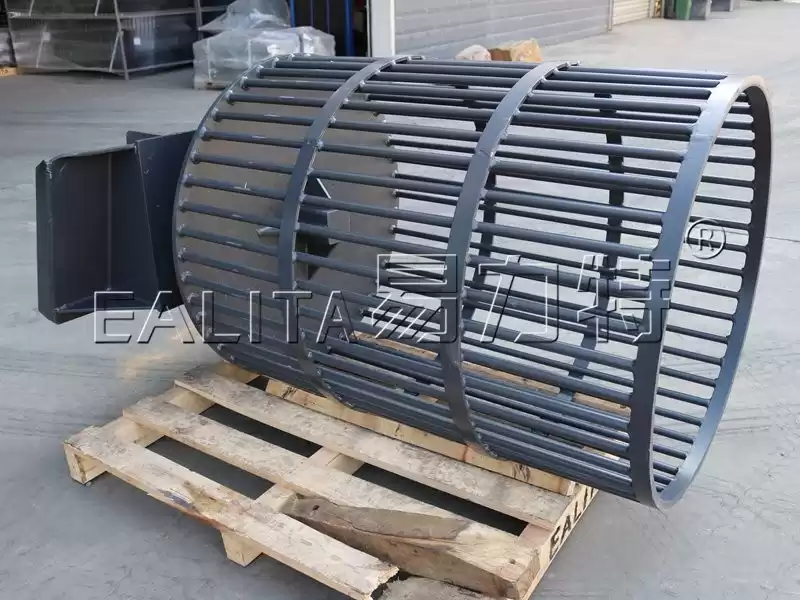

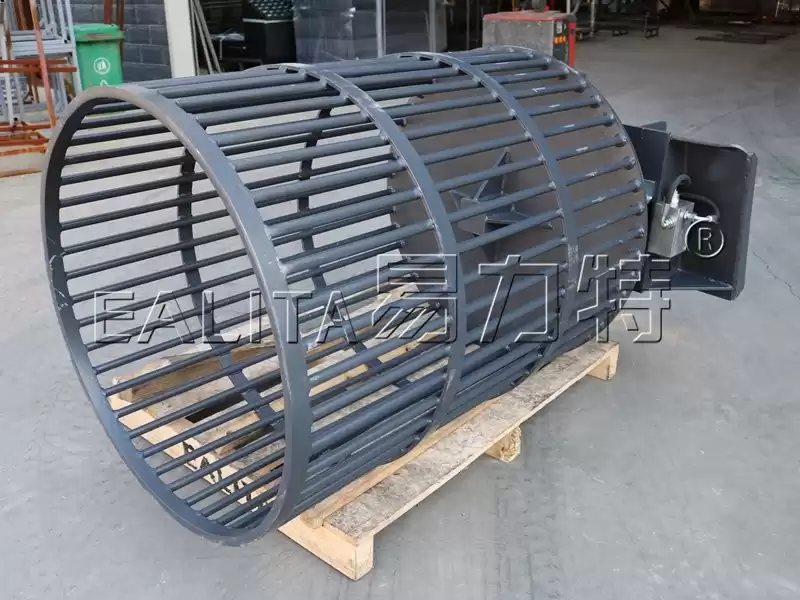

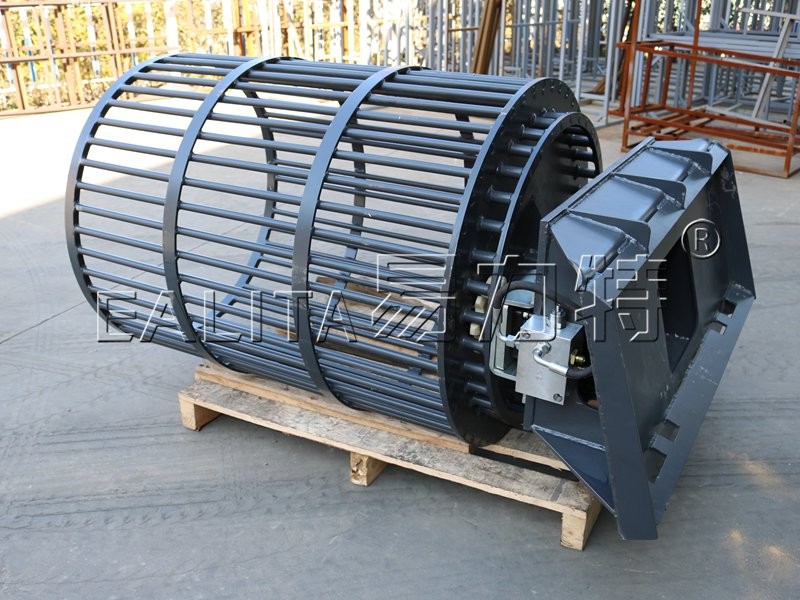

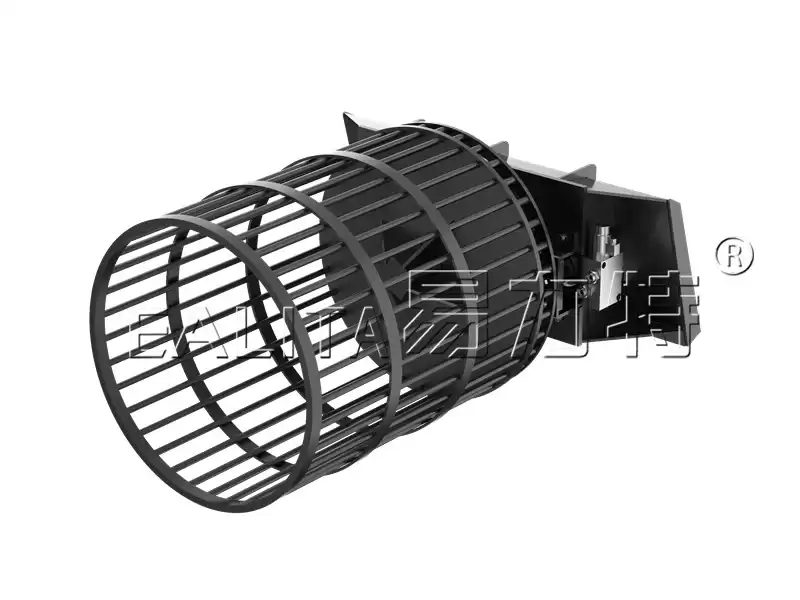

The Skid Steer Rock Picker is the first rotary-style rock picker designed for skid loader use.
This unit has a heavy duty universal skid steer mounting plate that is 1" thick for durability. It also uses a heavy duty direct drive motor with a 4.5" dia spindle with 20,000 lbs capacity on hub. The rods are 1" in diameter and can handle over a ton of material per scoop and screen rock from 2" - 36" dia.
|
Type
|
S-RP800
|
S-RP400
|
|
Code
|
|
03.03.24.0001
|
|
Length
|
1200mm
|
914mm
|
|
Diameter
|
914mm
|
762mm
|
|
Capacity
|
907kg
|
408kg
|
|
Drive
|
Direct
|
Direct
|
|
Spin Direction
|
One-way
|
One-way
|
|
Spindle Size
|
114mm(9072kg)
|
7.6mm(3629kg)
|
|
Rock Size
|
63.5mm-860mm
|
63.5mm-710mm
|
|
Flow Required
|
Std. flow-26.5L/min
|
Std. flow-26.5L/min
|
|
Skid Steer Size
|
Refer to Load Calculator
|
Refer to Load Calculator
|
|
Weight
|
528kg
|
|

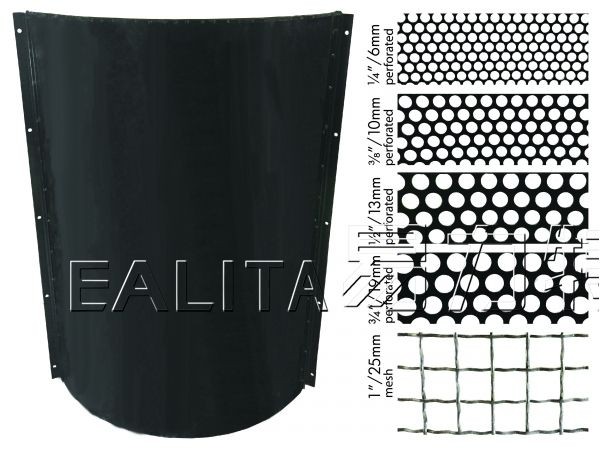

Optional Accessories
-77180 Solid Screen
When fitted, this screen allows the operator to move soil, rocks or debris without losing any regardless of size.*
-77170 ¼" (6mm) Perforated Screen
When fitted, any soil, rocks or debris smaller than ¼" (6mm) in diameter will spill through the perforations and out of the barrel.*
-77172 ⅜" (10mm) Perforated Screen
When fitted, any soil, rocks or debris smaller than ⅜" (10mm) in diameter will spill through the perforations and out of the barrel.*
-77174 ½" (13mm) Perforated Screen
When fitted, any soil, rocks or debris smaller than ½" (13mm) in diameter will spill through the perforations and out of the barrel.*
-77176 ¾" (19mm) Perforated Screen
When fitted, any soil, rocks or debris smaller than ¾" (19mm) in diameter will spill through the perforations and out of the barrel.*
-77178 1" (25mm) Mesh Screen
When fitted, any soil, rocks or debris smaller than 1" (19mm) in diameter will spill through the mesh and out of the barrel.*
*Fits over the barrel - requires a combination of 3 screen pieces to surround the entirety of the barrel which are then bolted together.
