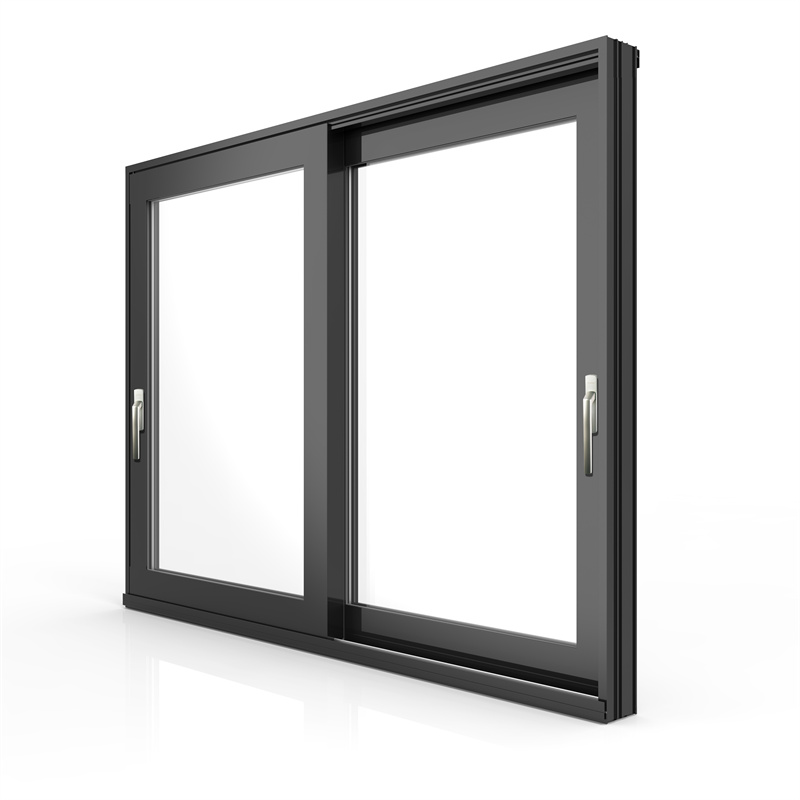

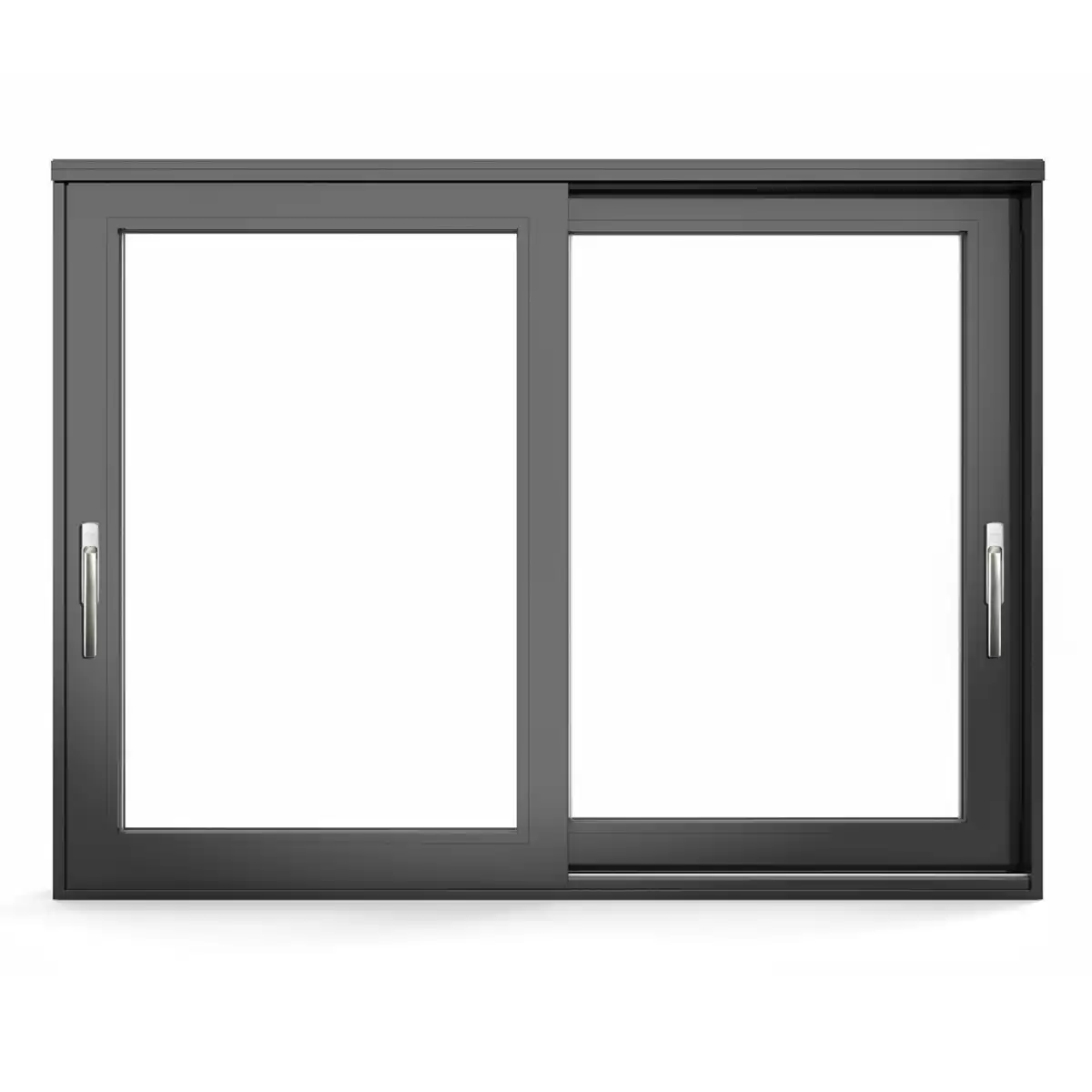

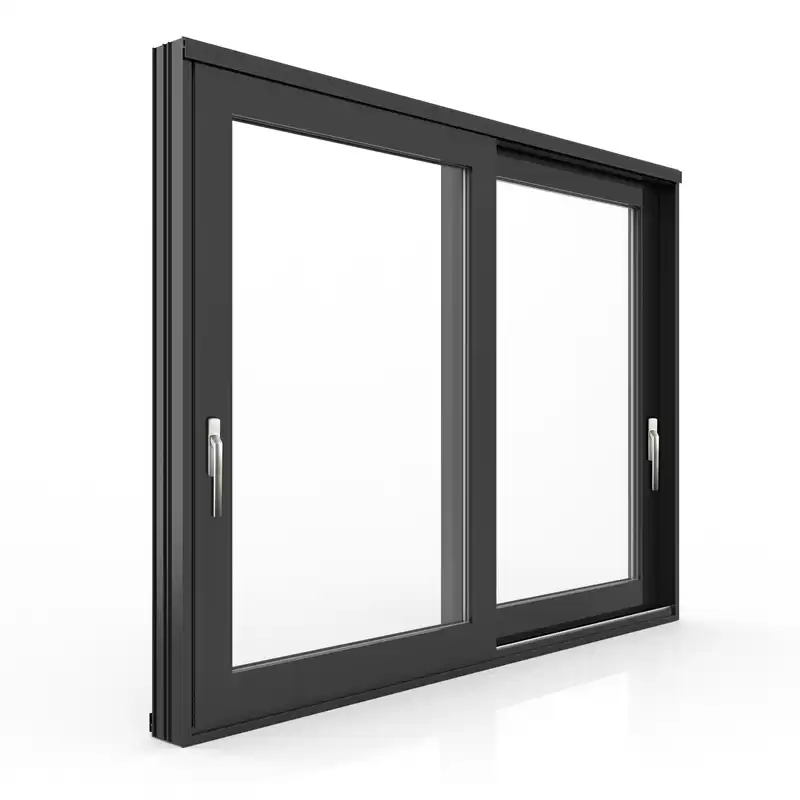

Sliding Glass Door with Slim Frame
In thi exquisite floor to celling series's the aluminum window frame and sash have been significantly reduced&have been crafted in a slim line design to lessen the amount of visible frames and sash.
This maximizes the spans and opening of room to light and landscape and the window tranforms into a large panoramic view. Regardless of the typology or design ,min slim series ofers double glazing as standard making this a system which is a culmination of widely employed modern design concept ,ensuring maxmum transparency and excellent performance using the latest and most advanced technology.
- Available in standard or custom sizes
- Fusion-welded frame and sashes

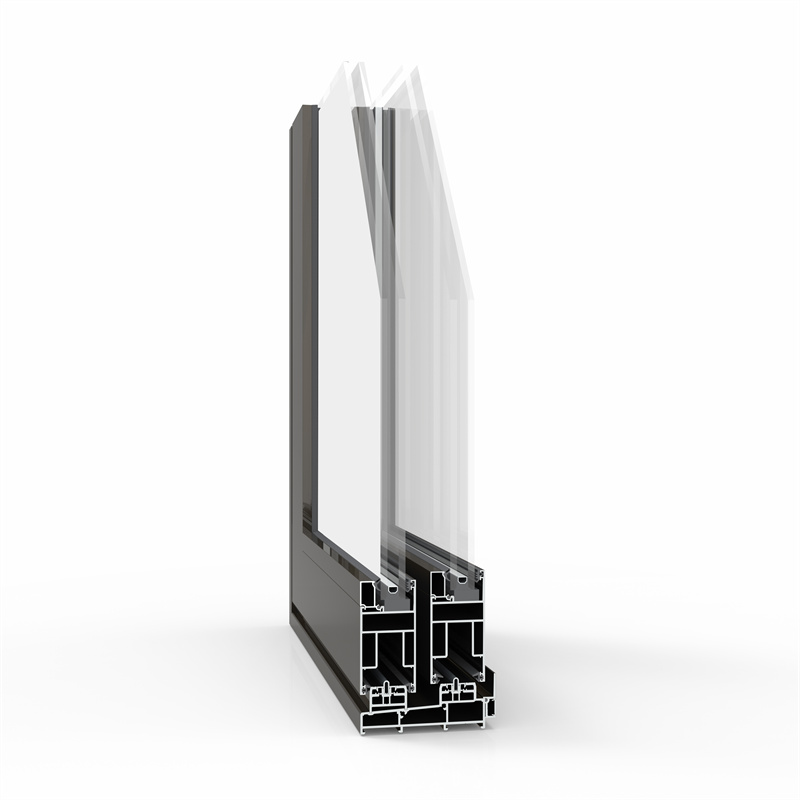

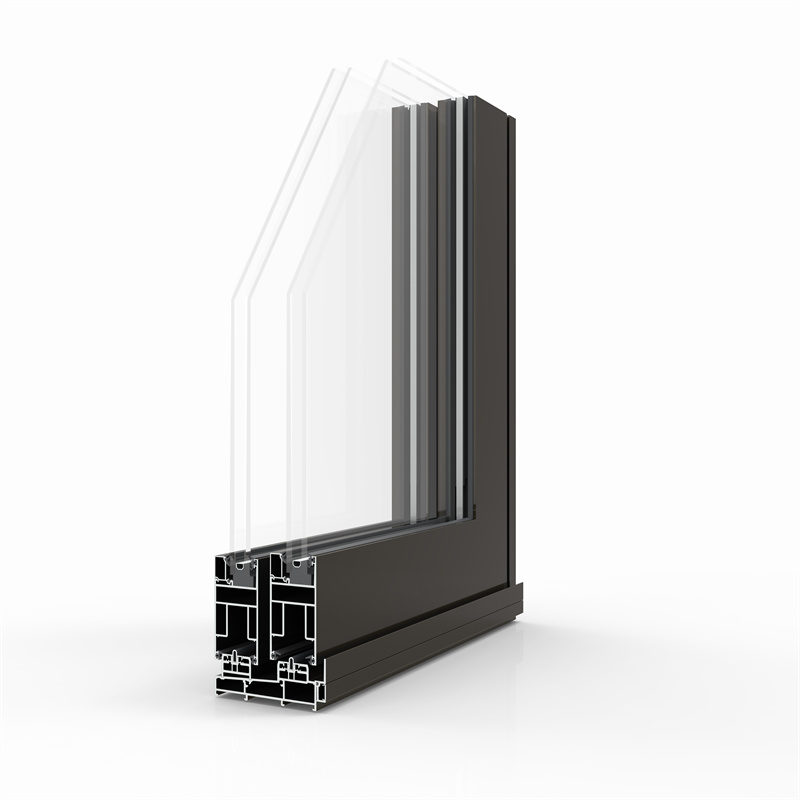

- Multi-chambered for insulation and strength
- Dual weather-stripping
- Heavy-duty plated steel adjustable tandem rollers face adjust on a raised stainless steel monorail track system for smooth and easy operation
- Aluminum threshold protects the sill from debris and damage
| Parameters |
Sash Width/Height
(mm) |
Visible Width
(mm) |
Depth
(mm) |
Glass Thickness(mm) |
|
Width 1000-3000mm
Height 1800-3500mm
Weight 500kg
|
Frame Width 40mm
Visible Width 30mm
Visible Width 20.6mm |
Frame Depth 125mm
Sash Depth 57mm |
SGU:
8-12mm
DGU:
19-38mm
|
| Performance |
|
Heat Insulation
W(m2.k)
|
Sound Insulation
(DB)
|
Water Tightness
(Pa)
|
Air Tightness |
Wind Load
(KPA)
|
|
2.5
level 5
|
35DB
level 4
|
500PA
level 5
|
level 6 |
4.0KPA
level 7
|
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
