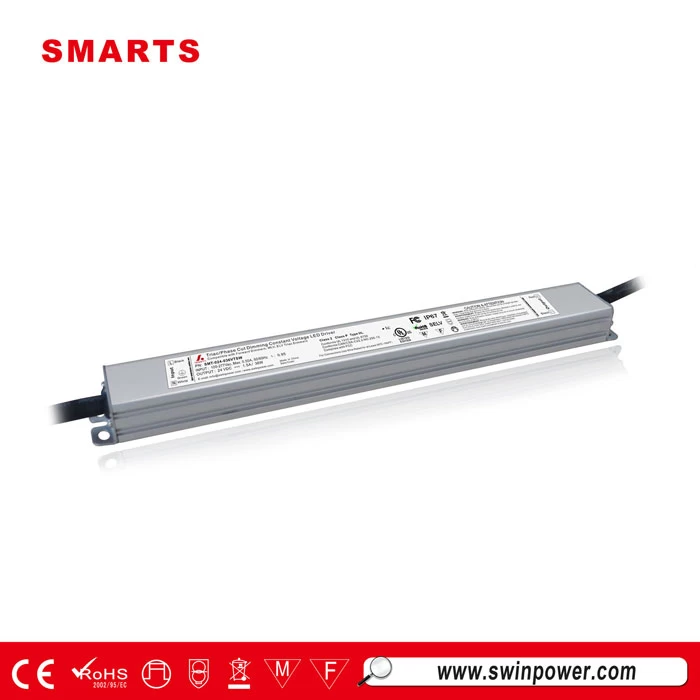

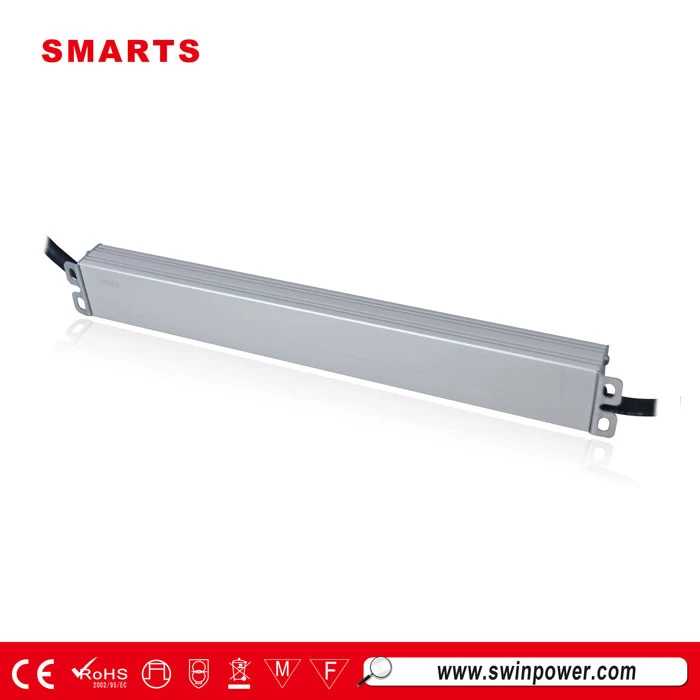

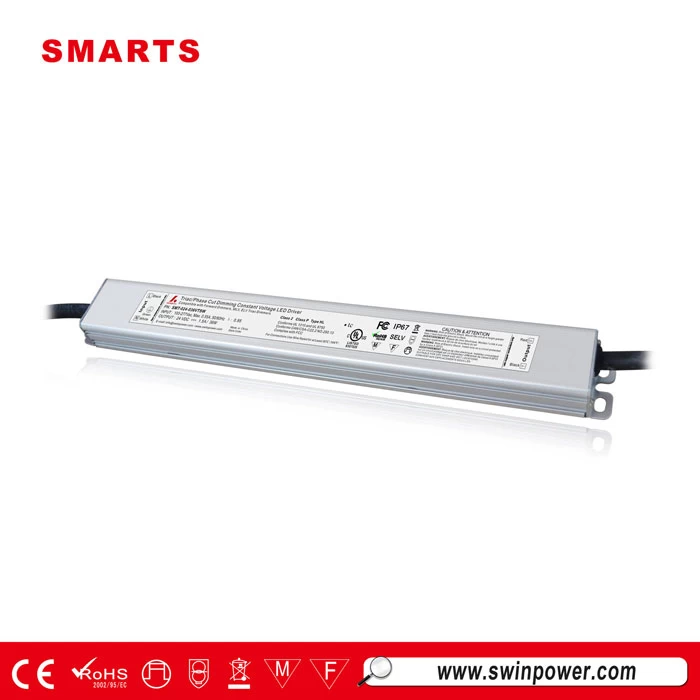

slim led driver dimmable 24 volt led power supply series 30w 36w 60w
The led driver is slim type and triac dimmable which is 24 volt led power supply series. Full load efficiency is more than 83% and working TEMP. is -40～+60℃. Voltage regulation about ±0.5%.
Features
|
|
|
·Output constant voltage type
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P,Type HL approval
·Built-in PFC function / Efficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load: 5~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry or damp or wet environment installations
·Cooling by free air convection
·Work with leading edge and trailing edge triac dimmers available
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
|
|
model
|
SMT-012-036VTSW
|
SMT-024-036VTSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
3.0Amp
|
1.5Amp
|
|
Rated power
|
36W
|
36W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency（Typ.）
|
>83%
|
>84%
|
|
AC Current（Typ.）
|
0.5A/100VAC / 0.23A/277VAC
|
|
Inrush Current（Typ.）
|
7A, 50%, 420us
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:2KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
