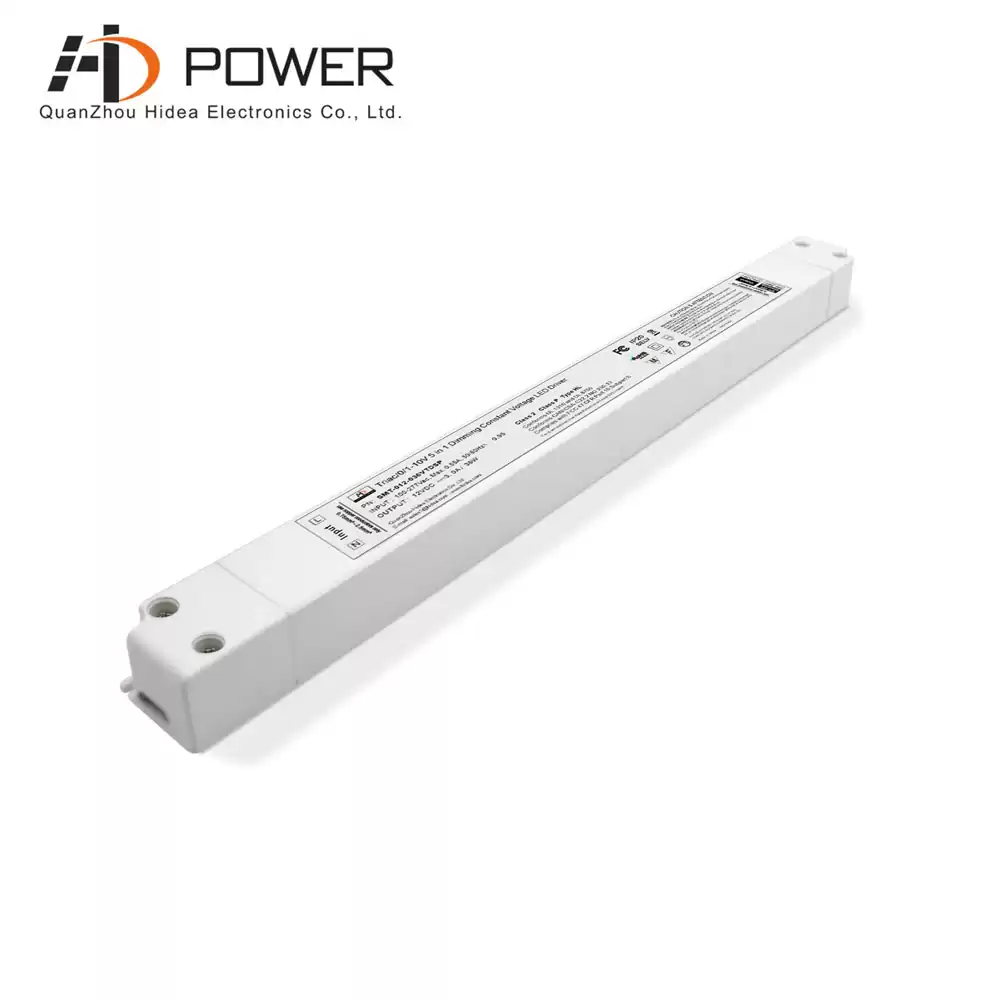

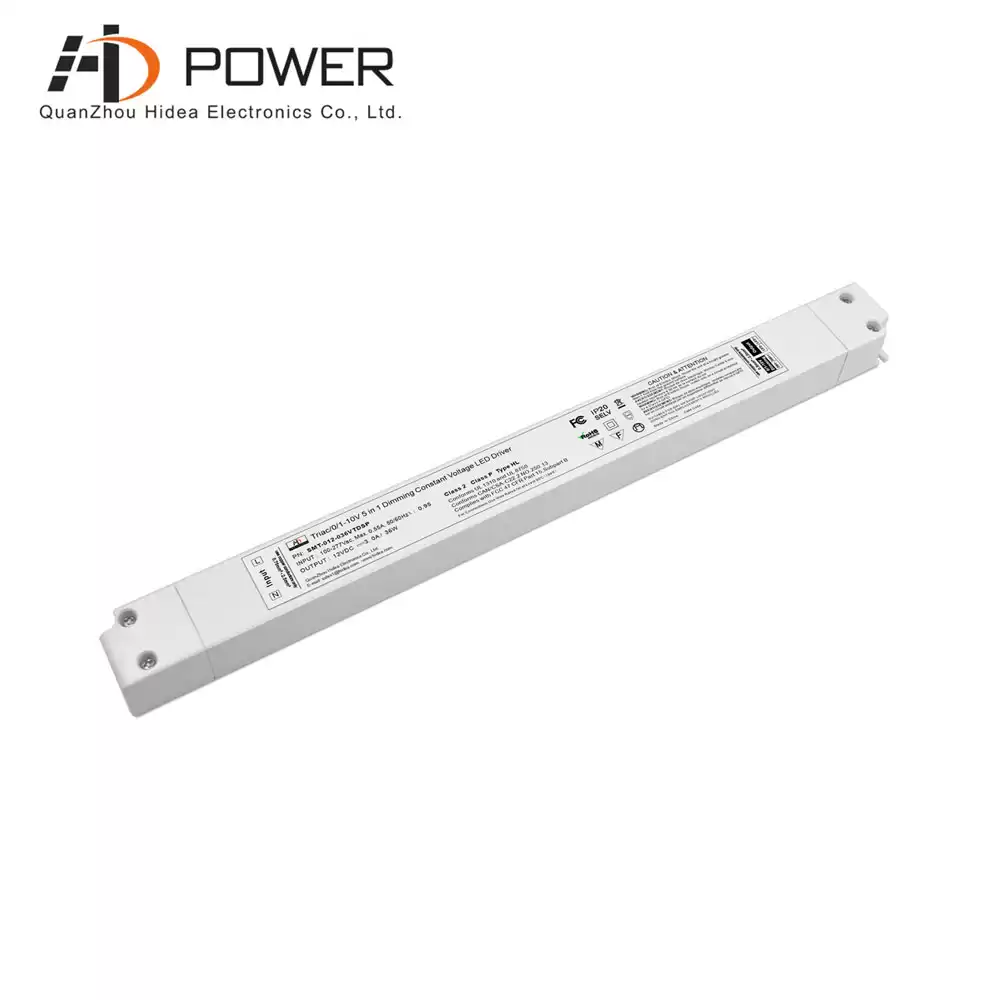

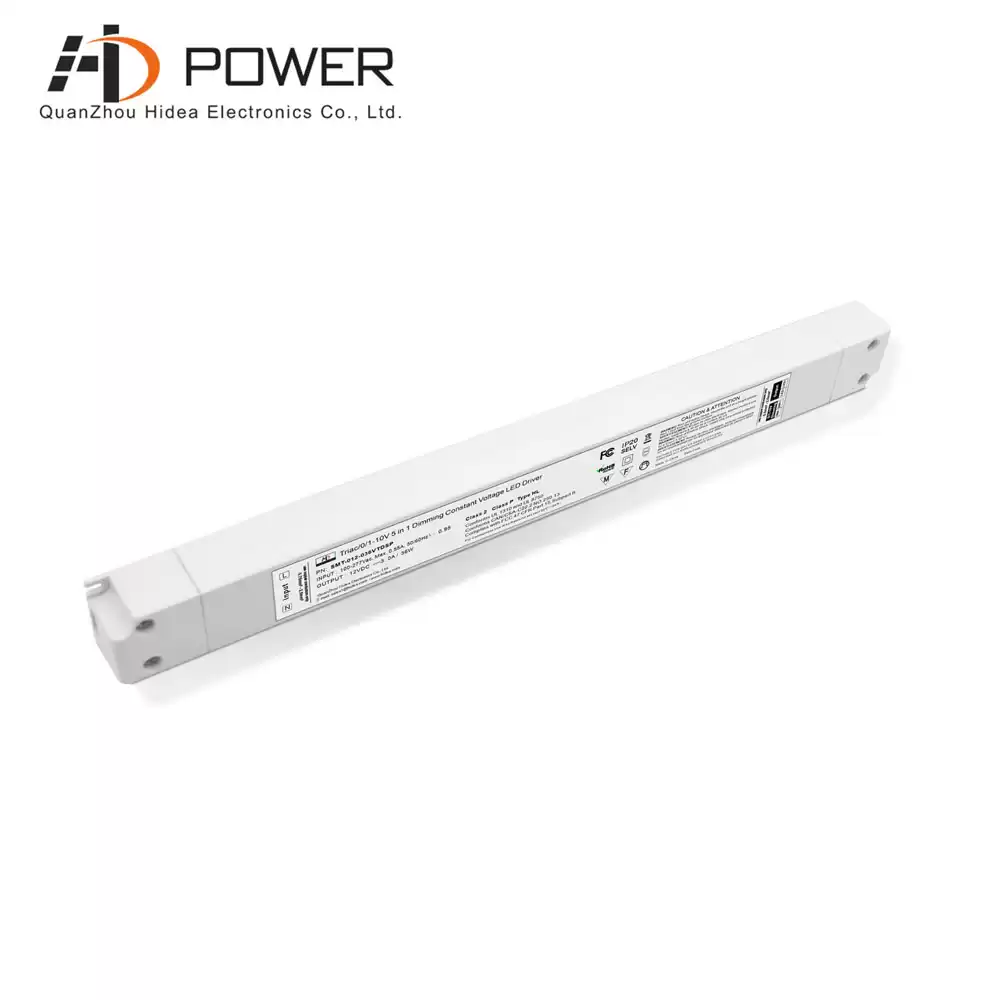

slim size 24v 36w constant voltage triac & 0 10v dimmable led driver power supply for indoor
100-277VAC triac & 0 10v dimmable led driver, waterproof grade ip20, dimming range between 0~100%, ultra-low load requirements, able to work perfectly under 10~100% load PWM output mode, in line with global safety lighting laws
Label
Specification
|
model
|
SMT-012-036VTDSP
|
SMT-024-036VTDSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
3.0Amp
|
1.5Amp
|
|
Rated power
|
36W
|
36W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency(Typ.)
|
80%@120VAC 81%@277VAC
|
81%@120VAC 82%@277VAC
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
AC Current(Typ.)
|
0.55A
|
|
Inrush Current(Typ.)
|
13A
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL1310,CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm (L*W*H)
|
|
packing
|
50PCS/CTN Carton size: 330*270*130mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
SMARTS 12v 36W constant voltage LED power supply SMT-012-036VTDSP Compatible with different dimmers to achieve flicker-free dimming
Related Products
|

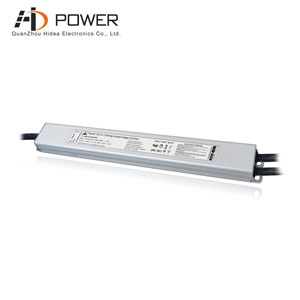

 waterproof ip67 36W dimmable led driver constant voltage working mode, aluminum shell design, effectively waterproof and dustproof, protecting the life of lamps and power supplies, compliant with global safety lighting regulations, 7-year warranty
Mode：SMT-012-036VTDSW
Dimming Mode :triac & 0 10v Dimming
Output Power : 36W
intput voltage：100-277V AC
Size：260*32*20MM （L*W*H）
|
