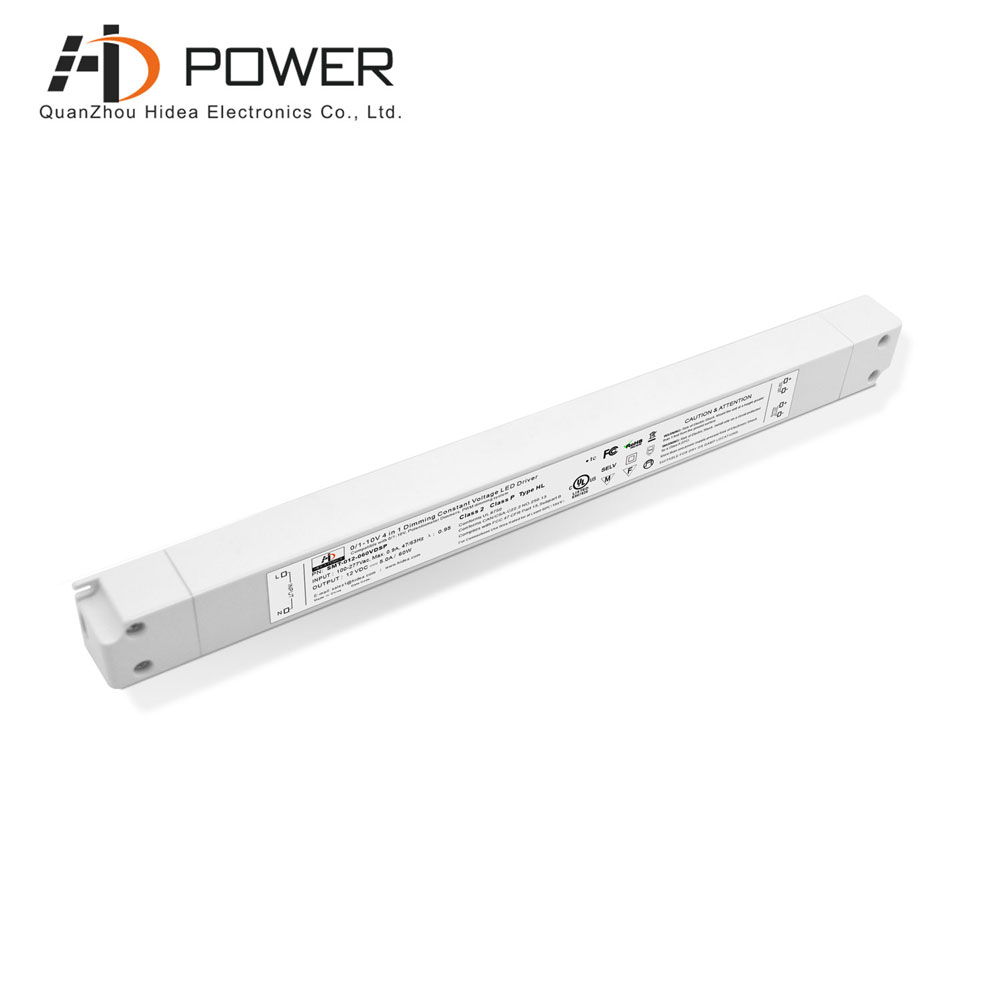

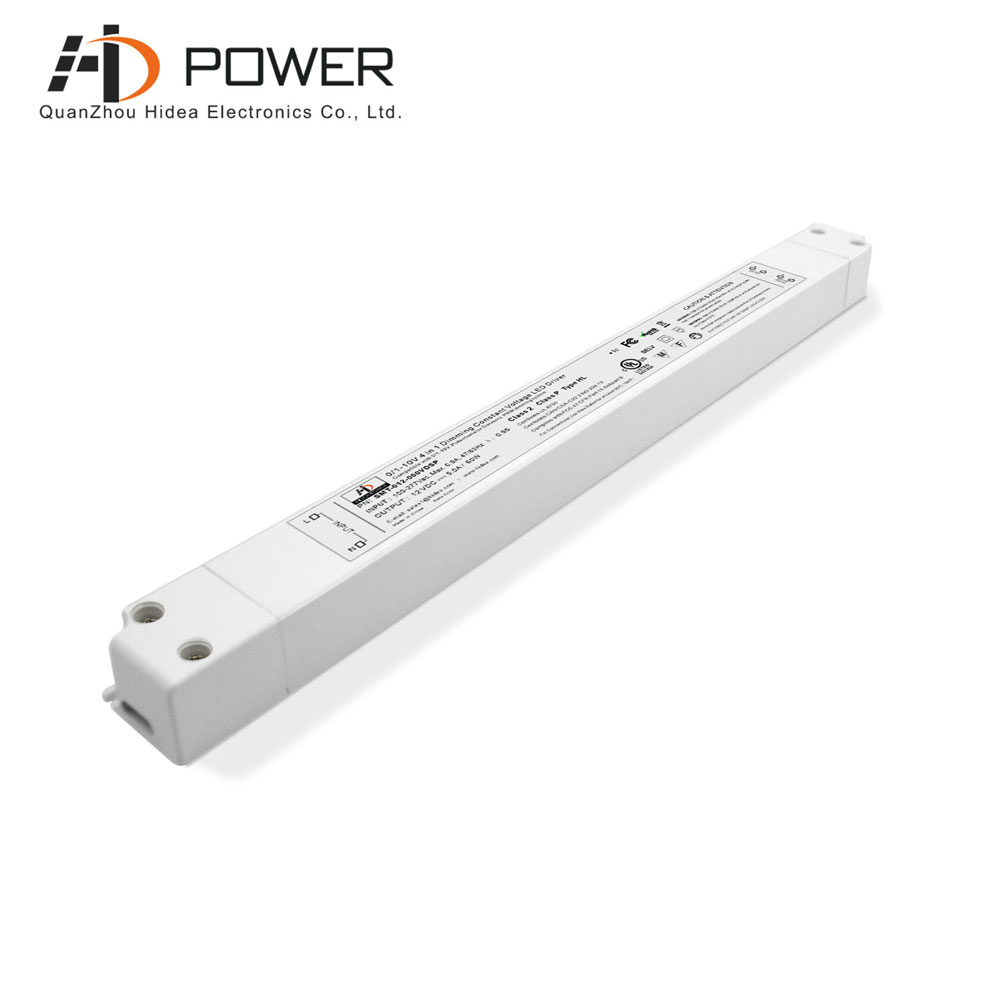

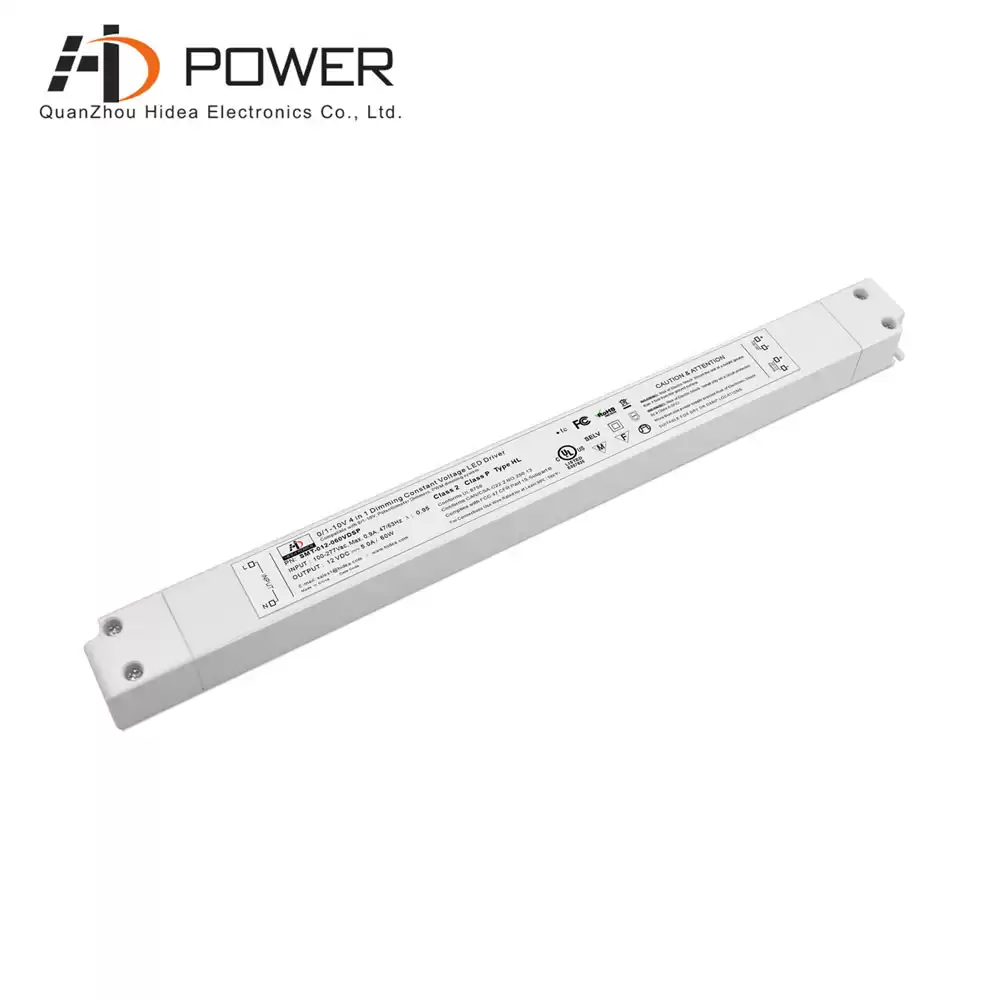

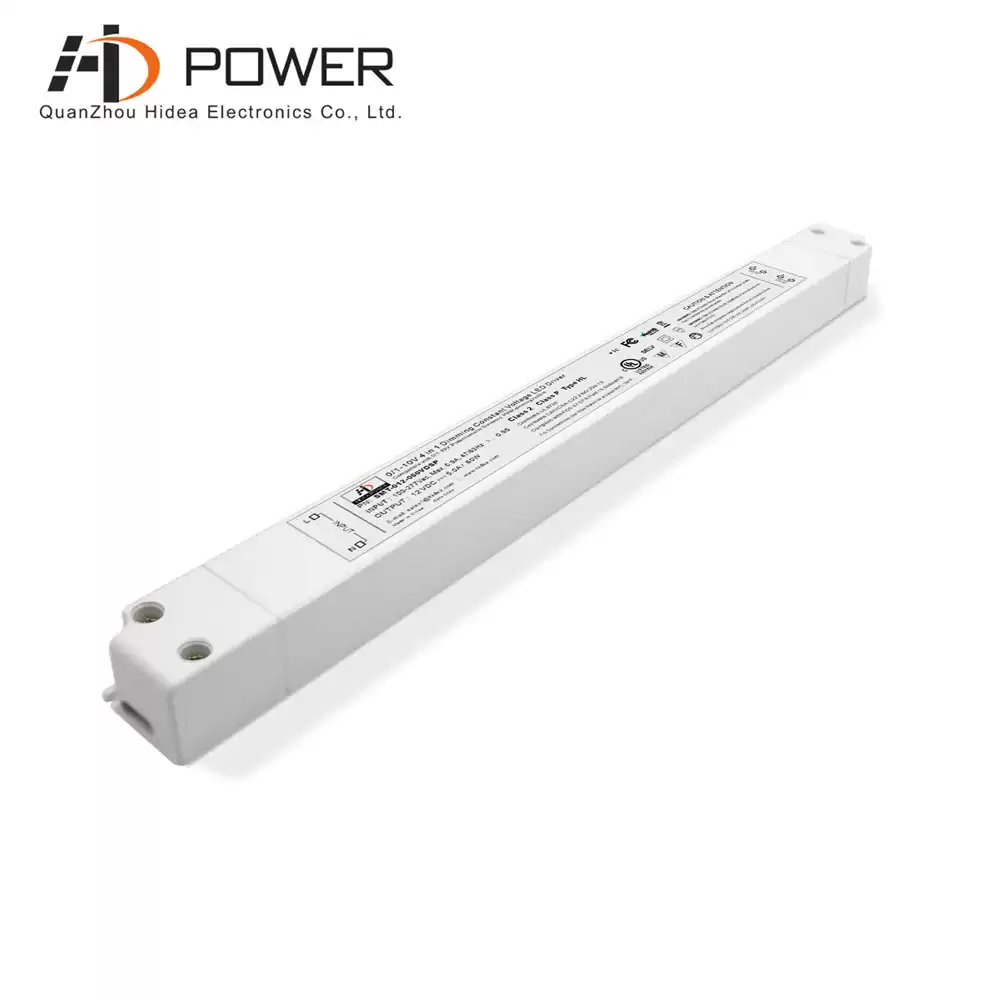

slim size constant voltage 0 10v dimmable led driver power supply 24v 60W
This plastic shell ip20 dimmable led power supply 60W adopts free air convection cooling and good heat dissipation. It is suitable for indoor LED lighting project installation and use. It complies with global safety lighting regulations and has a 7-year warranty.
Label
Specification
|
model
|
SMT-012-060VDSP
|
SMT-024-060VDSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
Rated power
|
60W
|
60W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency(Typ.)
|
84%@120VAC 86%@277VAC
|
83%@120VAC 85%@277VAC
|
|
AC Current(Typ.)
|
0.9A
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Inrush Current(Typ.)
|
6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC
|
|
Leakage current
|
<0.74mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,Alight industry level
|
|
Others
|
Weight
|
0.45Kg
|
|
Size
|
300*32*20mm (L*W*H)
|
|
packing
|
50PCS/CTN Carton size: 330*330*130mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

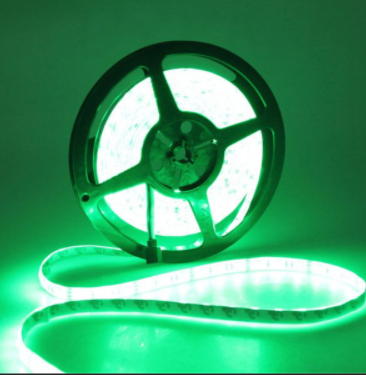

Compatible Light Type
HIDEA 0-10v LED driver provides regulated power to your LED circuit with a sophisticated dimming function. This 60w led drivers with PWM dimming for use with VISIOLITE standard and premium LED strip lights or other LED products.
