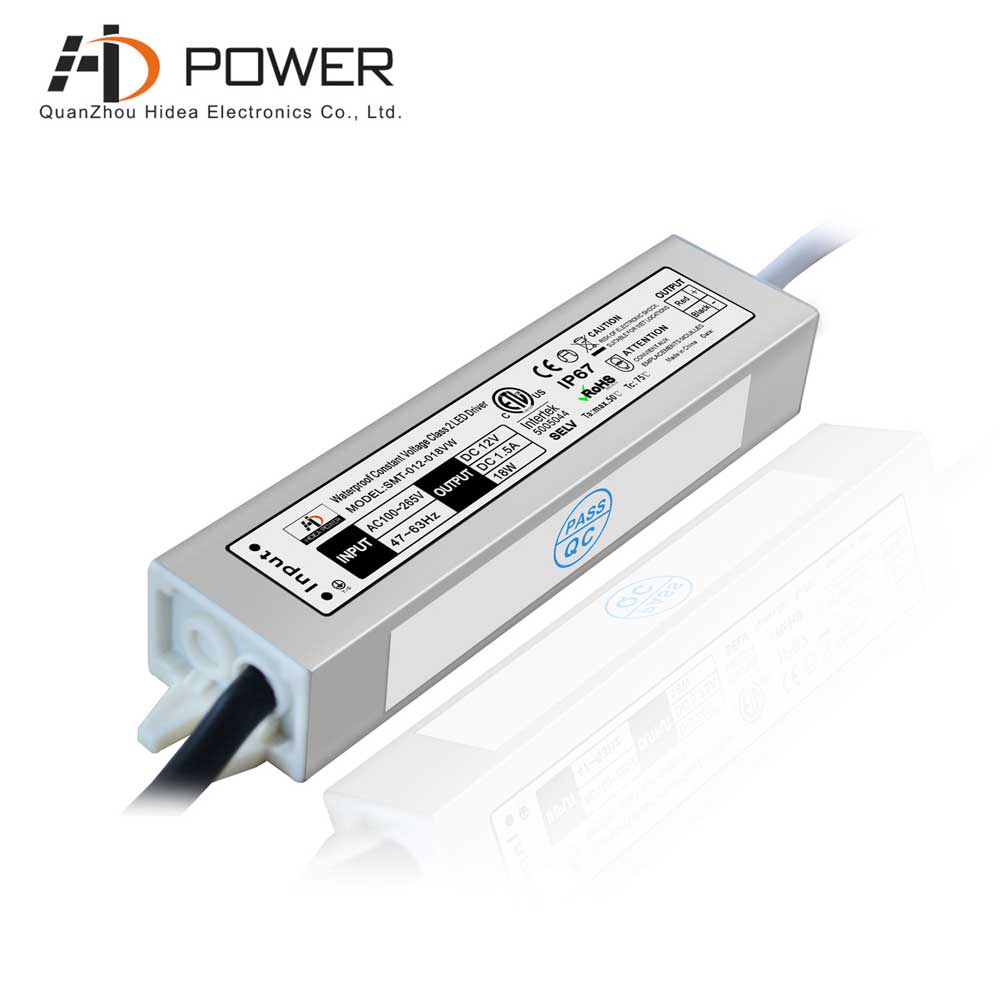

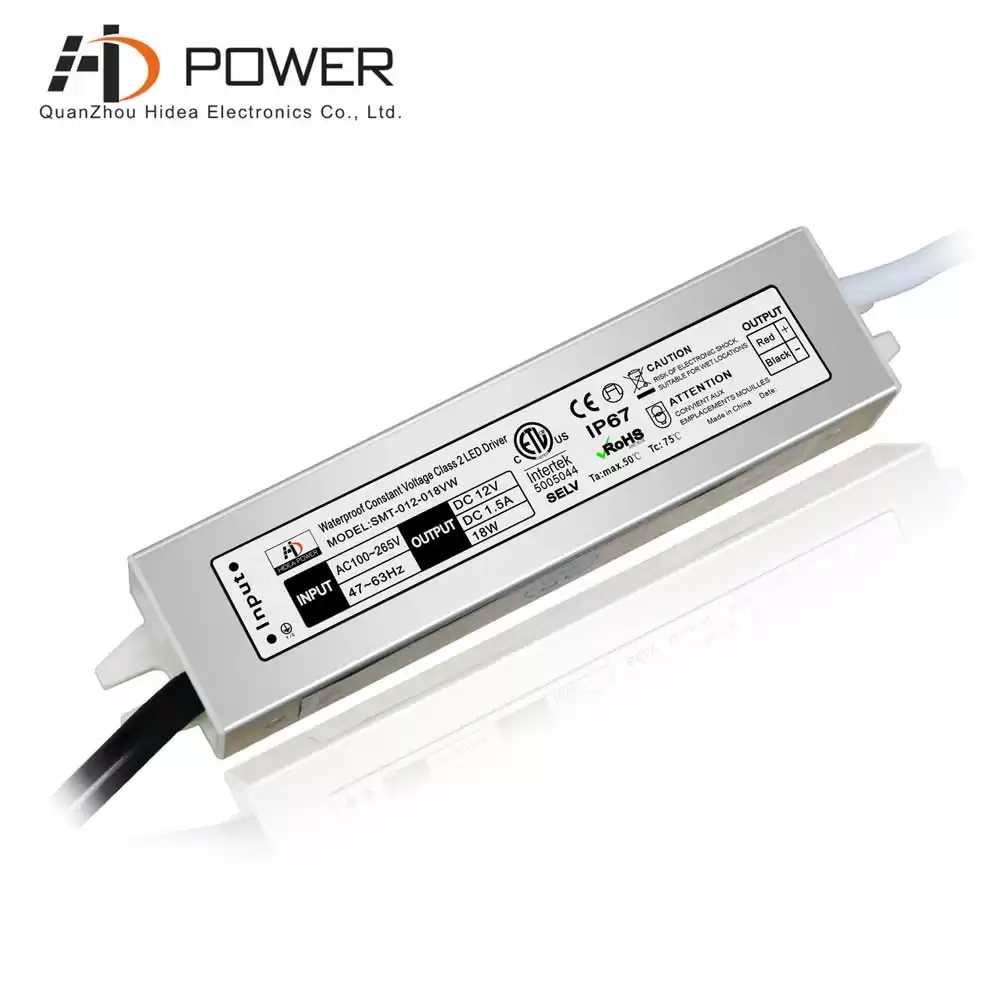

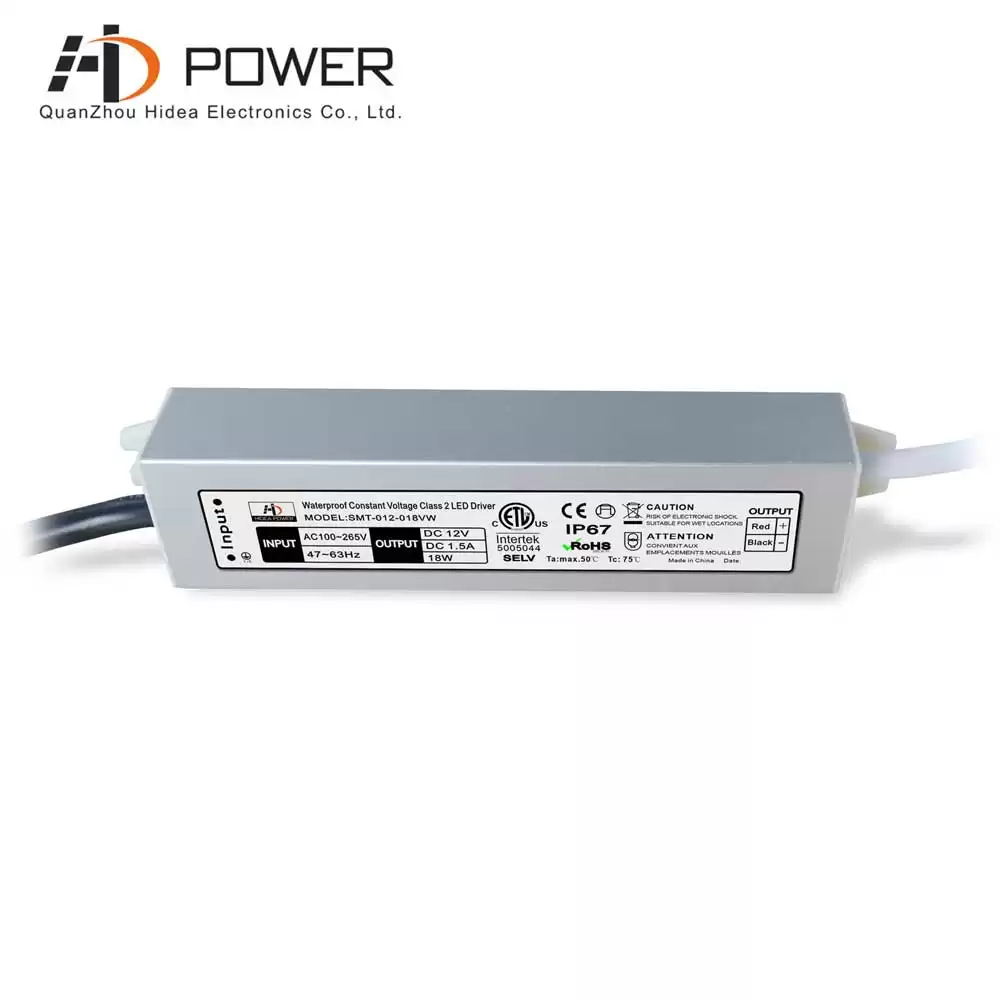

Hideapowertech manufactures constant voltage 12v 1.66a 18w led driver with 2 years warranty, approvaled by ETL CE ROSH. It is welcome in the North America market. It is can be compatible with any standard led strips light, such as HOMEDEPOT.
Specification
|
MODEL
|
SMT-012-018VW
|
SMT-024-018VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1.66Amp
|
0.83Amp
|
|
CURRENT RANGE
|
0~1.50A
|
0~0.75A
|
|
RATED POWER
|
18W
|
18W
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
|
CURRENT TOLERANCE
|
±0.5V
|
±0.5V
|
|
SETUP RISE TIME
|
80ms/110,220VAC
|
81ms/110,220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/110-220VAC
|
60ms/110-220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
>82%
|
>82%
|
|
AC CURRENT(Typ.)
|
3.5A/110,220VAC
|
2.0A/110,220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110~220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
ETL/ROHS/CE Mark(EMC,LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 110V, 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
This ETL listed waterproof 24v 18w led driver has both short circuit and overload protection. If overheated, the driver will shut down for your safety. If you use it with your CREELIGHTIN LED floodlight, the safety is assured.
Related Products
|

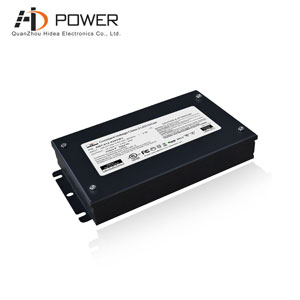

 UL listed 30w 12v non dimmable led driver combines Junction box with the driver.
