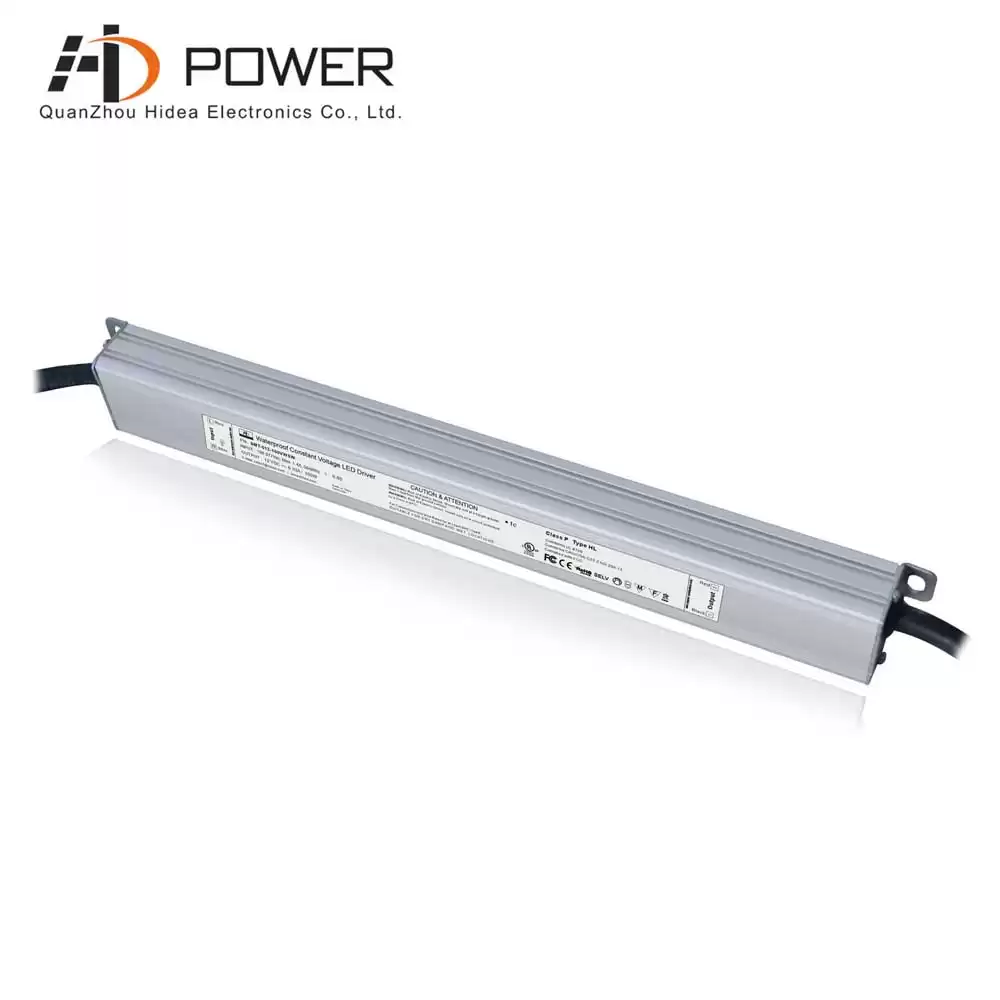

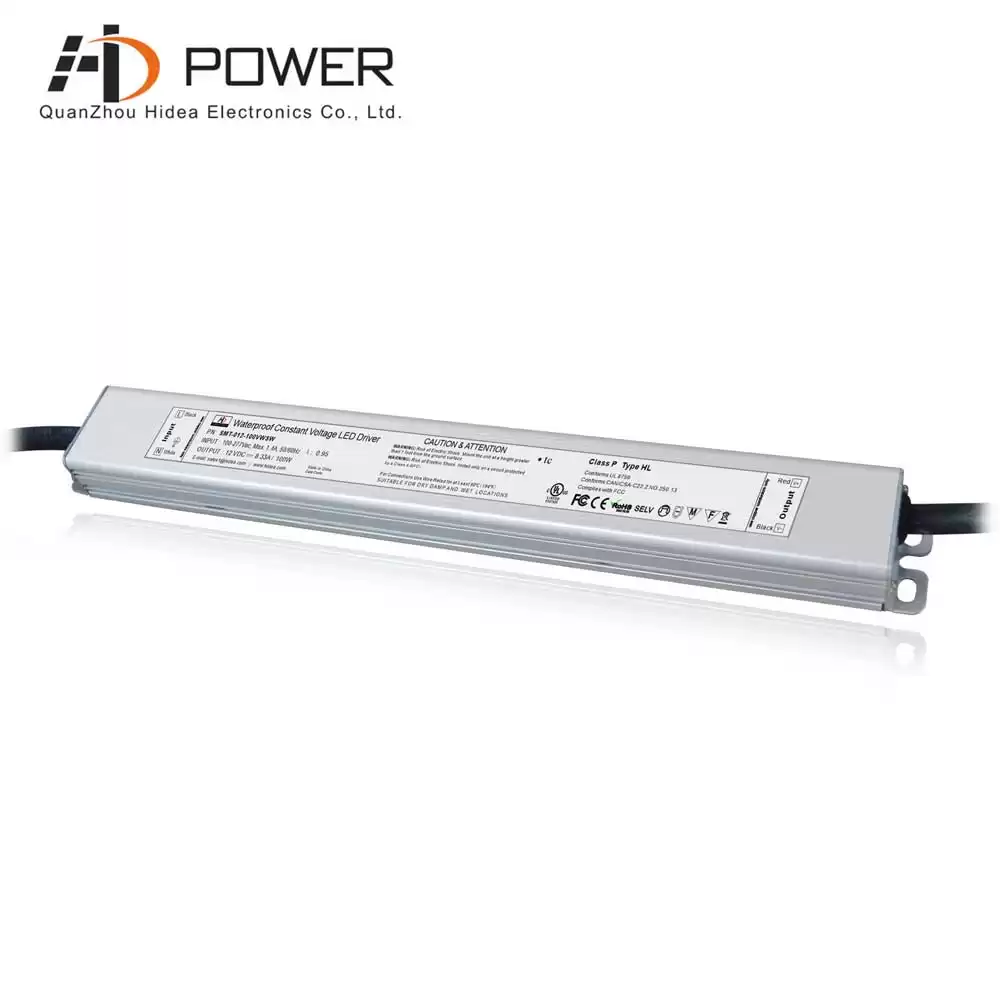

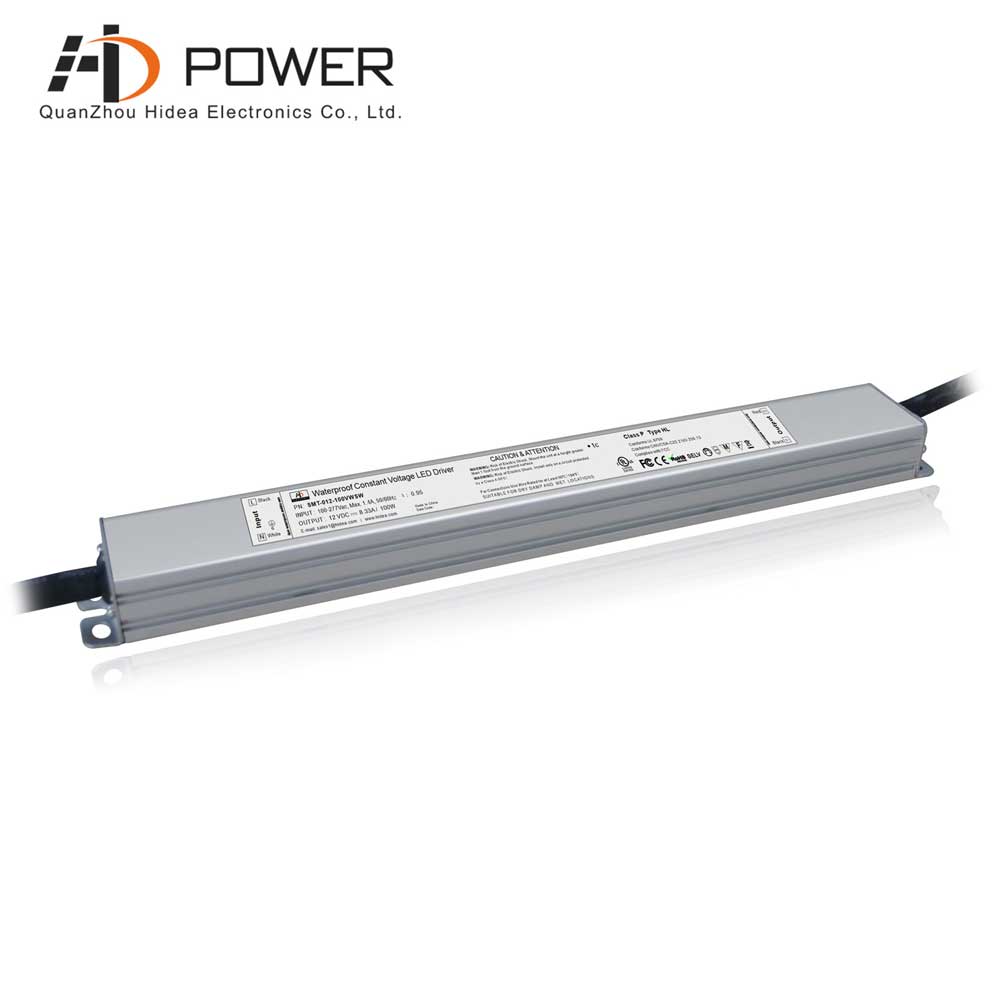

slim type 12v 100w led driver for lighting fixture
It has 7 years warranty and slim type 100w led driver for our slim type led driver. They are quite cool for the inspired LEDs.
Label
Specification
|
Model
|
SMT-012-100VWSW
|
SMT-024-096VWSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
8.33Amp
|
4Amp
|
|
Rated power
|
100W
|
96W (class 2)
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Full Load Efficiency(Typ.)
|
83%@120VAC; 85%@230VAC; 85%@ 277VAC
|
|
AC Current(Typ.)
|
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
|
|
Inrush Current(Typ.)
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P: 3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Weight
|
0.55Kg
|
|
Size
|
330*32*23mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
Our led driver dimmable type could have a match with the LED strips designed to work with hardwire transformers allowing seamless dimming from a wall dimmer.
Related Products
|

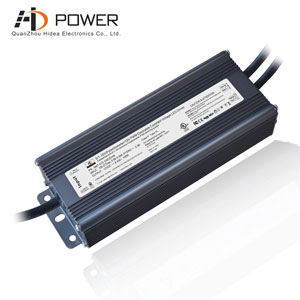

 Here is the 100w 24v 12v led driver of our 0-10v dimmable type led driver. Once you put them into your LED lighting, they would be make you joyful and suitable.
Mode：SMT-012-100VDHW
Dimming Mode : 0-10V Dimming
Output Power : 100W
intput voltage：100~277V AC
Size：230*68*45MM （L*W*H）
|
