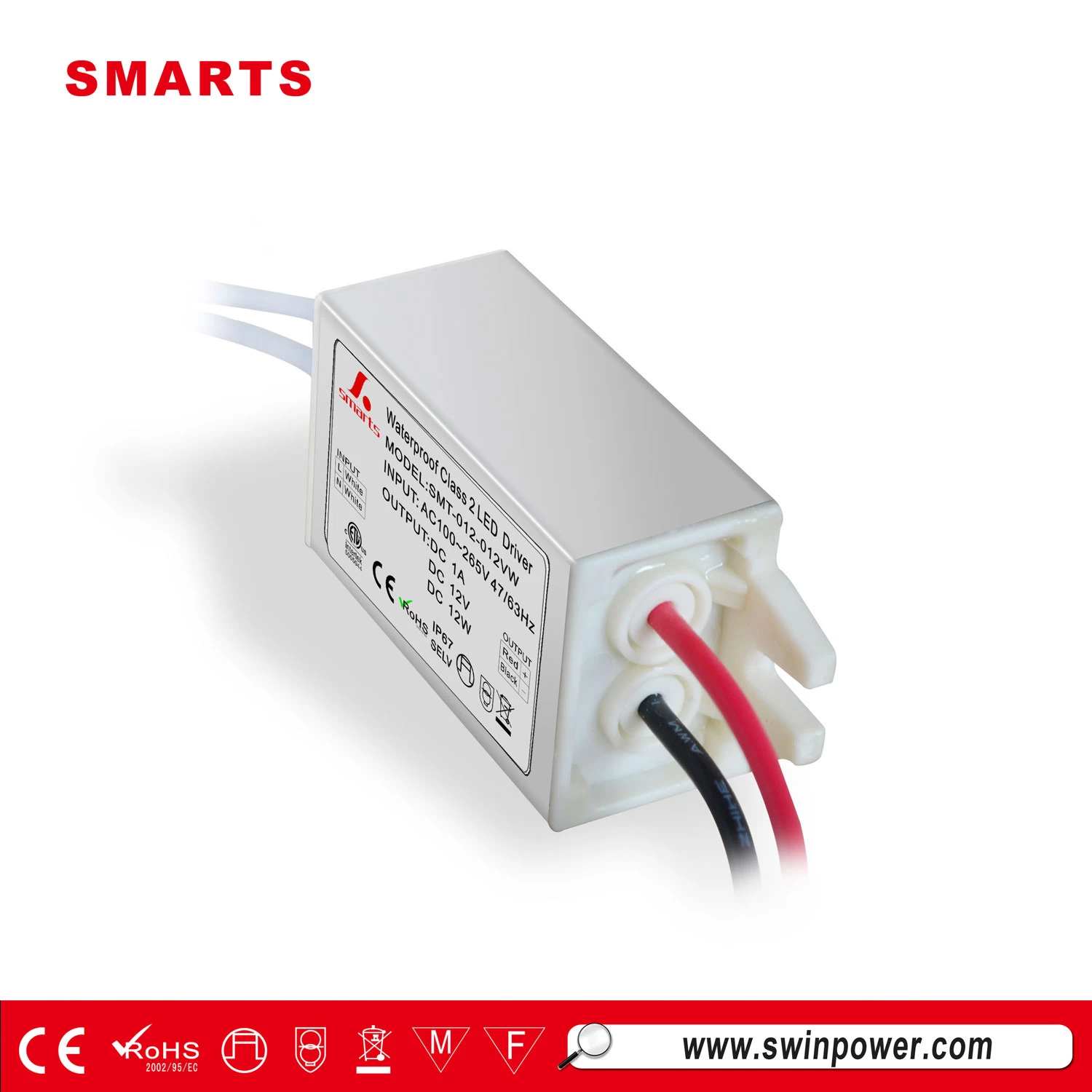

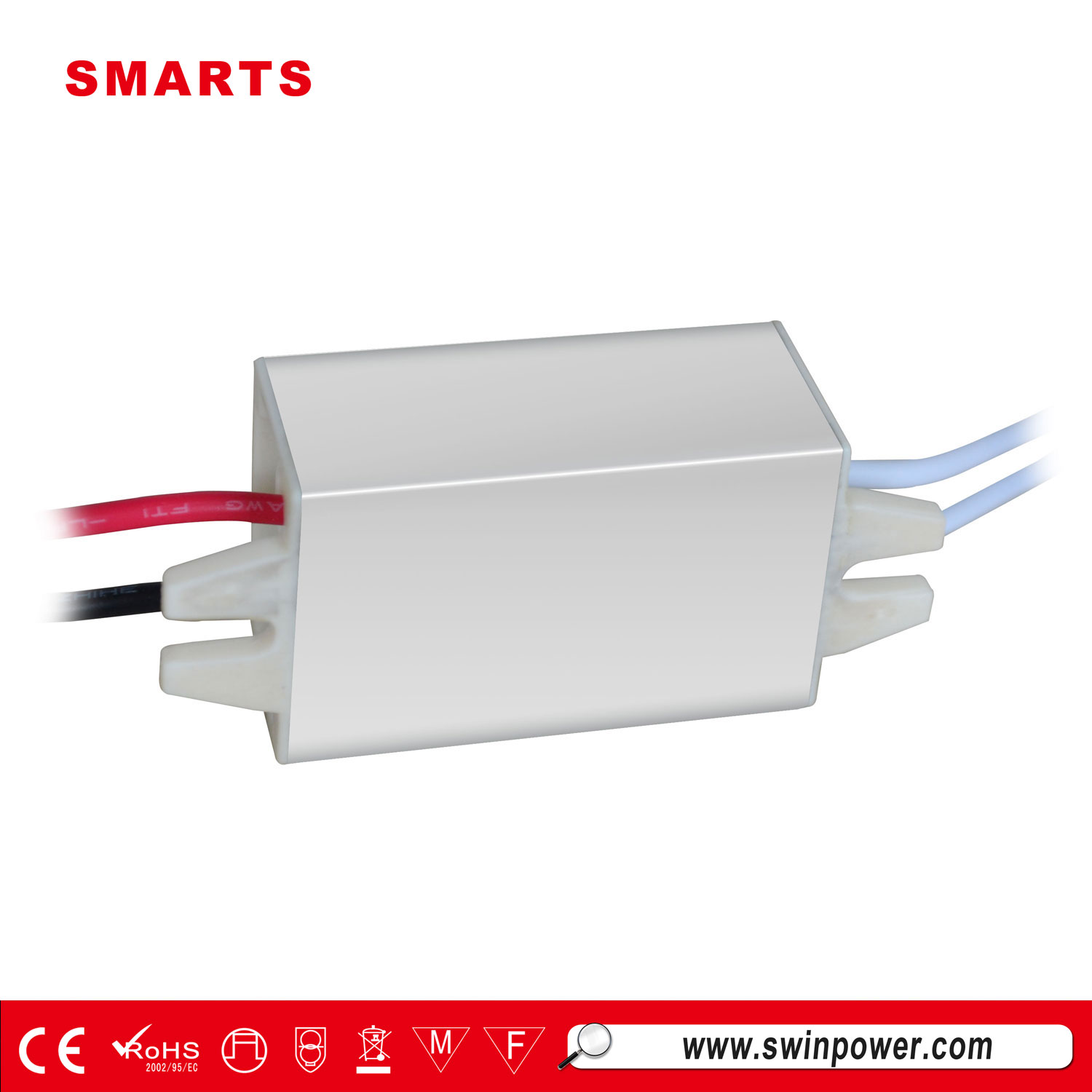

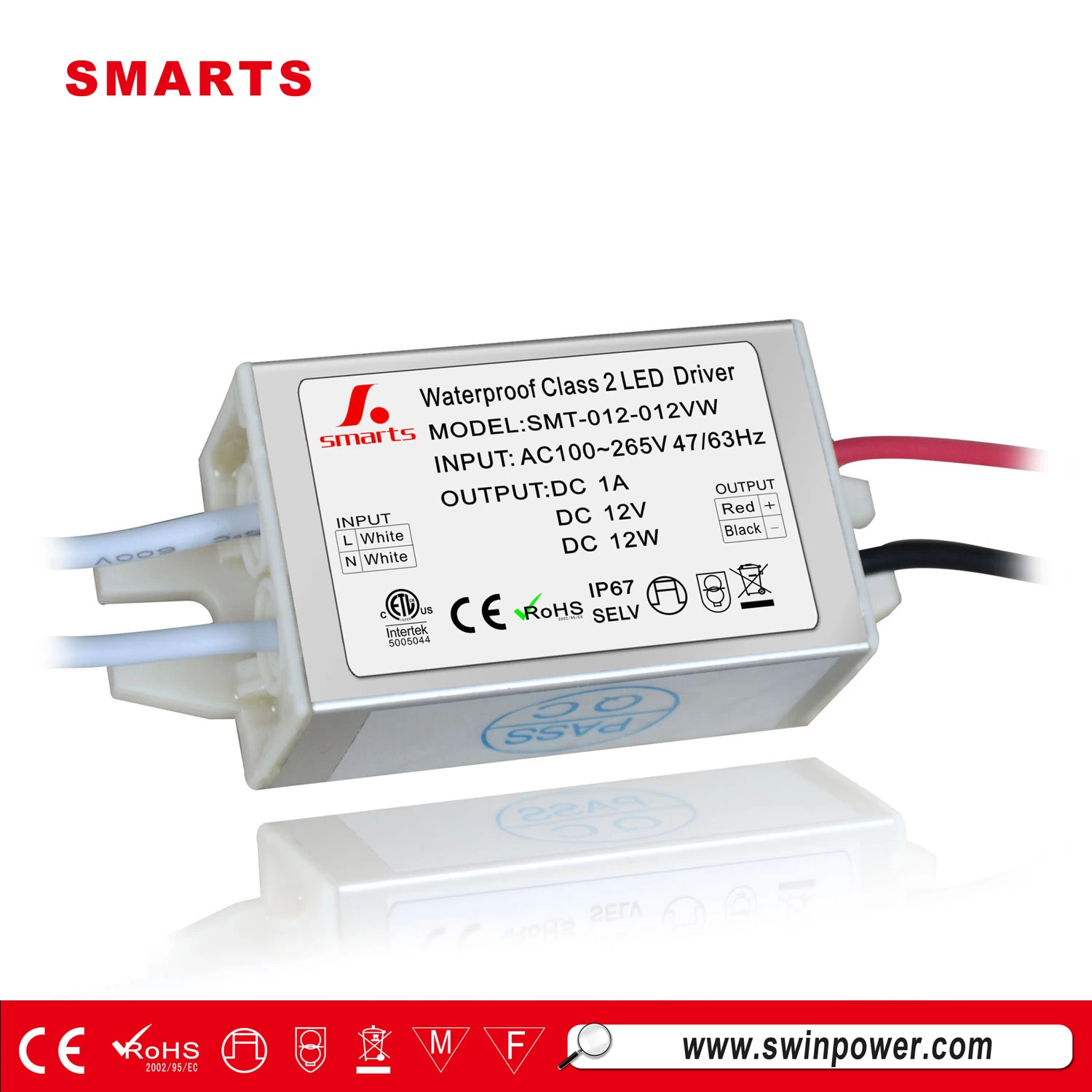

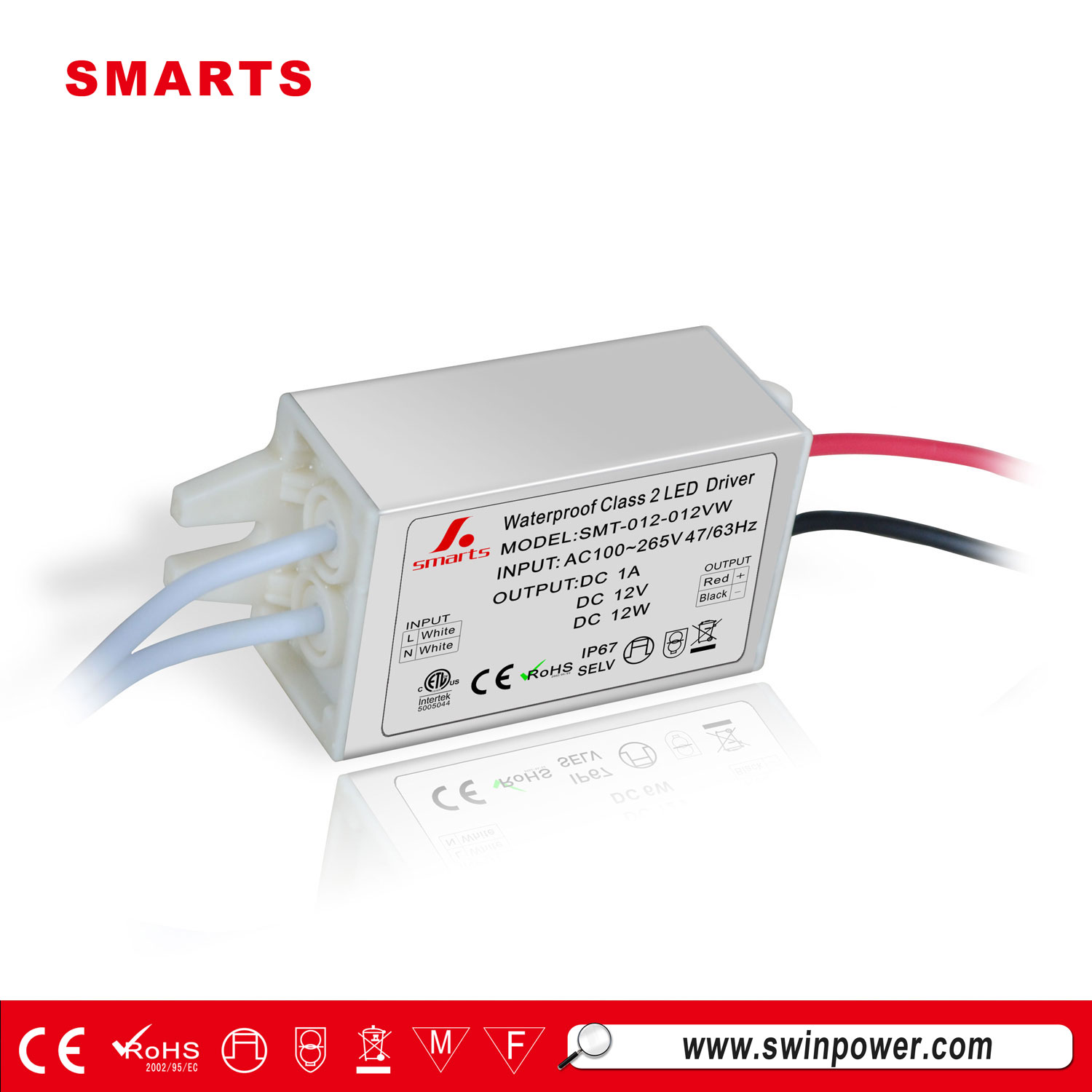

slimline ip66 IP67 constant voltage LED driver 12v dc 12w
This 12v 12w led driver feature flexible input voltage (100-265VAC) and can be ordered in 12VDC or 24VDC outputs. this constant voltage led driver are rated to run at 80% continuous wattage or 10Watts continuous.
Features:
|
SPECIFICAION
|
|
MODEL
|
SMT-012-012VW
|
SMT-024-012VW
|
|
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
|
|
RATED CURRENT
|
1A
|
0.5A
|
|
|
|
AC CURRENT RANGE
|
0.20A @110VAC / 0.099A@220V
|
0.20A @110VAC / 0.099A@220VAC
|
|
|
|
RATED POWER
|
12W
|
12W
|
|
|
|
RIPPLE&NOISE(max)
|
1.11v
|
1.12V
|
|
|
|
voltage TOLERANCE
|
12V±5%
|
24V±5%
|
|
|
|
SETUP RISE TIME
|
80ms/110VAC
|
80ms/110VAC
|
|
|
|
HOLD UP TIME(Typ.)
|
60ms/110VAC
|
60ms/110VAC
|
|
|
|
INPUT
|
VOLTAGE RANGE
|
100~265Vac
|
100~265Vac
|
|
|
|
FREQUENCY RANGE
|
50~60Hz
|
50~60Hz
|
|
|
|
POWER FACTOR(Typ.)
|
|
|
|
|
|
EFFICIENCY(Typ.)
|
>83%
|
>82%
|
|
|
|
AC CURRENT(Typ.)
|
0.3A/110V, 0.5A/220V
|
0.33A/110V,0.45A/220V
|
|
|
|
INRUSH CURRENT (Typ.)
|
COLD START 30A/110~220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
ETL, CE Mark(LVD), IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,
rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

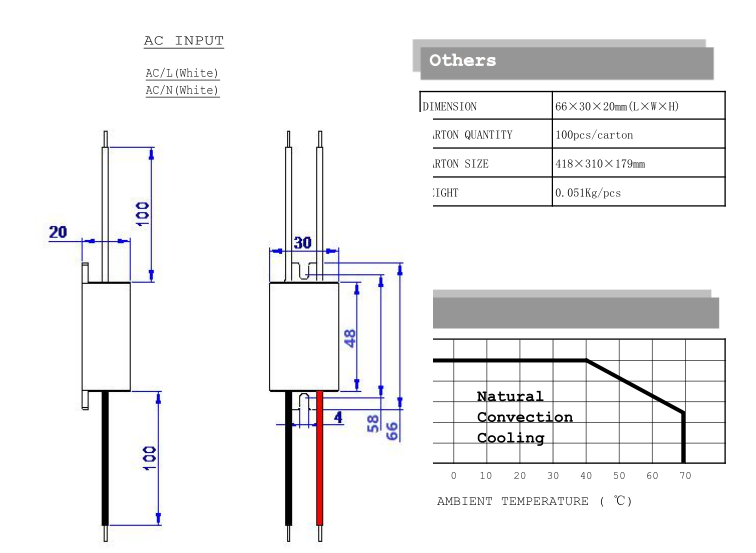

Dimension:
What kinds of LED drivers SMARTS offer?
SMARTS offers a full line of constant voltage led driver / power supply. A high quality constant voltage power supply/transformer results in your LED lights using less energy, shining brighter, and lasting longer. That's why SMARTS offers the highest quality LED power supplies. Our power supplies can be used with a wide variety of in-line LED dimmers. All of our power supplies are energy efficient and eco friendly. more wattage avalable in 20w, 24w, 30w, 36w, 60w and so on, Max. watatge would be 300w.
More questions, let us know.
