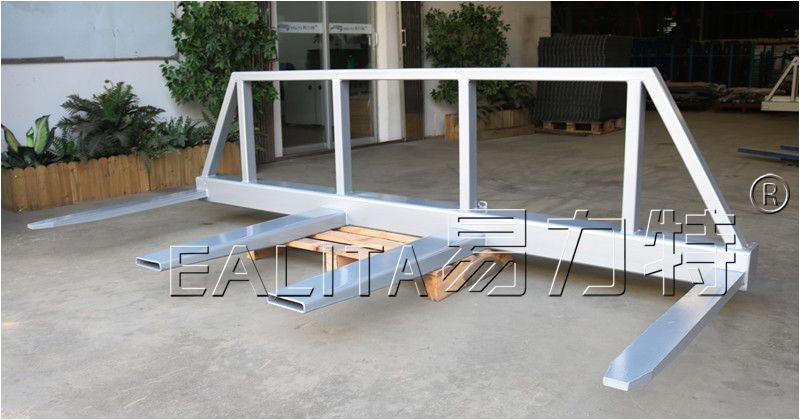

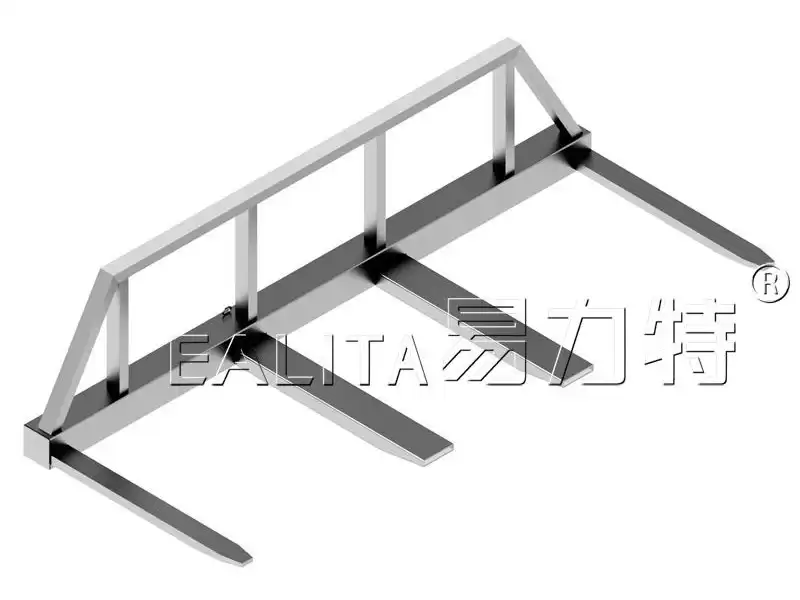

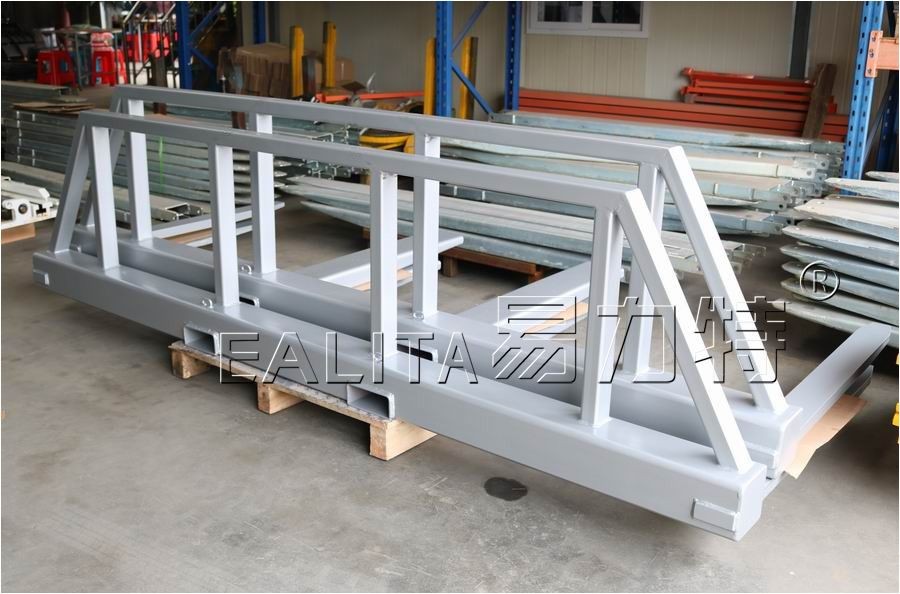

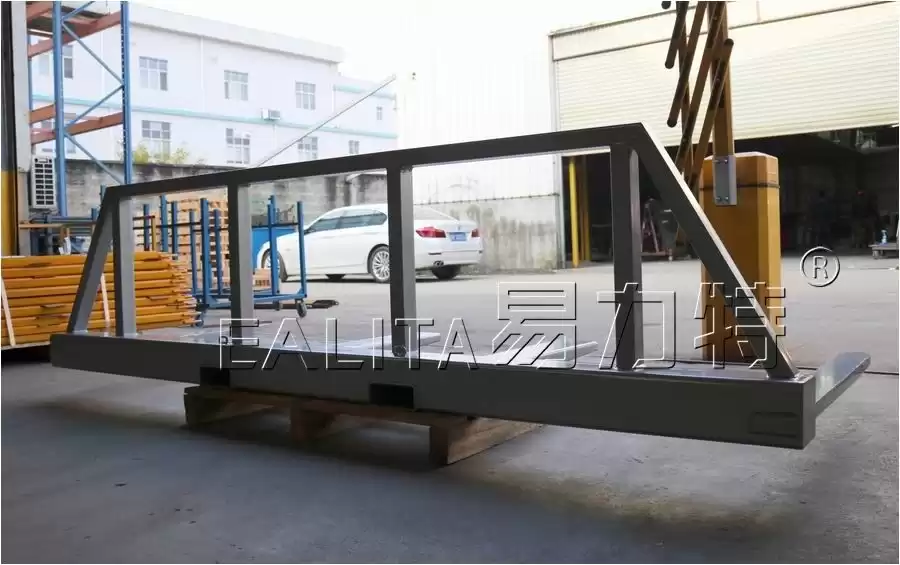

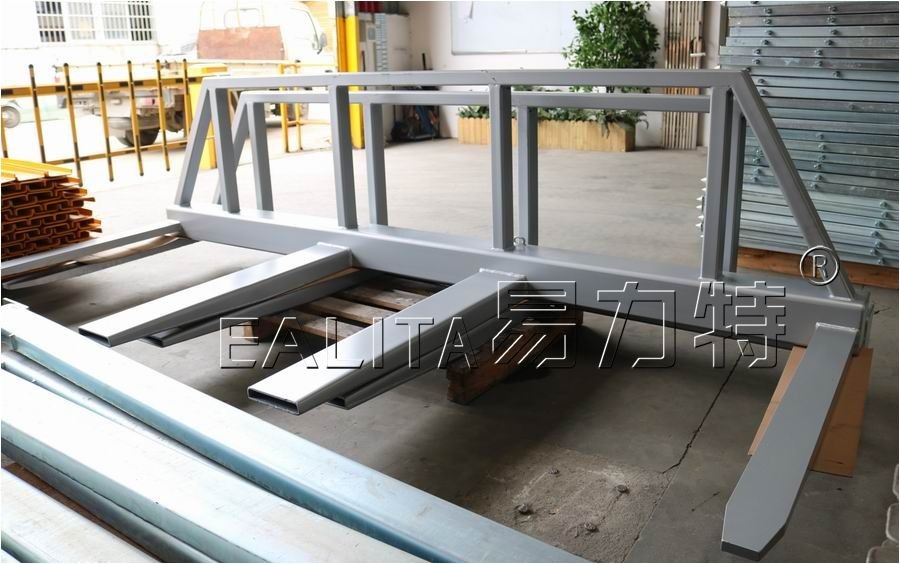

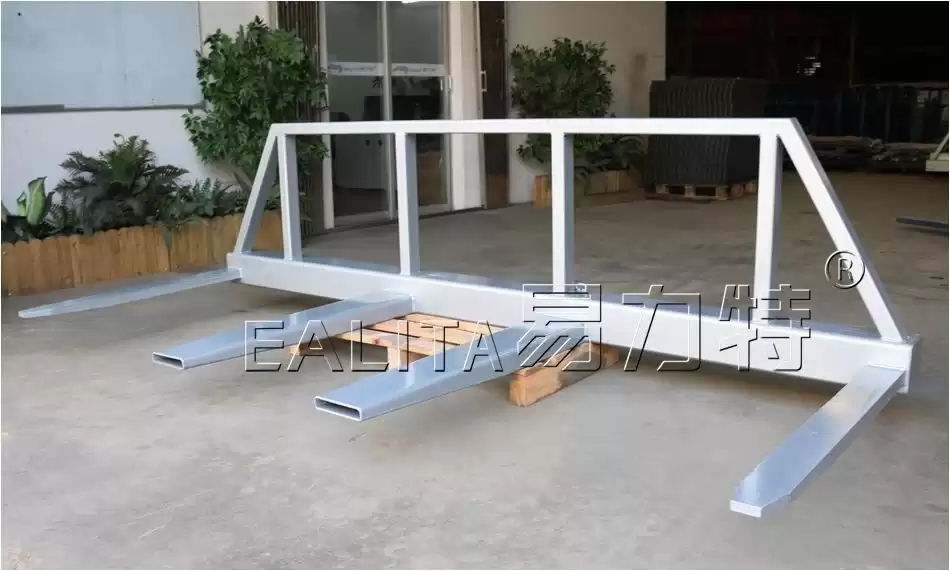

Type F-FS3-LG Fork Spreader & Load Guard is designed to safely lift extra wide or flexible loads without
the risk of damage to products such as plasterboard, roof sheeting, timber or plastic tubing etc.
- The Fork Spreader evenly distributes the load over its full length and has the extra benefit of a load guard incorporated into its design.
- This slip-on attachment is easily fitted onto the Lift Truck fork tines and is secured by a safety chain.
- Fork Spreaders may be designed and manufactured to suit your application on request.
- The standard finish on the type FS3-LG Fork Spreader & Load Guard is enamel painted over primed steel.
Specifications
• Code: 03.01.27.0001
• Pocket size 160 x 60mm
• Pocket Centres 775mm
• Safe Working Load 3000kg
• Load Centre 600mm
• Unit Weight 260kg
• HCG 300mm
• VCG 60mm
