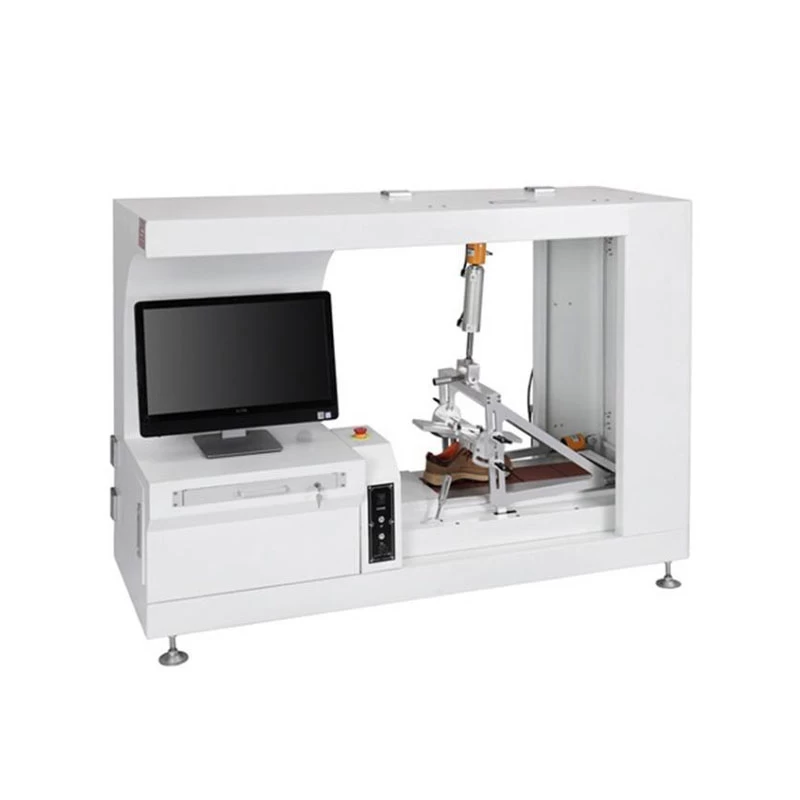

AF09 Slip Resistance Tester
Application Of Slip Resistance Tester
Slip Resistance Tester is suitable for whole shoes, outsole with dry and wet method, The floor material can be made of stainless steel, carpet, ceramic tile, etc. Its working principle: Simulation of walking shoe front and shoe heel and ground friction test, numerical test instrument and the friction slip.
Standards Of Slip Resistance Tester
EN 13287, SATRA TM144 GB/T28287 EN ISO13287 ASTM F2912, ISO 20344
Key Specification Of Slip Resistance Tester
|
Model
|
AF09 Slip Resistance Tester
|
|
Sensor
|
1000N
|
|
Verticalpressure
|
500±25N(for footwear of European size 40,UK size 6.5 and above )
400±20N(for footwear below European size 40,UK size 6.5)
|
|
Vertical Pressure
|
500±25N
|
|
Sliding speed
|
0.3 ± 0.03 m/s
|
|
Wedge Angle gauge
|
7°
|
|
Test floor
|
Compressed tile floor, stainless steel board, carpet
|
|
Control method
|
Computer control
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
170*60*115cm
|
|
Weight
|
300kg
|
Related products

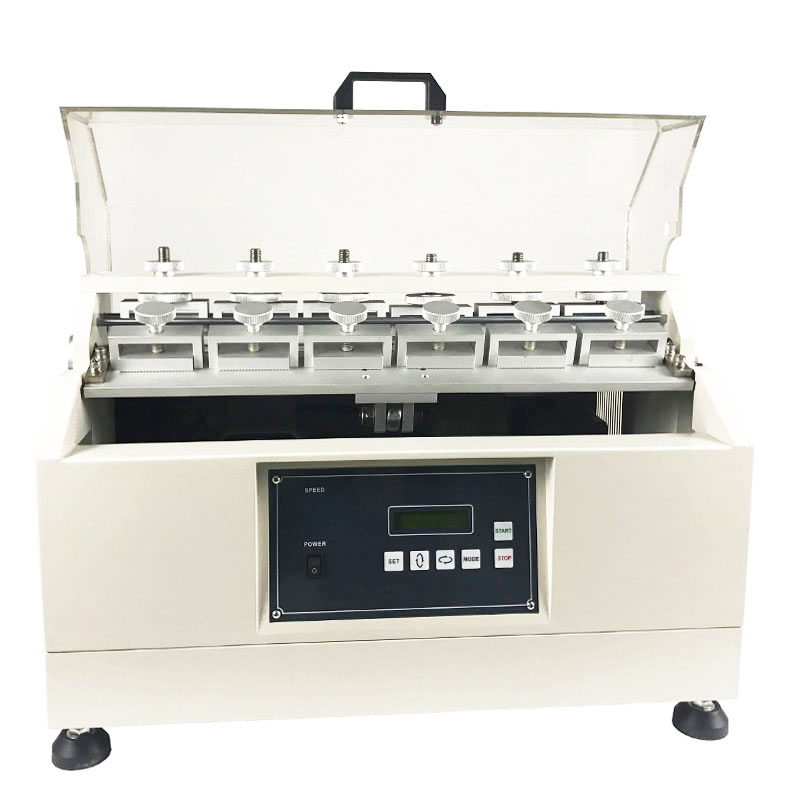

Universal Testing Machine (Dual Column) Bally Leather Flexing Resistance Tester ROSS Flexing Tester
