Slope Ground Mounting System

There is little difference between slope ground and flat ground when installing solar system. Rotary joints is needed to accommodate slope ground racking system.


  • Warranty12 years

With continuous development of solar racking system,many sloped ground racking structure has been developed and used to install solar system.There is little difference between installing solar system on slope ground and flat ground. Rotary joints are needed to accommodate slope ground mounting system.


Technical Parameters:

Installation Angle

5-60°

Wind Load

60m/s

Snow Load

1.6KN/m2

PV Modules

Framed,unframed

Module Orientation

Landscape

Standards

AS/NZS 1170



DIN 1055



JIS C 89552017



International Building Code IBC 2009



California Building Code CBC 2010

Material

Al6005-T5(Anodized)

Color

Silvery or according to customer requirements

Warranty

12 years



Slope ground mounting system


Feature:

1. If the slope mount is inclined in the east-west direction, beam rotation members are needed to adjust the mount. The north-south slope can be adjusted by adjusting the height of the support square tube.

2. The slope of the slope mount cannot be very large. The larger is the slope ,the lesser are the quantity of the columns.




Advantage:

1.Easy installation;

2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);

3.Chemical resistance&weather ability(certificate:AS/NZS 1170,MCS,CSA etc);

4.Max wind speed:up to 60m/s;

5.Anti-corrosive: anodized

6.Duration: 25 years.

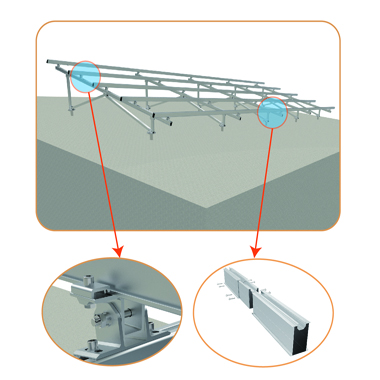

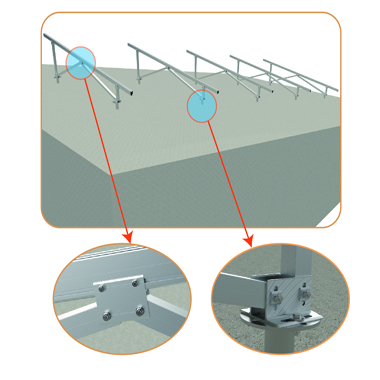

Component photos of slope ground mounting system


slope ground mounting system

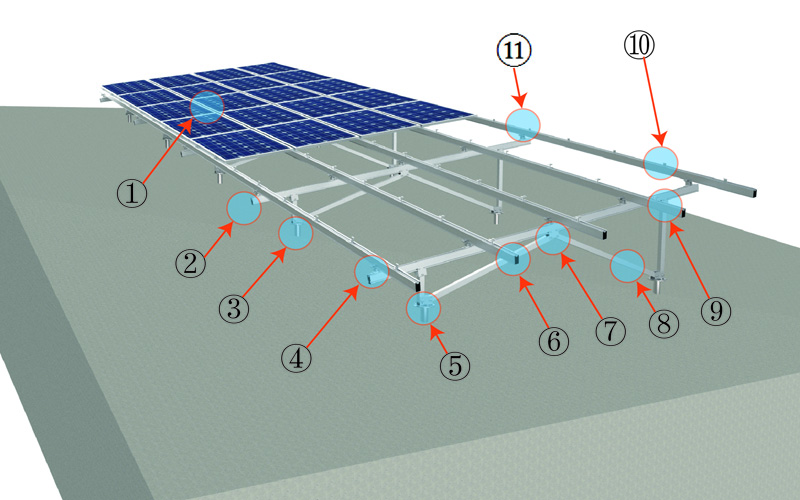

Solar Inter clamp Solar support beam Solar ground screw  Solar revolve connecter
    1.  Solar inter clamp         2.  Solar support beam             3. Ground screw         4. Solar revolve connecter

solar pv mounting structure solar ground screw from china steel ground solar structure steel ground solar structure

5 Solar base 140                  6.   1# Solar rail                  7.  Solar connecter 120        8. Solar Aluminum alloy

                                                                                                                                                          square tube

solar panel ground mount kit mounting systems for solar panels Solar rail splice
  9Solar connecter 90          10.  Solar end clamp               11.  Solar rail splice



Installation photos of slope ground mounting system

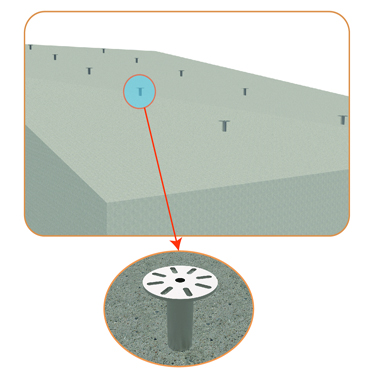

Step1:Install ground screw according to                    Step2: Install the pre-assembled support
              distance marked in drawing                                               beam on the ground screw



cheap ground steel screw        utility scale solar panel racking systems

                             Install ground screw                                                      Solar connecter 120           Solar base140

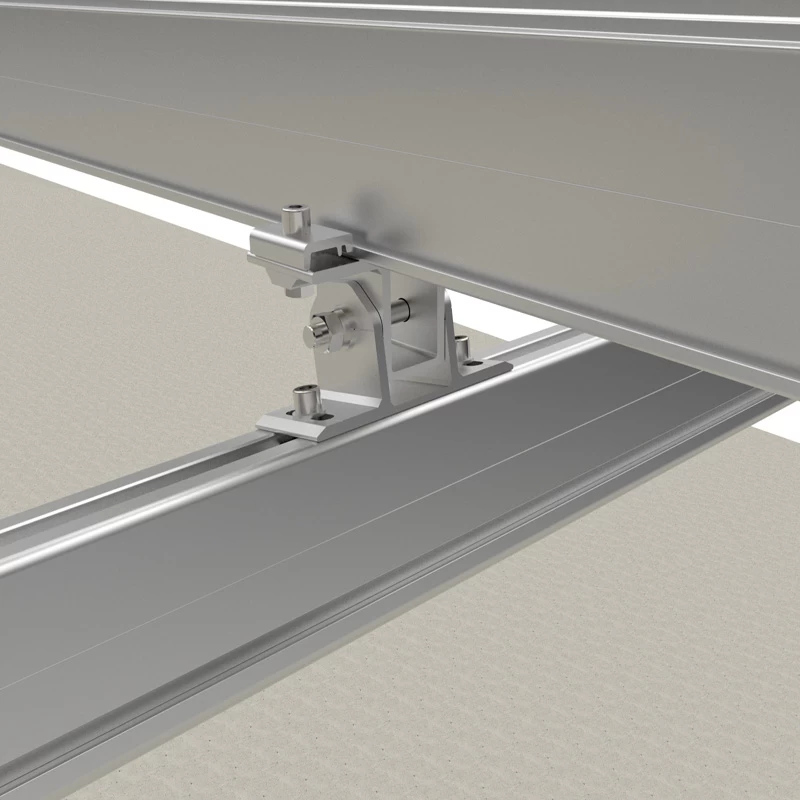

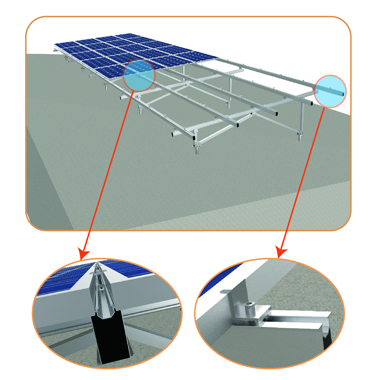

Step3:Install Revolve connecters and rails             Step4: Fasten panel by inter clamp and end clamp



solar panel mounting systems ground   solar ground mounts
     Solar  revolve connecter        Solar  Rail clamp                                   Inter clamp                      End clamp





aluminum slope ground mounting system
