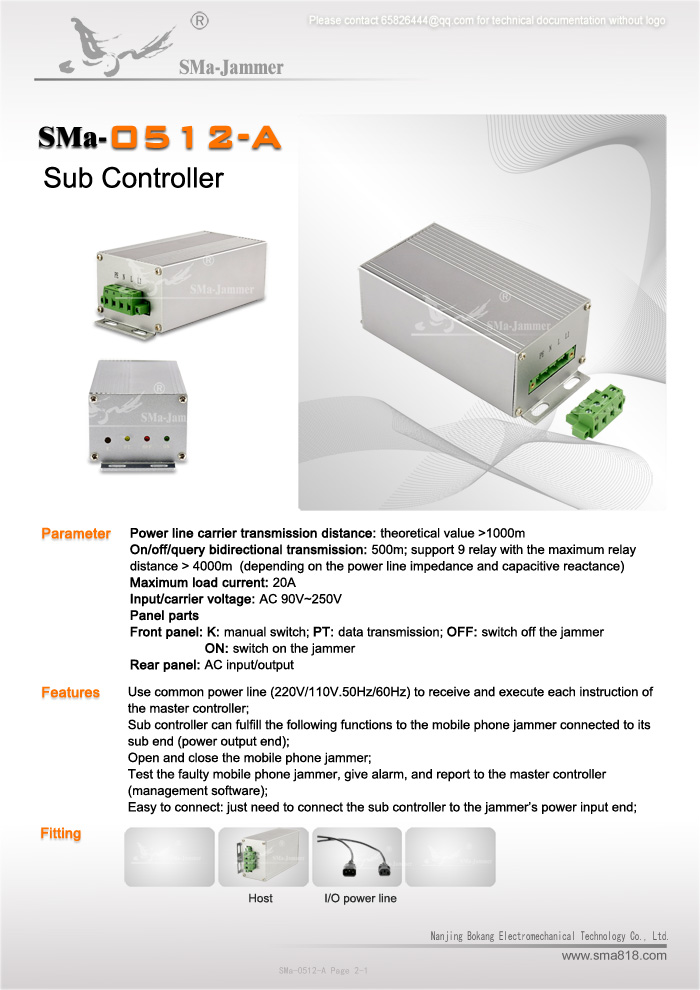

SMa-0512-A Sub Controller PDF clear version download

SMa-0512-A Sub Controller PDF clear version download

SMa-0512-A Sub Controller

Application
It connects with the power input end of the shielding device. It takes the power line carrier communication way to accept the commands sending by the main controller end (the main controller system and the line concentration controller), like open/close or status inquiry and executes the corresponding actions. It’s available for any brand mobile signal jammers with city electricity supply.
Technical Parameters
A:Power line carrier transmission distance: theoretical value >1000m
On/off/query bidirectional transmission: 500m; support 9 relay with the maximum relay distance > 4000m (depending on the power line impedance and capacitive reactance)
B:Maximum load current: 20A
C:Input/carrier voltage: AC 90V~250V

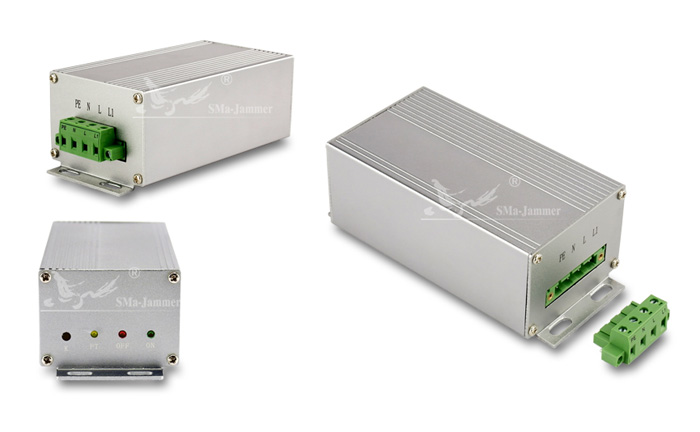

D:Panel parts

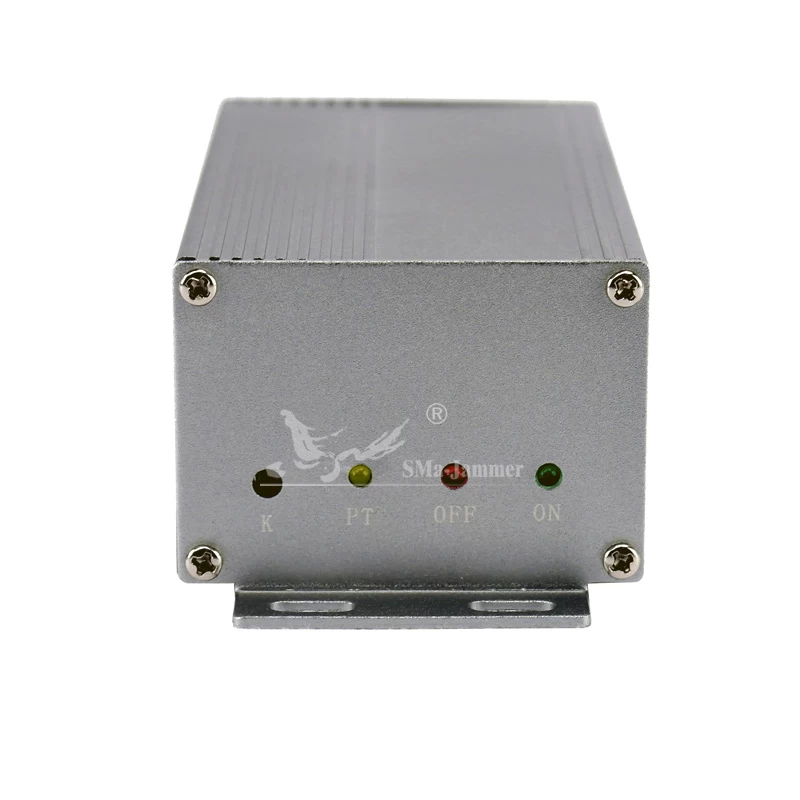

Front panel
K: manual switch; PT: data transmission; OFF: switch off the jammer; ON: switch on the jammer.

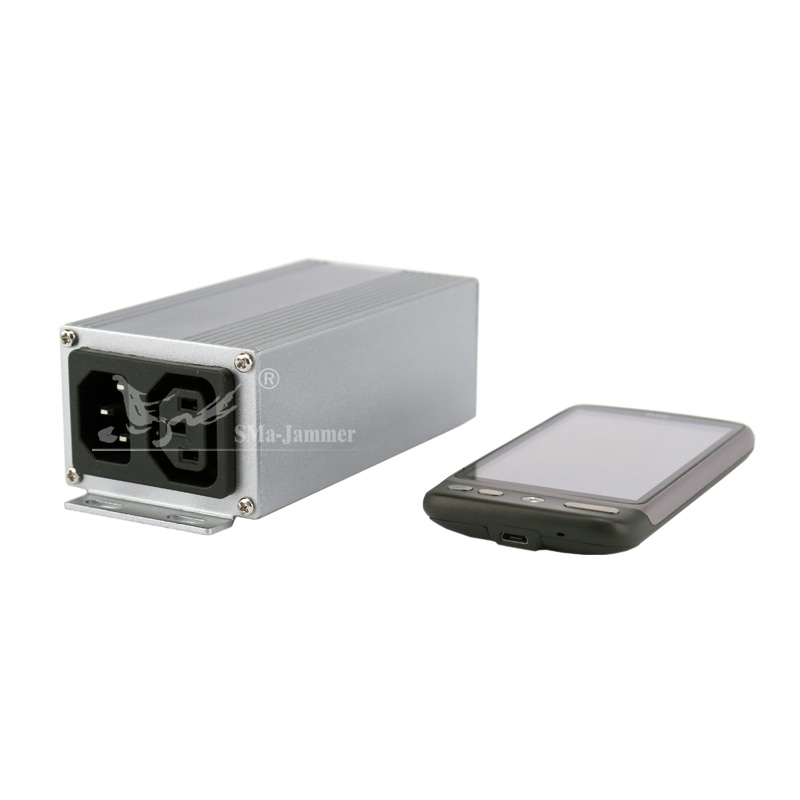

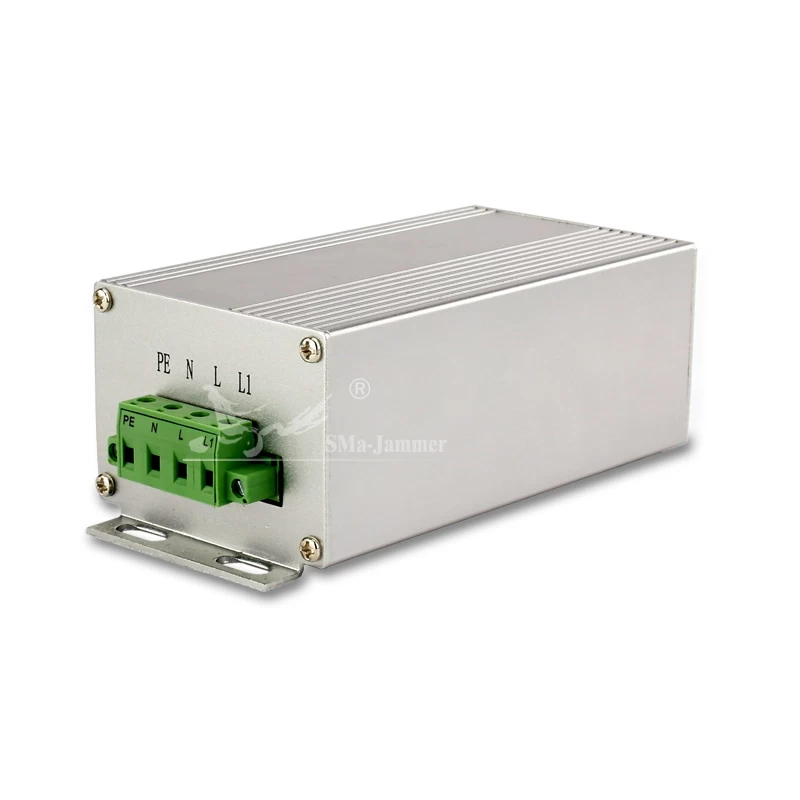

Rear panel: AC input/output
Features
Use common power line (220V/110V.50Hz/60Hz) to receive and execute each instruction of the master controller.
Sub controller can fulfill the following functions to the mobile phone jammer connected to its sub end (power output end):
    Open and close the mobile phone jammer;
    Test the faulty mobile phone jammer, give alarm, and report to the master controller (management software).
Easy to connect: just need to connect the sub controller to the jammer’s power input end.

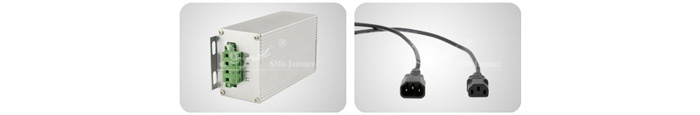

Main Parts
                                                                Host                       Input/Output Power Line

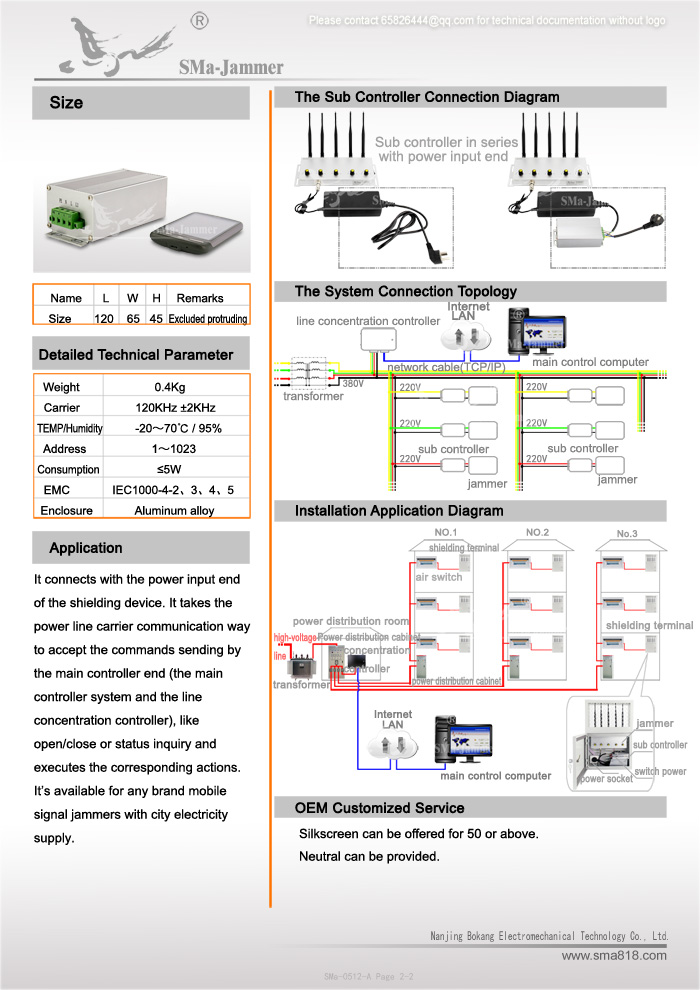

Detailed Technical Parameters

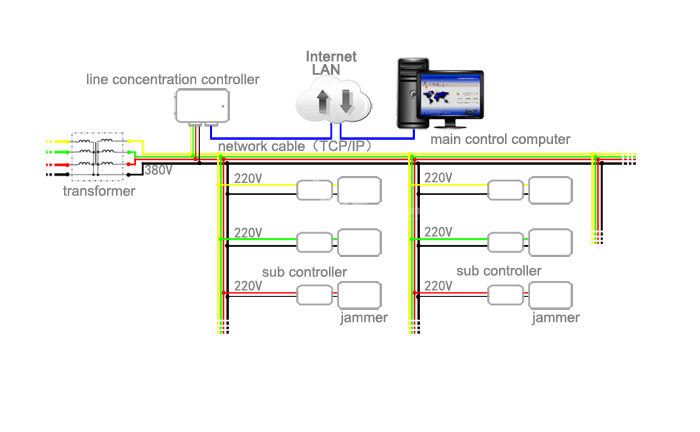

The System Connection Topology

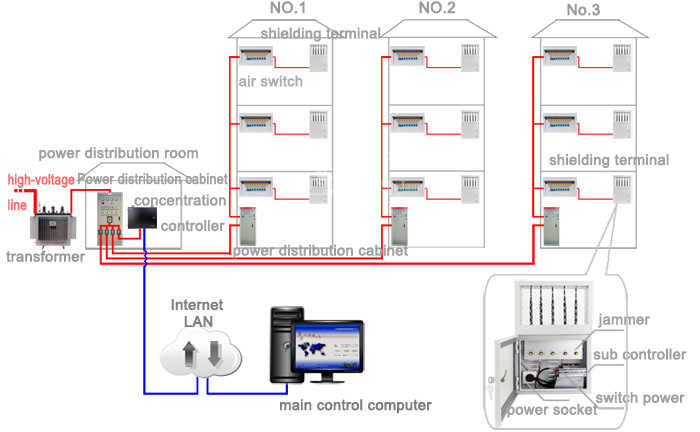

Installation Application Diagram

OEM Customized Service
Silkscreen can be offered for 50 or above.
Neutral can be provided.
