SMa-0512-C Sub Controller(Network Version)

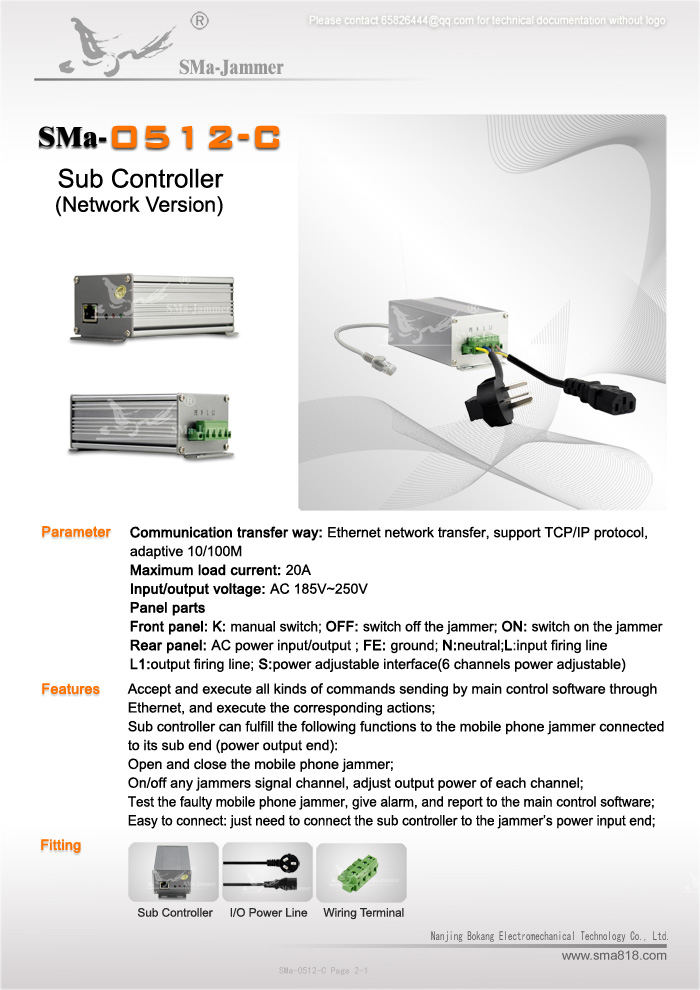

SMa-0512-C Sub Controller(Network Version) PDF clear version download

SMa-0512-C Sub Controller(Network Version) PDF clear version download

SMa-0512-C Sub Controller(Network Version)

Application
It connects with the power input end of the shielding device. It takes the Ethernet communication way to accept the commands sending by the main controller end (the main controller system and the line concentration controller), like open/close or status inquiry, power adjust and executes the corresponding actions. It’s available for any brand mobile signal jammers with city electricity supply.
Technical Parameters
A:Communication transfer way: Ethernet network transfer, support TCP/IP protocol, adaptive 10/100M
B:Maximum current load:20A
C:Input/output voltage: AC 185V~250V
D:Panel parts

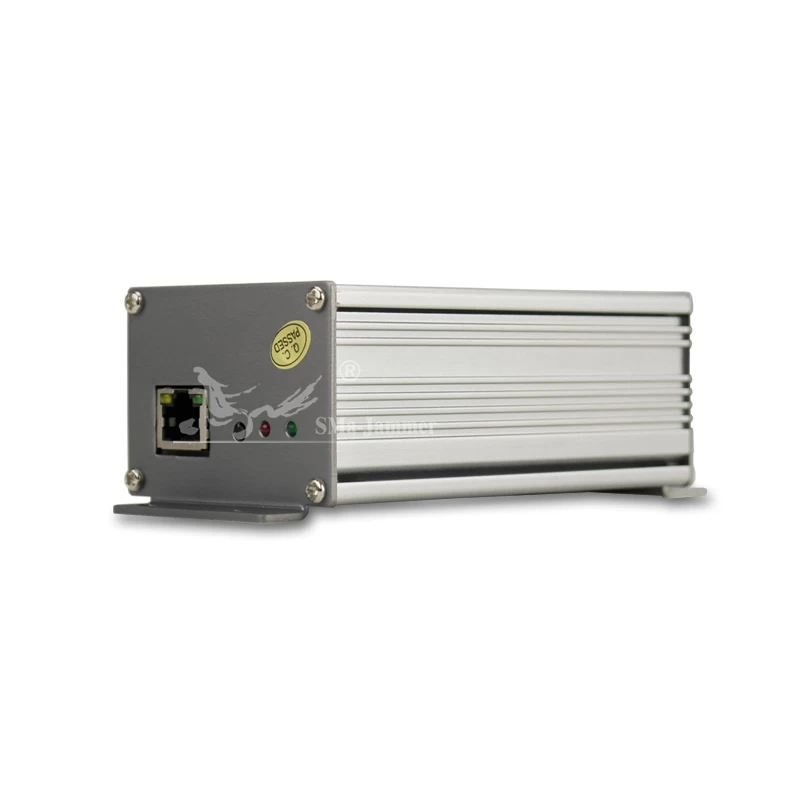

Front panel: K: manual switch; OFF: switch off the jammer; ON: switch on the jammer.

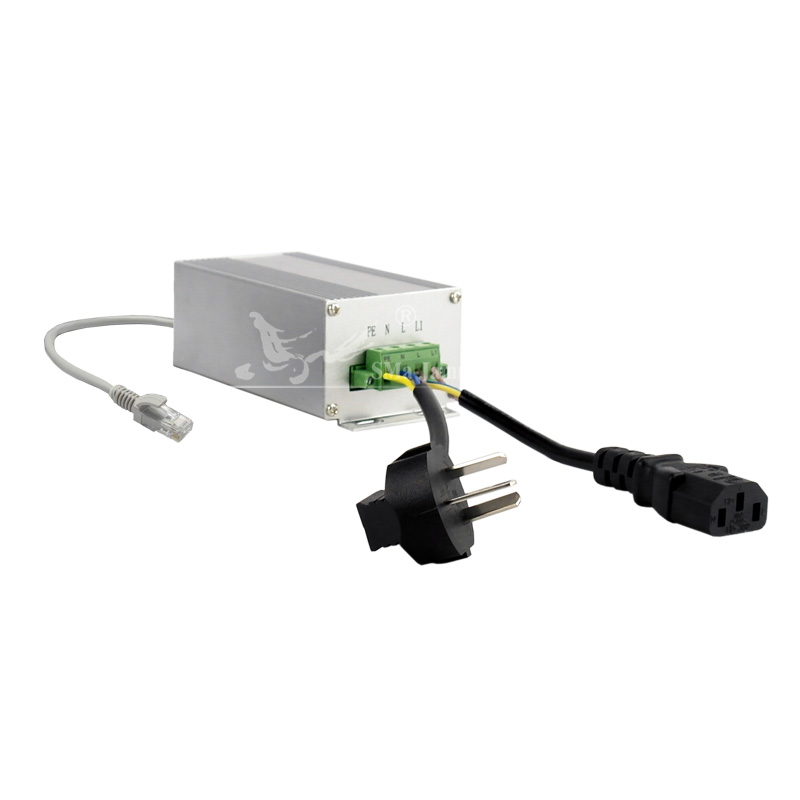

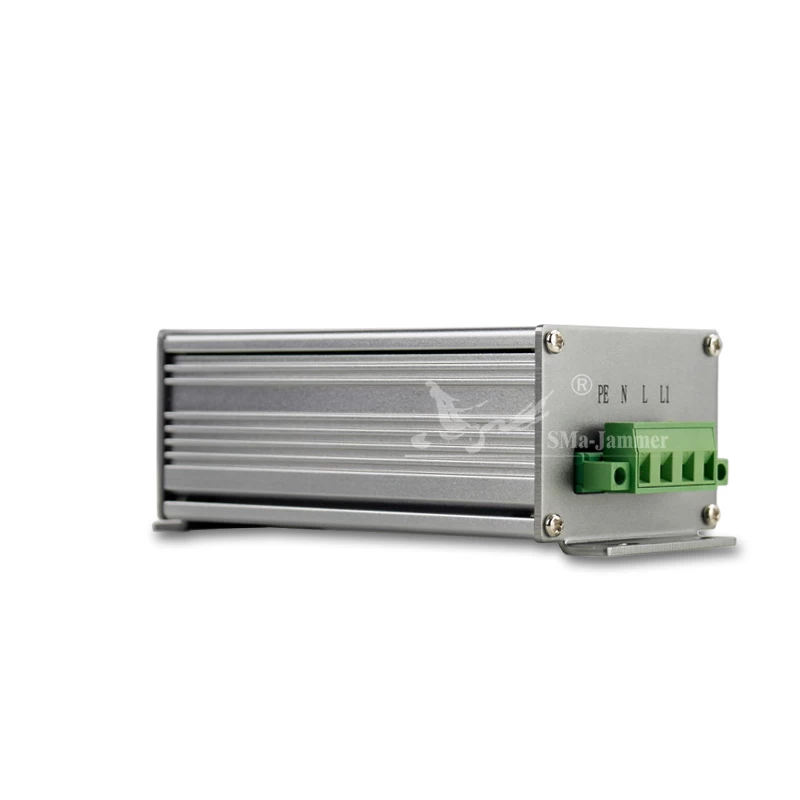

Rear panel: AC power input/output; FE: ground; N: neutral; L: input firing line; L1: output firing line; S: power adjustable interface (6 channels power adjustable)
Features
Accept and execute all kinds of commands sending by main control software through Ethernet, and execute the corresponding actions ;
Sub controller can fulfill the following functions to the mobile phone jammer connected to its sub end (power output end):
    Open and close the mobile phone jammer;
    On/off any jammers signal channel, adjust each channel power;
    Test the faulty mobile phone jammer, give alarm, and report to the main control software;
Easy to connect: just need to connect the sub controller to the jammer’s power input end;
Main Parts

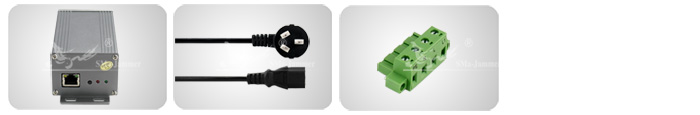

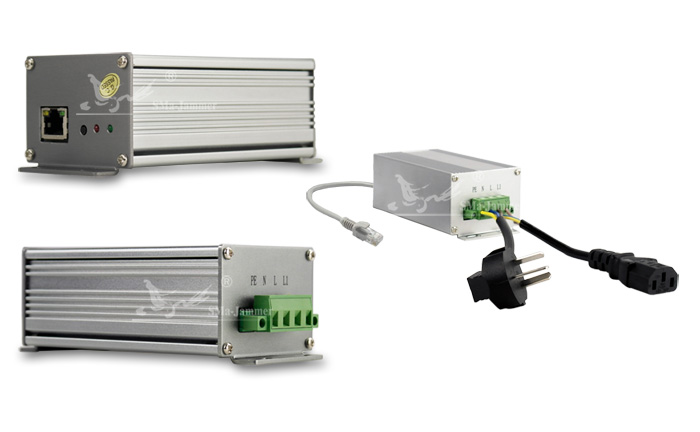

         Sub Controller              Input/Output Power Line             Wiring Terminal

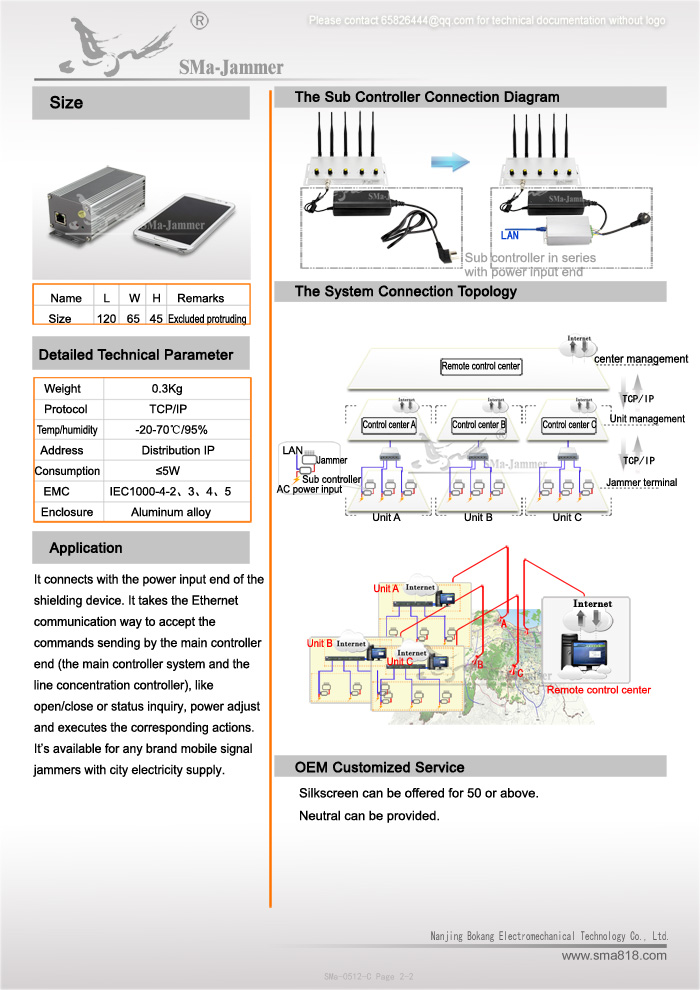

Detailed Technical Parameters

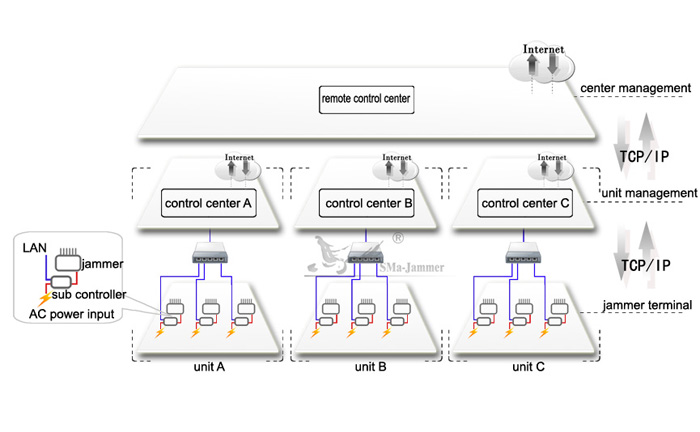

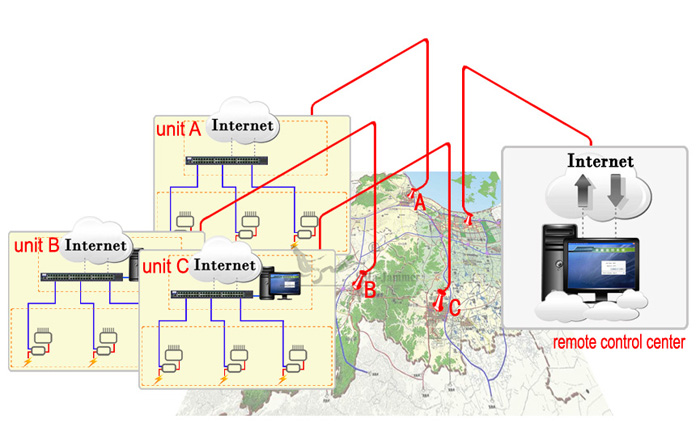

The System Connection Topology


OEM Customized Service
Silkscreen OEM service can be offered for 50 or above.
Neutral can be provided.
