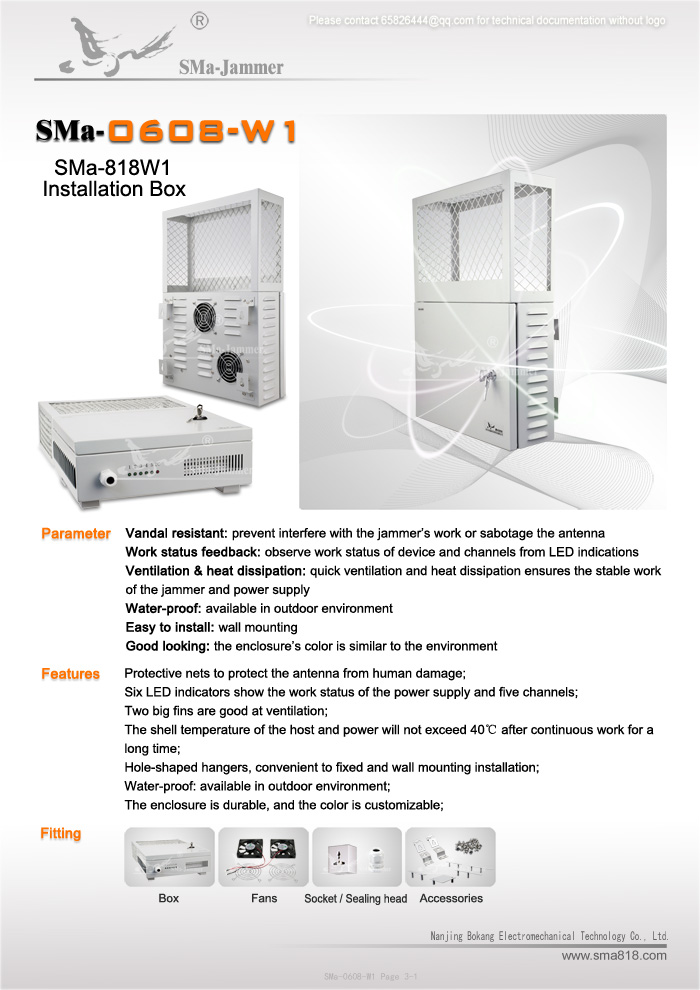

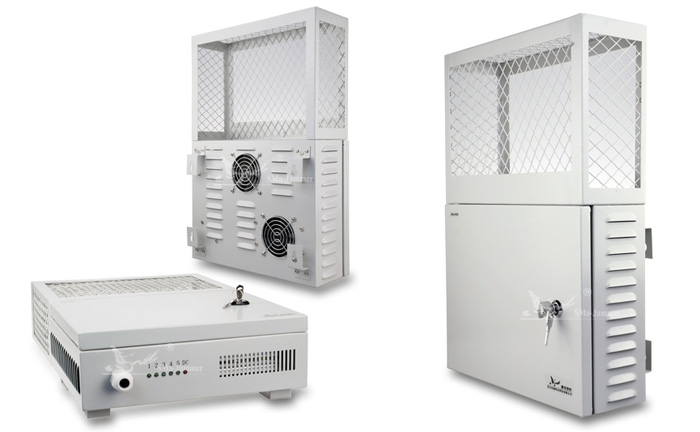

SMa-0608-W1 SMa-818W1 Jammer Special Installation Box
Application
SMa-0608-W1 designed for supporting installation of SMa-818W1 and SMa-818W2 mobile signal jammers;
Adjust the holes position and mounting size, can be used for other mobile signal jammers installation;
Technical Requirements
A:Vandal resistant: prevent interfere with the jammer’s work or sabotage the antenna
B:Work status feedback: observe the work status of equipment and channels directly
C:Ventilation & heat dissipation: quick ventilation and heat dissipation ensures the stability of the jammer and power supply
D:Water-proof: available in outdoor environment
E:Easy to install: wall mounting, stable
F:Good looking: the enclosure’s color is similar to the environment
Features
Protective nets to protect the antenna from human damage;
Six LED indicators show the work status of the power supply and five channels;

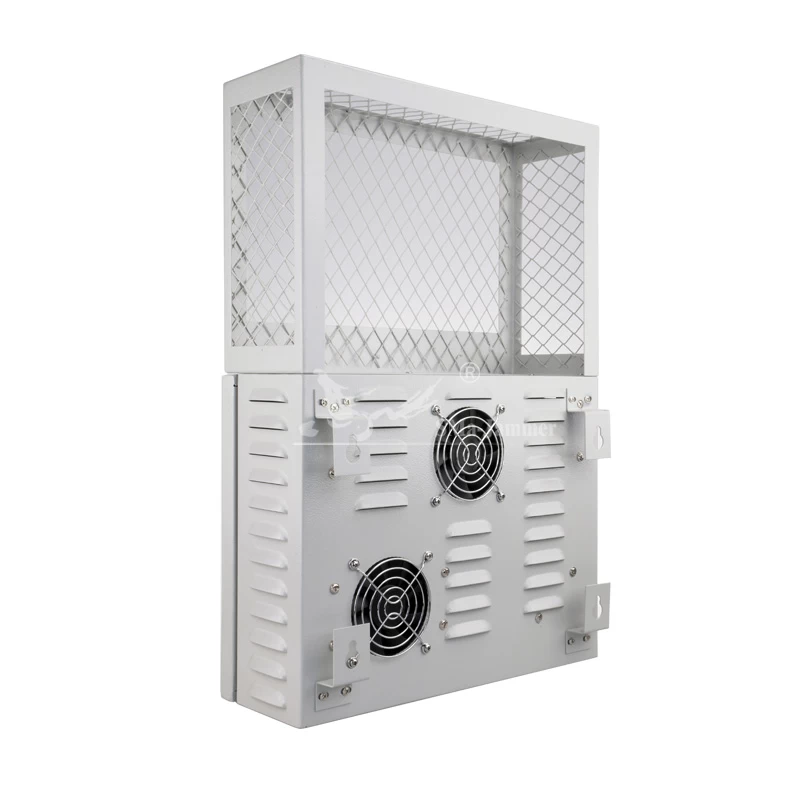

Two big fins are good at ventilation;
The shell temperature of the host and power will not exceed 40℃ after continuous work for a long time;
Hole-shaped hangers, convenient to fixed and wall mounting installation;
Water-proof: available in outdoor environment;
The enclosure is durable, and the color is customizable;

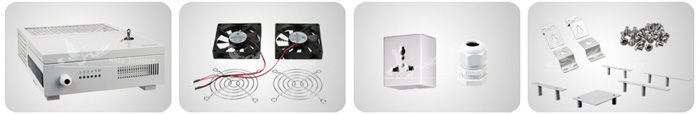

Main Parts
Box Fan/Protective Net Socket/Sealing Head Accessories

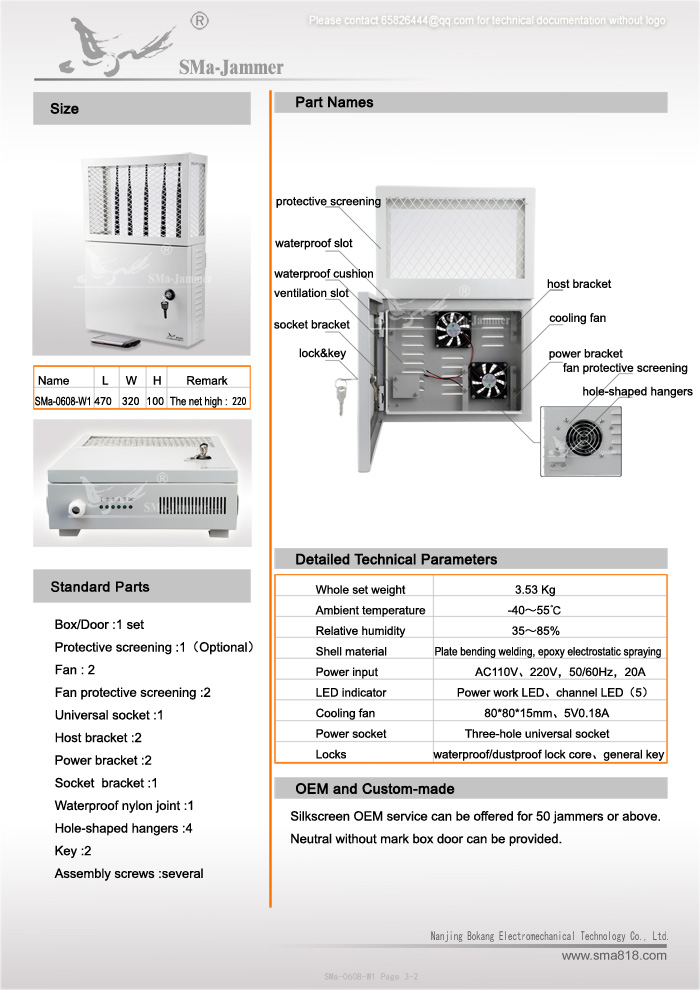

Detailed Technical Parameters
|
Chassis size
|
470*320*100(protective net high220)
|
|
Total weight
|
3.5Kg
|
|
Ambient temperature
|
－40℃～55℃
|
|
Relative humidity
|
35～85%
|
|
Cooling fan
|
80*80*15mm、5V/0.18A*2
|
|
Power socket
|
Three-hole universal socket(general)
|
|
Power input
|
AC110V、220V，50/60Hz，20A
|
|
LED indicator
|
Power work LED、Channel LED（5）
|
|
Locks
|
Waterproof/dustproof lock core、key is general
|
|
Box material
|
Plate bending welding, epoxy electrostatic spraying
|

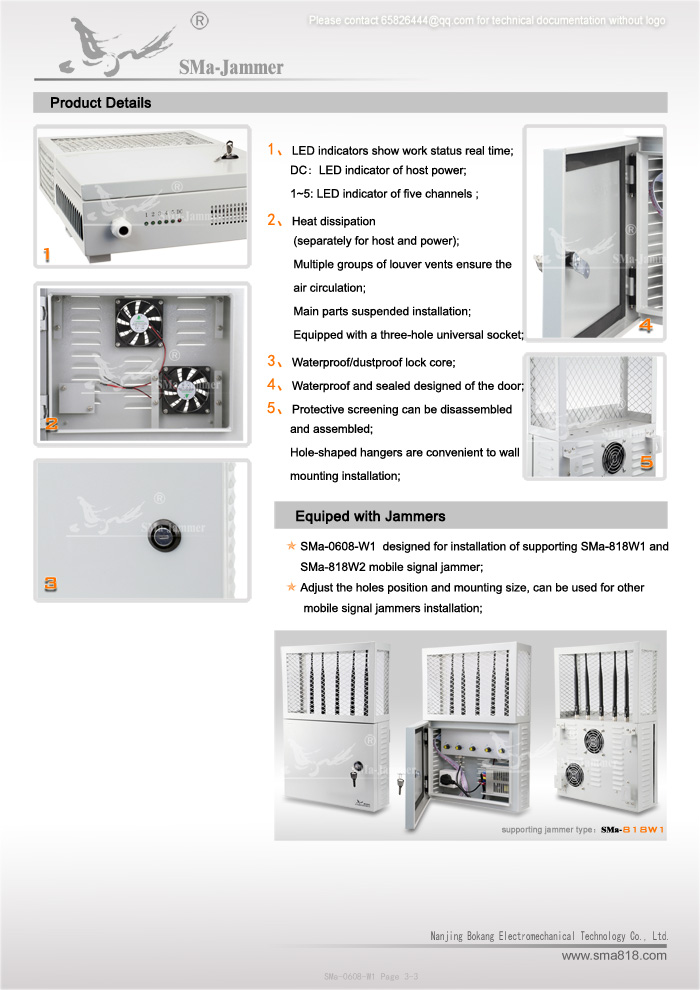

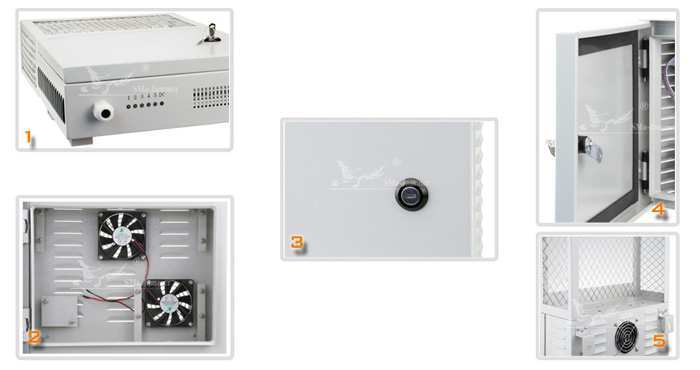

Product Details
1、LED indicators feedback work status real time;
DC：LED indicator of host power work;
1~5: LED indicators of channels work;
2、Heat dissipation(separately for host and power);
Multiple groups of louver vents ensure the air circulation;
Main parts suspended installation;
Equipped with a three-hole universal socket;
3、Waterproof、dustproof lock core;
4、Waterproof and sealed designed of the door;
5、Protective screening can be disassembled and assembled;
Hole-shaped hangers are convenient to wall mounting installation;
Standard Parts
|
Box/door: 1 set
|
Protective screening: 1（optional）
|
|
Fan: 2
|
Fan protective screening: 2
|
|
Universal socket：1
|
Host mounting bracket: 2
|
|
Power mounting bracket: 2
|
Socket mounting bracket: 1
|
|
Waterproof nylon joint: 1
|
Hole-shaped hangers: 4
|
|
Key: 2
|
Assembly screws: several
|
OEM Customized Service
Silkscreen OEM service can be offered for 50 jammers or above.
Neutral without mark box door can be provided.

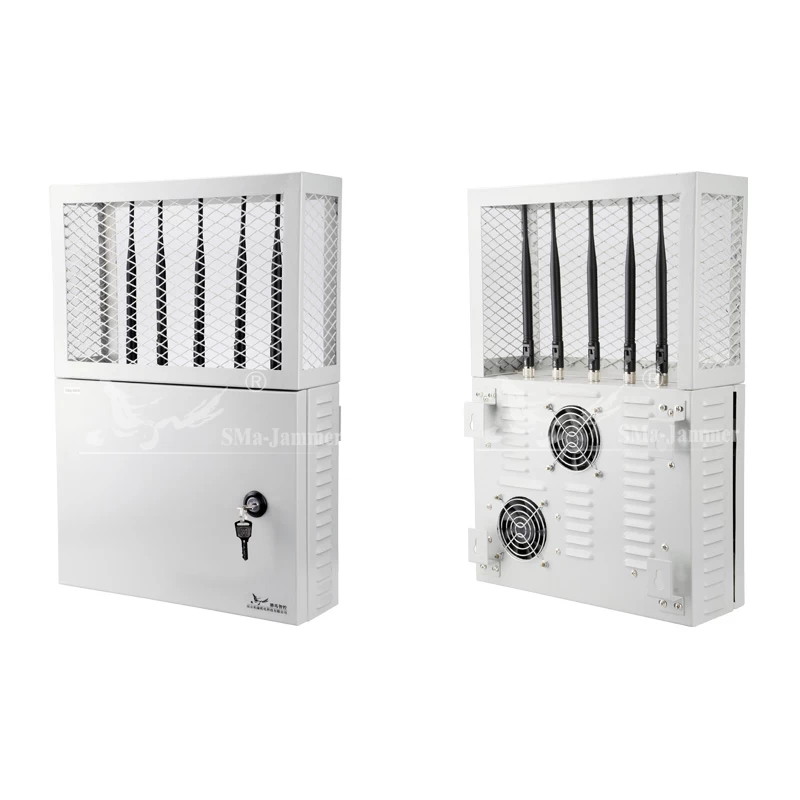

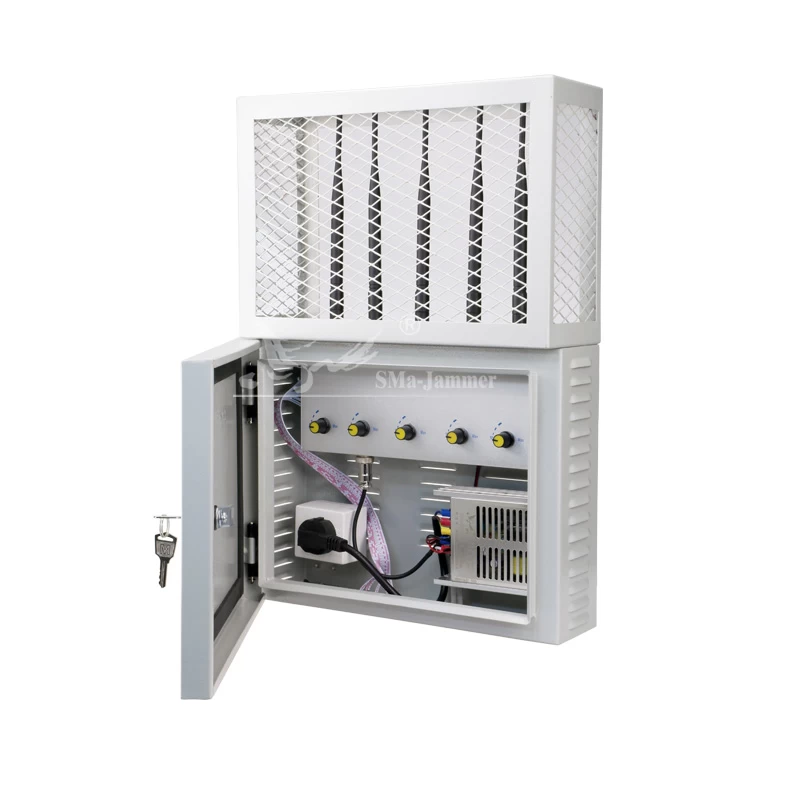

Assembly Effect
