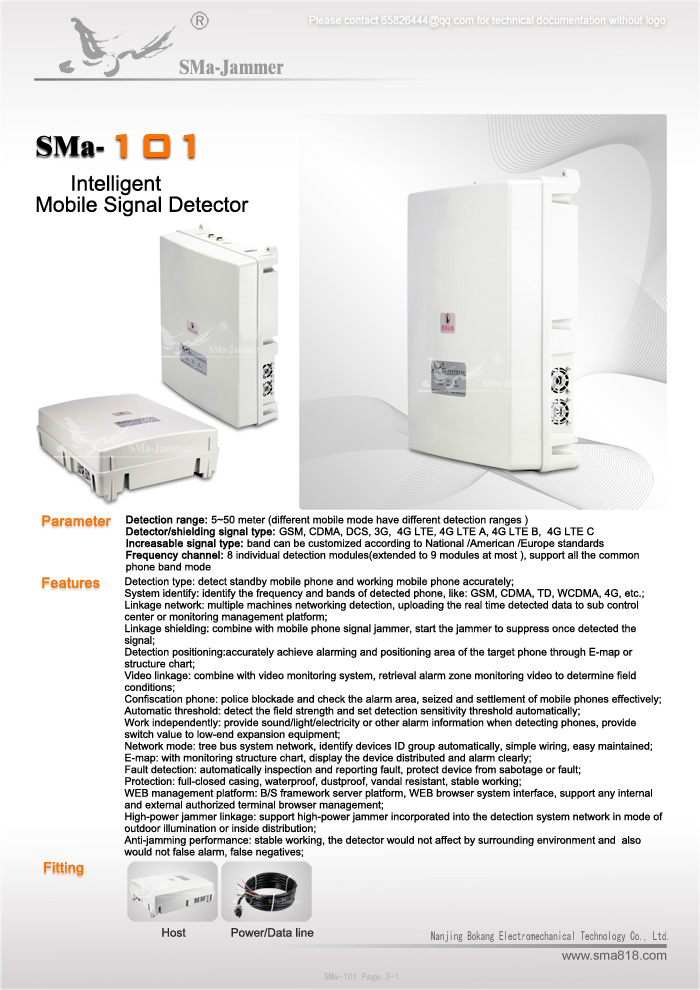

SMa-101 Intelligent Mobile Signal Detector

Mainly applied in alarm and mobile signal detection, it especially used for discovering and confiscation the mobile phones in regulatory sites


  • Mobile phone detectormobile detector

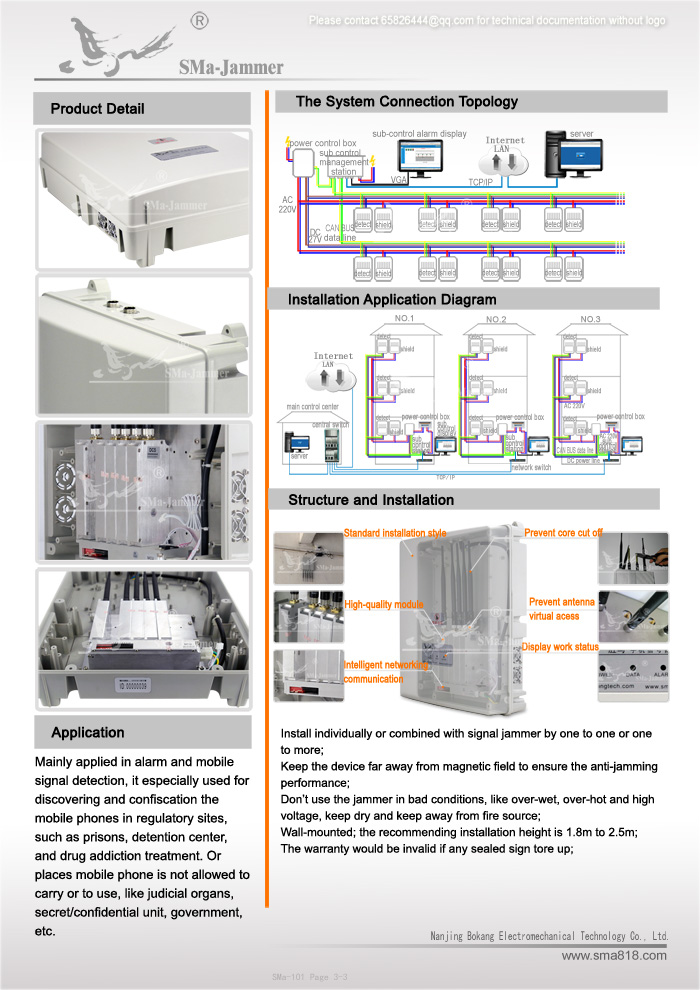

SMa-101 Intelligent Mobile Signal Detector PDF clear version download

Intelligent Signal Detector

SMa-101 Intelligent Mobile Signal Detector PDF clear version download

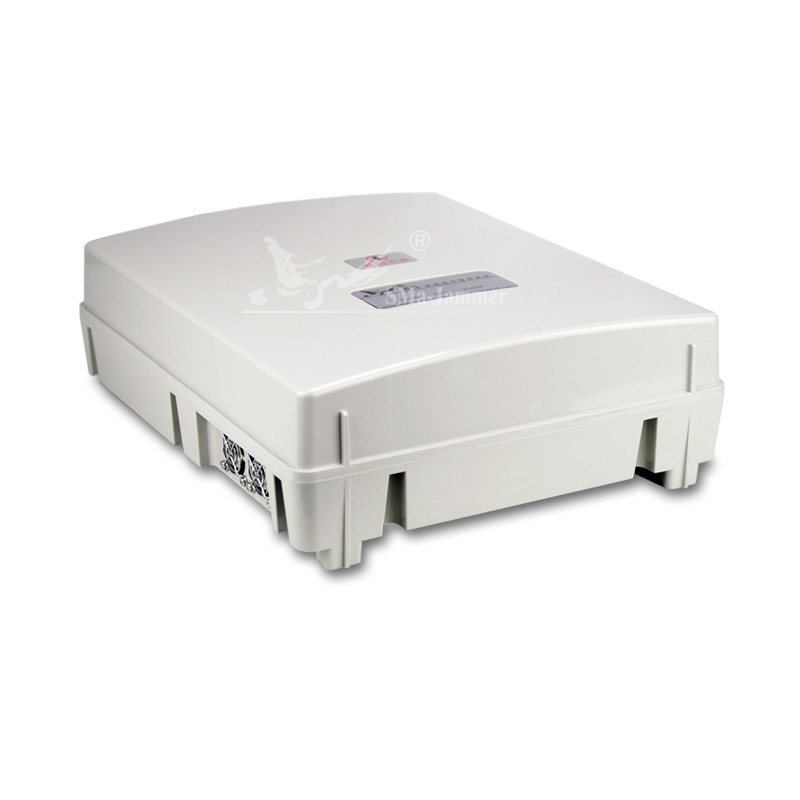

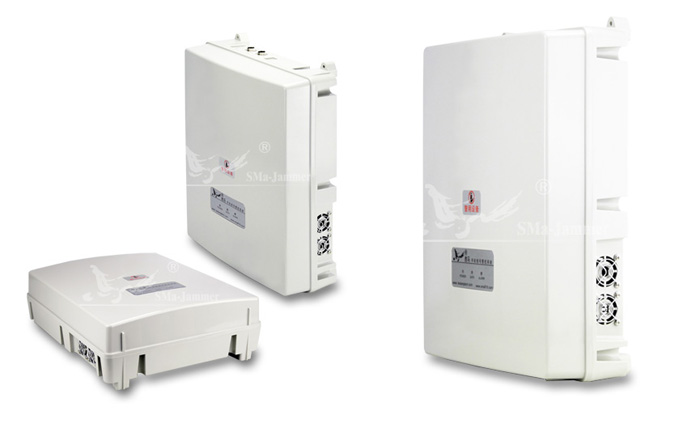

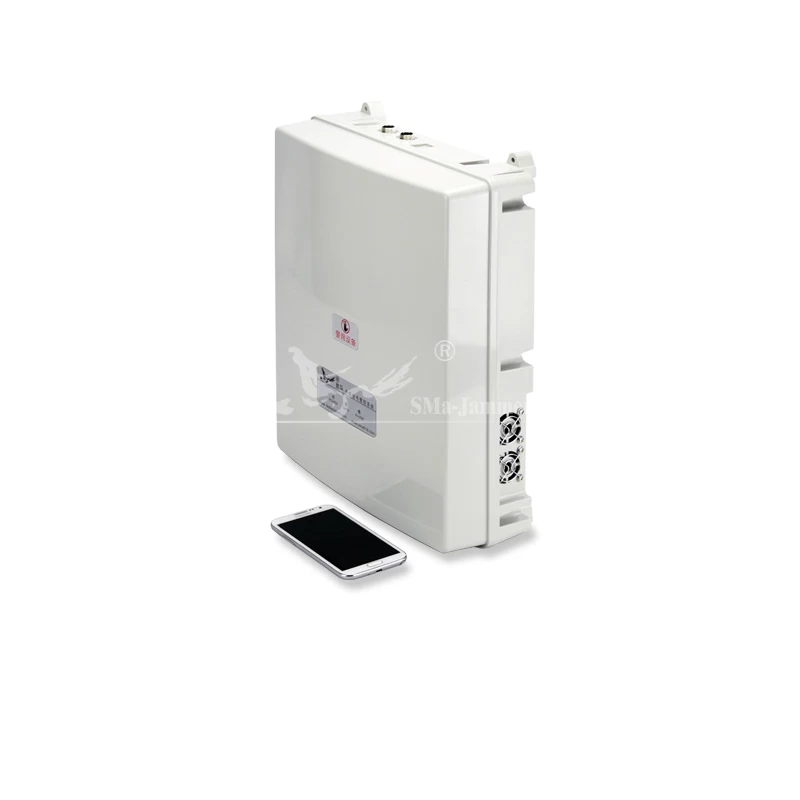

SMa-101 Intelligent Mobile Signal Detector

Mobile Signal Detector

Application

Mainly applied in alarm and mobile signal detection, it especially used for discovering and confiscation the mobile phones in regulatory sites, such as prisons, detention center, and drug addiction treatment. Or places mobile phone is not allowed to carry or to use, like judicial organs, secret/confidential unit, government, etc.

Technical Parameter

A:Detection range: 5~50 meter (detection range depending on the mobile system )
B:Detection/shielding signal type: GSM(Mobile/Unicom 2G), CDMA(Telecom), DCS(Mobile/Unicom 1800M/1900M), 3G(Mobile TD/Telecom CDMA2000/Unicom WCDMA), 4G LTE(Mobile LTE), 4G LTE A(Unicom), 4G LTE B(Mobile), 4G LTE C(Telecom)
C:Increasable signal type: band can be customized according to requirements
D:Frequency channel: 8 individual detection modules(extended to 9 modules at most ), support all the common phone band mode

Features

Detection type: detect standby mobile phone and working mobile phone (on calling, on/off, send/receive messages, wireless internet access) accurately;
System identify: identify the frequency and bands of detected phone, for example: GSM, CDMA, TD, WCDMA, 4G, etc.;
Linkage network: multiple machines networking detection, uploading the real time detected data to sub control center or monitoring management platform;
Linkage shielding: combine with mobile phone signal jammer, start the jammer to suppress once detected the mobile signal;
Detection positioning: accurately achieve alarming and positioning the area of the target phone through electronic map or structure chart;
Video linkage: combine with video monitoring system, retrieval alarm zone monitoring video to determine field conditions;
Confiscation phone: police blockade and check the alarm area, seized and settlement of mobile phones effectively;
Automatic threshold: detect the field strength and set detection sensitivity threshold automatically;
Work independently: provide sound/light/electricity or other alarm information when detecting phones, provide switch value to low-end expansion equipment;
Network mode: tree bus system network, identify devices ID group automatically, simple wiring, easy maintained;
E-map: with monitoring structure chart, display the device distributed and alarm clearly;
Fault detection: automatically inspection and reporting fault, protect device from sabotage or fault;
Protection: full-closed casing, waterproof, dustproof, vandal resistant, stable working;
WEB management platform: B/S framework server platform, WEB browser system interface, support any internal and external authorized terminal browser management;
High-power jammer linkage: support high-power jammer incorporated into the detection system network in mode of outdoor illumination or inside distribution;
Anti-jamming performance: the normal work of detector would not affect by the distance of base station, the signal strength, or whether the surrounding shielding machines open simultaneously, and the detector also would not false alarm, false negatives;

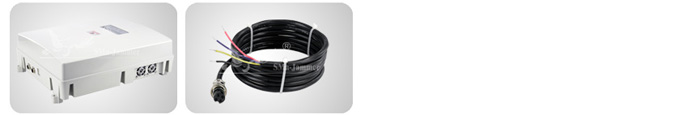

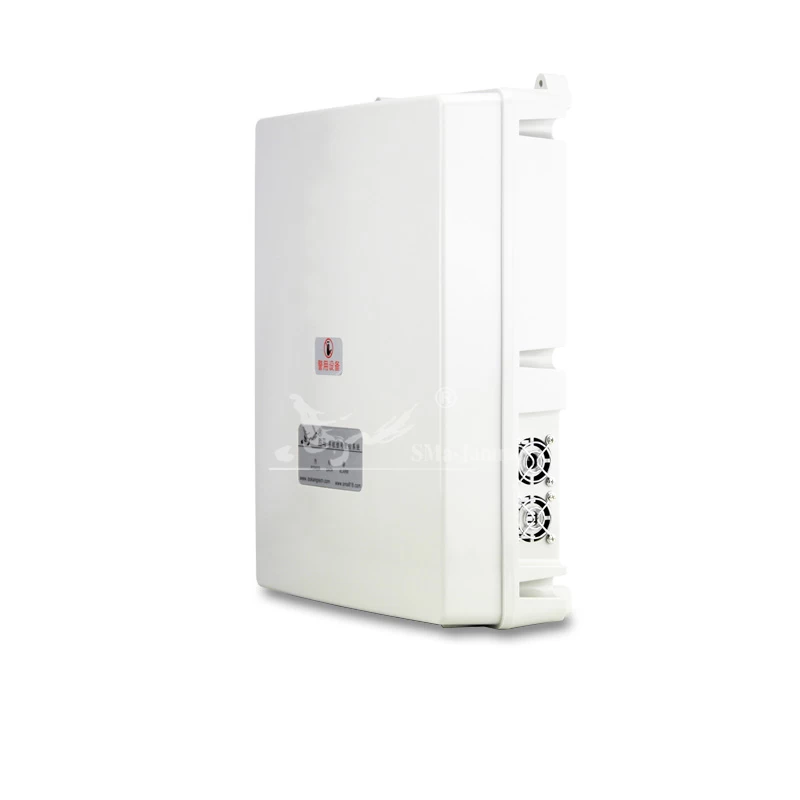

Main Parts

                   Host                              Power/Data line

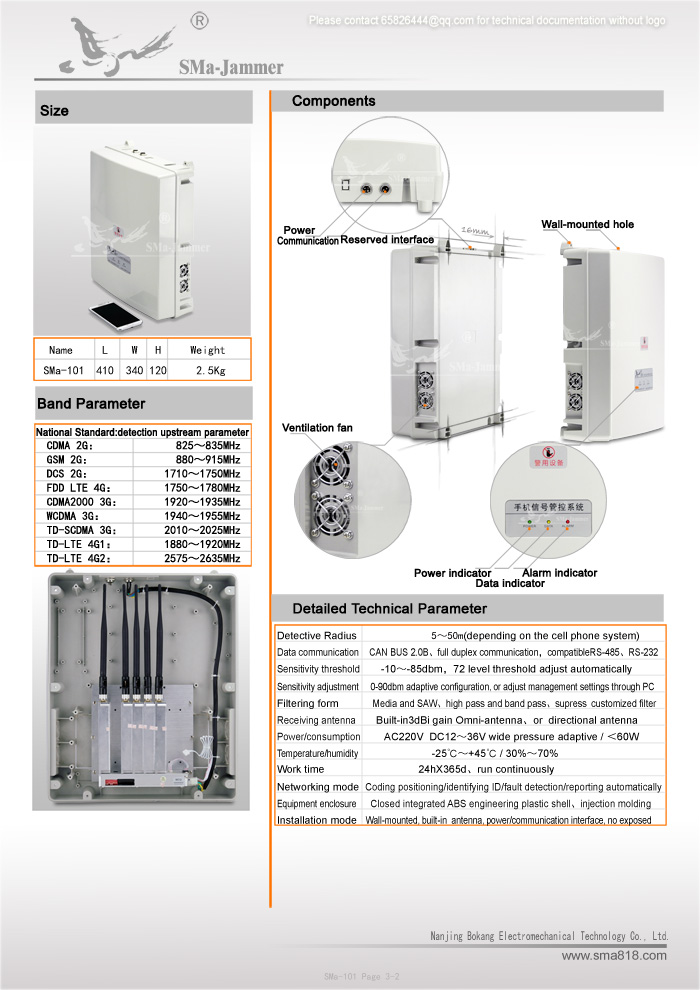

Detailed Technical Parameter













National standardsdetection uplink band parameter

Band

Frequency

CDMA 2G

825-835MHz

GSM 2G

880-915MHz

DCS 2G

1710-1750MHz

FDD LTE 4G

1750-1780MHz

CDMA2000 3G

1920-1935MHz

WCDMA 3G

1940-1955MHz

TD-SCDMA 3G

2010-2025MHz

TD-LTE 4G1

1880-1920MHz

TD-LTE 4G2

2575-2635MHz

Size

410x340x120

Weight

2.5Kg

Detective radius

5-50m(depending on the cell phone system)

Data communication

CAN BUS 2.0Bfull duplex communicationcompatible RS-485RS-232

Sensitivity threshold

-10-85dbmdetect the field strength automatically72 grades threshold adjust automatically

Sensitivity adjustment

0-90dbm adaptive configurationor remotely adjust management settings through PC

Filtering form

Media and SAWhigh pass and band passuplink and downlink suppress customized filter simultaneously

Receiving antenna

Built-in 3dBi gain Omni-antennaor replaced with directional antenna

Power/consumption

AC220V  DC1236V wide pressure adaptive / 60W

Temperature/humidity

-25+45 / 30%70%

Work time

24hX365drun continuously

Networking mode

Coding positioning/identifying ID/fault detection/reporting automatically

Equipment enclosure

Sealed integrated ABS engineering plastic shellinjection molding

Installation mode

Wall-mounted, built-in antenna, power/communication interfaceno exposed

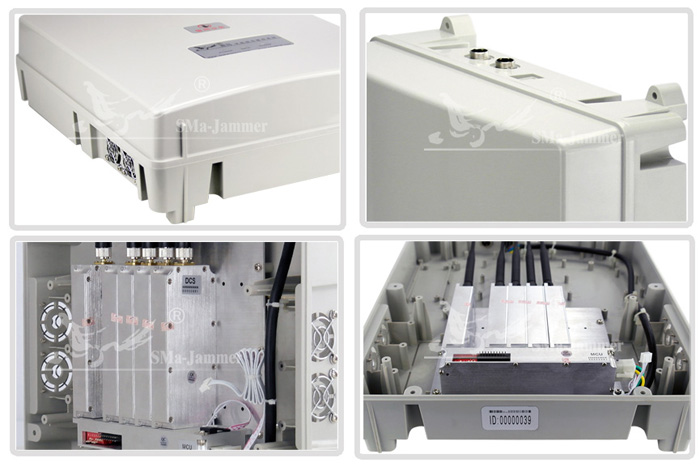

Product Details

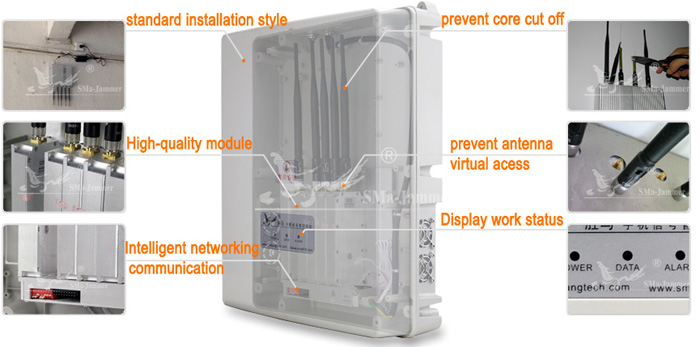

Structure and Installation

Install individually or combined with signal jammer by one to one or one to more;
Keep the device far away from magnetic field to ensure the anti-jamming performance;
Don’t use the jammer in bad conditions, like over-wet, over-hot and high voltage, keep dry and keep away from fire source;
Wall-mounted; the recommending installation height is 1.8m to 2.5m;
The warranty would be invalid if any sealed sign tore up;

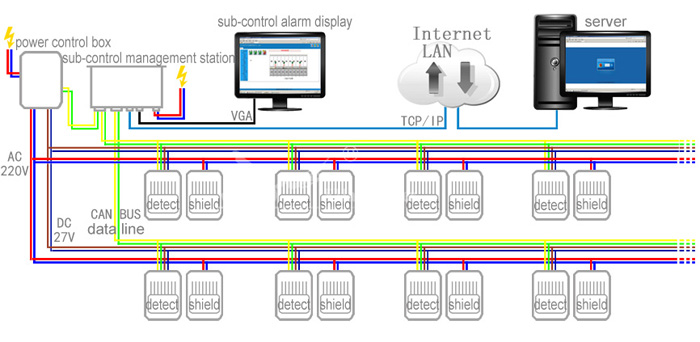

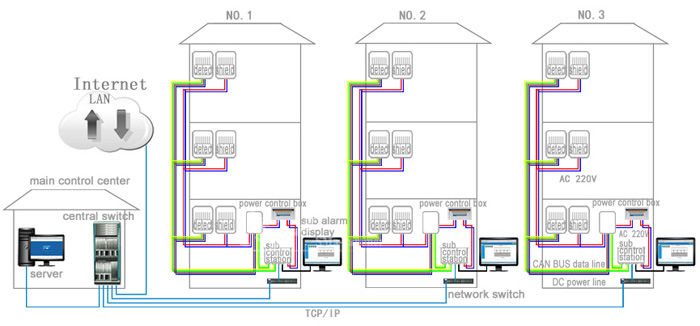

The System Connection Topology

Installation Application Diagram
