SMa-818K80 High-Power Mobile Signal Jammer
Application
Especially applicable to open field, such as prisons, schools, forces, factories, etc.
Open field: 2 or 5 jammers are needed.
Prison: generally, 5 to 15 jammers are needed, depending on the height and layout of buildings, the size of supervision area and distance of base station.
School: The quantity of jammers depends on the quantity and layout of teaching buildings or dormitory buildings and the distance of base station.
Technical Parameters
A:Jamming Range: Radius of 40~120 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥80W, 10~15W per channel
C:Types of Mobile Phone Signals: GSM, CDMA, DCS,4G(TD-LTE),3G (TD/CDMA2000/WCDMA)
D:Other Signal Types: Wi-Fi, Bluetooth, etc.
E:Output Channel: 6 output channels
Features
Shield all 2G/3G/4G signals and jamming band can be customized;
Transmission power is 10W~15W per channel;
Each channel can work independently and On/Off individually, output power is adjustable;
Standard configurations include a set of directional antennas, Omni antenna is available according to application environment requirements;
Embedded cooling fans , ensures the stable performance of inner components;
Super-thick ventilation fins, ensures the best work state;
Sophisticated technology, aluminum alloy shell, never rust;
Continuous work, stable performance, long service life;
ISO9001:2008 quality management system;
Main Parts

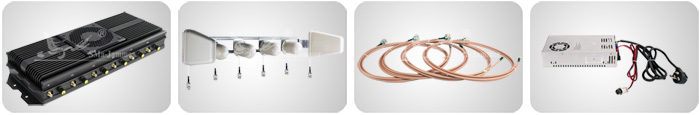

Host Directional Antenna Feeders Power
Detailed Technical Parameters
|
Band parameter
|
Channel
|
Frequency
|
Average output power
|
|
CDMA
|
870-880MHz
|
10-15W
|
|
3G1
|
2110-2170MHz
|
10-15W
|
|
GSM
|
930-960MHz
|
10-15W
|
|
3G2
|
2010-2025MHz
|
10-15W
|
|
DCS
|
1805-1920MHz
|
10-15W
|
|
4G
|
2555-2655MHz
|
10-15W
|
|
Host size
|
415*175*75(protrusions excluded)
|
|
Power size
|
225*114*50
|
|
Package size
|
580*340*325(EPE+Carton)
|
|
Total weight
|
5.3Kg
|
|
Ambient temperature
|
-40℃～55℃
|
|
Relative humidity
|
35～85%
|
|
Power consumption
|
350W
|
|
Power input
|
AC 100V～240V
|
|
Power output
|
DC 27V/13A
|
|
Installation mode
|
Wall in field/Pole(with installation box)
|
|
Installation height
|
3～15m
|
|
Enclosure material
|
Aluminum alloy
|

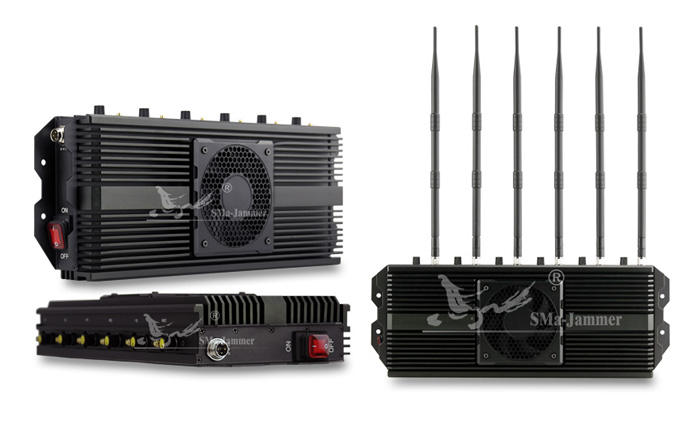

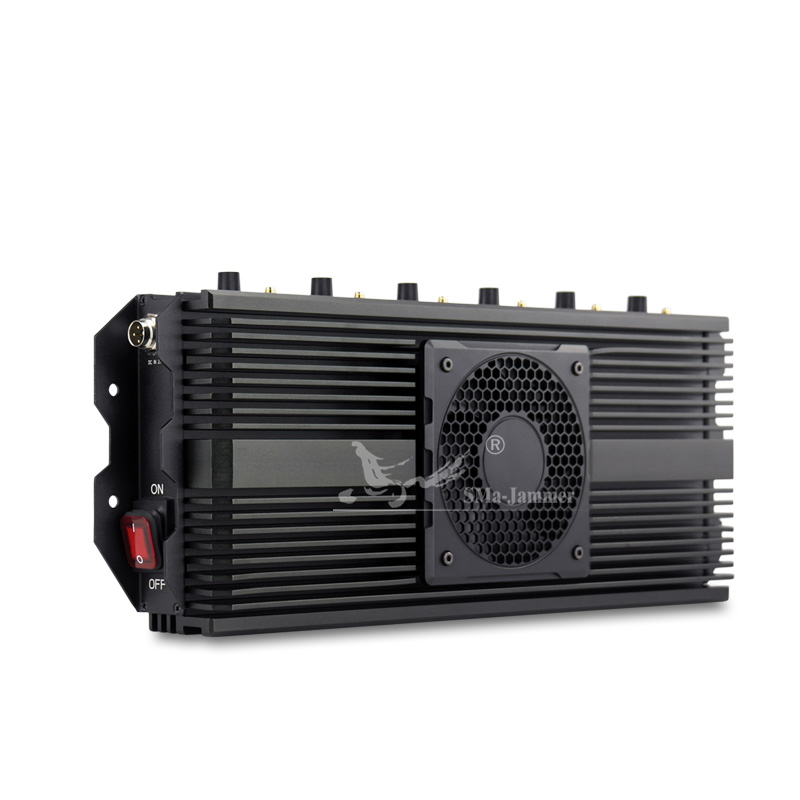

Product Details

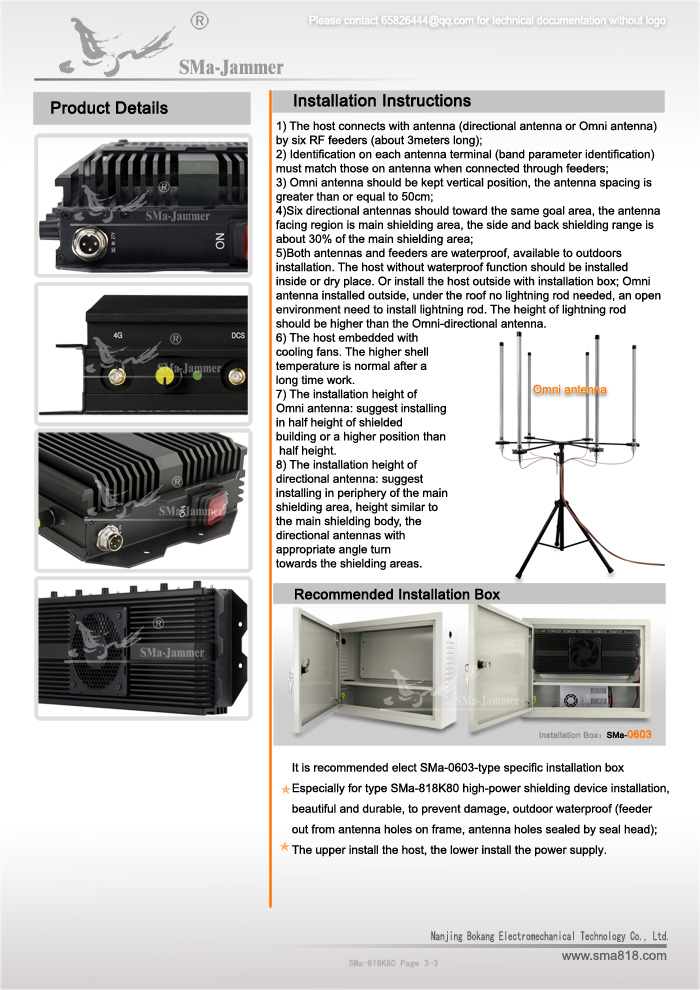

Installation Instructions
1) The host connects with antenna (directional antenna or Omni antenna) by six RF feeders (about 3meters long);
2) Identification on each antenna terminal (band parameter identification) must match those on antenna when connected through feeders;

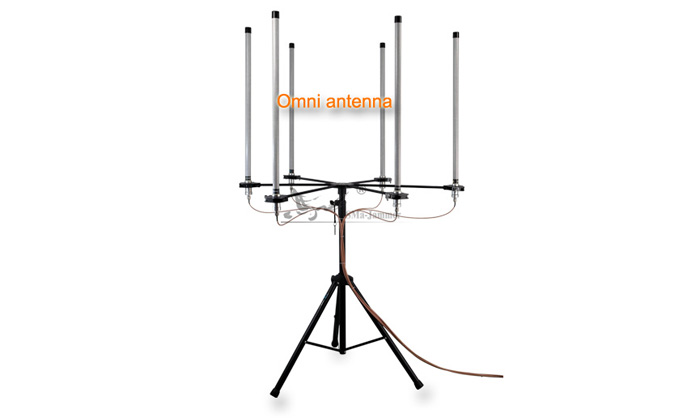

3) Omni antenna should be kept vertical position, the antenna spacing is greater than or equal to 50cm;
4)Six directional antennas should toward the same goal area, the antenna facing region is main shielding area, the side and back shielding range is about 30% of the main shielding area;
5）Both antennas and feeders are waterproof, available to outdoors installation. The host without waterproof function should be installed inside or dry place. Or install the host outside with installation box; Omni antenna installed outside, under the roof no lightning rod needed, an open environment need to install lightning rod. The height of lightning rod should be higher than the Omni-directional antenna.
6) The host embedded with cooling fans. The higher shell temperature is normal after a long time work.
7) The installation height of Omni antenna: suggest installing in half height of shielded building or a higher position than half height.
8) The installation height of directional antenna: suggest installing in periphery of the main shielding area, height similar to the main shielding body, the directional antennas with appropriate angle turn towards the shielding areas.
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
Silkscreen OEM service can be offered for five jammers or above.
Neutral jammers can be provided.

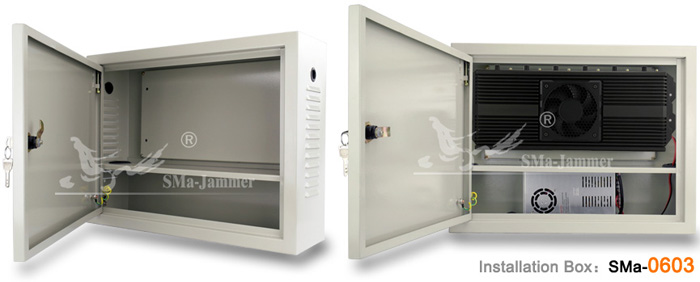

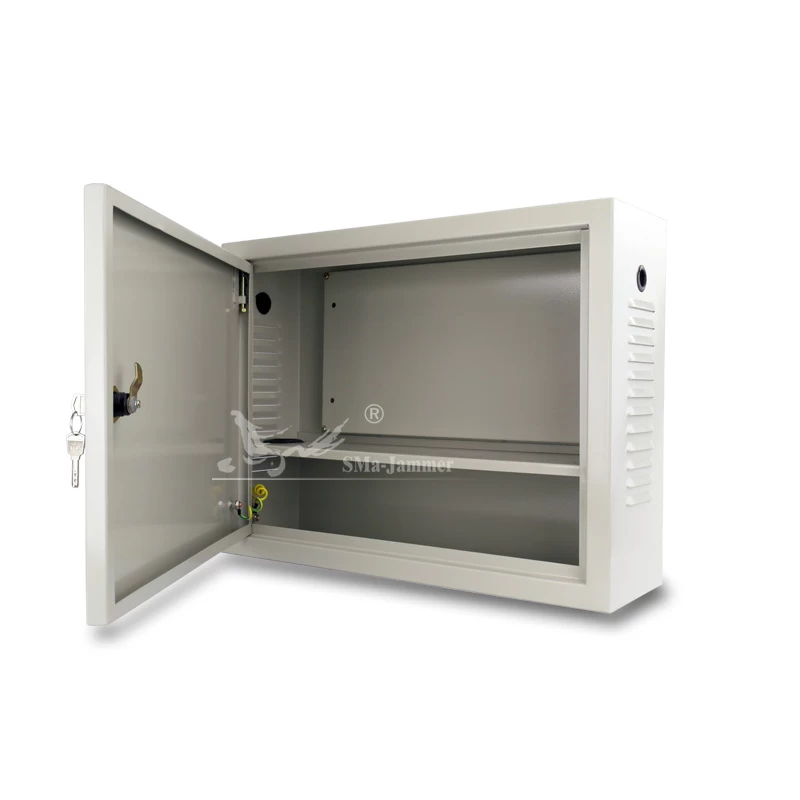

Recommended Installation Box
It is recommended elect SMa-0603-type specific installation box
Especially for SMa-818K80 high-power jammer installation, beautiful and durable, to prevent damage, outdoor waterproof (feeder out from the antenna holes on frame, antenna holes sealed by seal head);
The upper layer install the host, the lower layer install the power supply.
