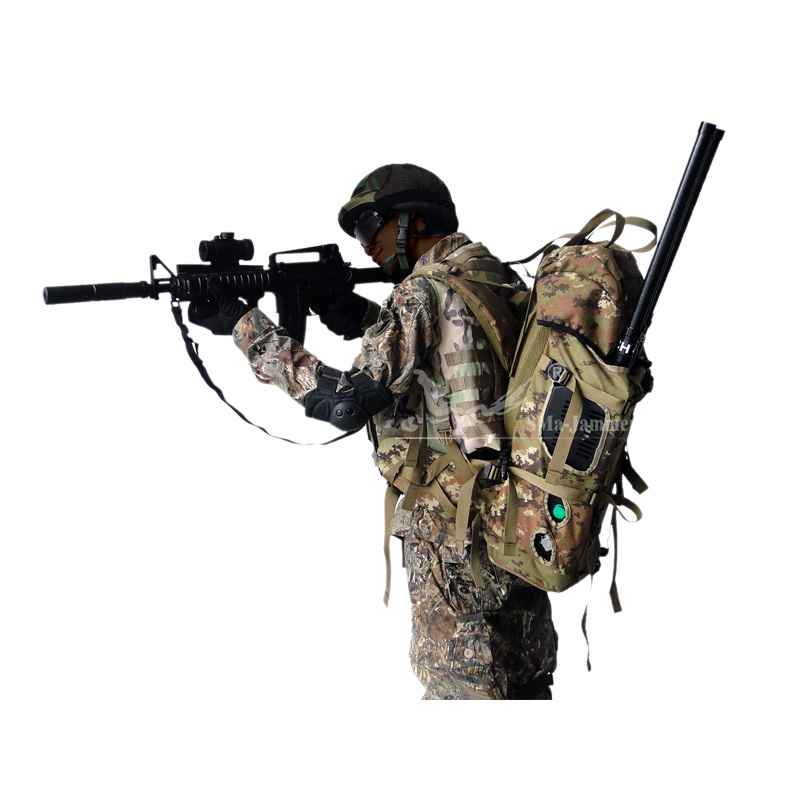

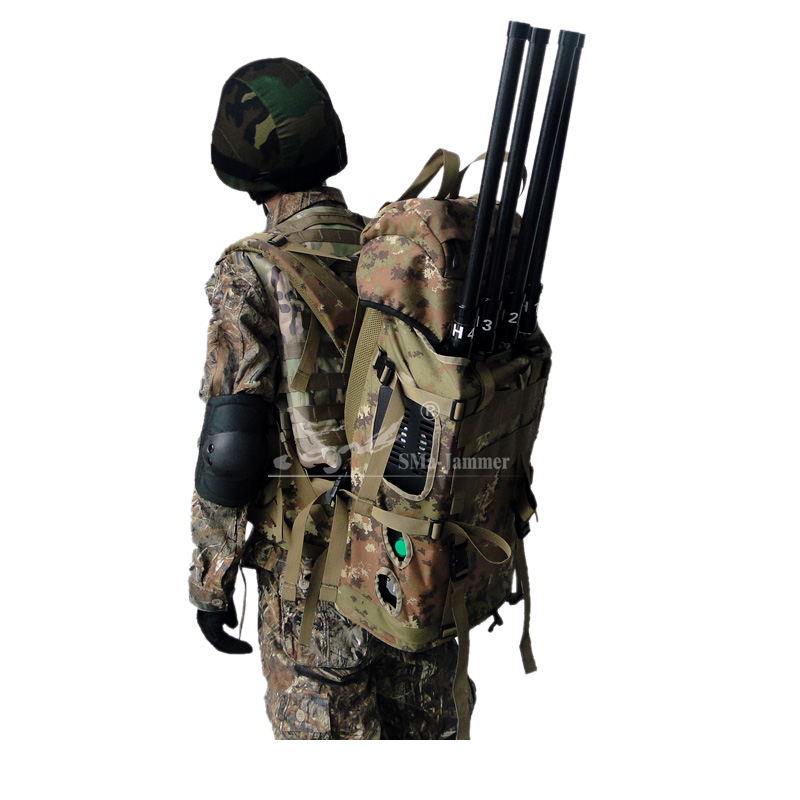

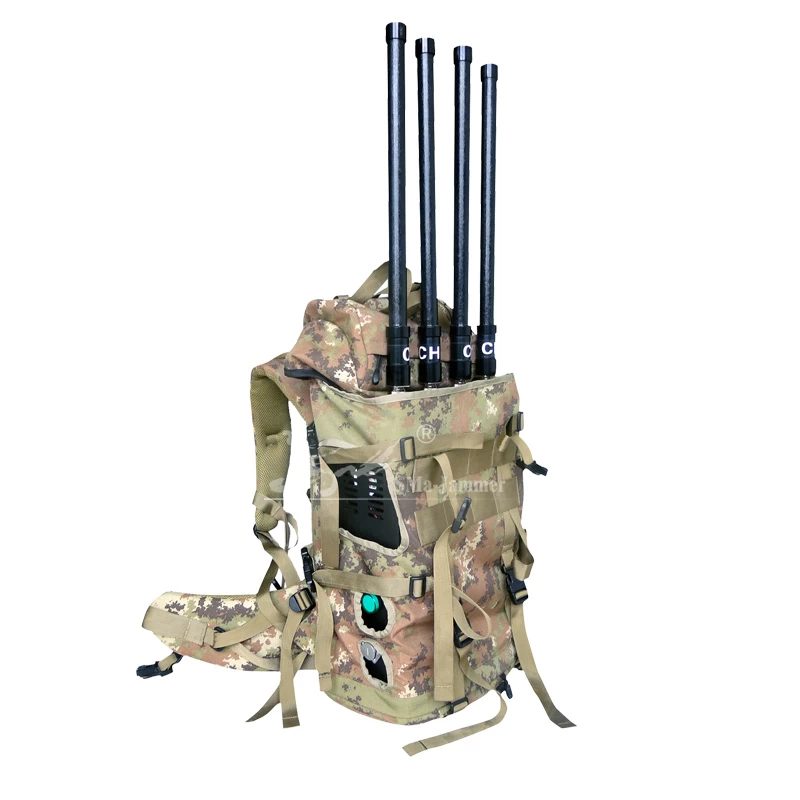

SMa-818M Knapsack Mobile Signal Jammer
Application
This type of knapsack mobile signal jammer, portable with built-in high capacity battery, is especially applicable to meeting halls, infantry, military security forces, SWAT team, bomb squad, anti-terrorist units, anti-drug units, anti-riot force, the EOD team, checkpoints, hostage negotiations, border control, etc.

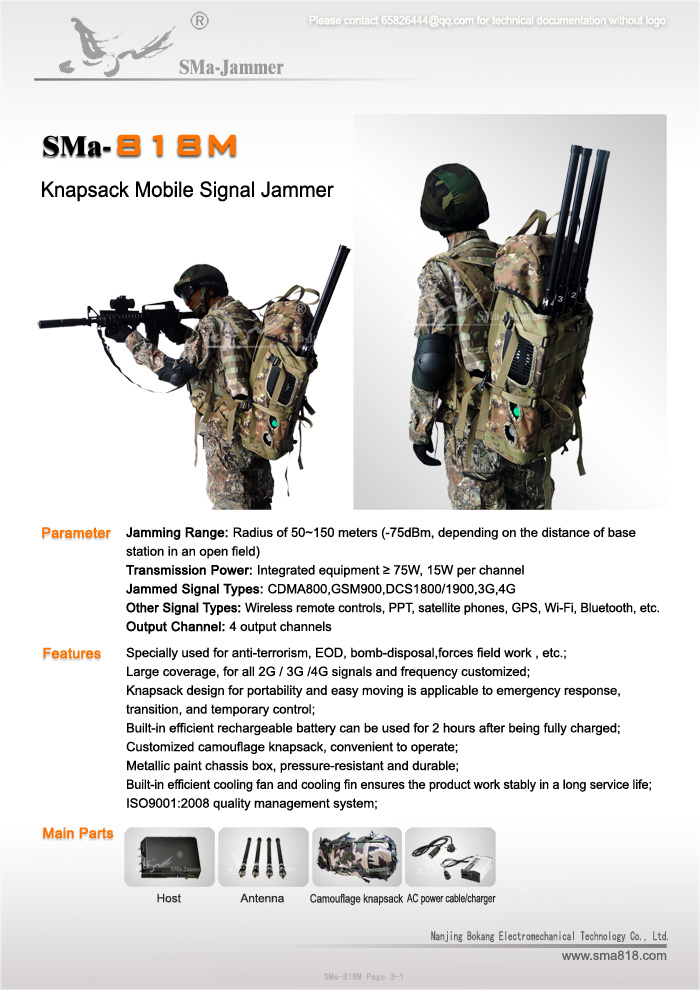

Technical Parameters
A:Jamming Range: Radius of 50~150 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥ 75W, 15W per channel
C:Jammed Signal Types: CDMA800,GSM900,DCS1800/1900,3G,4G
D:Other Signal Types: Wireless remote controls, PPT, satellite phones, GPS, Wi-Fi, Bluetooth, etc.
E:Output Channel: 4 output channels
Features
Specially used for anti-terrorism, EOD, bomb-disposal, forces field work, etc.
Large coverage, for all 2G /3G/4G signals and frequency customized;
Knapsack design for portability and easy moving is applicable to emergency response, transition, and temporary control;
Built-in efficient rechargeable battery can be used for 2 hours after being fully charged;
Customized camouflage knapsack, convenient to operate;
Metallic paint chassis box, pressure-resistant and durable;
Built-in efficient cooling fan and cooling fin ensures the product work stably in a long service life;
ISO9001:2008 quality management system;

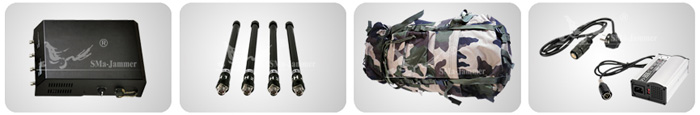

Main Parts
Host Antenna Camouflage Knapsack AC Power Cable/Charger

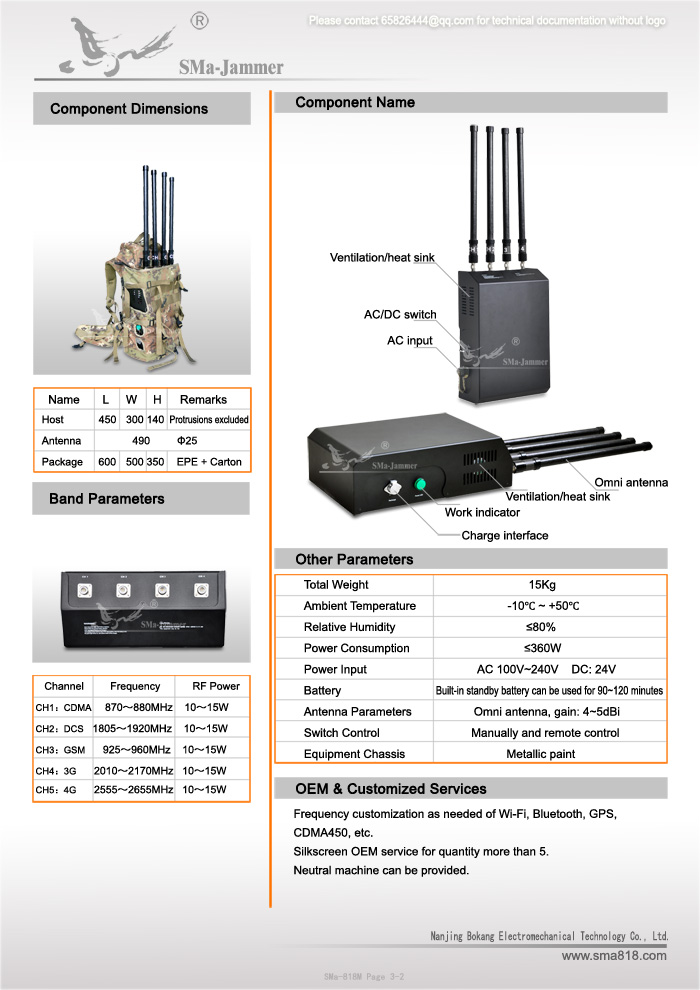

Detailed Technical Parameters
|
Band Parameter
|
Channel
|
Frequency
|
RF Power
|
|
CH1:CDMA
|
870～880MHz
|
10～15W
|
|
CH2:DCS
|
1805～1920MHz
|
10～15W
|
|
CH3:GSM
|
925～960MHz
|
10～15W
|
|
CH4:3G
|
2010～2170MHz
|
10～15W
|
|
CH5:4G
|
2555～2655MHz
|
10～15W
|
|
Host Size
|
450*300*140
|
|
Antenna Size
|
490Φ25
|
|
Package Size
|
600*500*350
|
|
Total Weight
|
15Kg
|
|
Ambient Temperature
|
-10℃～50℃
|
|
Relative Humidity
|
≤80%
|
|
Antenna Parameters
|
Omni antenna, gain: 4~5dBi
|
|
Power Consumption
|
≤360W
|
|
Power Input
|
AC:100V～240V DC:24V
|
|
Battery
|
Built-in standby battery can be used for 90~120 minutes
|
|
Switch Control
|
Manually and Remote Control
|
|
Equipment Chassis
|
Metallic paint
|

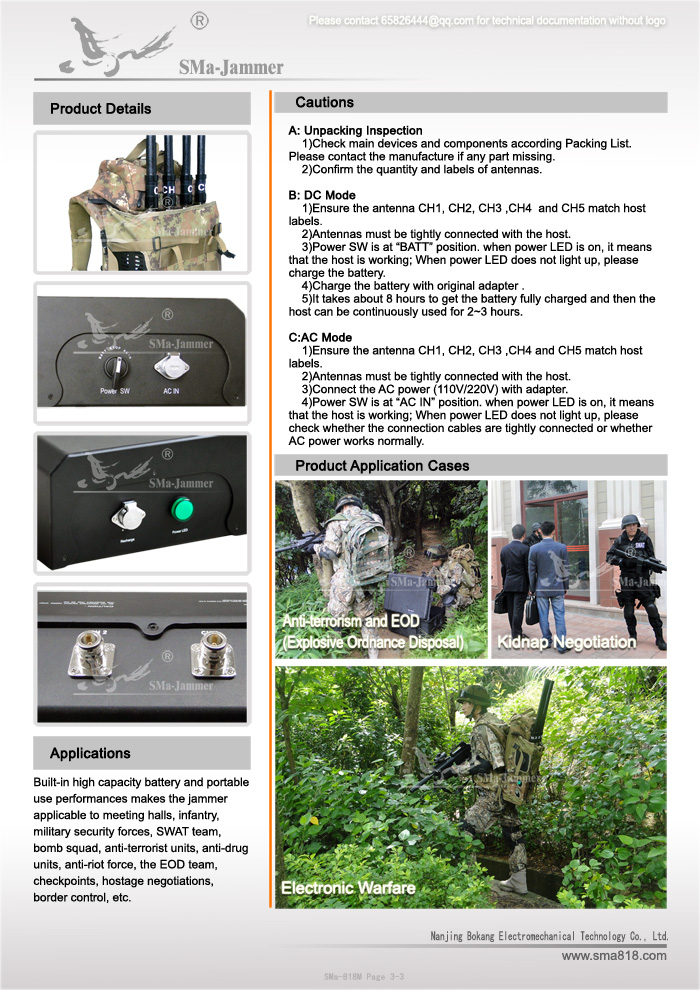

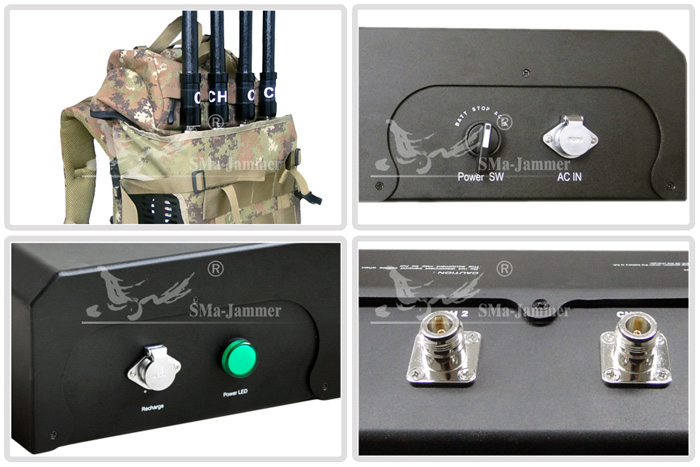

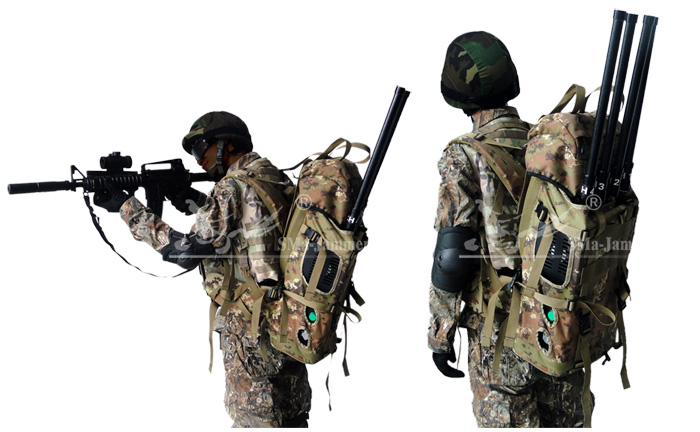

Product Details
Cautions
A: Unpacking Inspection
1） Check main devices and components according Packing List. Please contact the manufacture if any part missing.
1） Confirm the quantity and labels of antennas.
B: DC Mode
1） Ensure the antenna CH1, CH2, CH3, CH4 and CH5 match host labels.
2） Antennas must be tightly connected with the host.
3） Power SW is at “BATT” position. When power LED is on, it means that the host is working; when power LED does not light up, please charge the battery.
4） Charge the battery with original adapter.
5） It takes about 8 hours to get the battery fully charged and then the host can be continuously used for 2~3 hours.
C: AC Mode
1） Ensure the antenna CH1, CH2, CH3, CH4 and CH5 match host labels.
2） Antennas must be tightly connected with the host.
3） Connect the AC power (110V/220V) with adapter.
4） Power SW is at “AC IN” position. When power LED is on, it means that the host is working; when power LED does not light up, please check whether the connection cables are tightly connected or whether AC power works normally.
OEM Customized Service
Frequency customization as needed of Wi-Fi, Bluetooth, GPS, CDMA450, etc.
Silkscreen OEM service for quantity more than 5.
Neutral machine can be provided.

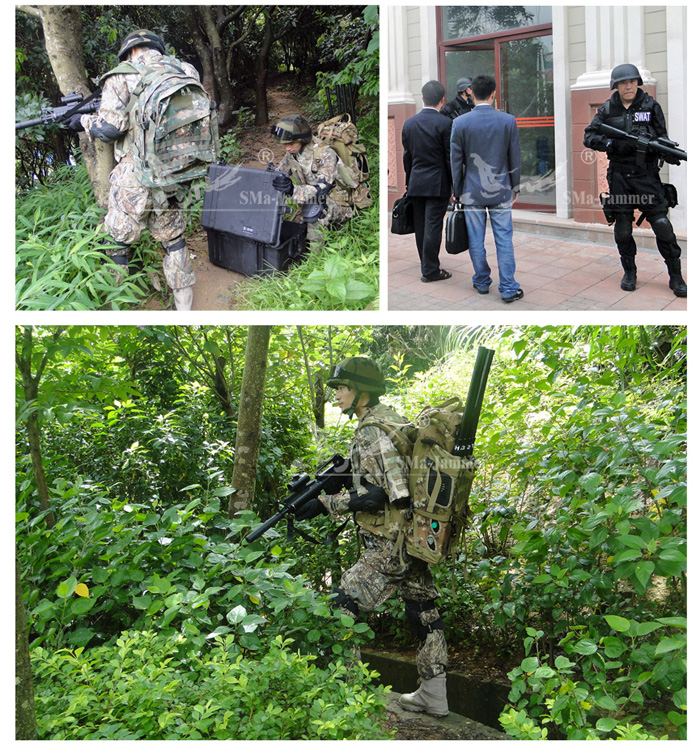

Application Cases
