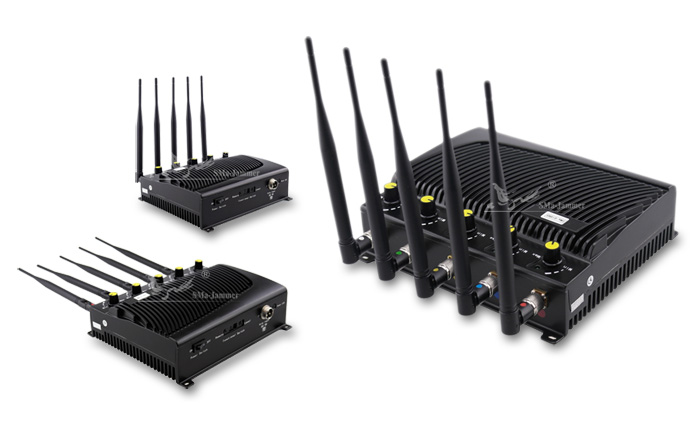

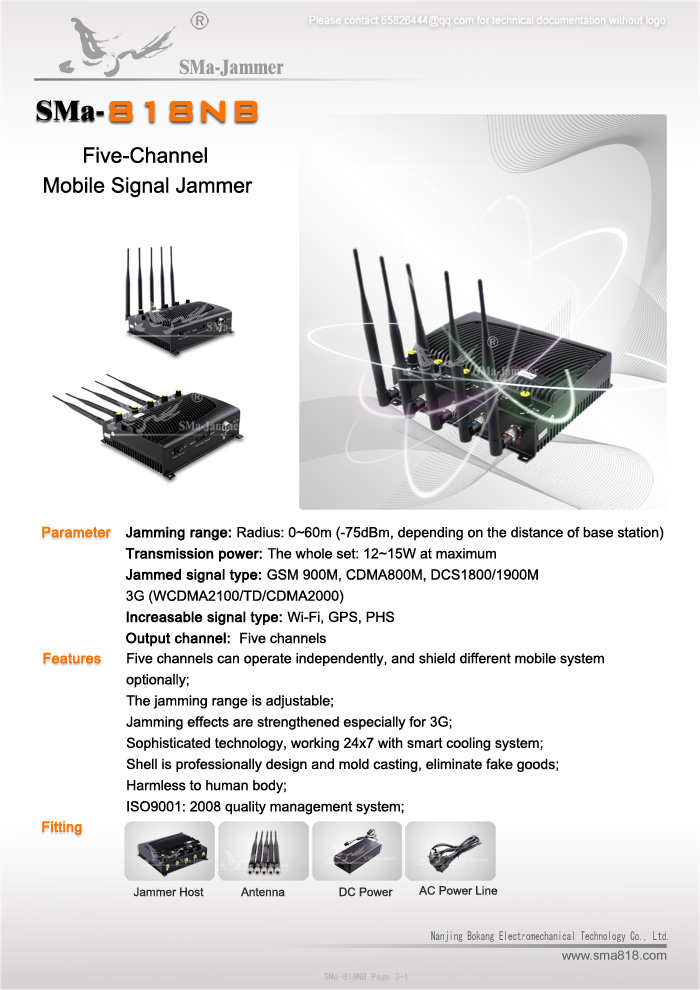

SMa-818NB Five-Channel Power Smooth Adjustable Mobile Jammers
Application
Widely used in the Justice Sector(Prisons, detention centers, labor camp, police, courts, prosecutors); the Education Industry(School examination room, classrooms, dormitories, various social test sites, education and training institutions); government agencies, administrative institutions meeting rooms; factories and enterprises warehouses, workshops, production lines; forces and confidentiality unit, theaters, concert halls, memorial halls ,etc.
Technical Parameters
A:Jamming range: Radius: 0~60m (-75dBm, depending on the distance of base station)
B:Transmission power: The whole set: 12~15W at maximum
C:Jammed signal type: GSM 900M, CDMA800M, DCS1800/1900M, WCDMA2100 (3G), TD(3G), CDMA2000(3G)
D:Increasable signal type: Wi-Fi, GPS, PHS
E:Output channel: Five channels
Features
Five channels can operate independently, and shield different mobile system optionally;
The jamming range is adjustable;
Jamming effects are strengthened especially for 3G;
Sophisticated technology, working 24x7 with smart cooling system;
Shell is professionally design and mold casting, eliminate fake goods;
Harmless to human body;
ISO9001: 2008 quality management system;

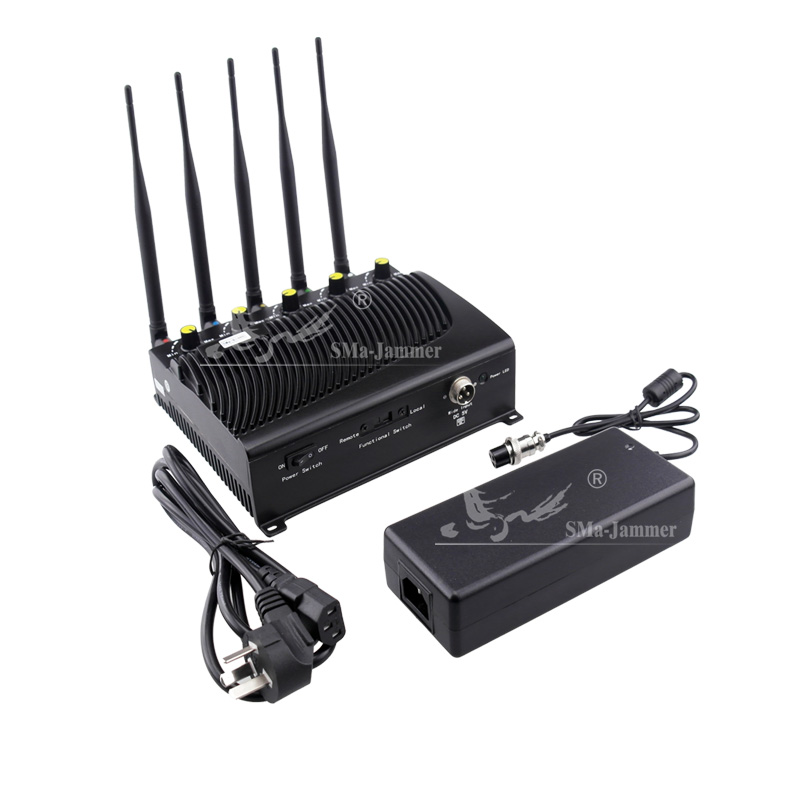

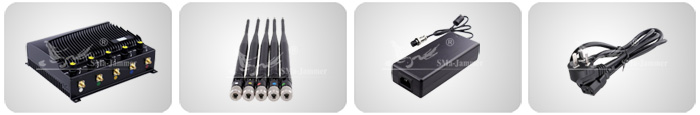

Main Parts
Host Antenna DC Power AC Power Line

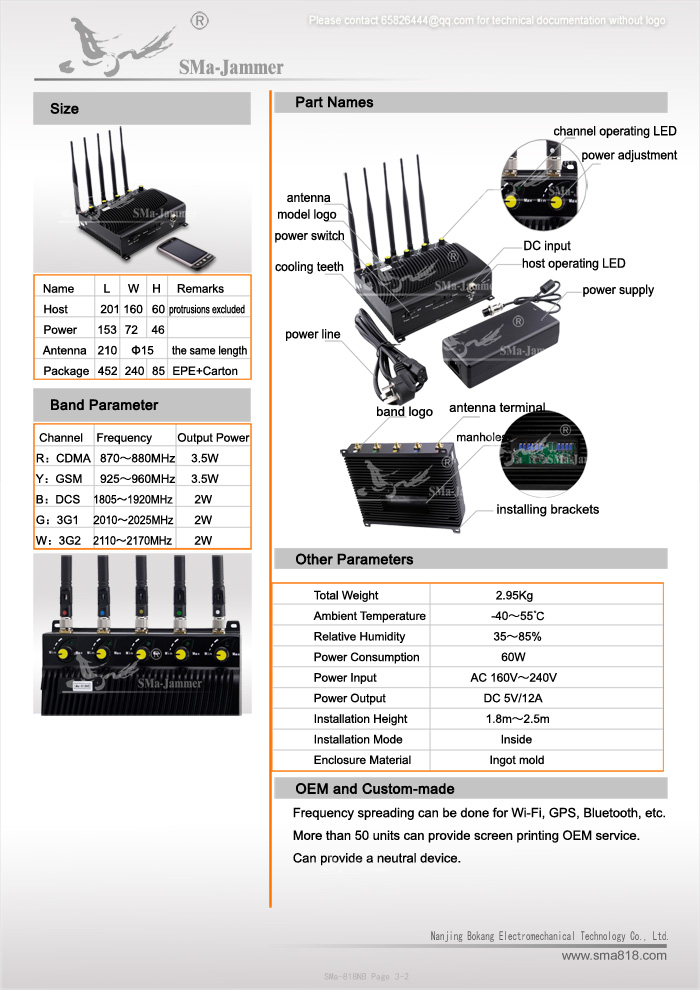

Detailed Technical Parameters
|
Band parameters
|
Band
|
Frequency
|
RF Power
|
|
○:WCDMA
|
2110～2145MHz
|
2W
|
|
●:TD
|
2010～2025MHz
|
2W
|
|
●:DCS
|
1805～1920MHz
|
2W
|
|
●:GSM
|
925～960MHz
|
3.5W
|
|
●:CDMA
|
870～880MHz
|
3.5W
|
|
Host
|
200*160*60(protrusions excluded)
|
|
Power
|
153*72*46
|
|
Antenna
|
210*Φ15
|
|
Package
|
452*240*85
|
|
Total weight
|
2.95Kg
|
|
Temperature
|
-40℃～55℃
|
|
Humidity
|
35～85%
|
|
Power Consumption
|
60W
|
|
AC Input
|
AC 160V/220V
|
|
Power Supply
|
DC 5V/12A
|
|
Installation Height
|
1.8～2.5m
|
|
Shell material
|
Ingot mold
|

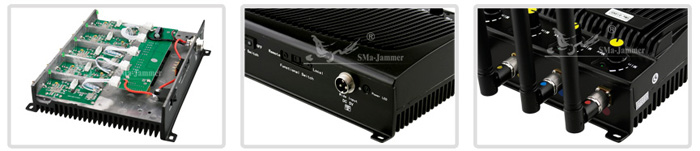

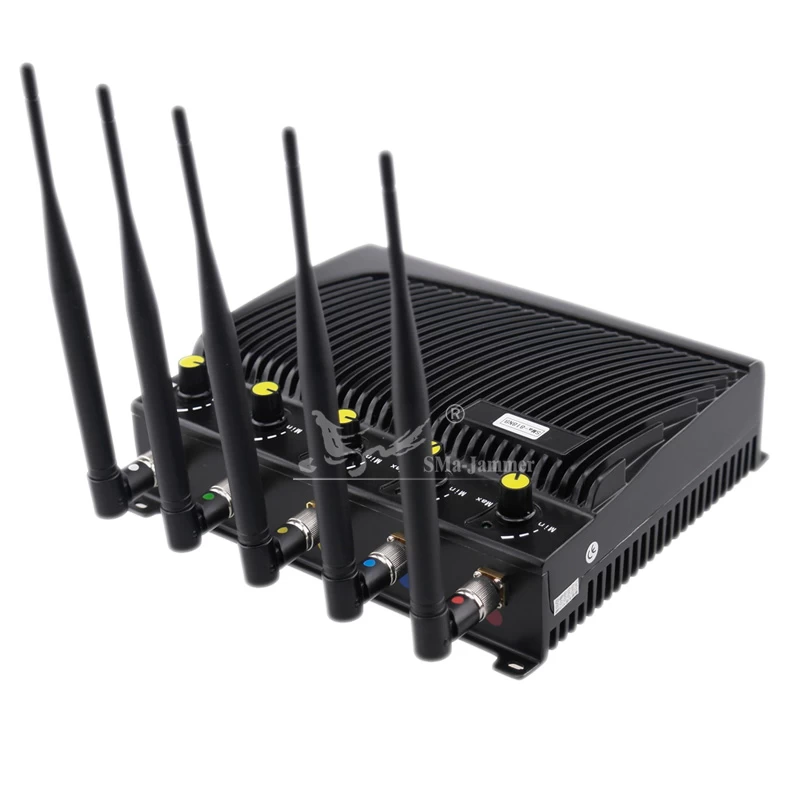

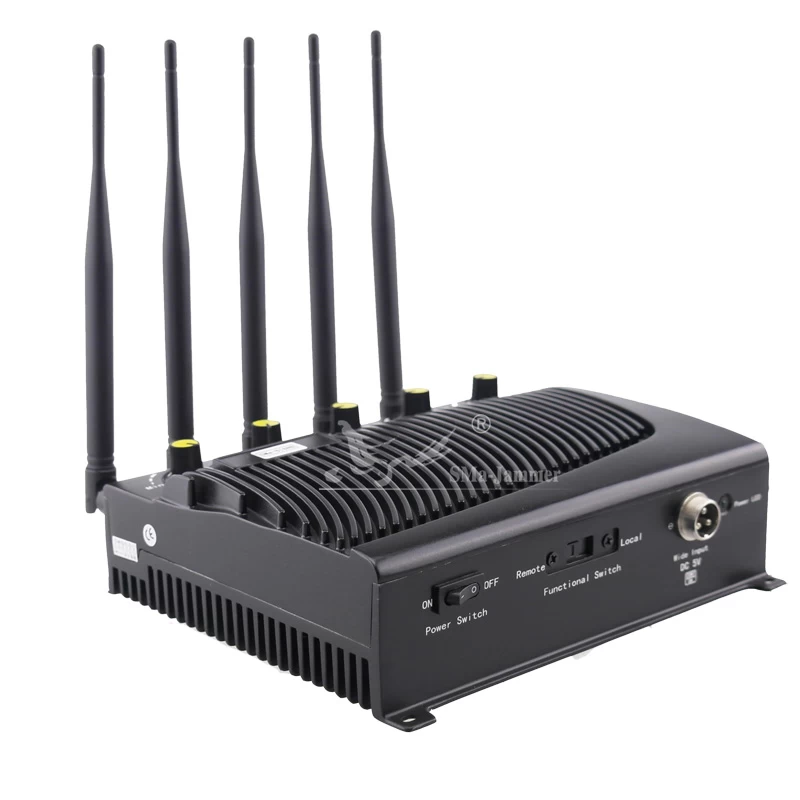

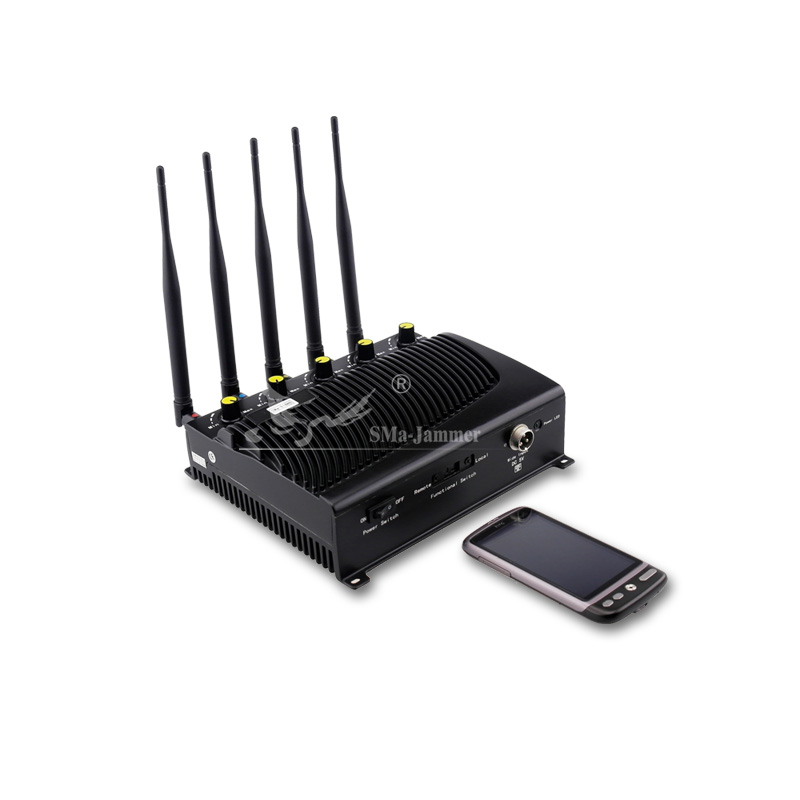

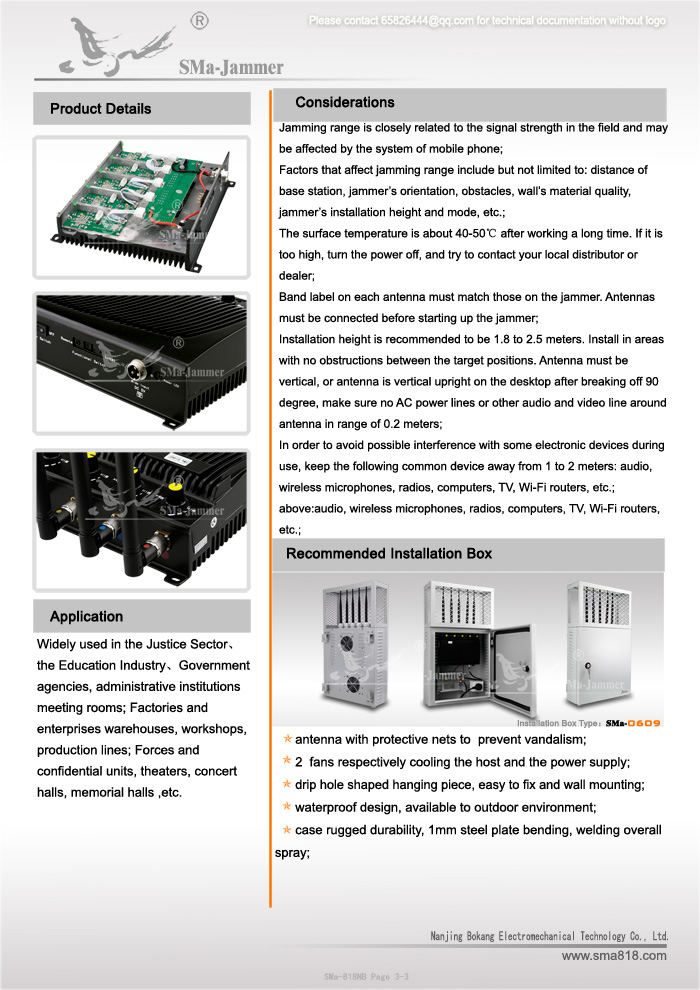

Product Details
Considerations
Jamming range is closely related to the signal strength in the field and may be affected by the system of mobile phone.
Factors that affect jamming range include but not limited to: distance of base station, jammer’s orientation, obstacles, wall’s material quality, jammer’s installation height and mode, etc.;
The surface temperature is about 40-50℃ after working a long time. If it is too high, turn the power off, and try to contact your local distributor or dealer;
Band label on each antenna must match those on the jammer. Antennas must be connected before starting up the jammer;
Installation height is recommended to be 1.8 to 2.5 meters. Install in areas with no obstructions between the target positions. Antenna must be vertical, or antenna is vertical upright on the desktop after breaking off 90 degree, make sure no AC power lines or other audio and video line around antenna in range of 0.2 meters;
In order to avoid possible interference with some electronic devices during use, keep the following common device away from 1 to 2 meters: audio, wireless microphones, radios, computers, TV, Wi-Fi routers, etc.;
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
Provide a neutral device.

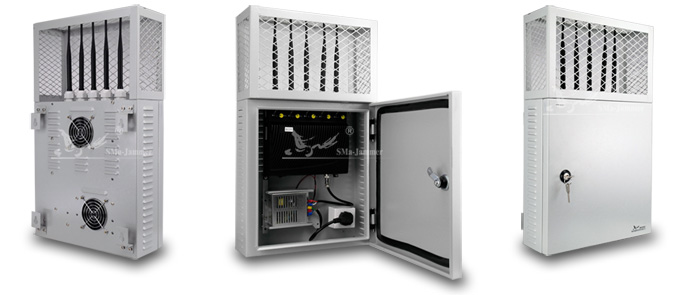

Recommended Installation Box
Engineering applications, with wall-mounted, it is recommended elect SMa-0609 installation box
antenna with protective nets to prevent vandalism;
2 fans respectively cooling the host and power;
drip hole shaped hanging piece, easy to fix and wall mounting;
waterproof design, available in outdoor environment;
case rugged durability, 1mm steel plate bending, welding overall spray;
