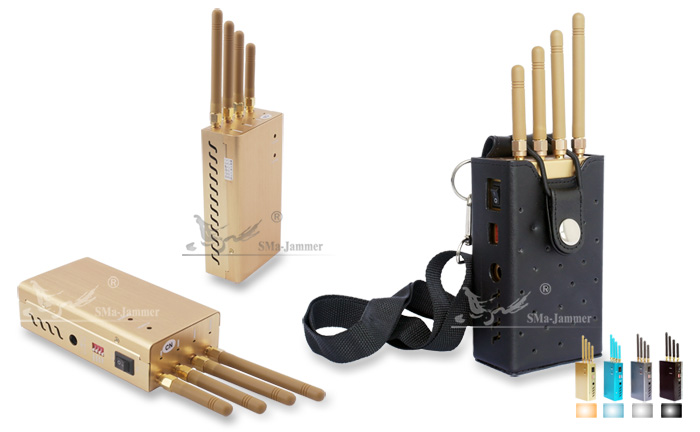

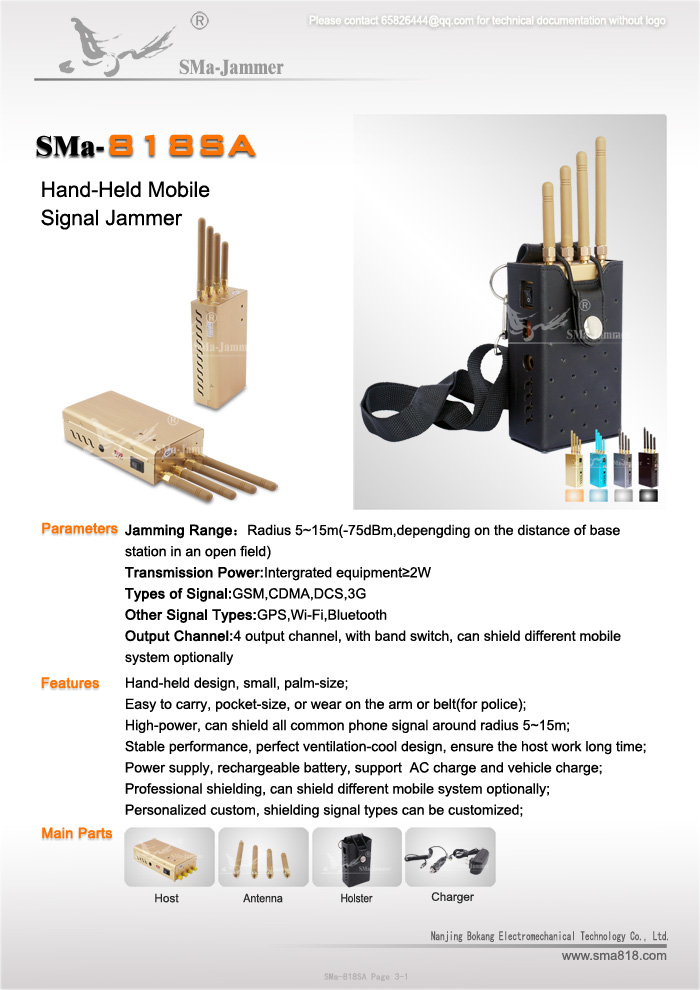

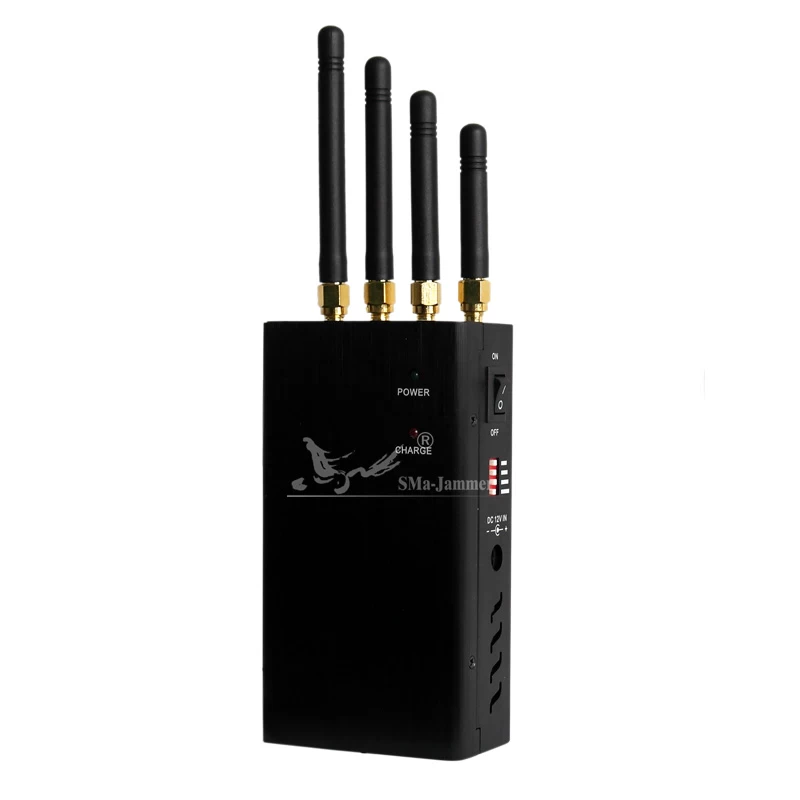

SMa-818SA High-Power Hand-Held Mobile Signal Jammer
Technical Parameters
A:Jamming Range：Radius 5~15m(-75dBm,depending on the distance of base station in an open air)
B:Transmission Power: Integrated equipment≥2W
C:Types of Signal:GSM,CDMA,DCS,3G
D:Other Signal Types: GPS, Wi-Fi, Bluetooth
E:Output Channel:4 output channel, with band switch can shield different mobile system optionally
Features
Hand-held design, small, palm-size;
Easy to carry, pocket-size, hang or wear on the arm or belt(for police);
High-power, can shield all common phone signal around radius 5~15m;
Stable performance, perfect ventilation-cool design, ensure the host work long time;
Power supply, rechargeable battery, support AC charge and vehicle charge;
Professional shielding, can shield different standard phone optionally;
Personalized custom, shielding signal types can be customized;

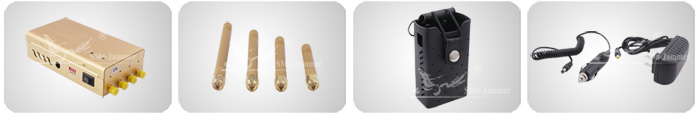

Main Parts
Host Antenna Holster Charger

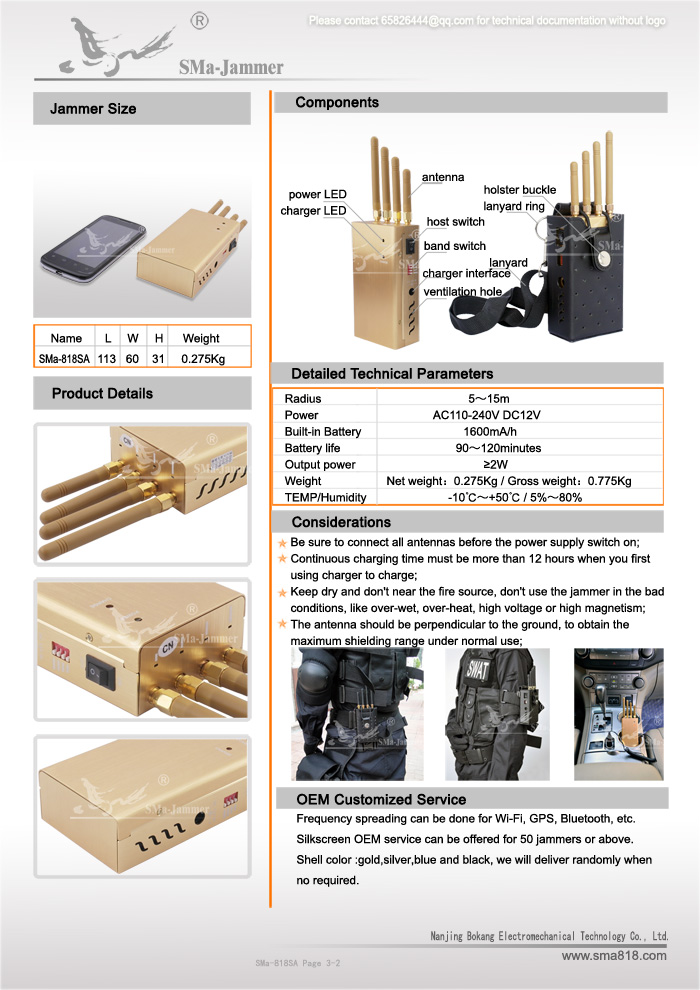

Detailed Technical Parameters
|
Band parameter
|
Channel
|
Frequency
|
Average output power
|
|
3G
|
2010～2145MHz
|
≥0.5W
|
|
DCS
|
1805～1880MHz
|
≥0.5W
|
|
GSM
|
925～960MHz
|
≥0.5W
|
|
CDMA
|
870～880MHz
|
≥0.5W
|
|
Radius
|
5～15m
|
|

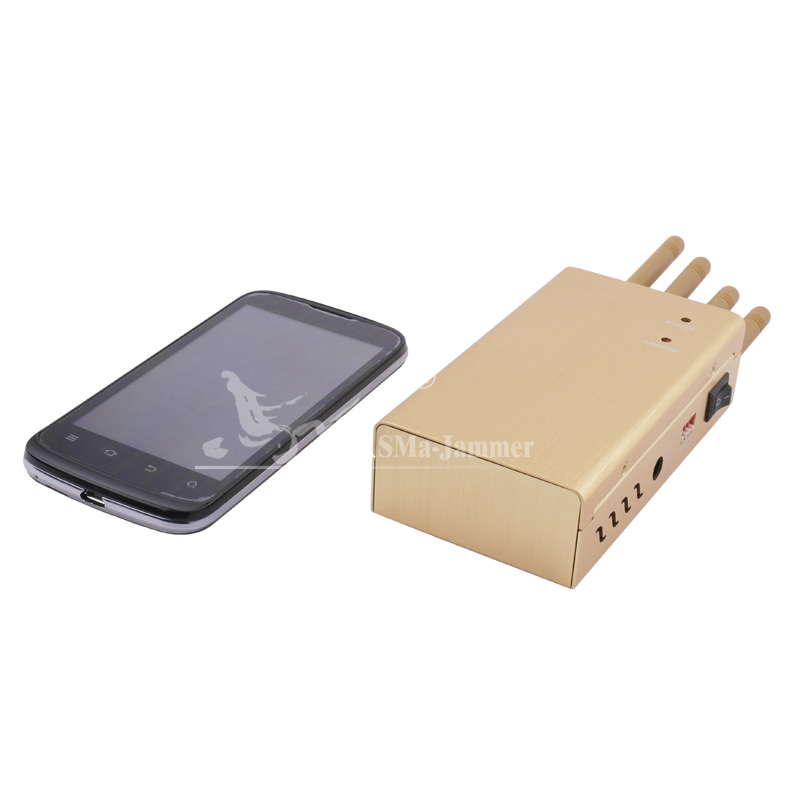

Host size
|
113*60*31
|
|
Built-in battery
|
1600mA/h
|
|
Battery work time
|
90～120minutes
|
|
Total weight
|
0.275Kg
|
|
Ambient temperature
|
-10℃～50℃
|
|
Relative humidity
|
5～85%
|
|
Integrated output power
|
≥2W
|
|
Power input
|
AC110V/220V DC12V
|

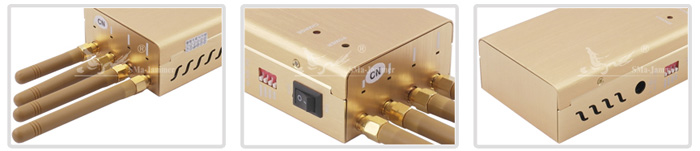

Product Details
Considerations
Be sure to connect all antennas before the power supply switch on;
Continuous charging time must be more than 12 hours when you first using charger to charge;
Keep dry and don't near the fire source, don't use the jammer in the bad conditions, like over-wet, over-heat, high voltage or high magnetism;
The antenna should be perpendicular to the ground, to obtain the maximum shielding range under normal use;
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
Silkscreen OEM service can be offered for 50 jammers or above.

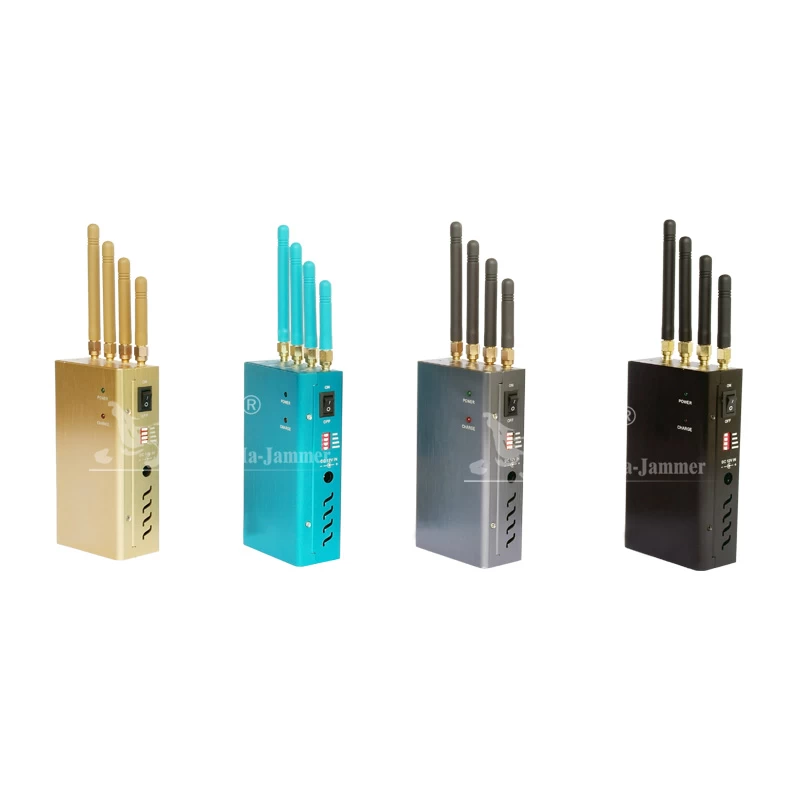

Shell color: gold, silver, blue and black, we will deliver randomly when no required.
