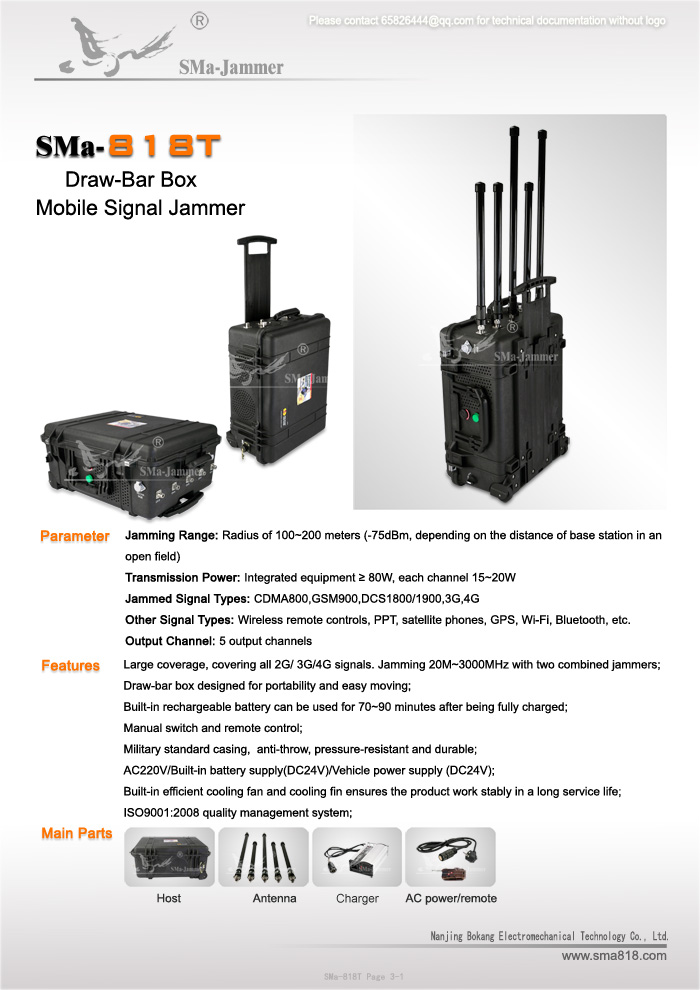

SMa-818T Draw-Bar Box Mobile Signal Jammer PDF clear version download
SMa-818T Draw-Bar Box Mobile Signal Jammer PDF clear version download

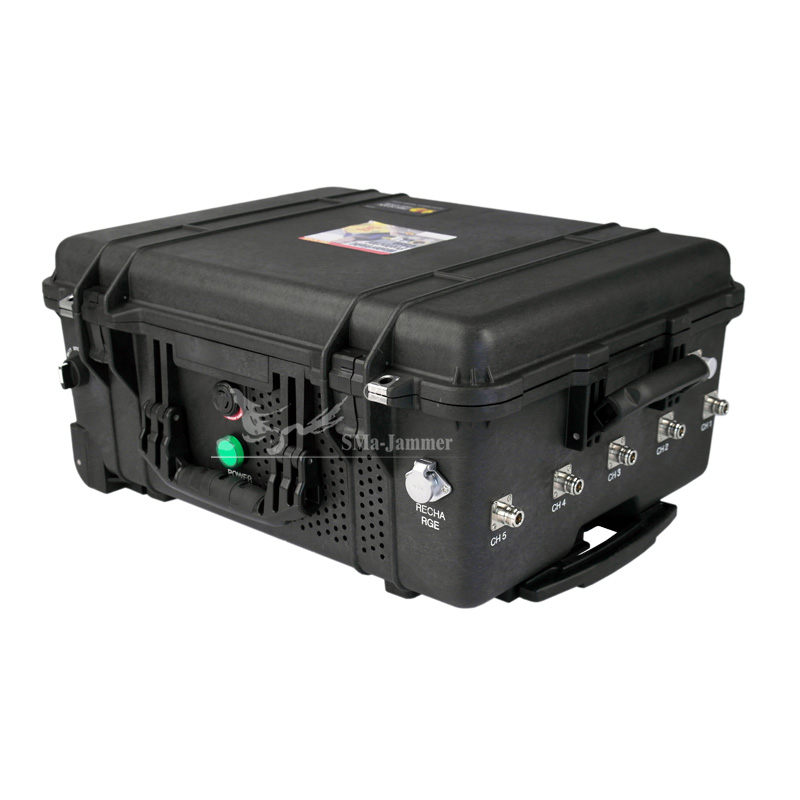

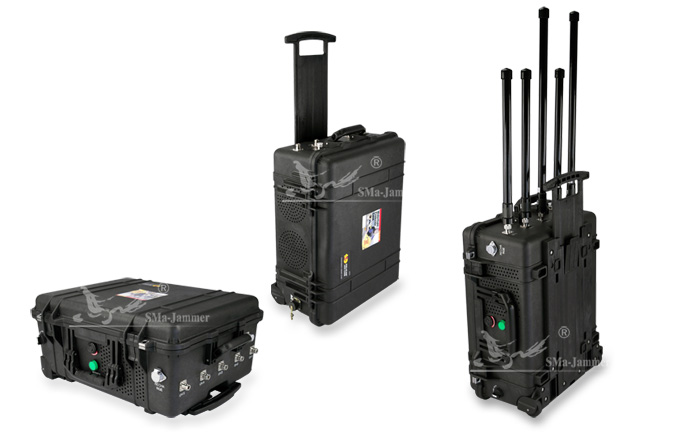

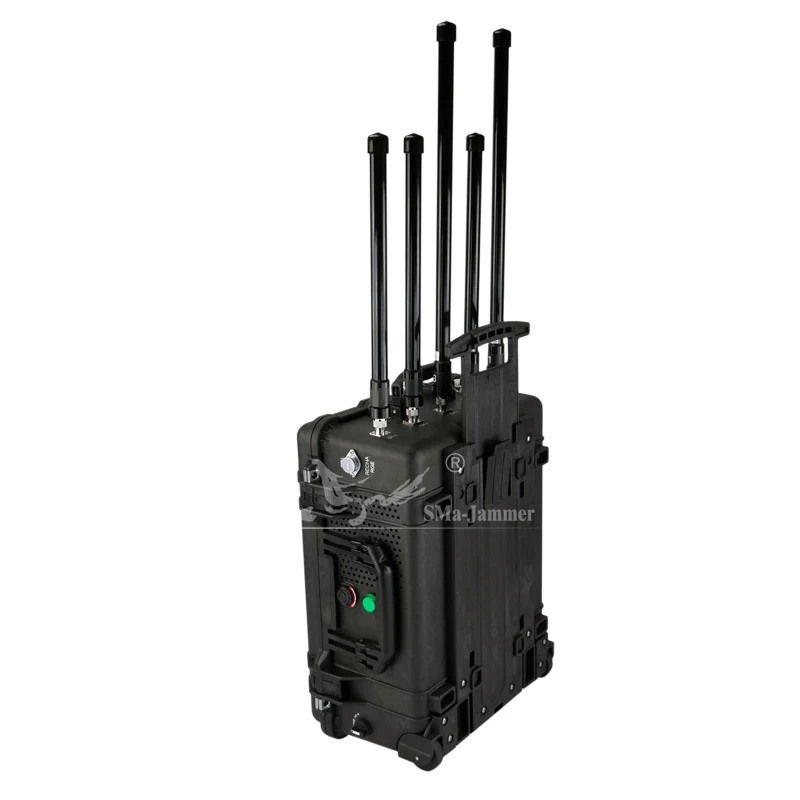

SMa-818T Draw-Bar Box Mobile Signal Jammer
Application
It’s used for meeting room, Infantry, military security forces, SWAT team, bomb squad, anti-terrorist units, anti-drug units, anti-riot force, EOD team, checkpoints, hostage negotiations, border control, etc.
Technical Parameters
A:Jamming Range: Radius of 100~200 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥ 80W, each channel 15~20W
C:Jammed Signal Types: CDMA800,GSM900,DCS1800/1900,3G,4G
D:Other Signal Types: Wireless remote controls, PPT, satellite phones, GPS, Wi-Fi, Bluetooth, etc.
E:Output Channel: 5 output channels
Features
Large coverage, covering all 2G, 3G and 4G signals. Jamming 20M~3000MHz with two combined jammers;

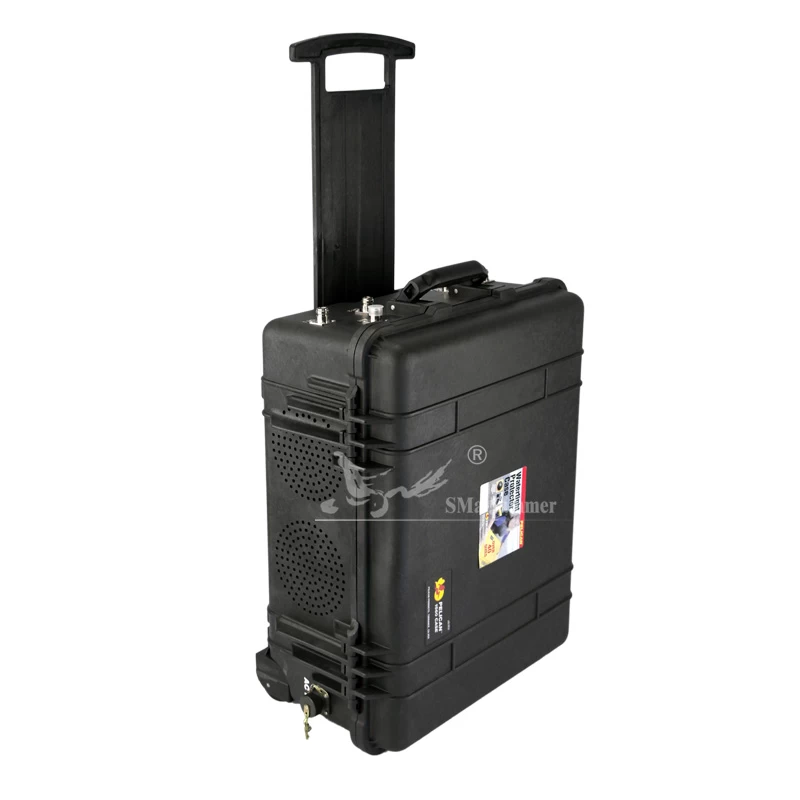

Draw-bar box designed for portability and easy moving;
Built-in rechargeable battery can be used for 70~90 minutes after being fully charged;
Manual switch and remote control;
Military standard casing, which is anti-throw, pressure-resistant and durable;
AC220V/Built-in battery supply (DC24V)/Vehicle power supply (DC24V);
Built-in efficient cooling fan and cooling fin ensures the product work stably in a long service life;
ISO9001:2008 quality management system;

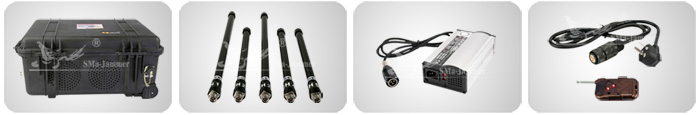

Main Parts
Host Antenna Charger AC Power/Remote Controller

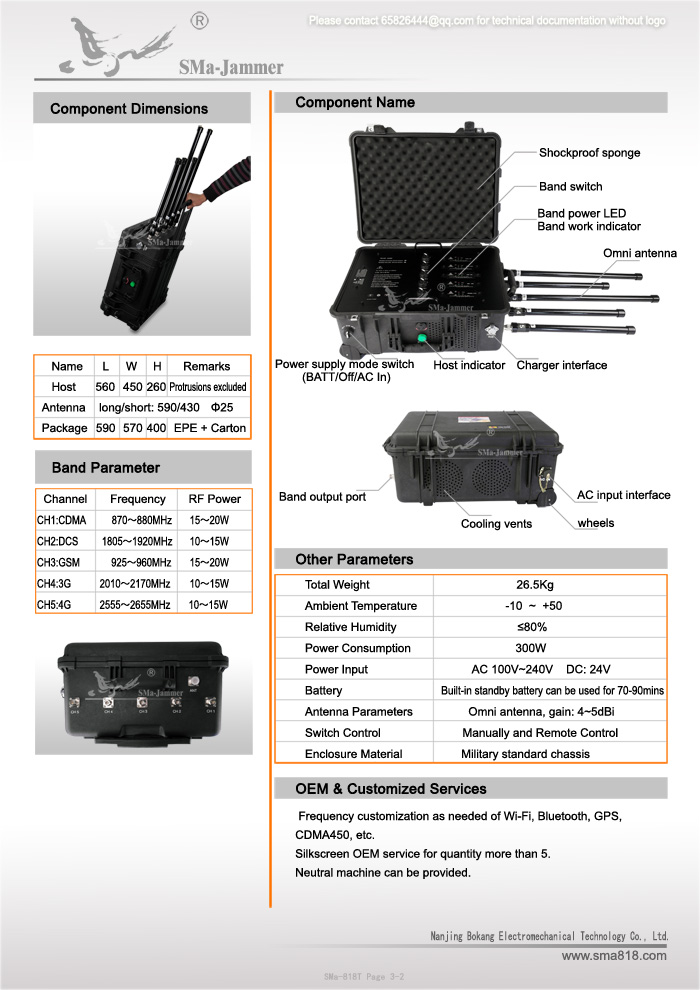

Detailed Technical Parameter
|
Band Parameter
|
Channel
|
Frequency
|
RF Power
|
|
3G
|
2010～2170MHz
|
15～20W
|
|
4G
|
2555～2655MHz
|
10～15W
|
|
GSM
|
925～960MHz
|
15～20W
|
|
DCS
|
1805～1920MHz
|
10～15W
|
|
CDMA
|
870～880MHz
|
10～15W
|
|
Host Size
|
560*450*260
|
|
Antenna Size
|
L/S：590/430Φ25
|
|
Package Size
|
590*570*400
|
|
Total Weight
|
26.5Kg
|
|
Ambient Temperature
|
-40℃～55℃
|
|
Relative Humidity
|
≤85%
|
|
Antenna Parameters
|
Omni antenna, gain: 4~5dBi
|
|
Power Consumption
|
300W
|
|
Power Input
|
AC：100V～240V DC：24V
|
|
Battery
|
Built-in standby battery can be used for 70~90 minutes
|
|
Switch Control
|
Manually and Remote Control
|
|
Equipment Chassis
|
Military standard chassis
|

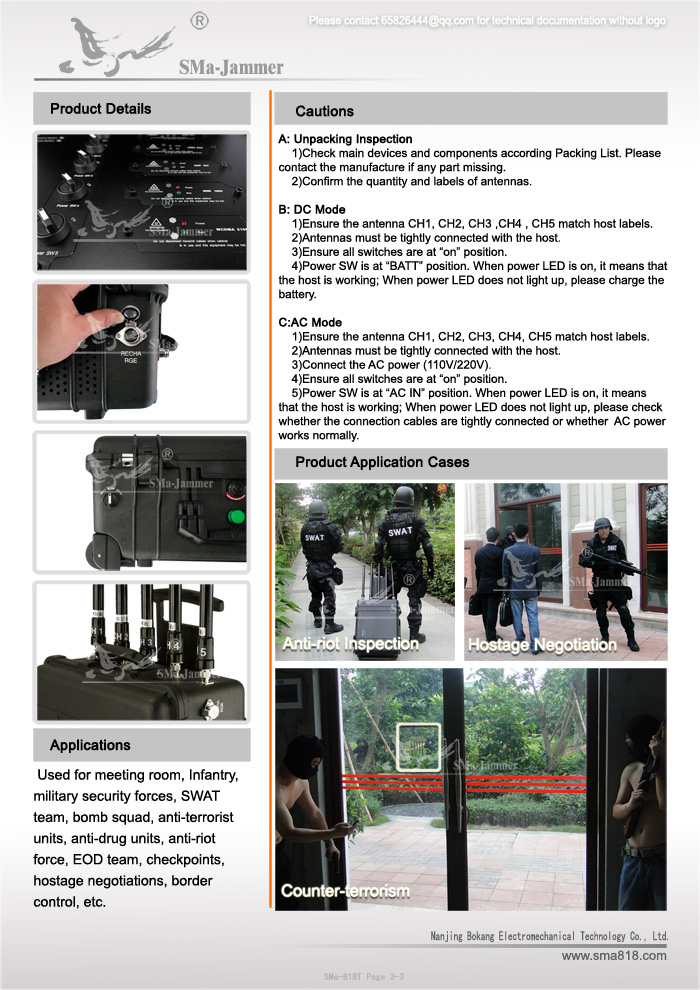

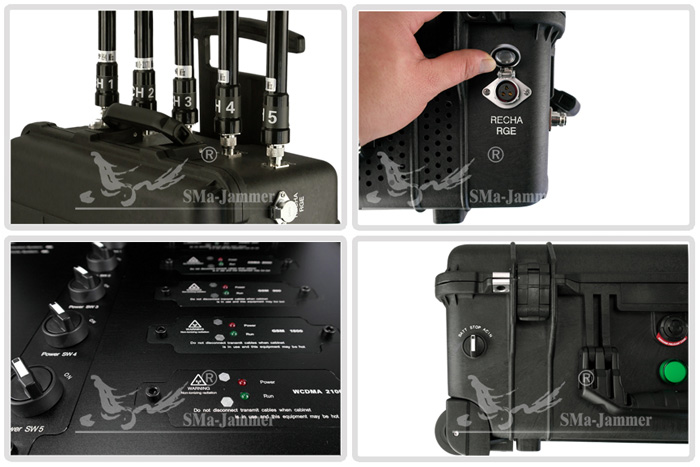

Product Details
Cautions
A: Unpacking Inspection
1） Check main devices and components according Packing List. Please contact the manufacture if any part missing.
2） Confirm the quantity and labels of antennas.
B: DC Mode
1） Ensure the antenna CH1, CH2, CH3, CH4 and CH5 match host labels.
2） Antennas must be tightly connected with the host.
3） Ensure all switches are at “on” position.
4） Power SW is at “BATT” position. When power LED is on, it means that the host is working; when power LED does not light up, please charge the battery.
C: AC Mode
1） Ensure the antenna CH1, CH2, CH3, CH4 and CH5 match host labels.
2） Antennas must be tightly connected with the host.
3） Connect the AC power (110V/220V).
4） Ensure all switches are at “on” positions.
5） Power SW is at “AC IN” position. When power LED is on, it means that the host is working; when power LED does not light up, please check whether the connection cables are tightly connected or whether AC power works normally.
OEM Customized Service
Frequency customization as needed of Wi-Fi, Bluetooth, GPS, CDMA450, etc.
Silkscreen OEM service for quantity more than 5.
Neutral machine can be provided.
