SMa-818TB High-Power Full-Band Vehicle Mobile Signal Jammer
Application
This High-power Full-Band Vehicle Mobile Signal Jammer is suitable to protect important area、VIP motorcade along from the attacking by the remote control bomb ,and other special applications, like anti-terrorism/EOD team etc.
Technical Parameters
A:Jamming Range: Radius of 100~500 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥ 1100W, 50~140W per channel
C:Mobile Signal Types: Handset of all systems:GSM900,CDMA800,CDMA2000, DCS1800/1900,3G,4G
D:Other Signal Types: Model remote control, wireless cheating tools, wireless microphones, radio telephones, PTT, Pagers, Remote control of car, wireless communication, GPS, Satellite phones, WLAN, Bluetooth, Wi-Fi, etc.
E:Output Channel: 12 output channels, power adjustable(gear regulation)
Features
Drag box design can be installed in the car, convenient to use in different field application;
Ultra-wideband jamming coverage; continuously jamming wireless signals 20M~3000MHz;
Modular design ensures flexible operation; 12 channels with fault alarm function can be managed separately;
Each channel module can start or close individually;
Efficient frequency division ensures the best interference effect on signals of different frequencies;
Efficient power distribution minimizes power loss and improves efficiency; the power can be regulated as needed (gear regulation);
High gain antenna system makes the interfering signal more targeted, the effective power more centralized;
The built-in intelligent thermostat system ensures long-time running;
Sophisticated manufacturing technology, portable trolley-type case, easy to carry;
ISO9001:2008 quality management system;
Main Parts

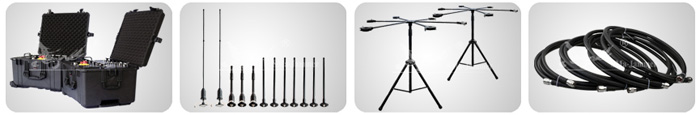

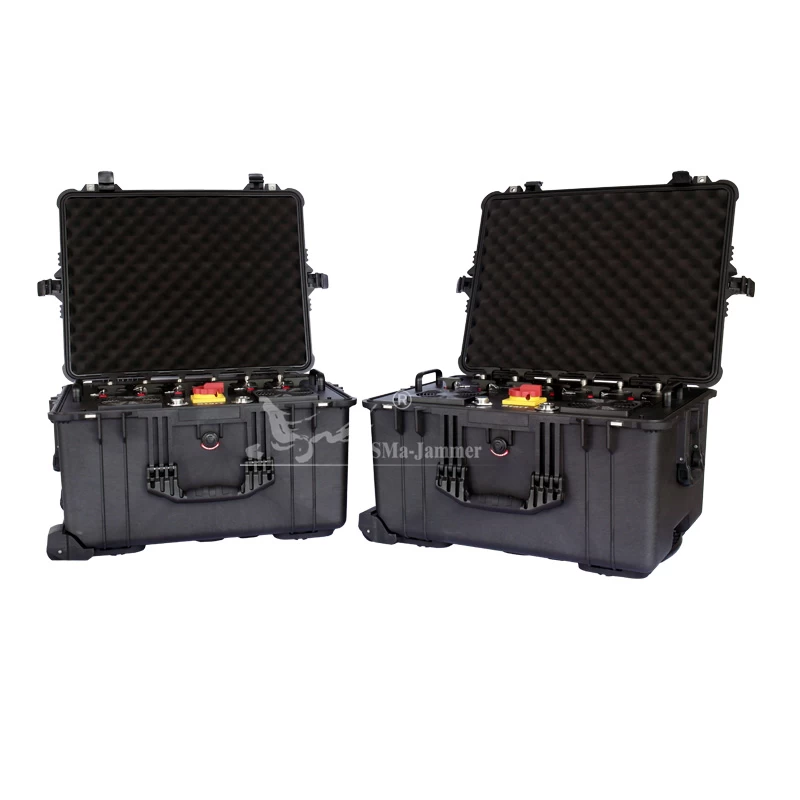

Host(2) LF/HF Antenna Fast Loading Antenna Frame Feeders

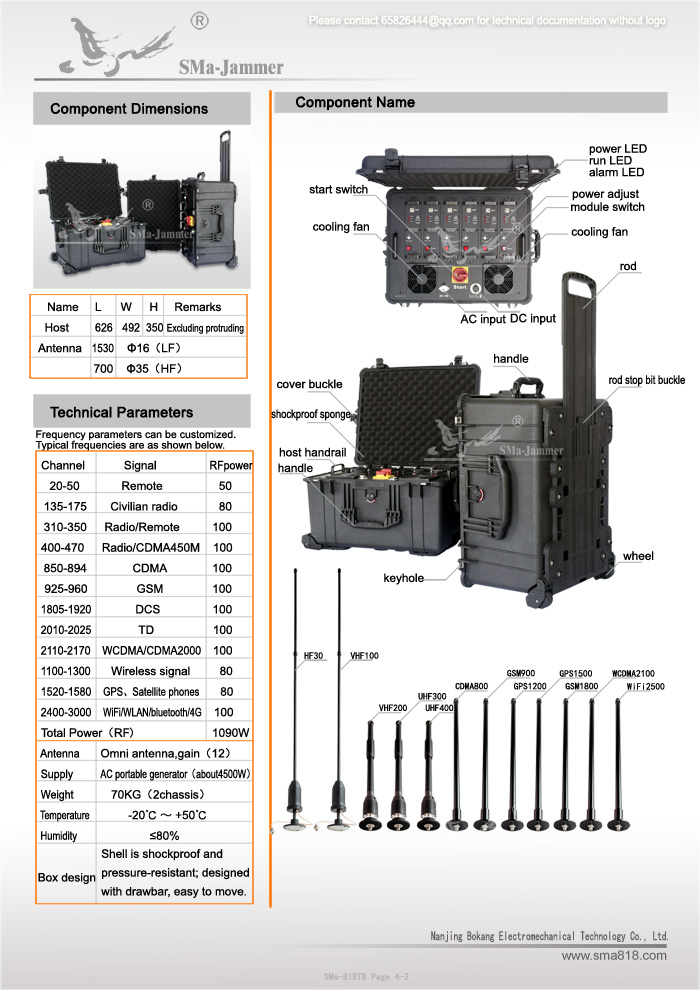

Detailed Technical Parameters
Frequency parameters can be customized. Typical frequencies are as shown below
|
Band parameter
|
Channel
|
Operating Frequency
|
Average output power
|
|
All kinds of remote
|
20-50 MHz
|
50W
|
|
Civilian radio
|
135-175 MHz
|
80W
|
|
Radio/Remote
|
310-350 MHz
|
100W
|
|
Remote/CDMA450M
|
400-470 MHz
|
100W
|
|
CDMA
|
850-894 MHz
|
100W
|
|
GSM
|
925-960 MHz
|
100W
|
|
DCS/PHS
|
1805-1920MHz
|
100W
|
|
TD
|
2010-2025MHz
|
100W
|
|
WCDMA/CDMA2000
|
2110-2170MHz
|
100W
|
|
Other wireless communication signals
|
1100-1300MHz
|
80W
|
|
GPS/Satellite phones
|
1520-1580 MHz
|
80W
|
|
Wi-Fi/WLAN/Bluetooth/4G
|
2400-3000MHz
|
100W
|
|
Total power(RF)
|
1090W
|
|
Host weight
|
70Kg(two chassis)
|
|
Host size
|
626*492*350
|
|
Antenna size
|
L(LF):1530 Φ16 / S(HF):700 Φ35
|
|
Power supply
|
AC portable generator(About4500W)
|
|
Ambient temperature
|
-20℃～50℃
|
|
Relative humidity
|
≤80%
|
|
Antenna parameters
|
High gain Omni antenna(12)
|
|
Box design
|
Shell is shockproof and pressure-resistant; designed with drawbar, easy to move.
|

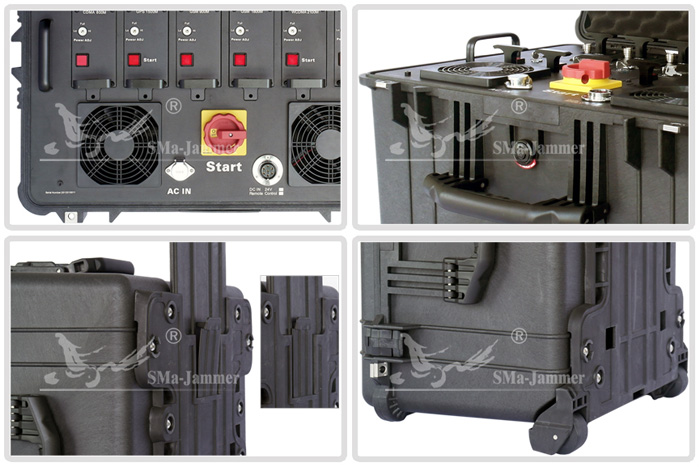

Product Details
Cautions
A:Unpacking Inspection
1） Check main devices and components according Packing List. Please contact the manufacture if any part missing.
2） Confirm the quantity and labels of antennas.
B: Antenna Installation
1） Low Frequency antenna is long and is recommended to be installed at the back of the vehicle.
2） High Frequency antenna is recommended to be installed on the roof. An antenna mount with a turnover mechanism is optional, so that the antenna can be folded and put on the roof when it is stand by.
3） 4X4 ORV (Off-Road Vehicle) is recommended.
C: Vehicle Power Supply
1） Portable generator is necessary to provide high-power (AC).
2） Output of generator is not less than 5000KVA.
3） A BUFFALO Power Generator is recommended for low-noise, small-size and high-power portable application.
D: Cooling & Ventilation
1） This product has an intelligent cooling and ventilation system, and auxiliary cooling is unnecessary.
2） Air intake/exhaust is recommended to ensure air circulation in vehicle.

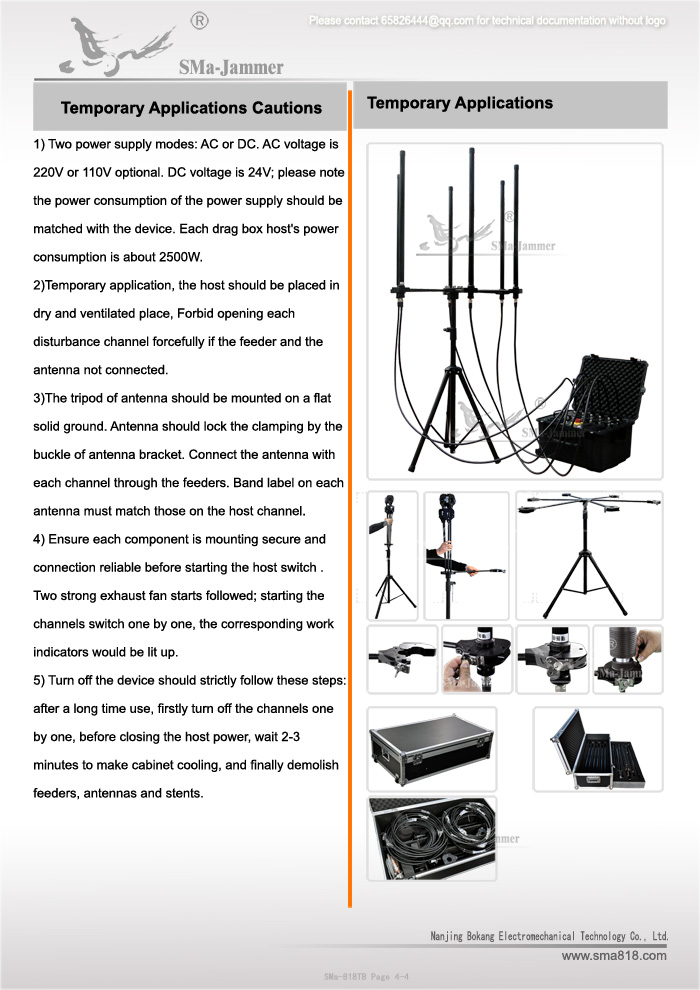

Temporary Application Cautions
1)Two power supply modes: AC or DC. AC voltage is 220V or 110V optional. DC voltage is 24V; please note the power consumption of the power supply should be matched with the device. Each drag box host's power consumption is about 2500W.
2) Temporary application, the host should be placed in dry and ventilated place, Forbid opening each disturbance channel forcefully if the feeder and the antenna not connected.

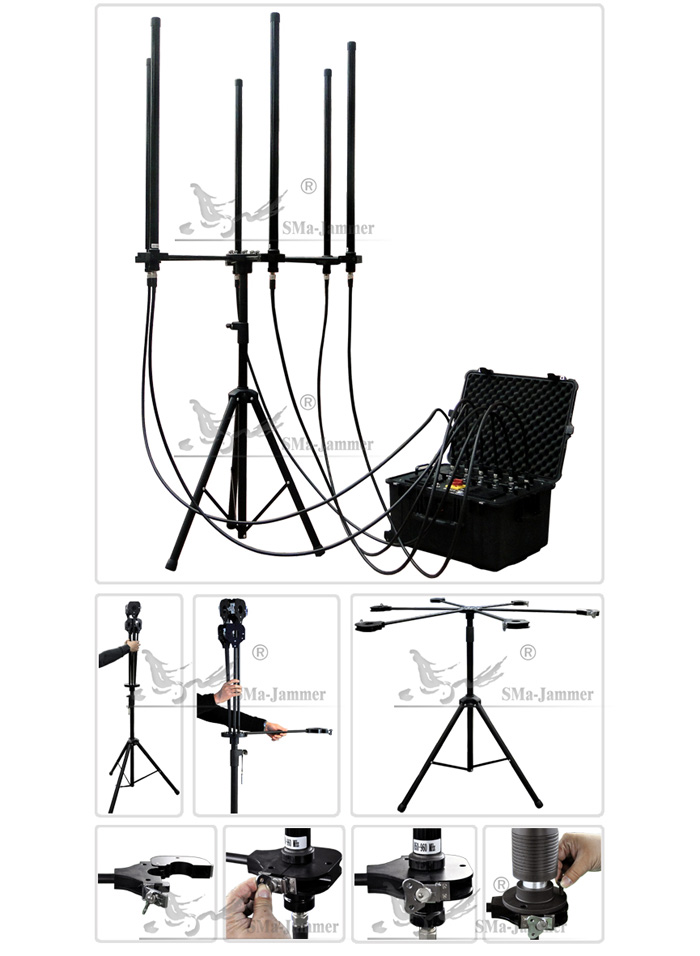

3) The tripod of antenna should be mounted on a flat solid ground. Antenna should lock the clamping by the buckle of antenna bracket. Connect the antenna with each channel through the feeders. Band label on each antenna must match those on the host channel.
4) Before starting the host switch, ensure that each component is mounting secure and connection reliable. Two strong exhaust fan starts followed; starting the channels switch one by one, the corresponding work indicators would be lit up.
5) Turn off the device should strictly follow these steps: after a long time use, firstly turn off the channels one by one, before closing the host power, wait 2-3 minutes to make cabinet cooling, and finally demolish feeders, antennas and stents.
OEM Customized Service
Silkscreen OEM service can be offered for 5 jammers or above.
Neutral jammers can be provided

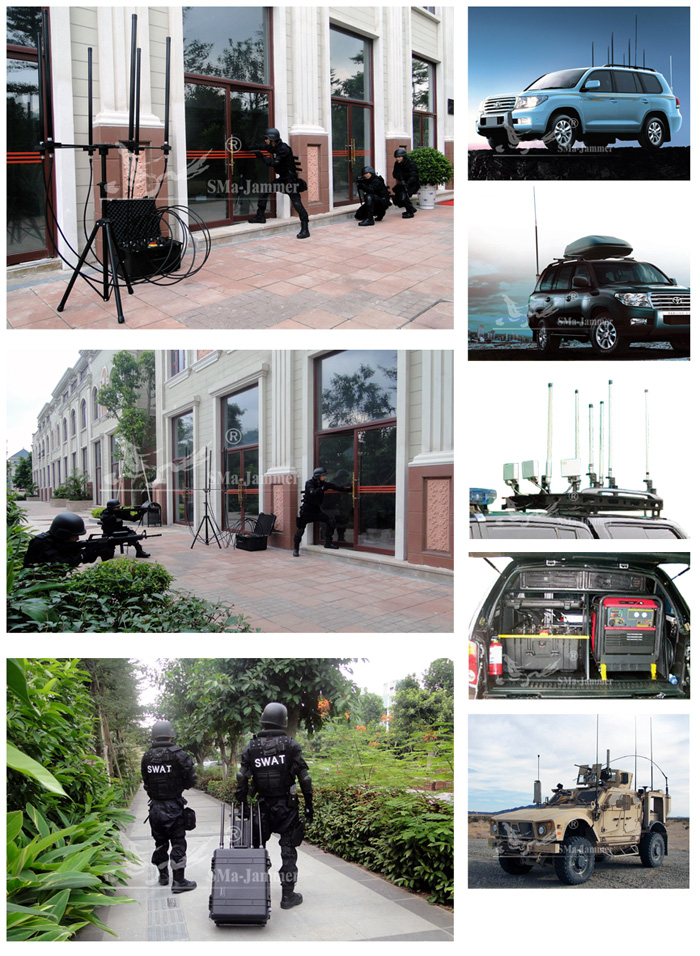

Application&Modified Examples
