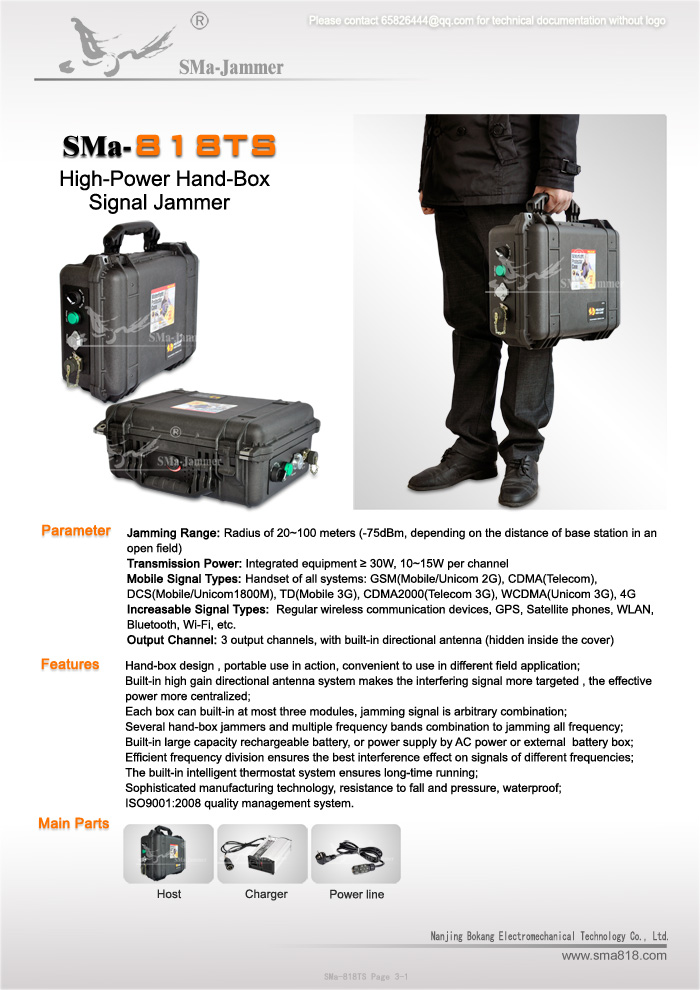

SMa-818TS High-Power Hand-Box Signal Jammer PDF clear version download
SMa-818TS High-Power Hand-Box Signal Jammer PDF clear version download
SMa-818TS High-Power Hand-Box Signal Jammer
Applications
The wireless signal jammer is suitable to protect important leadership or VIP security, individual combat, SWAT teams, EOD teams, anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement, hostage negotiations, border control and military security forces and other application areas.
The signal jamming device combined with two hand-boxes, could shield all signal system, like Mobile, Unicom and Telecom. It can portable use in action, or hidden in the corner of room with highly hidden performance.
Technical Parameter
A:Jamming Range: Radius of 20~100 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥30W, 10~15W per channel
C:Mobile Signal Types: Handset of all systems: GSM(Mobile/Unicom 2G), CDMA(Telecom), DCS(Mobile/Unicom1800M), TD(Mobile 3G), CDMA2000(Telecom 3G), WCDMA(Unicom 3G), 4G
D:Increasable Signal Types: regular wireless communication devices, GPS, Satellite phones, WLAN, Bluetooth, Wi-Fi, etc.
E:Output Channel: 3 output channels, with built-in directional antenna (hidden inside the cover)
Features

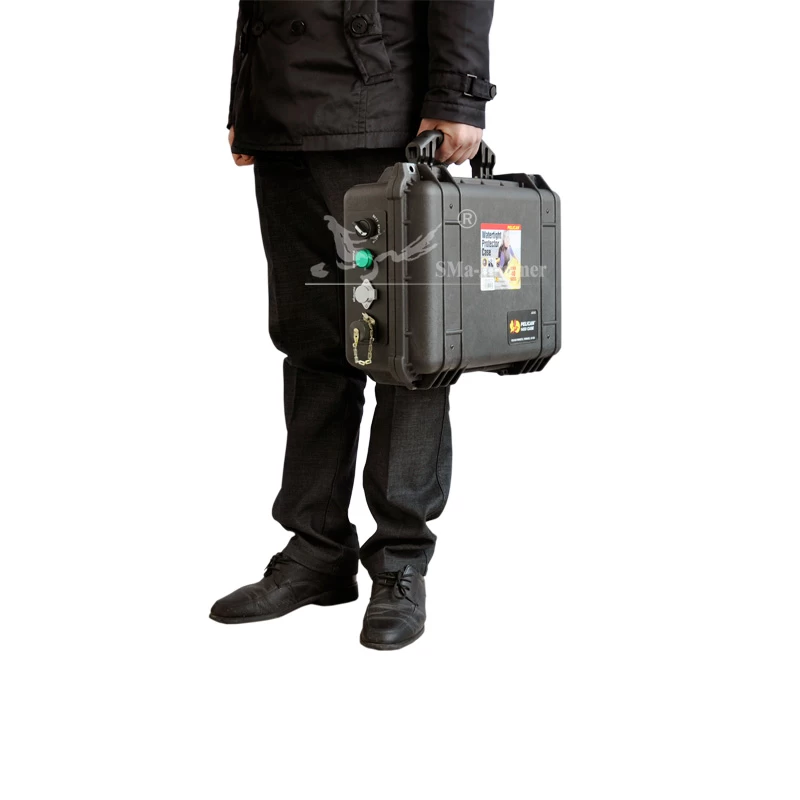

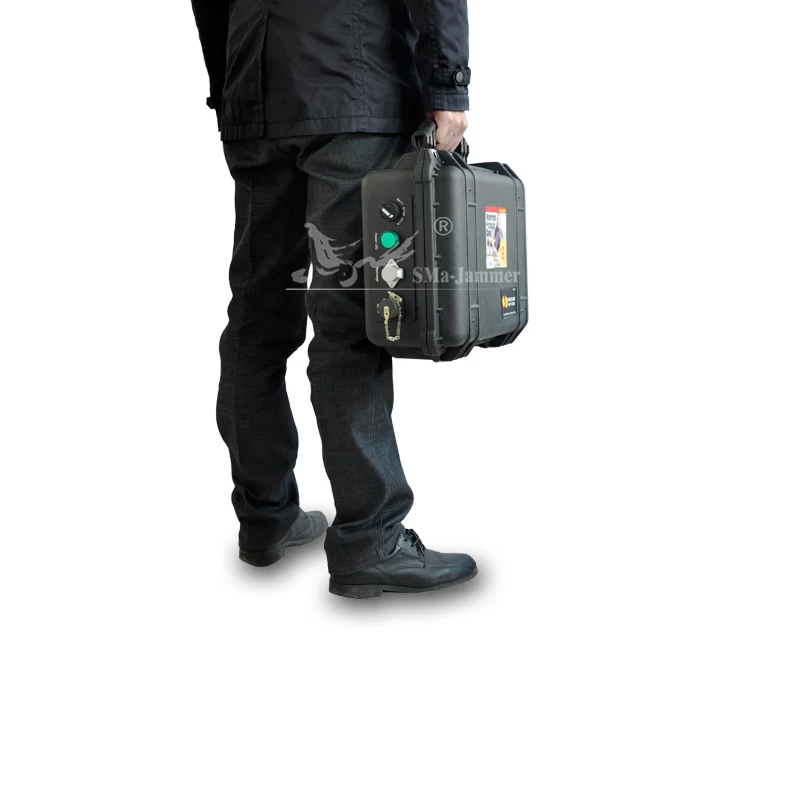

Hand-box design , portable use in action, convenient to use in different field application;
Built-in high gain directional antenna system makes the interfering signal more targeted , the effective power more centralized;
Each box can built-in at most three modules, jamming signal is arbitrary combination;
Several hand-box jammers and multiple frequency bands combination to jamming all frequency;
Built-in large capacity rechargeable battery, or power supply by AC power or external battery box;
Efficient frequency division ensures the best interference effect on signals of different frequencies;
The built-in intelligent thermostat system ensures long-time running;
Sophisticated manufacturing technology, resistance to fall and pressure, waterproof;
ISO9001:2008 quality management system;

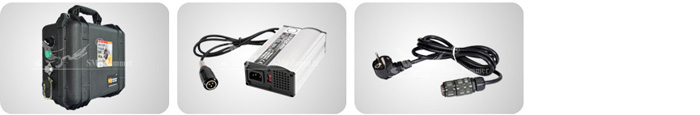

Main Parts
Host Charger Power Line
Detailed Technical Parameter
|
Band parameter
|
Channel
|
Frequency
|
Output power
|
|
CH1：DCS
|
1805-1920MHz
|
10-15W
|
|
CH2:3G
|
2010-2170MHz
|
10-15W
|
|
CH3:4G
|
2555-2655MHz
|
10-15W
|
|
CDMA
|
867-885MHz
|
10-15W
|
|
GSM900
|
925-960MHz
|
10-15W
|
|
SATELLITE/GPS
|
1530-1580MHz
|
10-15W
|
|
DCS1800
|
1805-1850MHz
|
10-15W
|
|
FDD-LTE
|
1850-1880MHz
|
10-15W
|
|
TDD-LTE
|
1880-1920MHz
|
10-15W
|
|
TD-SCDMA
|
2010-2170MHz
|
10-15W
|
|
CDMA2000
|
2110-2125MHz
|
10-15W
|
|
WCDMA
|
2130-2170MHz
|
10-15W
|
|
TDD-LTE
|
2300-2390MHz
|
10-15W
|
|
WiFi
|
2400-2500MHz
|
10-15W
|
|
TDD-LTE
|
2555-2655MHz
|
10-15W
|
|
Host size
|
406x330x174（including protruding）
|
|
Host weight
|
10.4Kg
|
|
Ambient temperature
|
-40-55℃
|
|
Relative humidity
|
≤85%
|
|
Power consumption
|
≤300W
|
|
Power input
|
AC 100V-240V DC： 24V
|
|
Rechargeable battery
|
Built-in 20AH storage battery、continues 70-90 minutes
|
|
Antenna
|
Built-in directional antenna、gain 4-5dBi
|
|
Switch control
|
Manual switch
|
|
Chassis
|
PELICAN standard military instrument box
|
Attention: we list normal frequency band in table, and frequency band module can be customized according to users’ requirement.

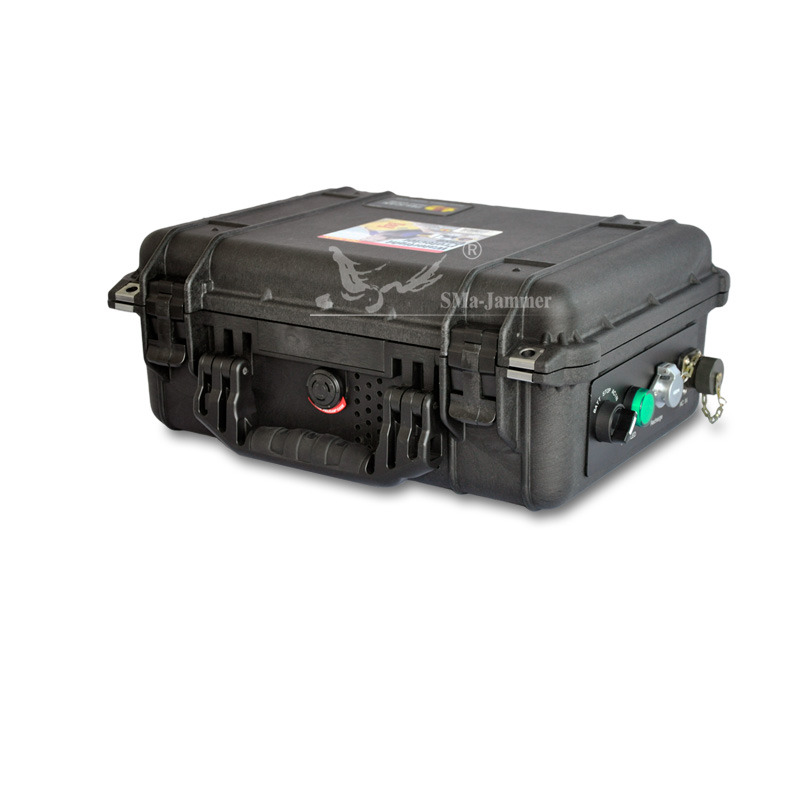

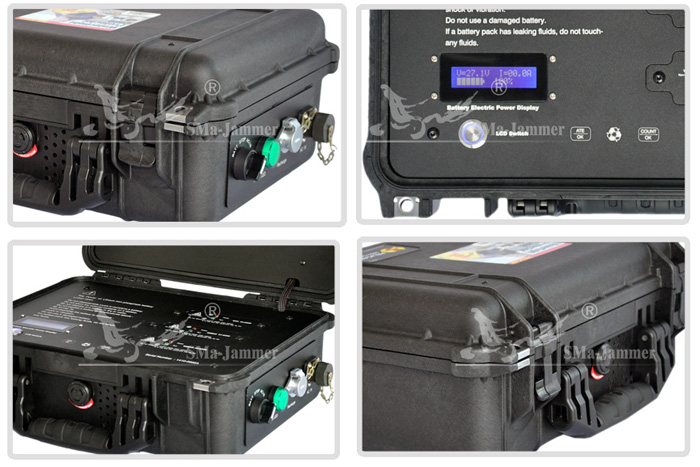

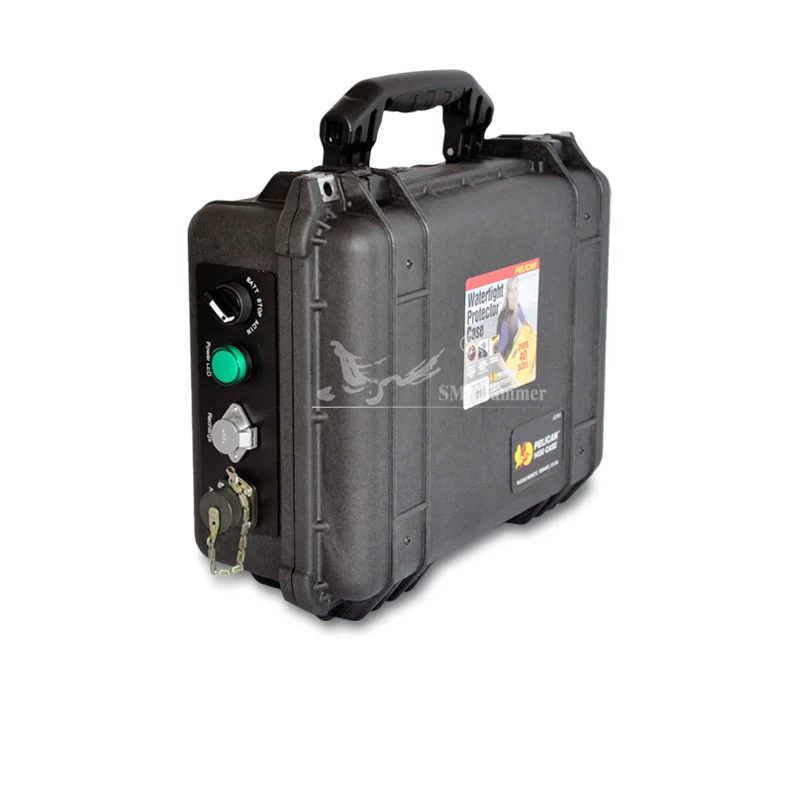

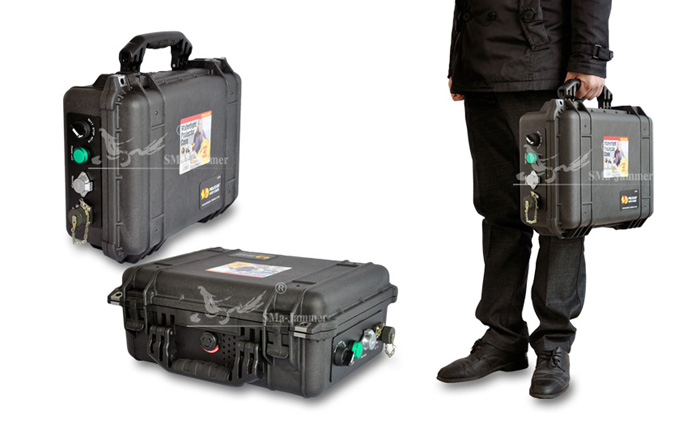

Product Details

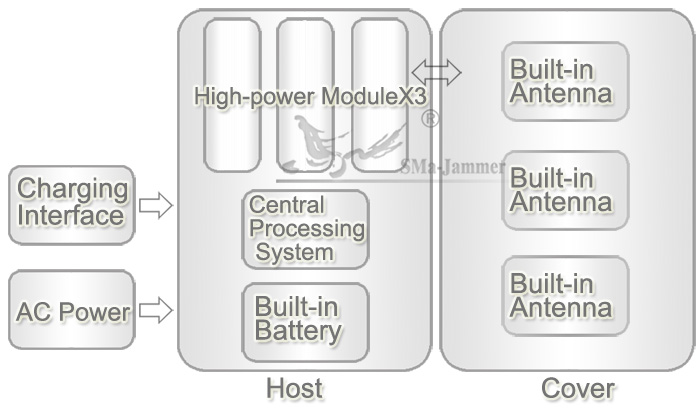

The Device Structure and Working Principle
The device is robust housing, dustproof, shockproof, resistance of fall. Flexible power supply ways, such as external AC power, built-in battery, external battery box and generator.
Modular design, each module can combination freedom. Each hand-box consists of three modules, frequency can be customized.
Built-in Battery
Use Lithium iron phosphate battery to ensure safe application.
The built-in battery capacity of draw-bar box: 24V35Ah
|
Type
|
RFE-8F35
|
|
Voltage
|
27V
|
|
Resistance
|
24MΩ
|
|
Size
|
225x150x130mm
|
|
Charging current
|
0.2C
|
|
Discharging current
|
1C
|
|
Weight
|
8Kg
|
|
Charger input
|
AC 100-230V
|
|
Charger output
|
DC 29V/5A
|

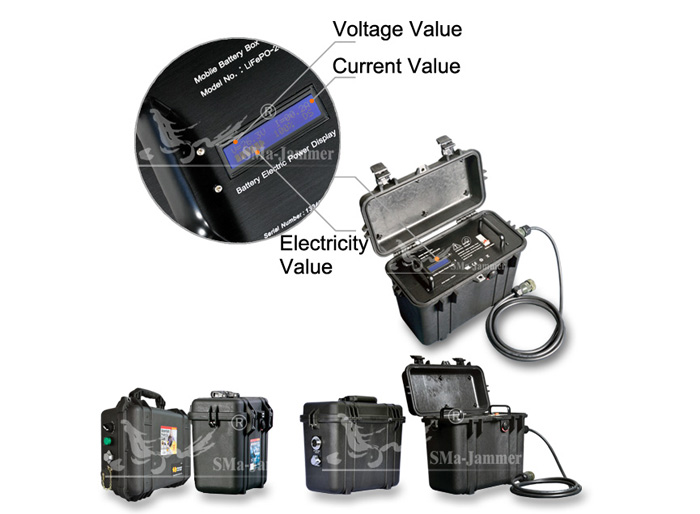

The Battery Box
The battery capacity of external battery box: 24V35Ah
|
Type
|
RFE-8F35
|
|
Voltage
|
27V
|
|
Resistance
|
24MΩ
|
|
Size
|
430x245x340mm
|
|
Charging current
|
0.2C
|
|
Discharging current
|
1C
|
|
Weight
|
12Kg
|
|
Charger input
|
AC 100-230V
|
|
Charger output
|
DC 29V/5A
|
OEM Customized Service
Frequency customization as needed of Wi-Fi, Bluetooth, GPS, etc.
Silkscreen OEM service can be offered for 5 jammers or above.
Neutral jammers can be provided.
