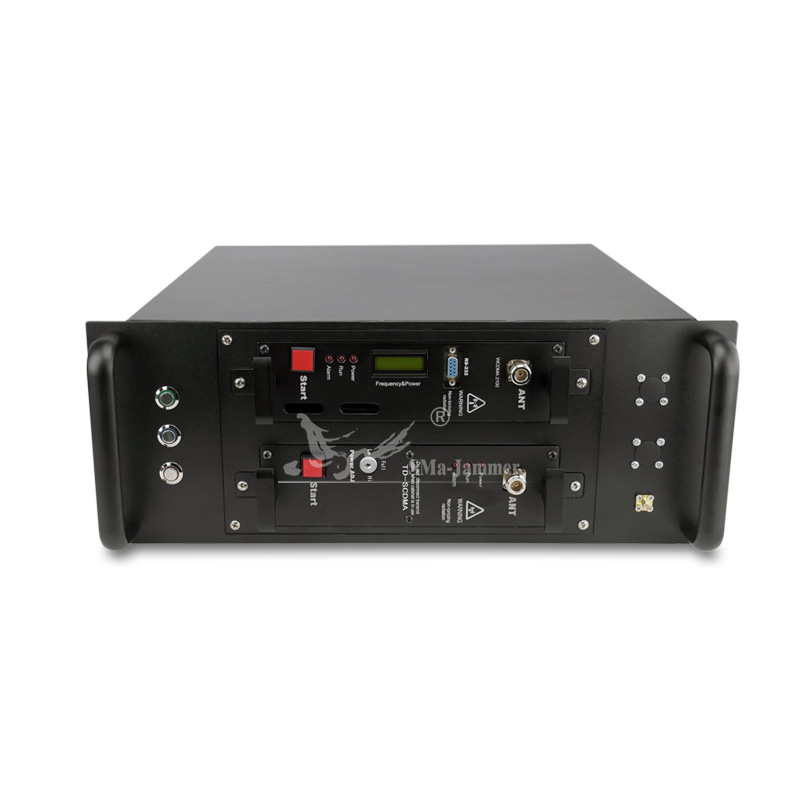

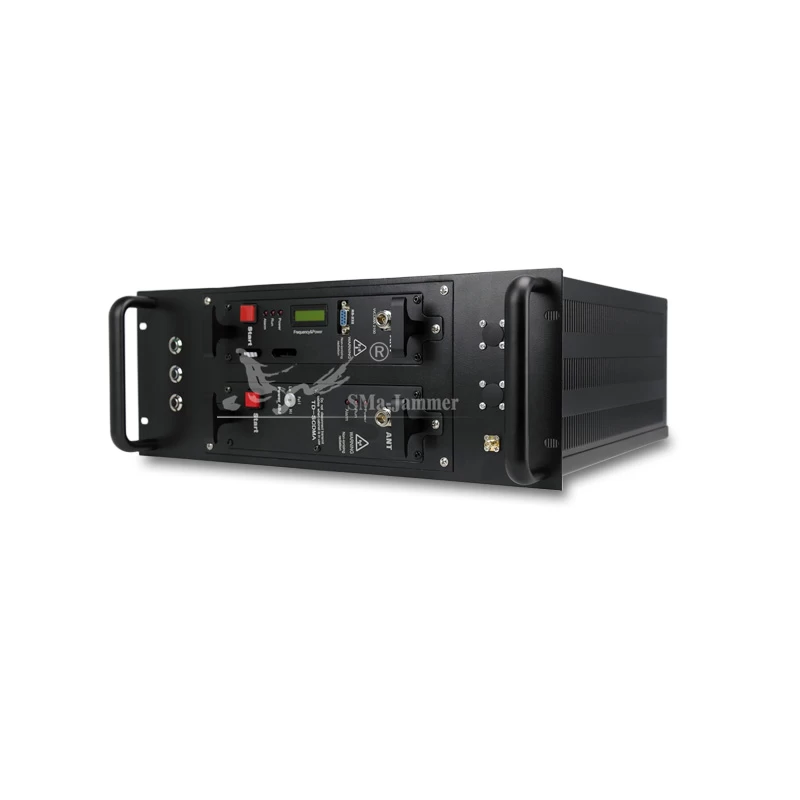

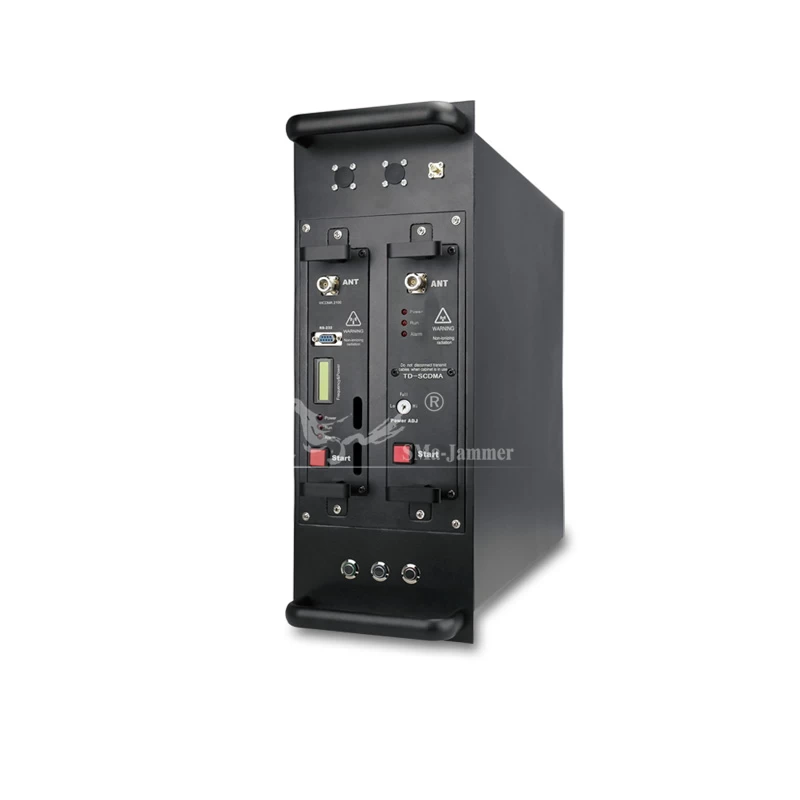

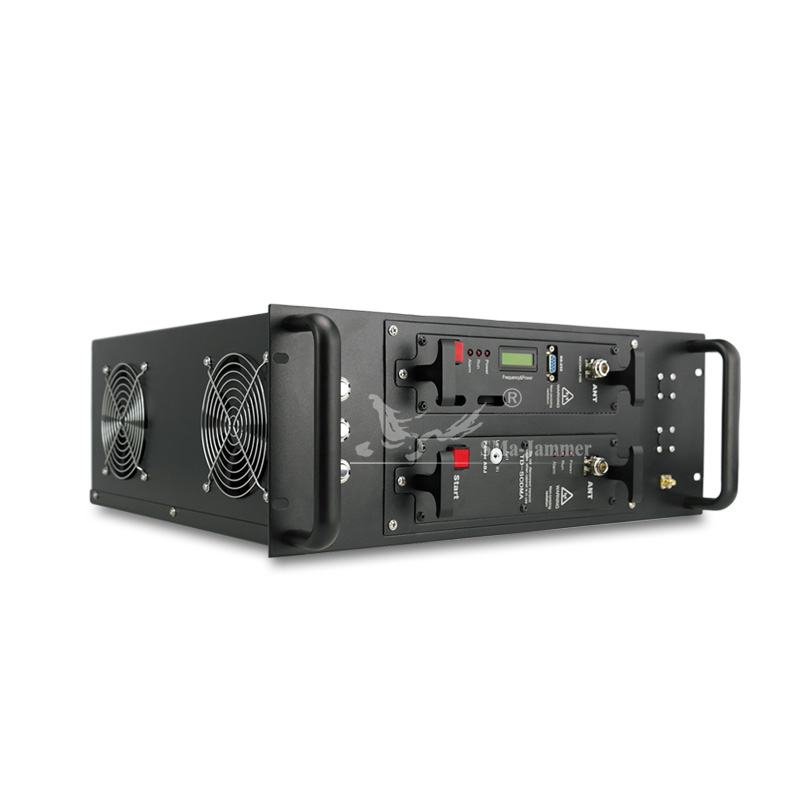

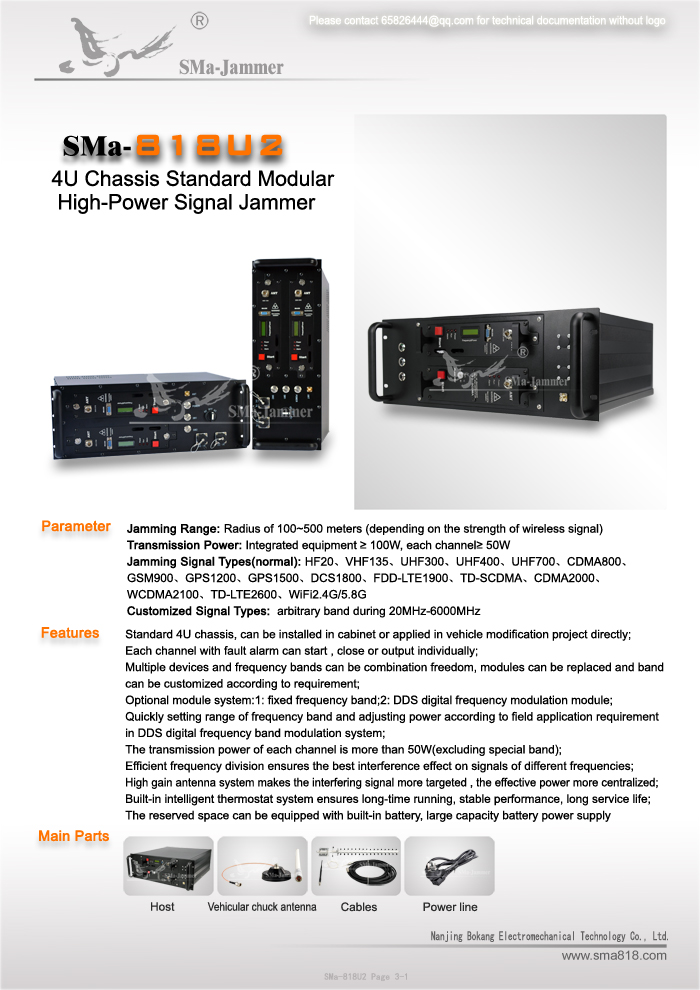

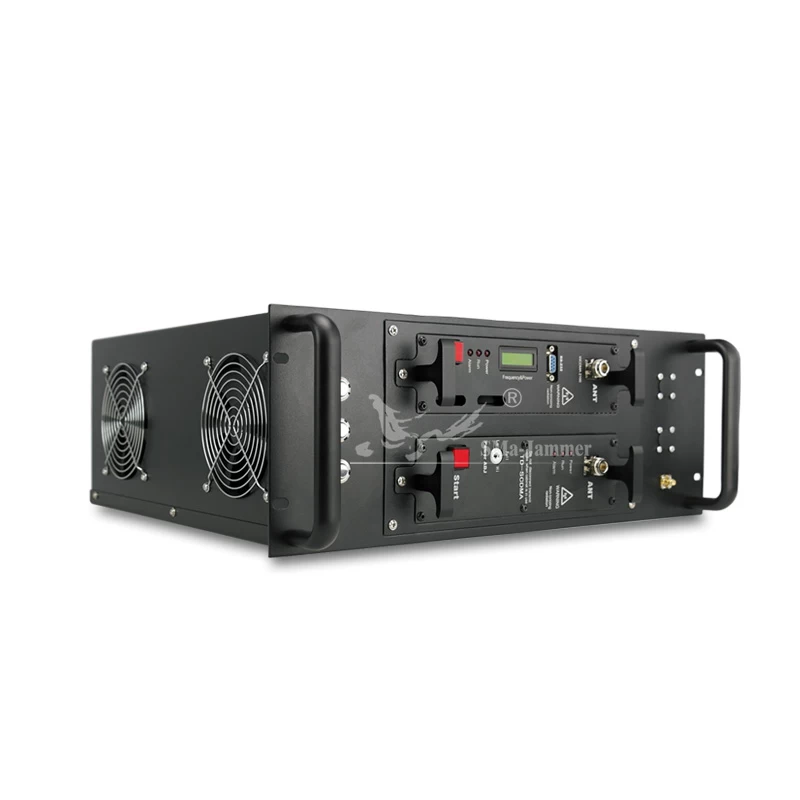

SMa-818U2 4U Chassis Standard Modular High-Power Signal Jammer
Application
The wireless signal jammer is suitable to protect important leadership or VIP security, individual combat, SWAT teams, EOD teams, anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement, hostage negotiations, border control and military security forces and other application areas.
One device can be optionally configured with two standard modules (common band: 20~3000MHz), arbitrarily combination, it can be portable use, vehicular use and directly install in cabinet or machine frame.
Vehicle-specific antenna can be configured according to customers’ requirements.
Technical Parameters
A:Jamming Range: Radius of 100~500 meters (depending on the strength of wireless signal)
B:Transmission Power: Integrated equipment ≥ 100W, each channel ≥50W
C:Mobile Signal Types(normal): HF20、VHF135、UHF300、UHF400、CDMA800、GSM900、GPS1500、DCS1800、FDD-LTE1900、TD-SCDMA、WCDMA、WiFi、Bluetooth、TD-LTE2600
D:Customized Signal Type: arbitrary band during 20MHz-3000MHz
E:Output Channel: 2 output channels, standard configuration is two high-power modules
Features

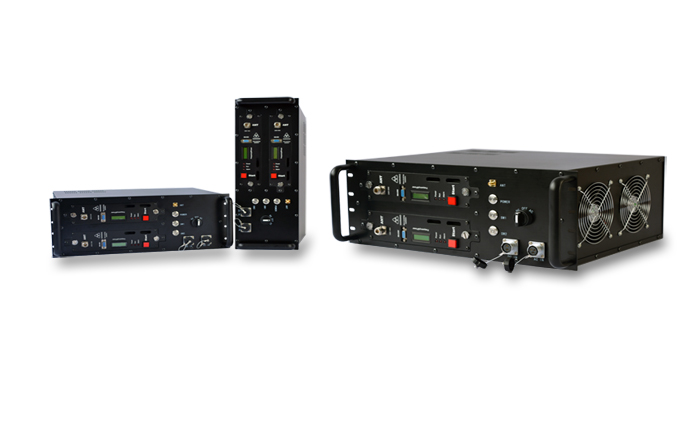

Standard 4U chassis, can be installed in cabinet or applied in vehicle modification project directly;
Each channel with fault alarm can start , close or output individually;
Multiple devices and frequency bands can be combination freedom, modules can be replaced and band can be customized according to requirement;
Optional module system:1: fixed frequency band;2: DDS digital frequency modulation module;
Quickly setting range of frequency band and adjusting power according to field application requirement in DDS digital frequency band modulation system;
The transmission power of each channel is more than 50W(excluding special band);
Efficient frequency division ensures the best interference effect on signals of different frequencies;
High gain antenna system makes the interfering signal more targeted , the effective power more centralized;
The built-in intelligent thermostat system ensures long-time running, stable performance, long service life;
ISO9001:2008 quality management system;

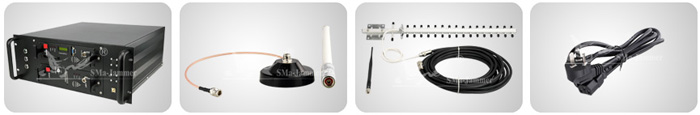

Main Parts
Host Vehicle Chuck Antenna Cables Power Line

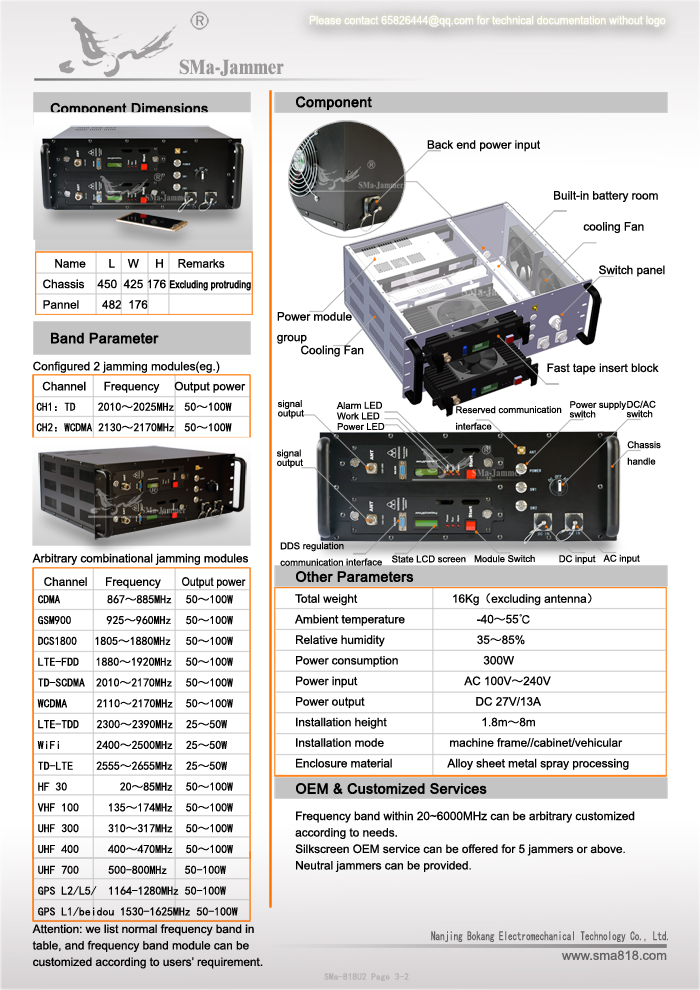

Detailed Technical Parameters
|
Band parameter
|
Channel
|
Frequency
|
Output power
|
|
CH1:TD
|
2010-2025MHz
|
50-100W
|
|
CH2:WCDMA
|
2130-2170MHz
|
50-100W
|
|
CDMA
|
867-885MHz
|
50-100W
|
|
GSM900
|
925-960MHz
|
50-100W
|
|
SATELLITE/GPS
|
1530-1580MHz
|
50-100W
|
|
DCS1800
|
1805-1880MHz
|
50-100W
|
|
LTE-FDD
|
1880-1920MHz
|
50-100W
|
|
TD-SCDMA
|
2010-2170MHz
|
50-100W
|
|
WCDMA
|
2110-2170MHz
|
50-100W
|
|
LTE-TDD
|
2300-2390MHz
|
25-50W
|
|
WiFi
|
2400-2500MHz
|
25-50W
|
|
TD-LTE
|
2555-2655MHz
|
25-50W
|
|
HF 30
|
20-85MHz
|
50-100W
|
|
VHF 100
|
135-174MHz
|
50-100W
|
|
UHF 300
|
310-317MHz
|
50-100W
|
|
UHF 400
|
400-470MHz
|
50-100W
|
|
Total weight
|
16Kg(excluding antenna)
|
|
Chassis size
|
450x425x176(excluding protruding)
|
|
Panel size
|
482x176
|
|
Ambient temperature
|
-40-55℃
|
|
Relative humidity
|
35-85%
|
|
Power consumption
|
300W
|
|
Power input
|
AC 100V-240V
|
|
Power output
|
DC 27V/13A
|
|
Installation height
|
1.8m-8m
|
|
Installation mode
|
Machine frame/cabinet/vehicular
|
|
Enclosure material
|
Alloy sheet metal spray processing
|
Attention: we list normal frequency band in table, and frequency band module can be customized according to users’ requirement.

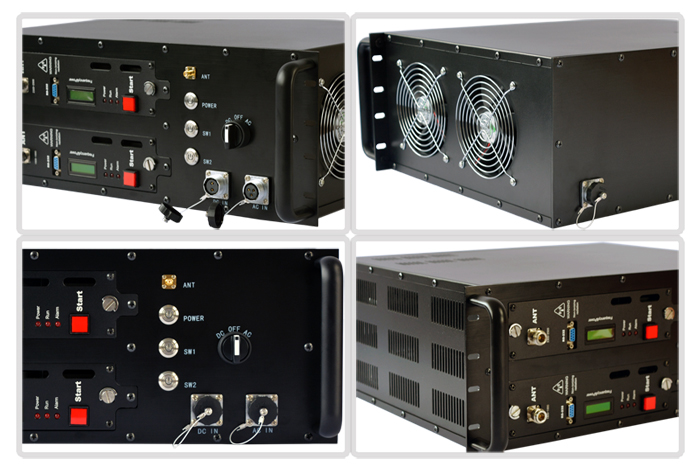

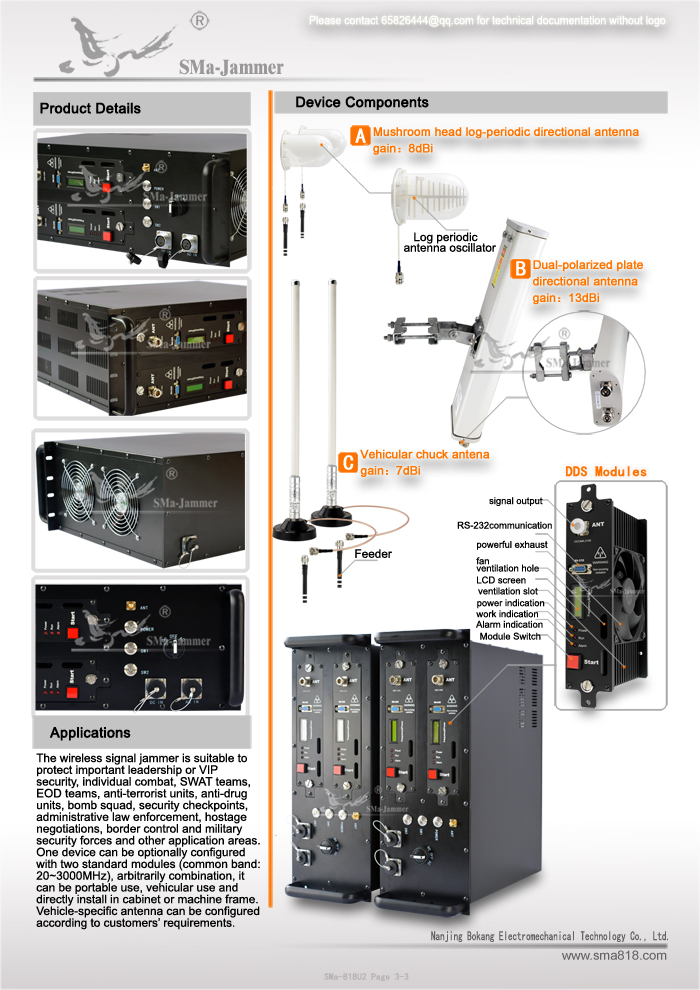

Product Details

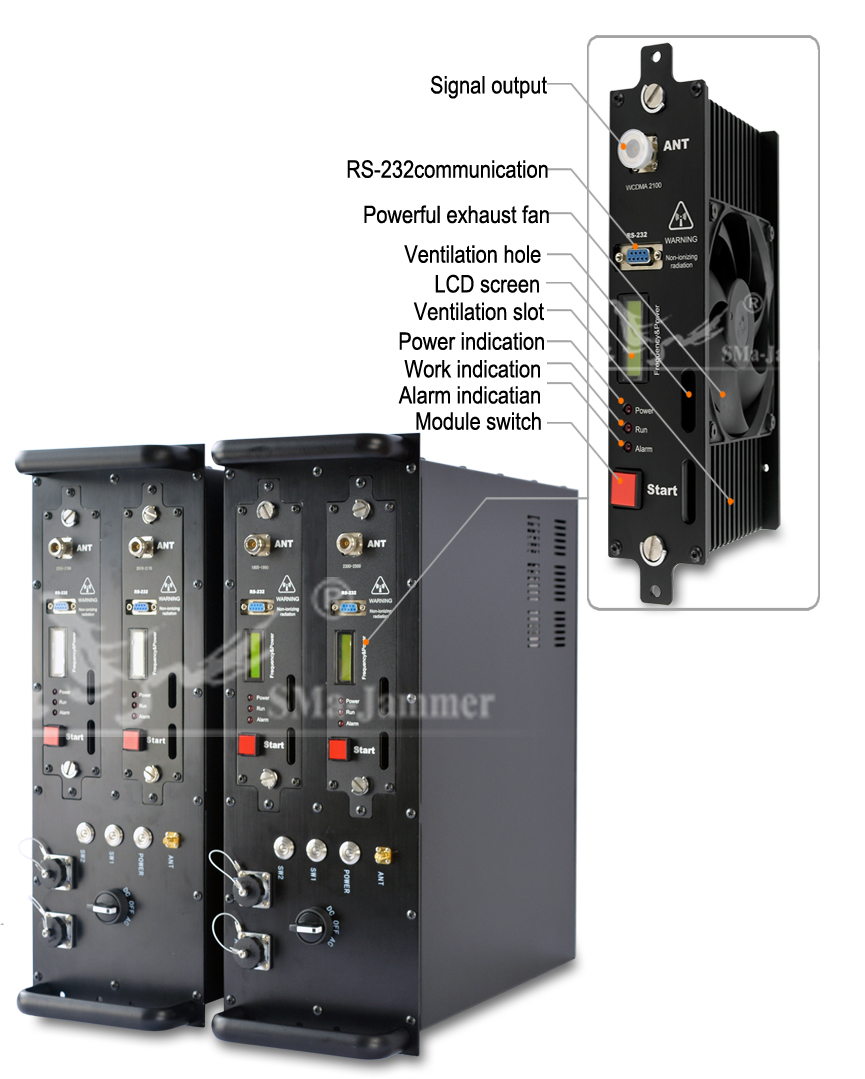

Components

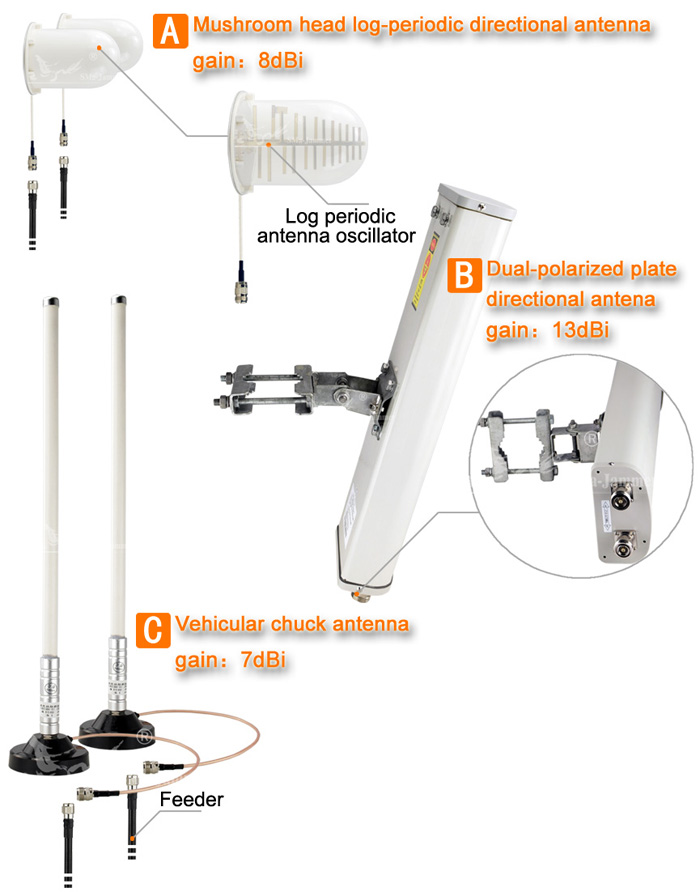

Antenna
DDS Module
OEM Customized Service
Frequency band within 20~3000MHz can be arbitrary customized according to needs.
Silkscreen OEM service can be offered for 5 jammers or above.
Neutral jammers can be provided.
